Home / TOA PE304 Pendant Speaker 30w 2way
TOA
Authorised Distributor

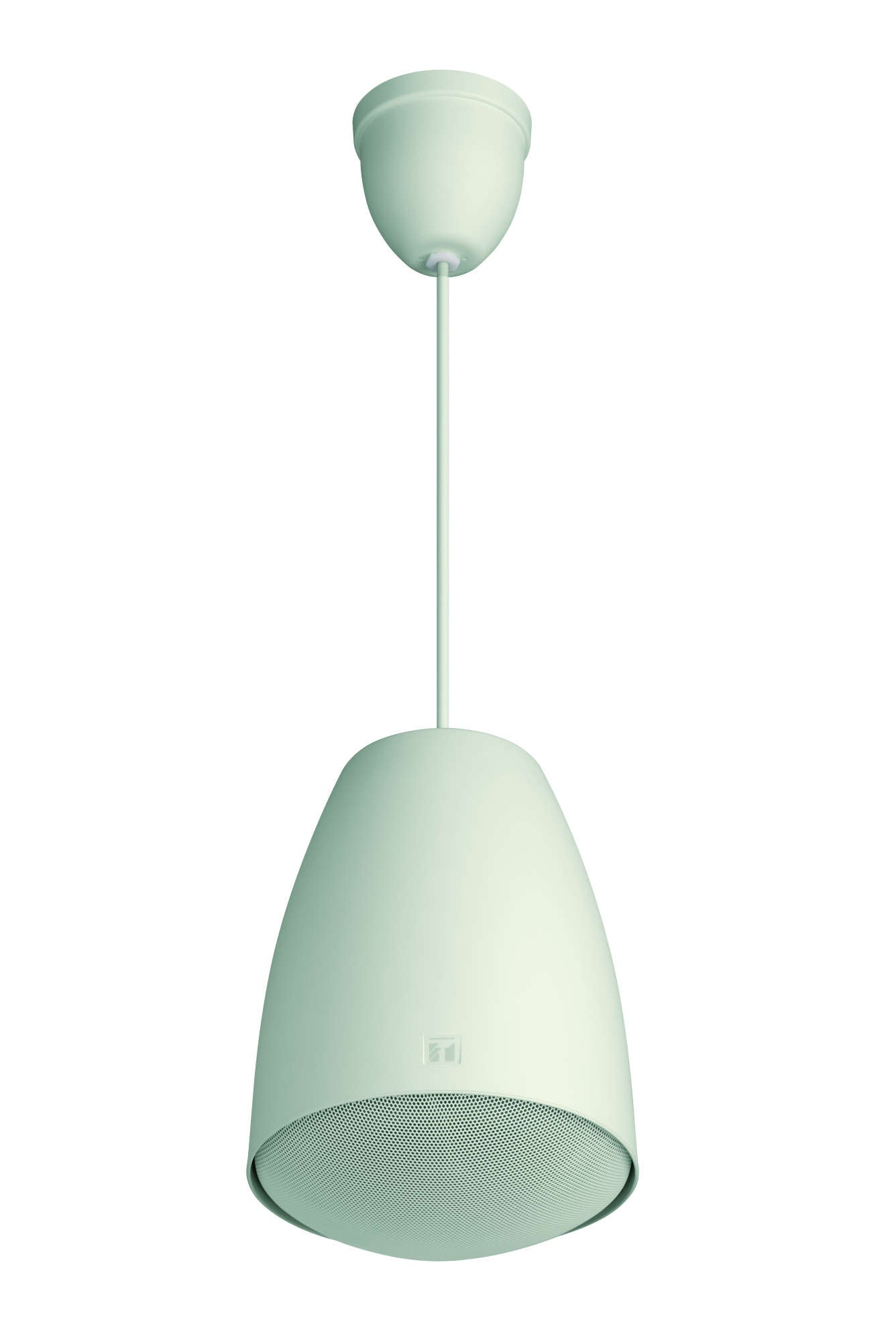

TOA PE304 Pendant Speaker 30w 2way

SKU: PE304

Log in to view price Trade pricing — AED / USD

In stock
Request Bulk Pricing

Ask an AV specialist

Video chat Chat Email +971 50 559 4871

  • Full Specifications

    FEATURES

    • Ideally suited for BGM and announcements
    • Stylish and outstanding design inspired by the finest lighting fixtures
    • Excellent sound quality
    • Sturdy cable extendable up to 5 meters
    • Paintable
    • Input impedance easily changeable
    • Bass-reflex type


    DESCRIPTION

    Pendant Speakers

    The PE-304 is a pendant speaker designed for ceiling suspension installations. Considered in architectural design, it can blend in with lighting equipment. A directly-attached 5 m (16.4 ft) cable allows the speaker to be suspended from the high ceiling. The PE-304 is driven on both high-impedance (100 V and 70 V) and low-impedance (8 Ohm›) lines. The input power (impedance) can be easily changed at the upper side of the speaker. The speaker is easy to repaint so as to meet a wide range of design needs.

    The speaker shall be a bass-reflex 5" (12cm) cone type, plus balanced dome tweeter, suitable for ceiling suspension mounting. Input impedance shall be easily adjustable with rotary switch on the upper side of the speaker.
    The speaker shall include a transformer having multiple taps (5W, 10W, 15W, 20W, 30W at 100V and 70V, and 8ohm) adjustable. The output sound pressure level at a distance of 1m with a 1W input level applied shall be 91 dB SPL. The speaker shall have a frequency response of 70 – 20,000Hz (-20dB).
    The speaker enclosure shall be constructed of HIPS resin. The grille shall be constructed of surface-treated steel plate net. The speaker shall be available in off-white color, and shall be easily repaintable. The unit shall have dimensions of ø186 x 251 (H) mm (ø7.32” x 9.88”), and a weight of 2.1 kg (4.63 lbs.).
    The speaker shall be a TOA model PE-304.


    SPECIFICATIONS

    Attribute PE-304
    Product Type Pendant Speaker
    Power Handling (Rated Input) 30 W (100 V line)
    Speaker Component 12 cm cone-type + balanced-dome tweeter
    Frequency Response 70 Hz – 20 kHz
    Sensitivity (1 W, 1 m) 91 dB
    Input Tappings (100V Line) 330 Ω (30 W), 500 Ω (20 W), 670 Ω (15 W), 1 kΩ (10 W), 2 kΩ (5 W)
    Input Tappings (70V Line) 170 Ω (30 W), 250 Ω (20 W), 330 Ω (15 W), 500 Ω (10 W), 1 kΩ (5 W)
    Low Impedance 8 Ω
    Impedance Switching Easily changeable at the top side
    Cable Length 5 meters (16.4 ft), sturdy and extendable
    Enclosure Type Bass-reflex type
    Finish HIPS resin, off-white (RAL 9010 or equivalent)
    Dimensions (Ø x H) 186 x 251 mm
    Weight 2.1 kg
    Design Features Stylish, inspired by lighting fixtures; paintable; blends into architectural environments
    Applications Ideal for BGM and announcements

TOA

TOA is a global leader in professional PA, voice-alarm, and conference systems. Techniline is the authorised TOA distributor for the UAE & GCC — supplying, specifying, and supporting the full range with regional warranty and manufacturer-backed support.
