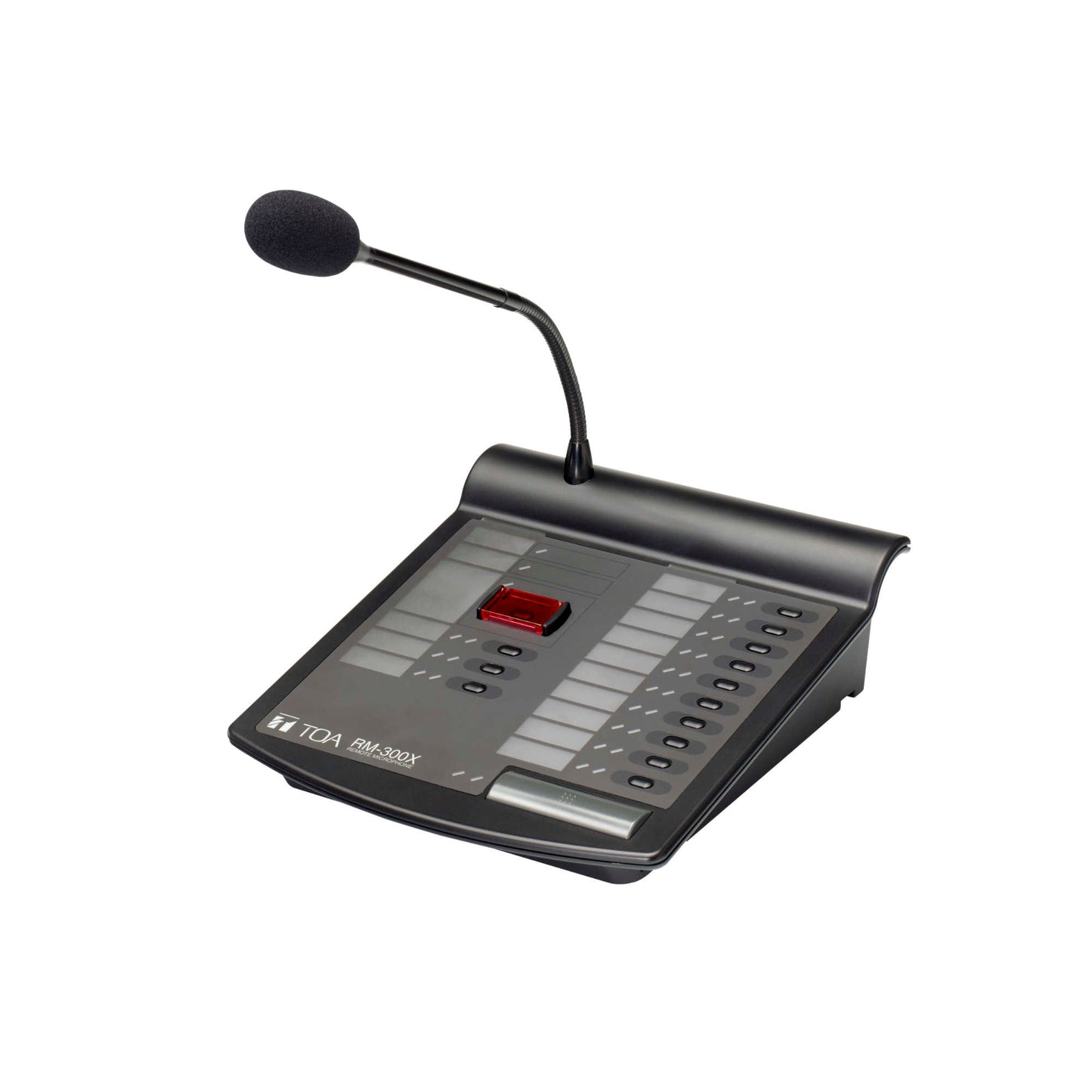

TOA RM300X Remote Microphone

SKU: RM300X
3,654.00 AED

List price. Trade accounts get better pricing: ask us for a B2B quote. Contact us

In stock
Request Bulk Pricing

Ask an AV specialist

Video chat Chat Email +971 50 559 4871

  • Full Specifications

    FEATURES

    • For both emergency and general purpose broadcast
    • Zone selection or all call
    • PC-programmable system software permits desired functions to be assigned to individual function keys (equipped with 2 LED indicators)
    • AUX Input for BGM distribution

      DESCRIPTION

      The RM-300X is a remote microphone designed for the Integrated Voice Evacuation System. It is equipped with 13 function switches that can be used to select individual zones or zone groups a covered switch and corresponding indicators. The optional RM-210F Remote microphone extension permits switches and indications to be expanded in 10-piece units.


        SPECIFICATIONS

        Parameter Details
        Power Source 24 V DC (operating range: 15 to 40 V DC), supplied from the voice evacuation frame or optional AD-246 power supply unit via DC input power connector.
        DC Plug Requirements Outer diameter: 5.5 mm, Inner diameter: 2.1 mm, Length: 9.5 mm, Non-polarity type
        Operation Function key, Emergency/All-zone emergency broadcast key, Talk key
        Current Consumption 240 mA or less
        Audio Output 0 dB*, 600 Ω, balanced
        External Microphone Input -40 dB*, 2.2 kΩ, unbalanced, ø3.5 mm phone jack (2P) with 3V DC phantom power (electret condenser mic)
        AUX Input -20 dB*, 4.7 kΩ, unbalanced, ø3.5 mm phone jack (2P)
        Distortion 1% or less
        Frequency Response 100 Hz to 20 kHz
        Signal to Noise Ratio 60 dB or more
        Microphone Unidirectional electret condenser with AGC (ON/OFF selectable)
        Chime Built-in PCM sound source, monitorable using internal speaker
        Level Control Mic sensitivity, Monitor speaker volume, Chime (via software)
        Maximum Cable Length 1200 m (3937.01 ft)
        Main Line Connection Shielded CPEV cable (1 pair audio + 1 pair data + 1 pair monitor/control + 1 pair power), or CAT5-STP or better
        Branch Line Connection Shielded CAT5-STP or better, RJ45 connector
        Connectable Extension Units Max. 7 units
        Monitor Speaker Built-in type
        Indicators Power, Failure, Status (×10), Selection (×10), Emergency, Broadcast status, Microphone
        Operating Temperature 0°C to 40°C (32°F to 104°F)
        Operating Humidity 35% to 80% RH (no condensation)
        Finish ABS resin, black, semi-gloss
