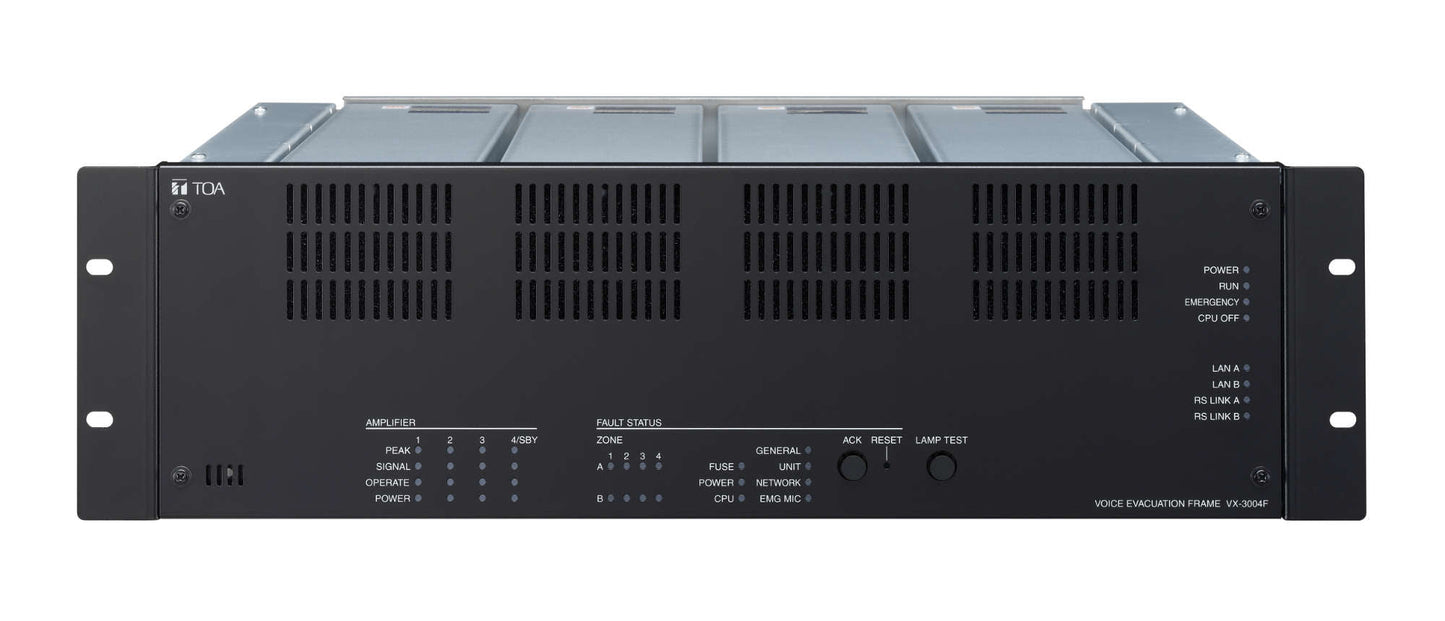

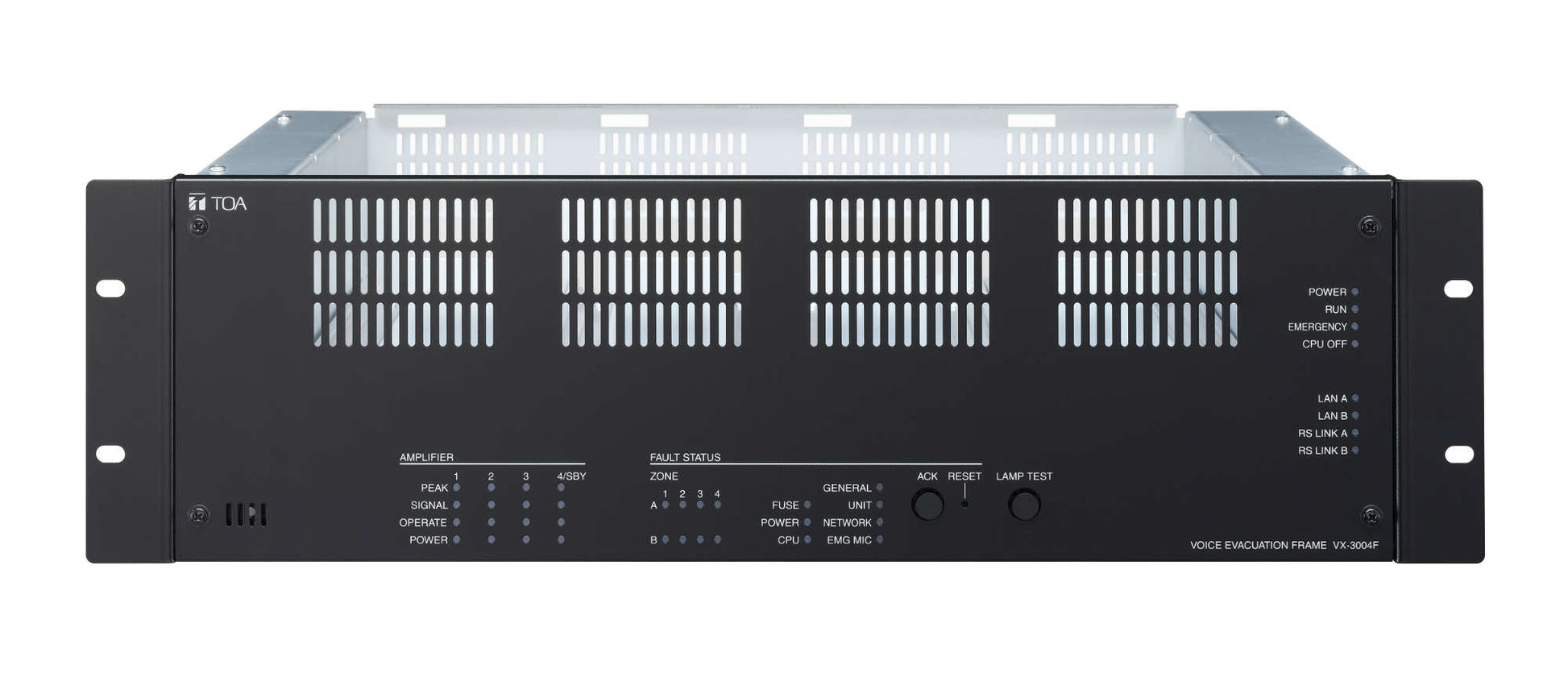

TOA VX3004F Voice Evacuation Frame

SKU: VX3004F

Log in to view price Trade pricing — AED / USD

Only 3 left
Low inventory - Hurry up!
Request Bulk Pricing

Ask an AV specialist

Video chat Chat Email +971 50 559 4871

  • Full Specifications

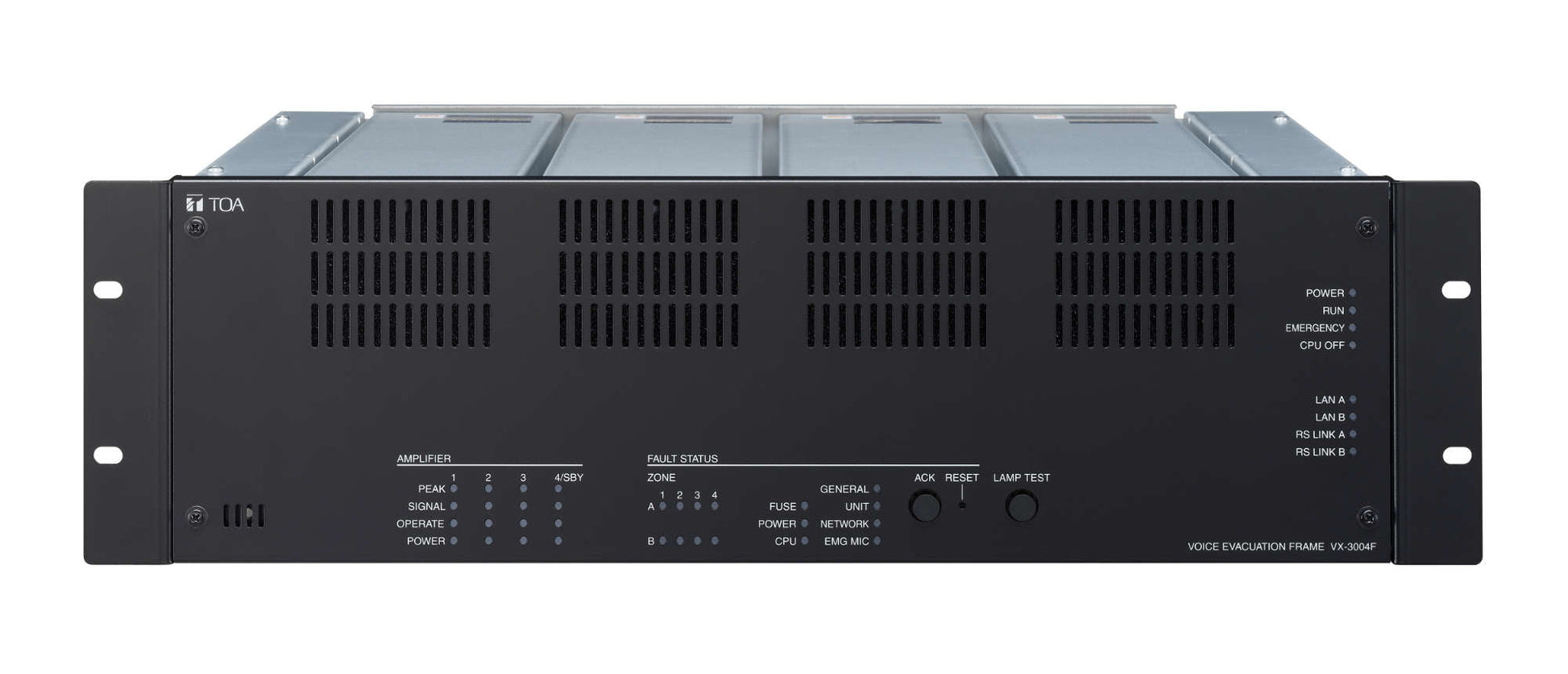

    FEATURES

    • Up to 4 amps (1 zone - 1 amp, 4 AB-zones or 3 AB zones + standby amp)
    • All mandatory indications by EN54-16
    • Status indication for each speaker line
    • Fault acknowledge and lamp test button
    • Input DSP: flexible filtertypes and compressor
    • Output DSP: flexible filtertypes, compressor and delay up to 2.7 sec.



    DESCRIPTION

    The VX-3004F is a device designed to control the voice evacuation announcements of TOA's VX-3000 Series rack-mount type voice evacuation system which is compliant with the European Standard EN54 for fire alarm systems. It has audio input terminals and can output the amplified audio signals to the speaker lines when the optional power amplifier modules are mounted.
    It is possible to make an Emergency Warning Broadcast assigned a higher priority than the Emergency broadcast. Two patterns of the Emergency broadcast can be activated simultaneously. Compatible with network, the system can be configured in distributed arrangement.
    Features include the following functions: Digital signal processing function that enables appropriate acoustic adjustment for individual input sound sources and output areas, Feedback suppressor function that automatically suppresses acoustic feedback when it occurs, VOX function that allows start/stop control of broadcast by way of an audio trigger, and ANC function that enables an ambient noise control. (The ANC function distinguishes between the unit's output sound and the ambient noise. The unit's output sound is not detected as noise.) Indicators that show such statuses as fault status and power amplifier signal status are provided. It has 4 speaker output channels, each of which is provided with A and B lines to enable duplication of the speaker lines. Up to 4 power amplifier modules can be mounted. The 4-channel amplifier can be used either for zone output or standby use. As the VX-3004F is equipped with Standby amplifier input/output terminal, the standby amplifier, when mounted, can be shared among VX-3000F units.

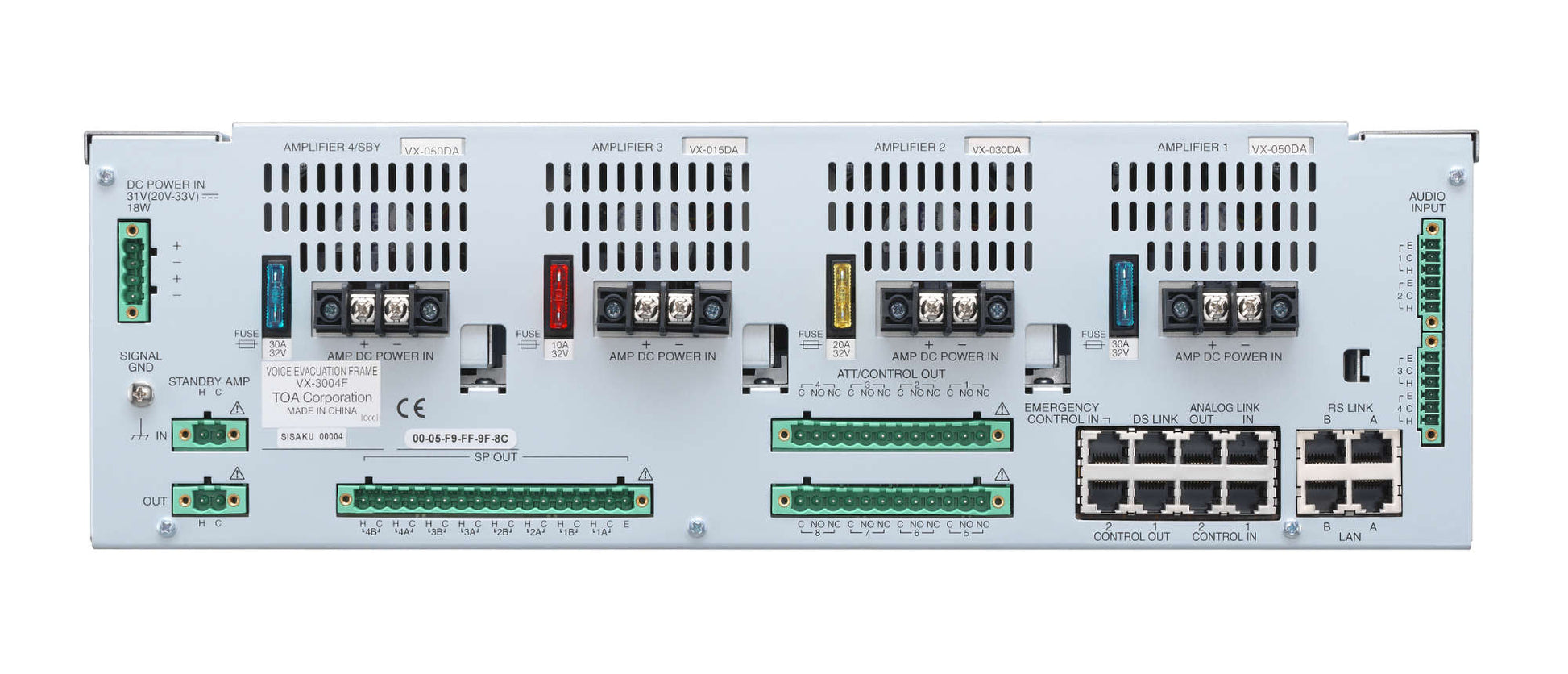

    SPECIFICATIONS

    Specification Details
    Power Source 20 - 33 V DC, removable terminal block (4 pins)
    Power Consumption 24 W (frame only) at 33 V DC input, 90 W (RS LINK: 2 A output) at 33 V DC input
    Control Input 1, 2 16 inputs, no-voltage make contact input, open voltage: 24 V DC, short-circuit current: 2 mA, Fault Detection: Short circuit, Open circuit (Voltage detect), Connector: RJ45, Cable: Shielded CAT5-STP or greater
    Emergency Control IN Input 2: Isolated voltage input, −24 to +24 V, Connector: RJ45, Cable: CAT5 or greater
    VOX Function Threshold: –60 to 0 dB (1 dB steps), Hysteresis: 0 to +10 dB, Hold time: 10 ms – 10 s, Settable per input
    Control Output 1, 2 General: 8 (CONTROL OUTPUT 1), Exclusive: 3 (CONTROL OUTPUT 2), No-voltage contact, Current: 10 mA, Voltage: 28 V DC, Connector: RJ45, Cable: Shielded CAT5-STP or greater
    ATT/Control Output 8 outputs, relay contact (NC, NO, C), Current: 2 mA to 5 A, Voltage: 125 V AC, 40 V DC, Connector: Removable terminal block (12 pins) ×2
    Digital Signal Processing Feedback Suppressor (FBS): 7 filters (auto), Equalizer: Parametric 20 Hz – 20 kHz ±15 dB Q: 0.267–69.249, Filters: HPF/LPF/Shelving/Notch/All-pass/Horn EQ
    Compressor Threshold: –20 to 0 dB, Ratio: multiple steps from 1:1 to ∞:1, Attack: 0.2 ms – 5 s, Release: 10 ms – 5 s, Gain: –∞ to +10 dB, Knee types: hard, middle, soft
    Delay Per output: 0 – 2730 ms (0.021 ms steps)
    ANC (Ambient Noise Control) Output level auto control, Sensor calibration, Output level range: –18 to 0 dB, Sample time: 10 s – 5 min, Frequency: 20 Hz – 20 kHz (3 points)
    Program Timer Weekly scheduling, 50 daily events (10 types), 50 holiday programs
    Time Adjustment Via Control input, NTP
    Speaker Line 4 channels (A/B LINE), 1 Earth terminal, Max: 100 Vrms / 5 Arms, Connector: Removable terminal block (17 pins), Fault Detection: Short/Open/Ground fault (Impedance/End of line)
    Standby Amplifier I/O Input: 1, Output: 1, Max: 100 Vrms / 5 Arms, Connector: Removable terminal block (2 pins) ×2
    Module Slot Slots: 4, DA CONTROL LINK x 4, DA OUTPUT LINK x 4 (used with amplifier module)
    Indicators POWER, RUN, EMERGENCY, CPU OFF, LAN A/B, RS LINK A/B, FAULT STATUS (GENERAL, UNIT, NETWORK, etc.), AMPLIFIER indicators (PEAK, SIGNAL, OPERATE, POWER)
    Operation Fault Control: 2 switches (ACK/RESET), Test: 1 switch (LAMP TEST), Setting switches: ID NUMBER, RESET, IMPEDANCE, internal settings
    Operating Temperature −5 °C to +45 °C (23 °F to 113 °F)
    Operating Humidity 90% RH or less, no condensation
    Finish Panel: Steel, black, 30% gloss, painted
