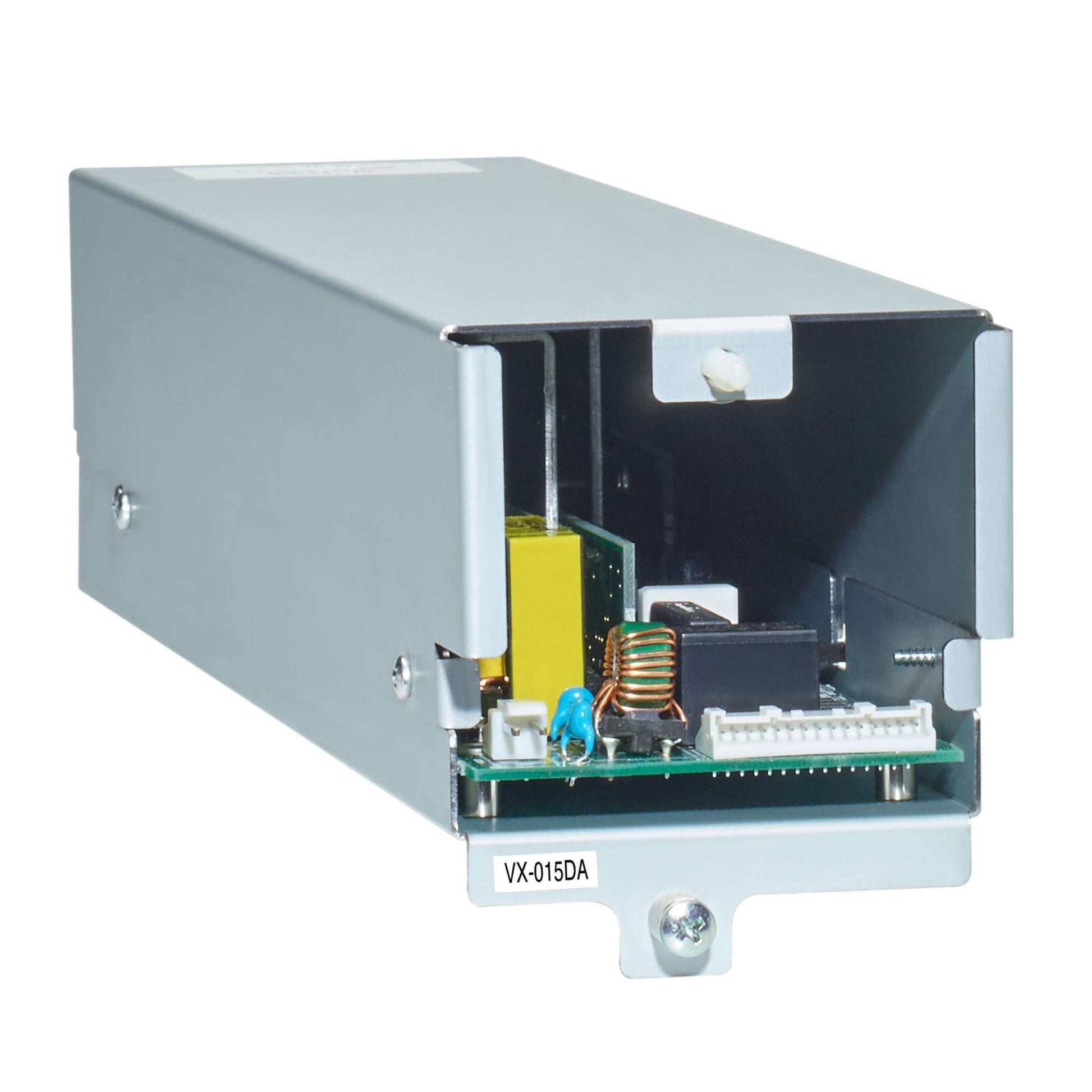

TOA VX015DA System Amplifier

SKU: VX015DA
1,995.00 AED

List price. Trade accounts get better pricing: ask us for a B2B quote. Contact us

In stock
Request Bulk Pricing

Ask an AV specialist

Video chat Chat Email +971 50 559 4871

  • Full Specifications

    FEATURES

    • Low loss modular class-D amplifiers
    • Modules to be mounted in the frame units
    • Rated power at 100 V: 150 W
    • Can easily be removed or replaced
    • Dust filter, easy to clean
    • 50/70/100 V Output without transformer resulting in light-weight units
    • Fuse easily accessible from rear



    DESCRIPTION

    The VX-015DA is an Digital power amplifier used for the VX-3000 systems which is compliant with the European Standard EN54 for fire alarm systems. It is a module type with 1 channel of class-D digital power amplifier, which contribute to energy-saving and light weight design. The VX-015DA also features standby mode to be set for reducing standby power consumption. It requires a dedicated control units VX-3004F, VX-3008F, VX-3016F and power supply unit VX-3000DS.

      SPECIFICATIONS

      Power source 31 V DC operating range: 20 – 33 V DC
      Power / current consumption 1.3 W (standby mode), 14 W (idle), 40 W (EN 62368-1: 1/8 rated output), 190 W (rated output)
      Frequency response 40 Hz - 20 kHz
      Rated output 150 W 100 V
      Finish Steel plate
      Dimensions 79 x 91 x 358.2 mm (W x H x D)
      Weight 1.4 kg
      Distortion < 1 % (at 100 V line, A-weighted)
      S/N ratio 100 dB(A) (or more at 100 V, A-weighted)
      Inputs DA control link (15-pin connector)
      Outputs 100 V/70 V/50 V selectable
      Number of channels 1
