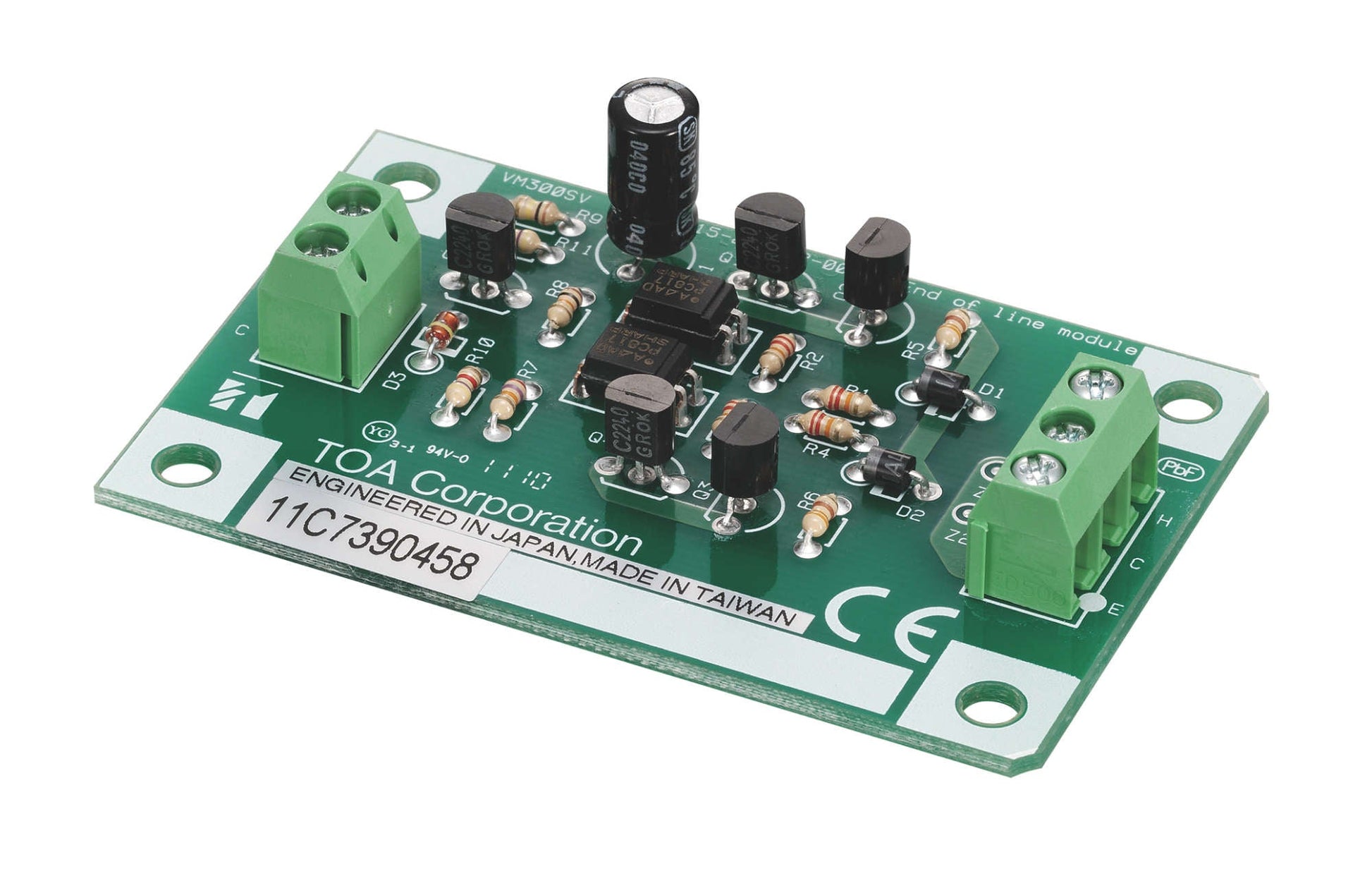

TOA VX300SV End of Line Module VM/VX 3-Wires

SKU: VX300SV

Log in to view price Trade pricing — AED / USD

In stock
Request Bulk Pricing

Ask an AV specialist

Video chat Chat Email +971 50 559 4871

  • Full Specifications

    DESCRIPTION

    Speaker line failure can be detected with greater accuracy when a VM-300SV unit specifically degined for 100 V speaker line is connected between the speaker line end and the emergency input terminal of the VM-3240VA, VM-3360VA, VM-3240E, or VM-3360E.

    SPECIFICATIONS

    Specification Details
    Power Source Supplied from VM-3240VA / 3360VA / 3240E / 3360E
    Power Consumption 0.2 W
    Speaker Line Input Screw connector
    Applicable cable diameter: AWG 24 – AWG 19
    Contact Output Connected to emergency contact input of VM-3240VA / 3360VA / 3240E / 3360E
    Connection cable: Twisted pair cable (shielded type recommended)
    Max. cable length: 10 m (32.81 ft)
    Speaker Line Max. cable length: 500 m (546.81 yd)
    Max. load: 100 W
    *Applicable only for 100 V speaker line
