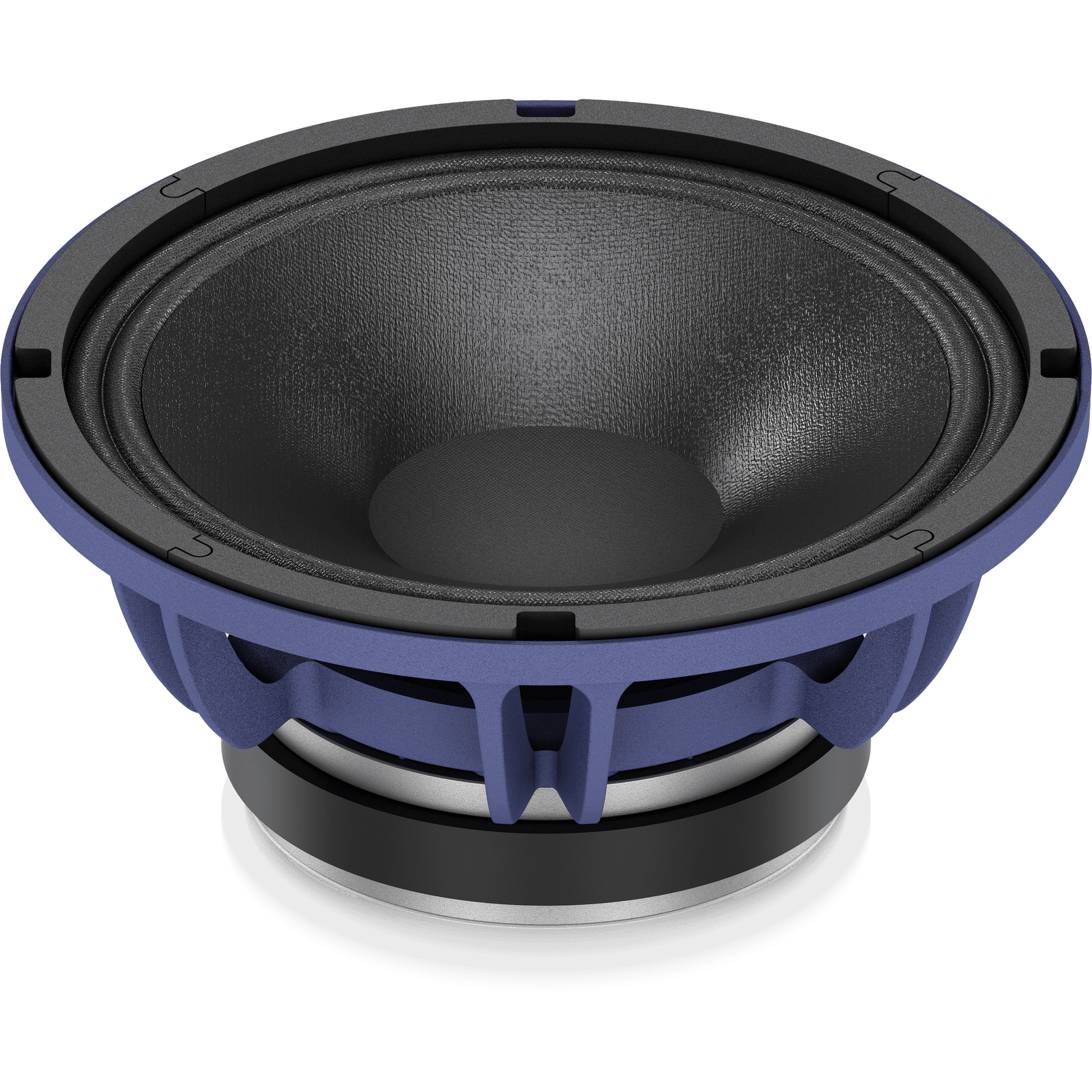

Turbosound TS-10W300/8A 300W 10" Low-Frequency Loudspeaker for PA Applications

Please note: Since this is a back order product we cannot guarantee when it will be available, please also note that the price is indicative and subject to change. Please contact us for more information

• 10" high-power woofer for PA applications

• Continuous power: 300 Watts RMS

• Maximum power: 1,200 Watts Peak

• Impedance: 8 Ohms

• Frequency range: 53 Hz - 4 kHz

• SPL: 93 dB (1 W / 1 m)

• Rigid aluminum die-cast frame

• Mounting hole diameter: 245 mm (9.65")

• Shipment Weight: 5.1kg (11.2lbs.) and Net Weight :4.5kg (9.9lbs.)

• Overall diameter: 261 mm (10.28")

DESCRIPTION

Powerful PA speaker systems call for Turbosound drivers, which are designed to bring out the best audio performance no matter the genre or application. The 10” TS-10W300/8A low frequency driver provides tight and punchy bass performance and handles up to 1,200 Watts of peak output (300 Watts RMS), with a frequency range that extends from 53 Hz to 4 kHz. The die-cast aluminium frame is extremely rigid and light in weight, making it ideal for use as a replacement driver – or for deployment in custom-engineered multi-way PA enclosures.

SPECIFICATIONS

General Specification

Loudspeaker diameter: 261 mm / 10"

Impedance: 8 Ω

Continuous power rating: 300 W

Peak power rating: 1200 W

Sensitivity: 93 dB (±3 dB, 1 W / 1 m)

Frequency range: Fo ~4 kHz (-10 dB)

Magnet size: 156 mm

Voice coil diameter: 65.5 mm / 2.5"

Bobbin material: Glass fiber SV

Wire type: PISV wire

Winding: height 17 mm

Layers: 2

Cone body: Paper

Cone surround: Cloth

Item part number: H77-00002-31669

Thiele & Small Parameters

Resonance frequency (Fs): 53 Hz

DC resistance (Re): 7.8 Ω

Mechanical Q factor (Qms): 7.45

Electrical Q factor (Qes): 0.44

Total Q factor (Qts): 0.41

Mechanical moving mass (Mms): 47.8 g

Mechanical compliance (Cms): 0.19 Mm/N

Force factor (Bl): 16.9

Equivalent acoustic volume (Vas): 31.6 I

Maximum linear displacement (Xmax): 3.4 Mm

Diaphragm area (Sd): 346 Sq cm

Voice coil inductance @ 1 kHz (Le): 0.8 mH

Shipping Information

Net weight: 4.5 kg / 9.9 lbs

Shipping weight: 5.1 kg (11.2 lbs)
