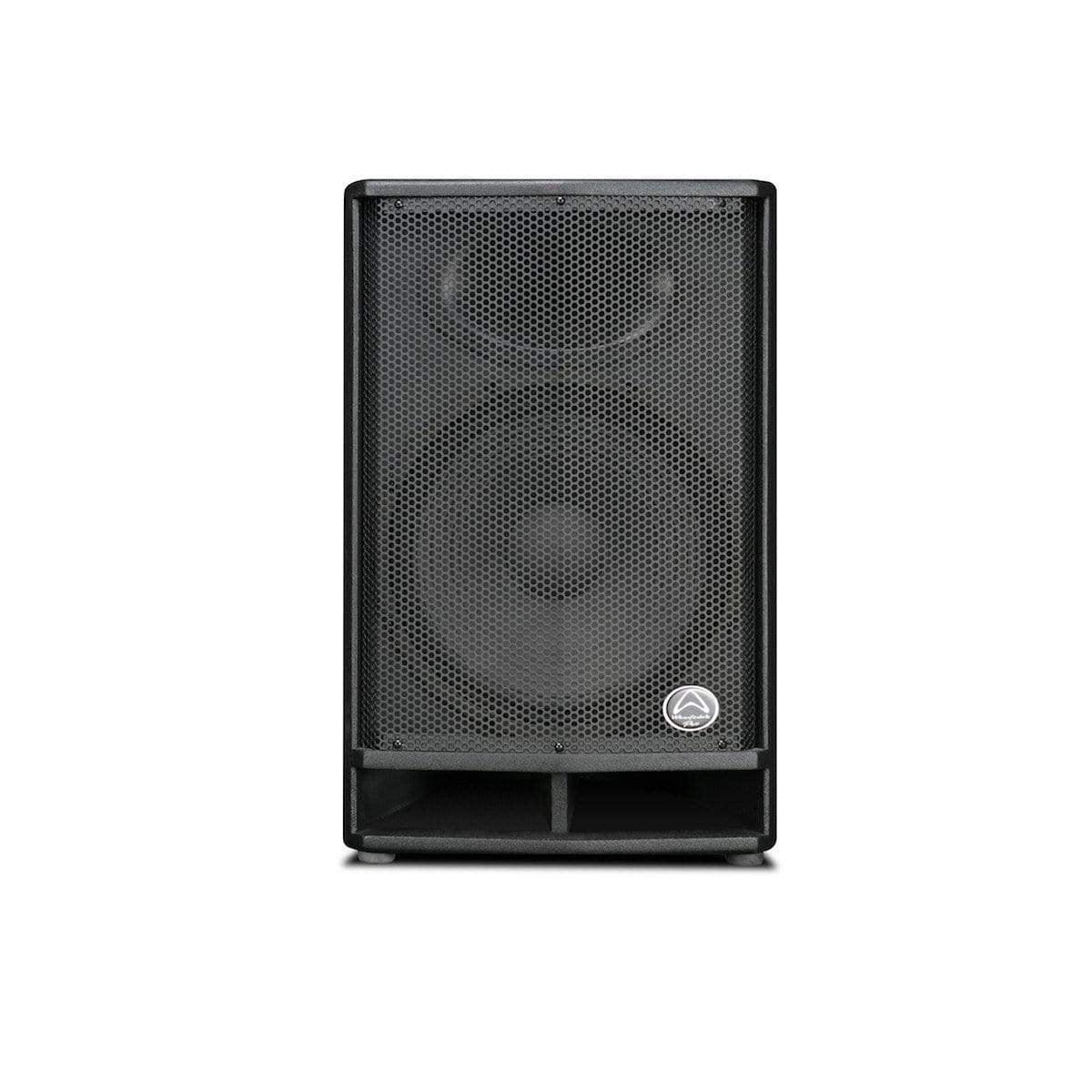

The DVP-AX15 is an active 2-way full-range speaker with a 15" woofer and a titanium compression driver. Its Class D amplifier is rated at 400 W continuous and 800 W peak, with 130 dB maximum SPL at 1 m and 50 Hz - 18 kHz (+/-3 dB) response. A dual-angle (0° / 10°) 35 mm pole mount is built in.
| Active or Passive | Active |
|---|---|
| System Type | Full-Range |
| Configuration | 2-way |
| System Continuous Power | 400 W |
| System Peak Power | 800 W |
| Max SPL @ 1m | 130 dB |
| Freq Response (+/-3 dB) | 50 Hz - 18 kHz |
| Freq Range (-10 dB) | 45 Hz - 20 kHz |
| Bi-amp Mode Switch | No |
| Bluetooth | No |
| IP Certification | None |
| Driver Brand | Wharfedale Pro |
| LF Driver Size | 15" |
| LF Voice Coil Size | 2.5" |
| LF Rated Impedance | 4 Ω |
| LF Power (RE:AES2-2012) | 350 W |
| HF Driver Type | Compression Driver |
| HF Voice Coil Size | 1.75″ |
| HF Diaphragm Material | Titanium |
| HF Exit Size | 1″ |
| HF Power (RE:AES2-2012) | 40 W |
| HF Rated Impedance | 8 Ω |
| Preset Library | No |
| Input Connector | 2 x XLR & 2 x 1/4″ (Line/MIC) |
| Waveguide Type | Elliptical |
| Enclosure Material | MDF |
| Grille Material and Finish | Steel Black |
| Finish | Black Paint |
| Handles | 2 |
| Deployment | Pole |
| Pole Mount | Dual Angle (0° / 10°) 35 mm |
| Brackets Included | No |
| Rigging | No |
| Nominal Coverage (H x V) | 90° x 60° |
| Sensitivity 2.83 V / 1 m | n/a dB |
| System Rated Impedance | n/a |
| Crossover Frequency | 2.2 KHz |
| Transformer (T) | No |
| Transformer Taps (70 V) | No |
| Transformer Taps (100 V) | No |
| Input Connectors (T) | No |
| Amplifier design | Class D |
| DSP Controls | Flat / Monitor / Speech / Bass / Punch / Live |
| Preset list | Flat / Monitor / Speech / Bass / Punch / Live |
| Active loudspeaker Input Impedance | Balanced: 20 K |
| Link Connector | pin XLR |
| Input sensitivity | 775 mv |
| Max input level | 4 v |
| Line output | Switchable LOOP/MIX Balanced Socket XLR |
| Main Power | 220-240 V 50/60 Hz |
| Power Supply | SMPS |
| Included Accessory | User Manual, AC Cable |
| Unpacked - Height (mm) | 689 |
|---|---|
| Unpacked - Width Front (mm) | 443.5 |
| Unpacked - Width Rear (mm) | 243.5 |
| Unpacked - Depth (mm) | 429 |
| Packed - Height (mm) | 765 |
| Packed - Width Front (mm) | 480 |
| Packed - Width Rear (mm) | 480 |
| Packed - Depth (mm) | 414 |
| Weight - Nett (kg) | 24.4 |
| Weight - Gross (kg) | 27.2 |
Dual angle (0° / 10°) for a 35 mm pole.
The DSP controls list Flat, Monitor, Speech, Bass, Punch and Live.
No. Rigging is listed as No and deployment is Pole.
