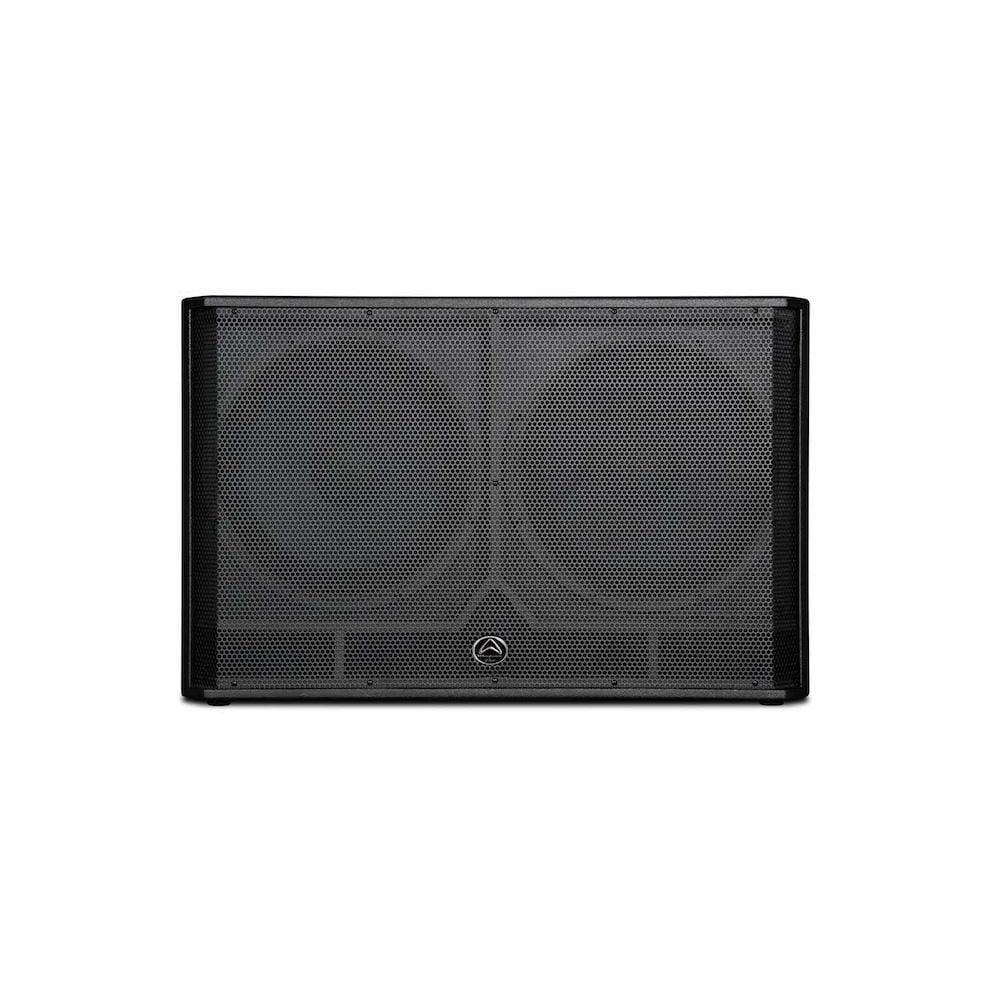

Wharfedale Pro Evo-X218B Low Freq. Passive PA Speaker (Discontinued)

SKU: EVOX218B

Log in to view price Trade pricing — AED / USD

Out of stock
Request Bulk Pricing

Ask an AV specialist

Video chat Chat Email +971 50 559 4871

  • Full Specifications

    The EVO-X Series strikes the perfect balance between affordability and performance. Positioned in-between the Impact Series and the Delta Series of passive loudspeakers, EVO-X is a new multipurpose lineup of 8 models featuring many useful and practical design elements.

    All models benefit from a hardwearing Rhino Rock paint finish and are visually enhanced with the iconic Wharfedale Pro ‘boomerang’ logo being engraved onto their surface. All models also feature practical 4-way handles to make transportation simple and pain-free.

    Full-range models feature a unique +3dB HF boost switch allowing for quick, on-stage tweaks to be made to the sound as the crowd grows while the 3 subwoofer options all have high pass filter outputs, reducing onstage cabling and peripherals.
    Robust crossover designs, elliptical waveguides and large voice coils ensure that the sound quality is as beautiful as the cosmetic design.

    Features

    • Dual 18" passive subwoofer
    • MDF construction with a tuned front port
    • Durable Rhino Rock paint finish
    • 2 x 4-way rubberised handles
    • Dual speakON compatible and 1/4" jack inputs
    • Continuous 1200w
    • Programme 2400w
    • Peak 4800w
    • 4Ω
    • Hi Pass filter output

    Tech Specs

    Model name EVO-X218B
    System Type Passive
    Configuration Dual 18" Subwoofer
    Frequency Response (+/-3dB) 30Hz-250Hz
    Frequency Range (-10dB) 28Hz-250Hz
    Sensitivity (2.83v/1m) 107dB
    System rated impedance 4Ω
    Calculated Maximum SPL @1m 137dB
    Size 470mm / 18" x 2
    Voice coil size 76.2mm / 3"
    Rated impedance 8Ω
    LF Power (re:AES-2012) 2 x 600w
    Power
    System continuous power 1200w
    System programme power 2400w
    System peak power 4800w
    Crossover Frequency 150Hz
    Input connectors 2 x NL4 (speakON Compatible) + 2 x 1/4" Jacks
    Hardware
    Pole mount 2 x 35mm pole sockets
    Handles 2 on sides
    Enclosure
    Enclosure material MDF
    Finish Rhino rock paint
    Grille material and finish 1.2mm steel
    Dimensions - unpacked
    Height 650mm / 25.59"
    Width front 610mm / 24.02"
    Width rear 610mm / 24.02"
    Depth 1020mm / 40.16"
    Dimensions packed
    Height 765mm / 30.12"
    Width front 710mm / 27.95"
    Width rear 710mm / 27.95"
    Depth 1120mm / 44.09"
    Weight
    Net weight 67.3kg / 148.1lbs
    Gross weight 79.9kg / 175.8lbs
