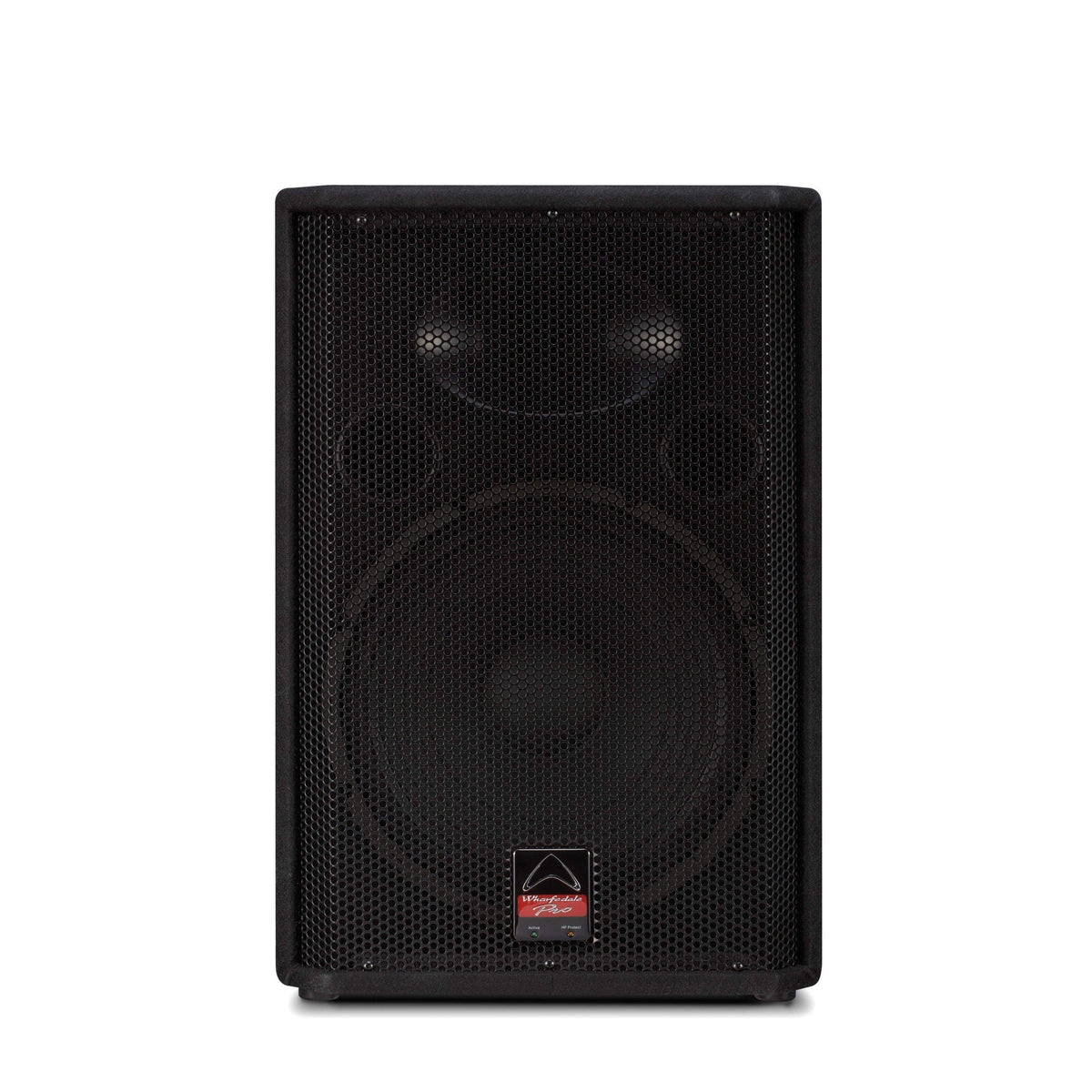

The EVP-X15 MKII is a passive 2-way speaker with a 15" woofer (2.5" voice coil) and a 1.75" titanium compression driver. It handles 350 W continuous, 700 W programme and 1400 W peak at 8 Ω and reaches 130 dB at 1 m. The particle board cabinet has a black carpet finish and a dual-angle pole mount.
| Active or Passive | Passive |
|---|---|
| System Type | Full-Range |
| Configuration | 2-way |
| System Continuous Power | 350 W |
| System Programme Power | 700 W |
| System Peak Power | 1400 W |
| Max SPL @ 1m | 130 dB |
| Freq Response (+/-3 dB) | 45 Hz - 20 kHz |
| Freq Range (-10 dB) | 40 Hz - 20 kHz |
| Bi-amp Mode Switch | No |
| Bluetooth | No |
| IP Certification | None |
| Driver Brand | Wharfedale Pro |
| LF Driver Size | 15" |
| LF Voice Coil Size | 2.5" |
| LF Rated Impedance | 8 Ω |
| LF Power (RE:AES2-2012) | 350 W |
| HF Driver Type | Compression Driver |
| HF Voice Coil Size | 1.75" |
| HF Diaphragm Material | Titanium |
| HF Exit Size | 1" |
| HF Power (RE:AES2-2012) | 40 W |
| HF Rated Impedance | 8 Ω |
| Preset Library | Yes |
| Input Connector | 2 x 4 Pole Speaker Connector / 2 x 6.3mm jacks |
| Waveguide Type | Elliptical |
| Enclosure Material | Particle Board |
| Grille Material and Finish | Steel Black |
| Finish | Black Carpet |
| Handles | 2 |
| Deployment | Pole |
| Pole Mount | Dual Angle (0° / 10°) 35 mm |
| Brackets Included | No |
| Rigging | No |
| Nominal Coverage (H x V) | 90° x 60° |
| Sensitivity 2.83 V / 1 m | 98 dB |
| System Rated Impedance | 8 Ω |
| Crossover Frequency | 2.2 kHz |
| Recommended HPF = BW 18 dB/OCT. | 40 Hz |
| Transformer (T) | No |
| Included Accessory | User Manual |
| Unpacked - Height (mm) | 675 |
|---|---|
| Unpacked - Width Front (mm) | 460 |
| Unpacked - Width Rear (mm) | 294 |
| Unpacked - Depth (mm) | 450 |
| Packed - Height (mm) | 750 |
| Packed - Width Front (mm) | 507 |
| Packed - Width Rear (mm) | 507 |
| Packed - Depth (mm) | 440 |
| Weight - Nett (kg) | 23.98 |
| Weight - Gross (kg) | 26.4 |
Particle board with a black carpet finish and a black steel grille.
Yes. The data lists a dual-angle (0° / 10°) 35 mm pole mount.
