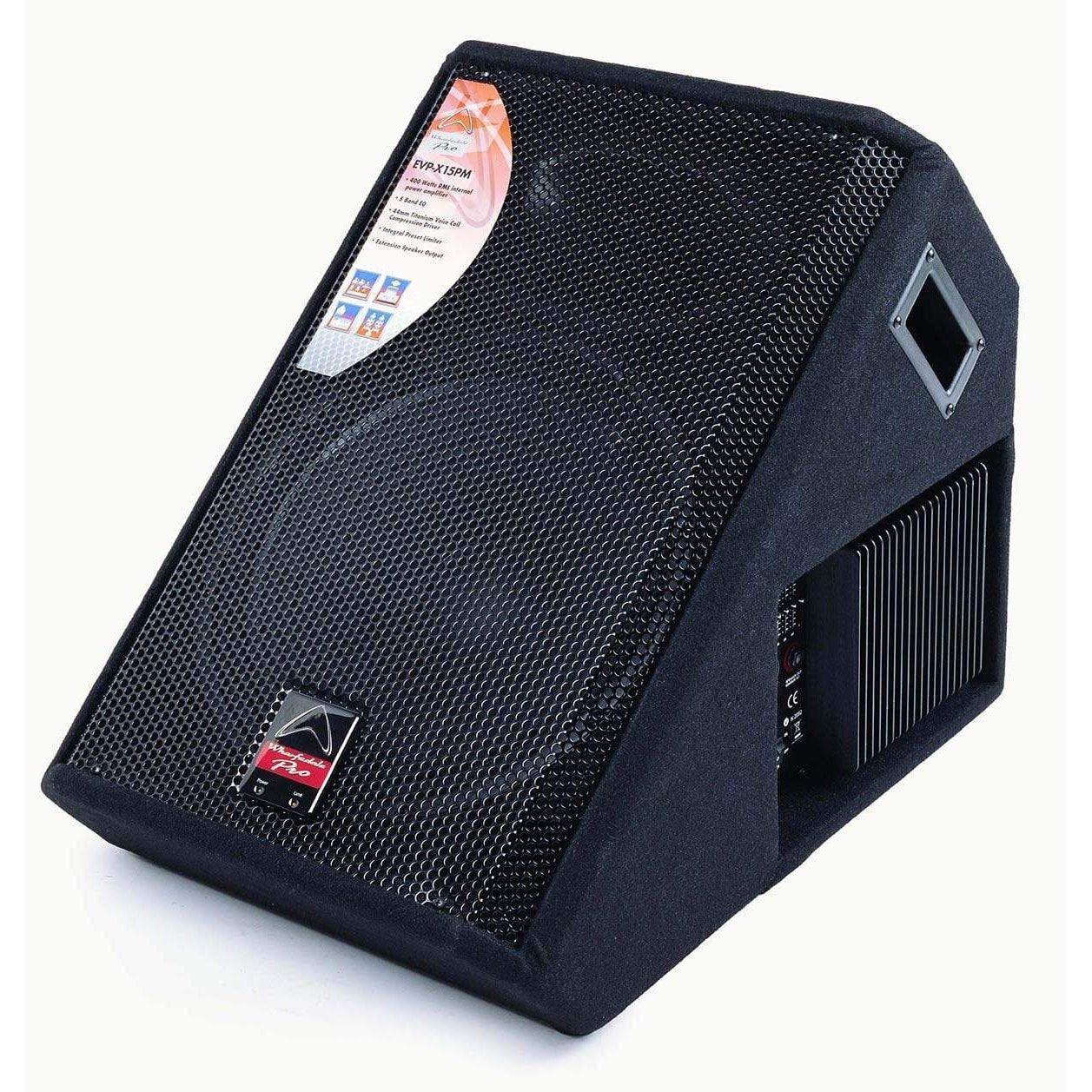

The EVP-X15PM is a 2-way floor monitor with a 15" woofer and a 1" exit titanium compression driver. The specification lists it as active with a Class D amplifier, 300 W continuous and 500 W peak power, a 130 dB maximum SPL and 50 Hz - 20 kHz (+/-3 dB) response. A 5-band EQ and 90° x 60° coverage are listed.
| Active or Passive | Active |
|---|---|
| System Type | Floor Monitor |
| Configuration | 2-way |
| System Continuous Power | 300 W |
| System Peak Power | 500 W |
| Max SPL @ 1m | 130 dB |
| Freq Response (+/-3 dB) | 50 Hz – 20 kHz |
| Freq Range (-10 dB) | 45 Hz - 20 kHz |
| Bluetooth | No |
| IP Certification | None |
| Driver Brand | Wharfedale Pro |
| LF Driver Size | 15" |
| LF Voice Coil Size | 2.5" |
| LF Rated Impedance | 8 Ω |
| LF Power (RE:AES2-2012) | 350 W |
| HF Driver Type | Compression Driver |
| HF Voice Coil Size | 1.75″ |
| HF Diaphragm Material | Titanium |
| HF Exit Size | 1" |
| HF Power (RE:AES2-2012) | 40 W |
| HF Rated Impedance | 8 Ω |
| Preset Library | No |
| Input Connector | 1/4” jack / XLR combo |
| Enclosure Material | Particle Board |
| Grille Material and Finish | Steel Black |
| Finish | Black Carpet |
| Handles | 2 |
| Deployment | Ground |
| Brackets Included | No |
| Rigging | No |
| Nominal Coverage (H x V) | 90° x 60° |
| Sensitivity 2.83 V / 1 m | n/a dB |
| System Rated Impedance | n/a |
| Crossover Frequency | 2.3 kHz |
| Transformer (T) | No |
| Transformer Taps (70 V) | No |
| Transformer Taps (100 V) | No |
| Input Connectors (T) | No |
| Amplifier design | Class D |
| EQ Type | 5-Band EQ |
| Line output | Balanced Pin XLR connector |
| Main Power | AC 220-240 V~50 Hz 400W |
| Included Accessory | User Manual, AC Cable |
| Unpacked - Height (mm) | 675 |
|---|---|
| Unpacked - Width Front (mm) | 445 |
| Unpacked - Width Rear (mm) | 445 |
| Unpacked - Depth (mm) | 473.5 |
| Packed - Height (mm) | 520 |
| Packed - Width Front (mm) | 545 |
| Packed - Width Rear (mm) | 545 |
| Packed - Depth (mm) | 705 |
| Weight - Nett (kg) | 25.2 |
| Weight - Gross (kg) | 28.04 |
A 1/4" jack / XLR combo input and a balanced pin XLR line output.
AC 220-240 V, 50 Hz, 400 W.
