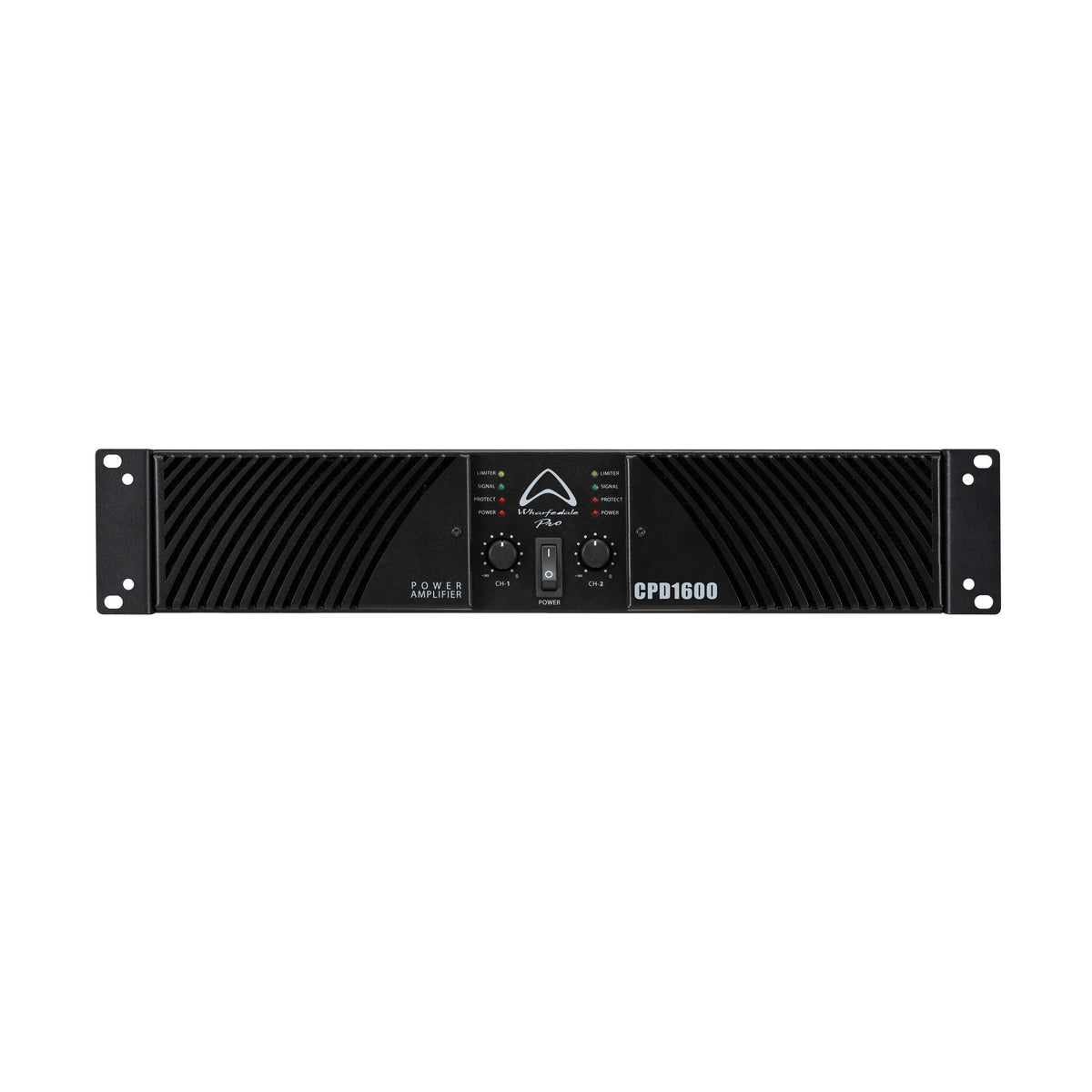

The CPD1600 is a Class AB two-channel amplifier delivering 2 x 400 W into 8 Ω and 2 x 620 W into 4 Ω. Bridging combines the channels into one 1200 W output at 8 Ω. It has XLR inputs with XLR link outputs and 4-pole speaker connectors, and no onboard DSP.
| Amp Channels | 2 |
|---|---|
| Topology | Class AB |
| 8Ω | 2 x 400 W |
| 4Ω | 2 x 620 W |
| 8Ω Bridged | 1 x 1200 W |
| Input Connectors | 2 x XLR Socket |
| Output Connectors | 2 x 4 Pole Speaker Connector |
| Link Connectors | 2 x XLR Pin |
| Mode Switch | Parallel / Stereo / Bridge Mode / Limiter switch |
| DSP Features | None |
| Slew Rate | >40 V / us |
| Output RMS Voltage (V) | 56.6 V |
| Maximum input Level | 22 dBu (9.7 Vrms) |
| Crosstalk | <-70 dB |
| Amplifier Frequency Response | 20 Hz - 30 kHz |
| Amplifier Input Impedance | 20 KΩ |
| Damping Factor | > 300 |
| SNR | ≥100 |
| Protection | Thermal protect, Over-current protect, Output DC protect, Output short protect, Power on/off mute |
| Main Power | 110-120 V AC or 100 V AC or 220-230 V AC or 240 V AC ~ 50/60 Hz |
| Included Accessory | User Manual |
| Unpacked - Height (mm) | 88 |
|---|---|
| Unpacked - Width Front (mm) | 483 |
| Unpacked - Width Rear (mm) | 483 |
| Unpacked - Depth (mm) | 330 |
| Packed - Height (mm) | 163 |
| Packed - Width Front (mm) | 423 |
| Packed - Width Rear (mm) | 423 |
| Packed - Depth (mm) | 557 |
| Weight - Nett (kg) | 13.2 |
| Weight - Gross (kg) | 14.21 |
No. DSP features are listed as none.
100 V, 110-120 V, 220-230 V or 240 V AC at 50/60 Hz.
Output RMS voltage is listed as 56.6 V.
