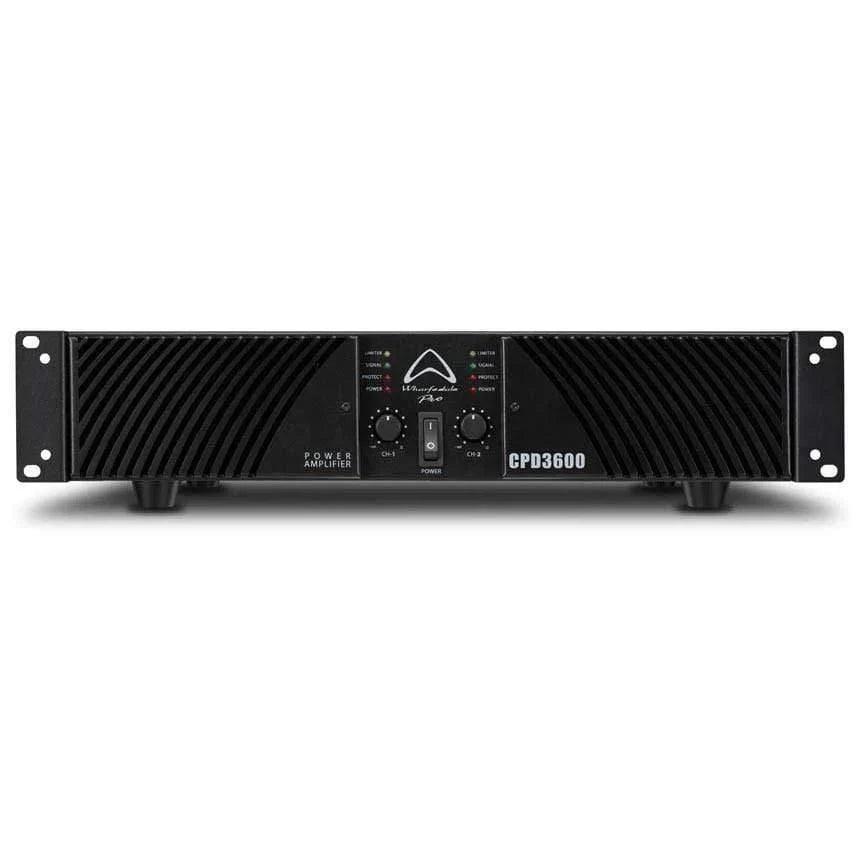

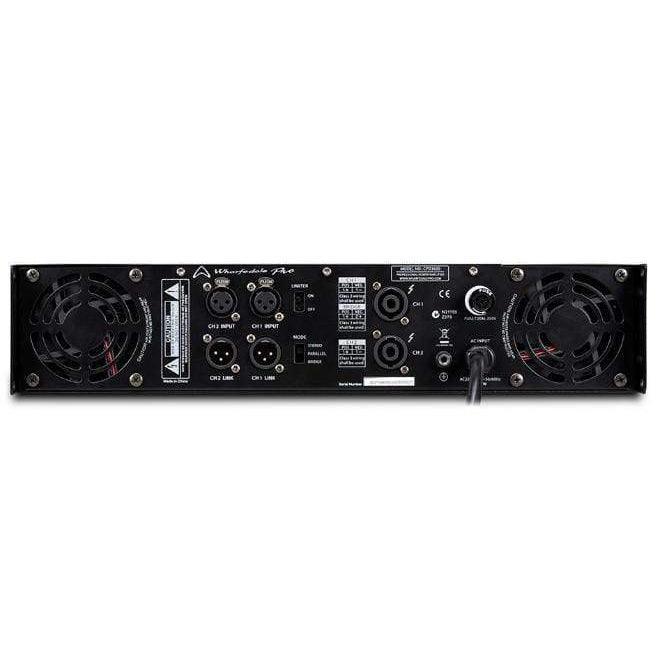

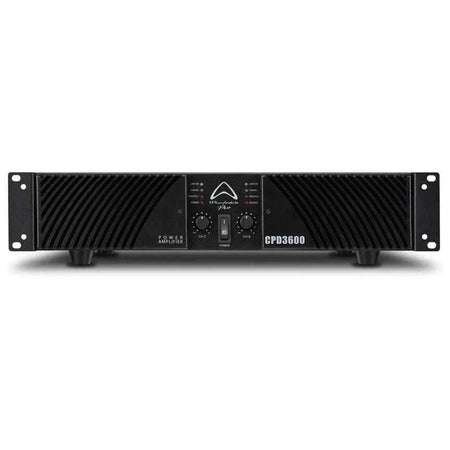

Wharfedale Pro CPD3600 Power Amplifier
Log in to view price Trade pricing — AED / USD
Ask an AV specialist
-
Full Specifications
The CPD3600 is part of Wharfedale Pro's latest line of professional power amplifiers driving earth shaking audio from the front of your venue, all the way to the back.
For use in stereo the amplifier delivers 870W RMS per channel at 8 Ohms and 1300W RMS per channel at 4 Ohms; a suitable power for medium to large-sized complete PA systems for mobile and fixed installation. In bridged mode at 4 Ohms, the amplifier generates 3600W RMS. This huge power means the amplifier can also integrate itself with larger touring rigs and installs where long throw, extremely high power audio is needed.
FEATURES
- Peak and protect LEDs provide visual indicators of the amplifier's status.
- Built-in switchable limiter helps prevent distortion and protect connected equipment.
- Continuously variable speed fan for effective cooling during operation.
- Suitable for touring, rental, and installation applications, offering versatility.
- Class H Technology utilized for efficient and dynamic amplifier performance.
- Status and clip LEDs offer additional visual feedback on the amplifier's operation.
- Thermal, overcurrent, DC, and output short protection circuitry ensures the amplifier and connected devices are safeguarded.
SPECIFICATIONS
Stereo Power Output 8 Ohms x 2 870W RMS 4 Ohms x 2 1300W RMS Bridged Mono Output 8 Ohms 2590W RMS 4 Ohms 3600W RMS Inputs 2 x XLR Outputs 2 x XLR, 2 x Speakon Frequency Response 20Hz – 30KHz Topology Class H Sensitivity 0dBu (0.775Vrms) Input Impedance 20K Ohms Maximum Input Level 22dBu (9.7Vrms) Slew Rate >40V / us Crosstalk <-70dB Signal to Noise >100dB Protection Switchable Limiter, Thermal protect, Over-current protect, Output DC protect, Output short protect, Power on/off mute Display 4 segment LED Cooling Variable Speed Fan Dimensions 88 x 483 x 451mm Net Weight 24kg / 52.91lbs
