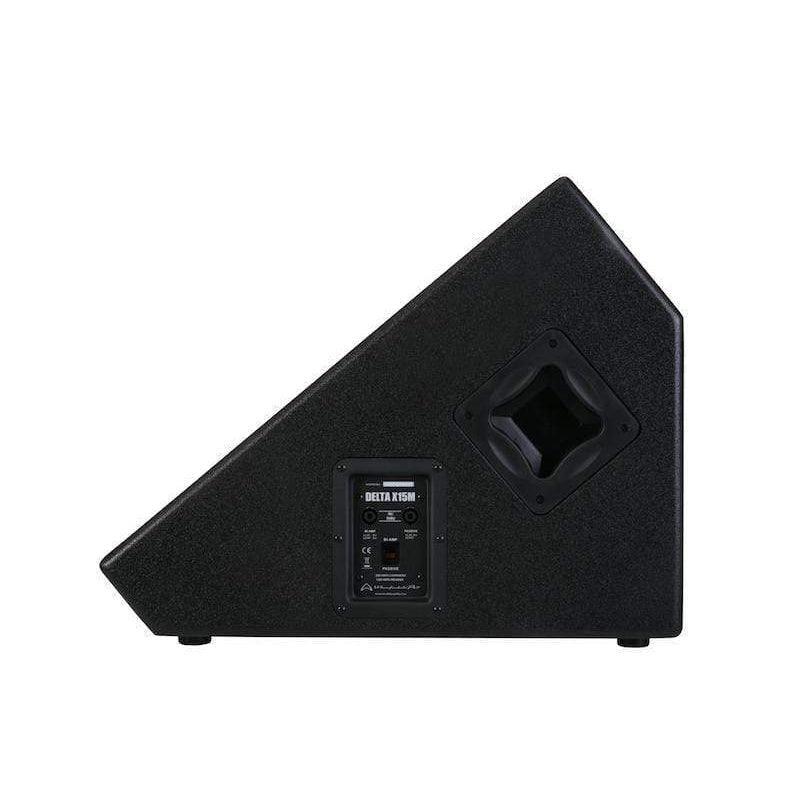

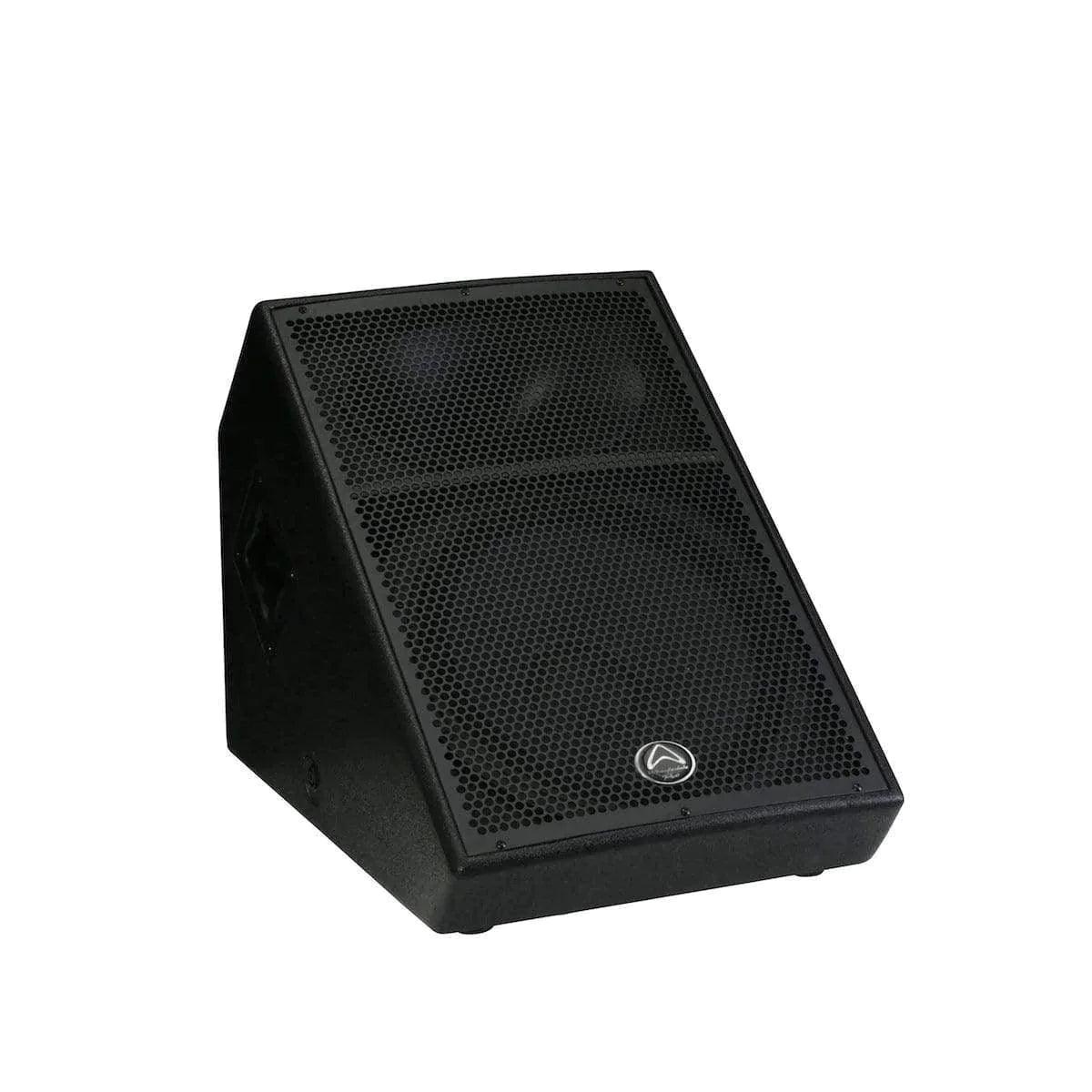

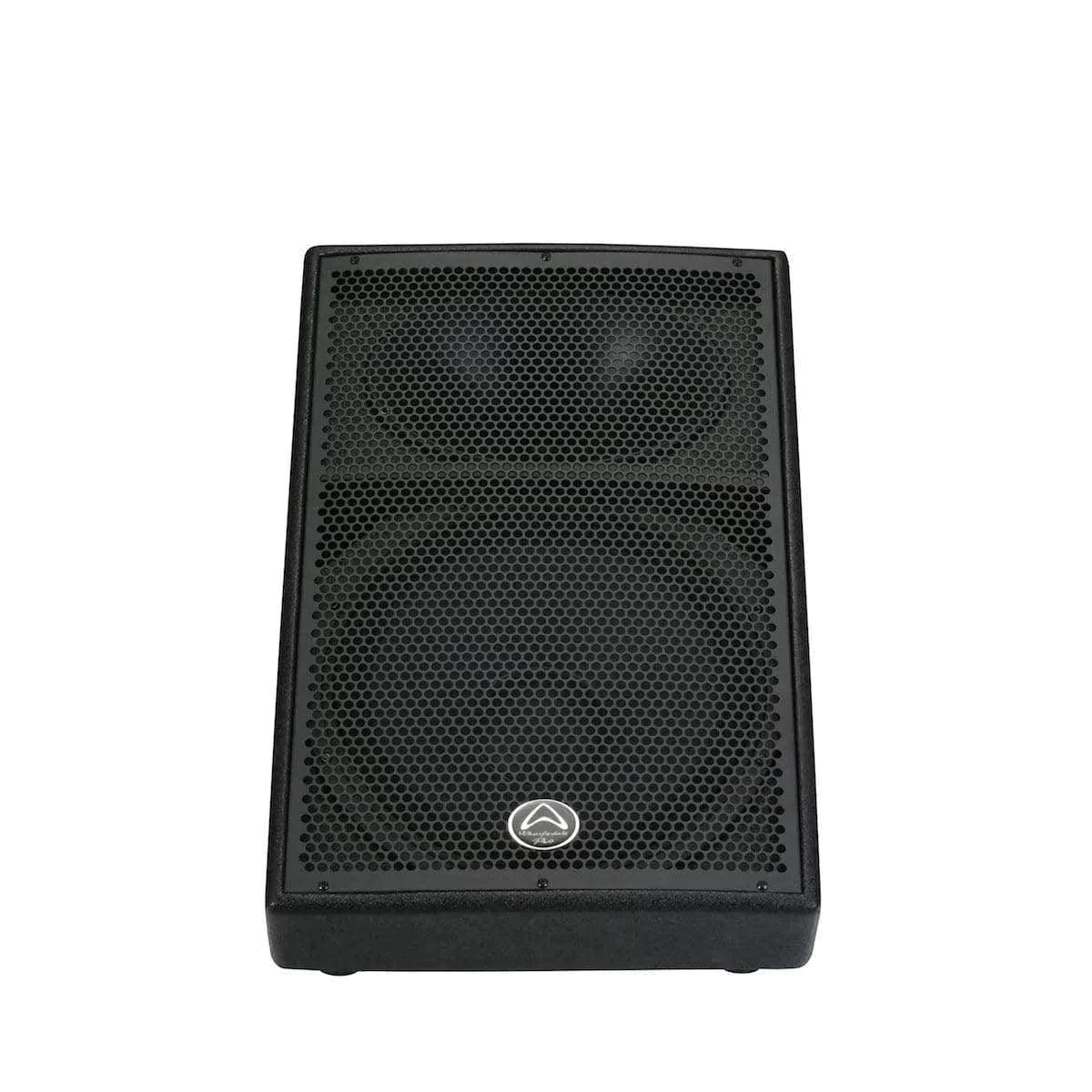

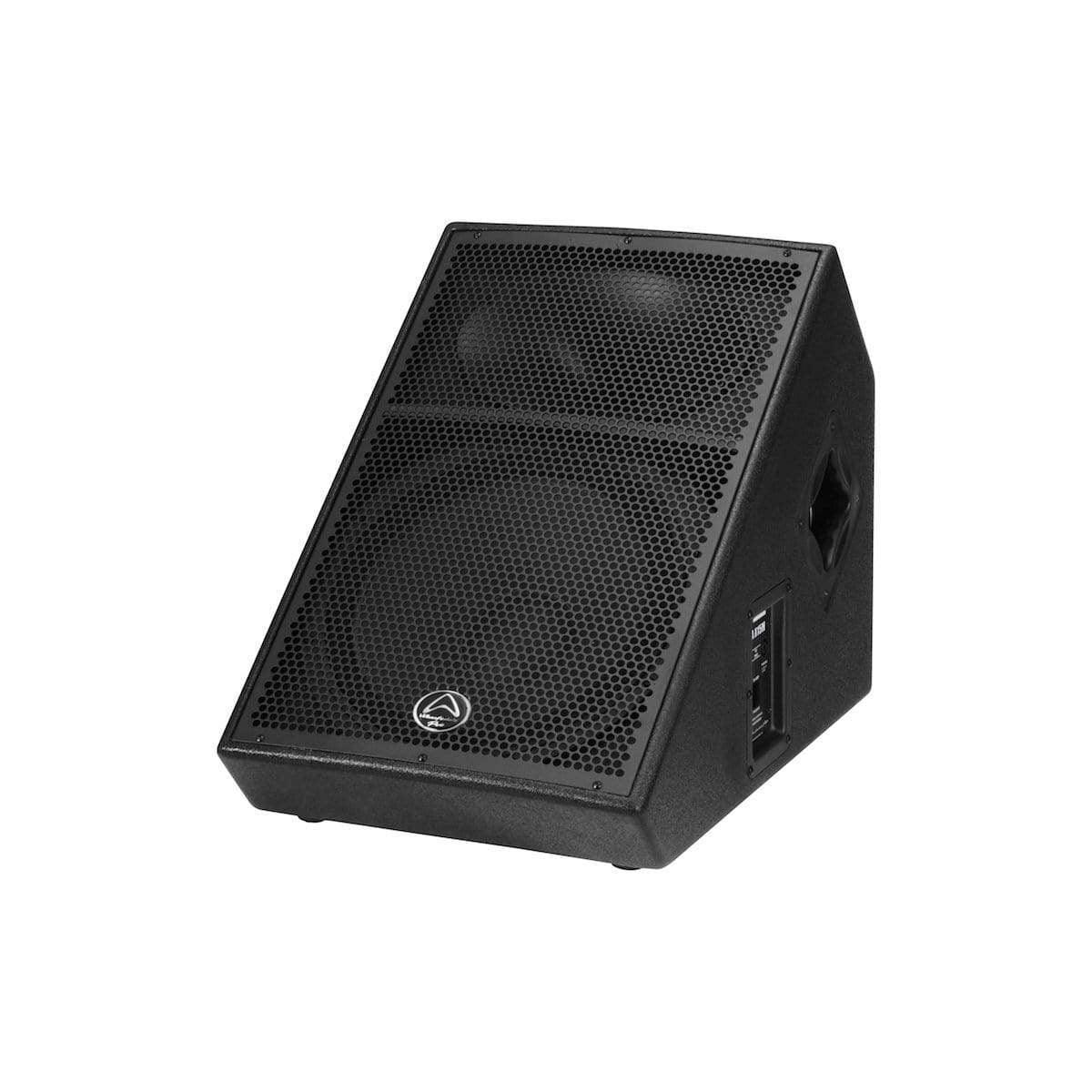

The DELTA-X15M is a passive 2-way floor monitor with a 15" woofer and a 1.4" exit titanium compression driver. It is rated at 500 W continuous, 1000 W programme and 2000 W peak, reaches 131 dB at 1 m, and covers 55 Hz - 20 kHz (+/-3 dB). Coverage is 90° x 45° and the cabinet is birch plywood.
| Active or Passive | Passive |
|---|---|
| System Type | Floor Monitor |
| Configuration | 2-way |
| System Continuous Power | 500 W |
| System Programme Power | 1000 W |
| System Peak Power | 2000 W |
| Max SPL @ 1m | 131 dB |
| Freq Response (+/-3 dB) | 55 Hz - 20 kHz |
| Freq Range (-10 dB) | 50 Hz - 20 kHz |
| Bi-amp Mode Switch | Yes |
| Bluetooth | No |
| IP Certification | None |
| Driver Brand | Wharfedale Pro |
| LF Driver Size | 15" |
| LF Voice Coil Size | 3" |
| LF Rated Impedance | 8 Ω |
| LF Power (RE:AES2-2012) | 500 W |
| HF Driver Type | Compression Driver |
| HF Voice Coil Size | 2" |
| HF Diaphragm Material | Titanium |
| HF Exit Size | 1.4" |
| HF Power (RE:AES2-2012) | 50 W |
| HF Rated Impedance | 8 Ω |
| Preset Library | No |
| Input Connector | 2 x 4 Pole Speaker Connector |
| Waveguide Type | Elliptical |
| Enclosure Material | Birch Plywood |
| Grille Material and Finish | Steel Black |
| Finish | Black Tough-Tone |
| Handles | 2 |
| Deployment | Ground |
| Pole Mount | None |
| Brackets Included | No |
| Rigging | No |
| Nominal Coverage (H x V) | 90° x 45° |
| Sensitivity 2.83 V / 1 m | 98 dB |
| System Rated Impedance | 8 Ω |
| Crossover Frequency | 1.8 kHz |
| Recommended HPF = BW 18 dB/OCT. | 50 Hz |
| Transformer (T) | No |
| EQ Type | None |
| Included Accessory | User Manual |
| Unpacked - Height (mm) | 493 |
|---|---|
| Unpacked - Width Front (mm) | 446 |
| Unpacked - Width Rear (mm) | 446 |
| Unpacked - Depth (mm) | 685 |
| Packed - Height (mm) | 518 |
| Packed - Width Front (mm) | 757 |
| Packed - Width Rear (mm) | 757 |
| Packed - Depth (mm) | 565 |
| Weight - Nett (kg) | 27.24 |
| Weight - Gross (kg) | 33.96 |
2 x 4 pole speaker connector.
No. Deployment is Ground, rigging is No, pole mount is None and brackets are not included.
