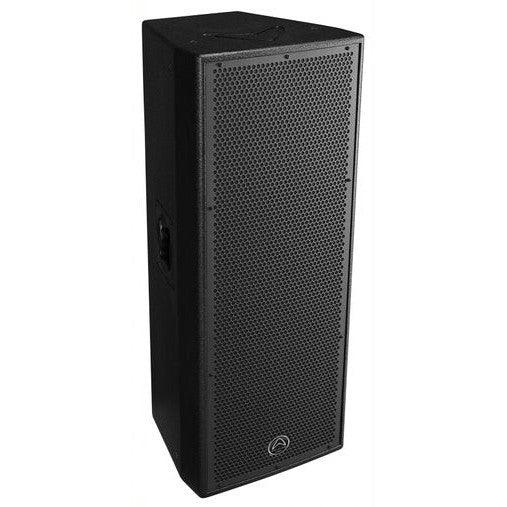

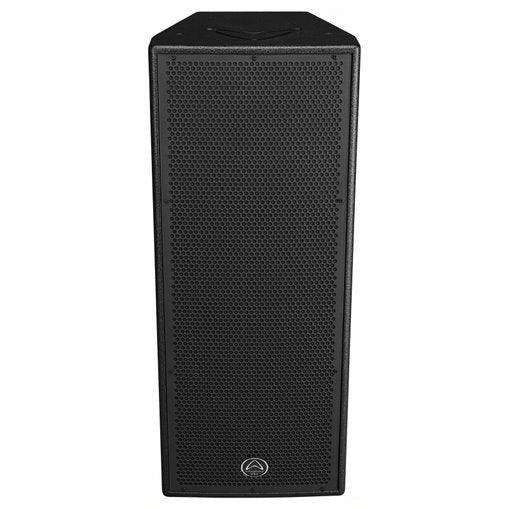

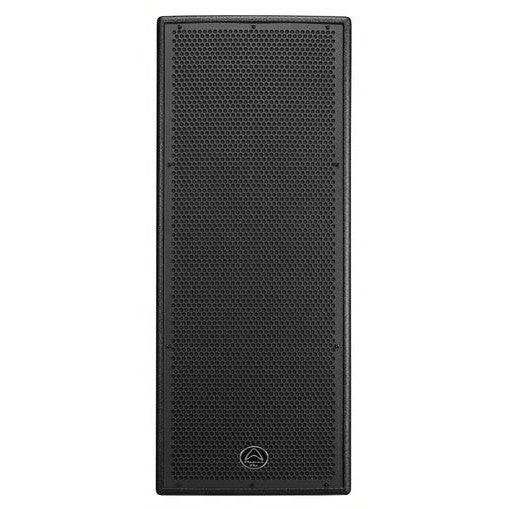

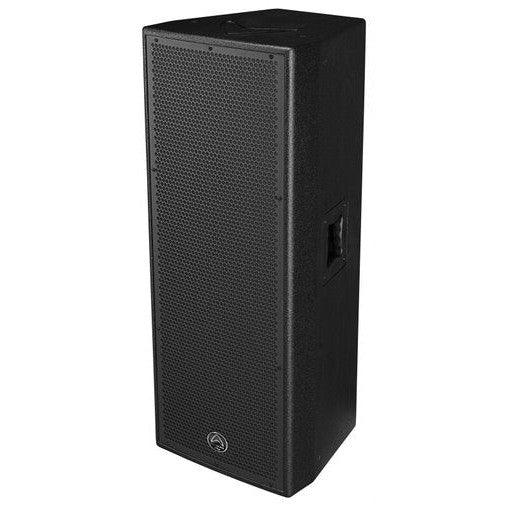

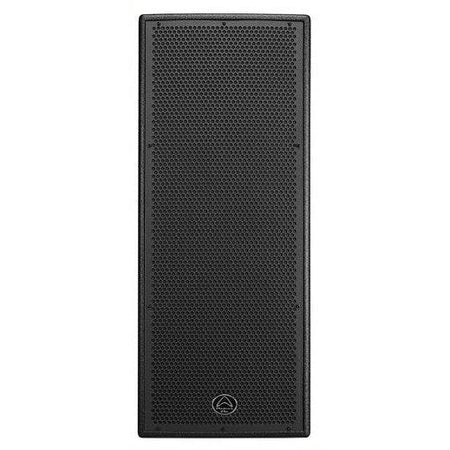

Wharfedale Pro DeltaX212 Speaker Passive 2x12" 800W RMS 4Ohm Wooden Paint Body
Log in to view price Trade pricing — AED / USD
Ask an AV specialist
-
Full Specifications
KEY FEATURES
- Dual 12″ 2-way passive
- 2.0″ voice coil HF driver
- 3.0″ LF voice coils
- 800 watts AES (RMS)
- 1600 watts Programme
- 3200 watts Peak
- 135 dB Max SPL @ 1 meter
DESCRIPTION
Delta-X builds on the global success of the Wharfedale Pro Delta series.
Constructed from 15mm plywood and covered in the highest quality Rhino Rock paint, the new Delta-X models are instantly recognisable by their engraved iconic Wharfedale Pro ‘boomerang’ logo on their cabinets. The fresh cosmetic design however is not the only improvement the engineering team have made.
Internally Delta-X also has a new crossover design and construction. Using new component positioning and bracing, the sensitive crossover electronics have been re-engineered to improve long term performance and reliability – even at the highest of volumes.

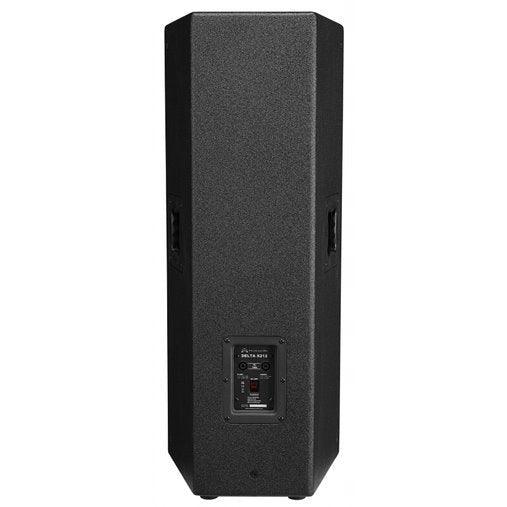

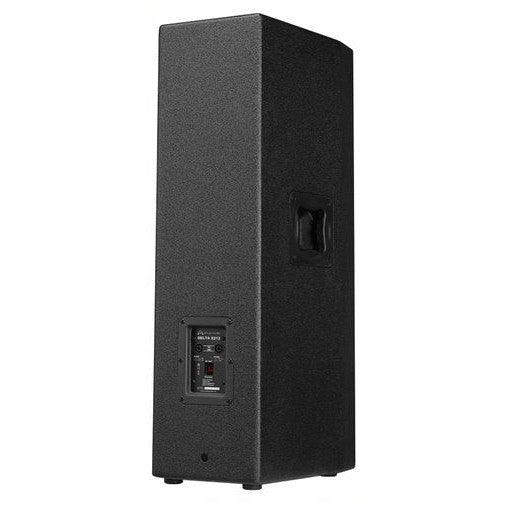

With rear panel switching, Delta-X can operate in either Bi-Amp or Full range modes. This routing flexibility allows for Delta-X systems to be refined using multiple amplifiers and external crossovers.
Custom Wharfedale Pro transducers have also been selected. High output, low physical distortion cast frame woofers deliver unparalleled low frequency response. With the exception of the Delta-X10, 2” titanium compression drivers are coupled to 90° x 45° elliptical waveguides for impressive output level and smooth HF dispersion.
With a full lineup of 12 models, ranging from the 300w RMS Delta-X10 to the 1600w RMS Dual Chamber 2 x 18” Delta-X218 subwoofer, Delta-X models are perfect for fixed installation and touring applications.
SPECIFICATIONS
Model Name Delta X212 System Type Passive Configuration Quasi Three-way Frequency Response (+/-3 dB) 53 Hz-20 KHz Frequency Range (-10 dB) 45 Hz-20 KHz Sensitivity (2.83 v / 1 m) 100 dB Calculated Maximum SPL @1 m 135 dB System Rated Impedance 4 Ω Low Frequency Transducer Size 2 x 332 mm / 12″ Voice Coil Size 77.1 mm / 3″ Rated Impedance 2 x 8 Ω LF Power (re:AES2-2012) 2 x 400 w High Frequency Transducer HF Driver Type Compression Driver Voice Coil Size 50.8 mm / 2″ Exit Size 35.6 mm / 1.4″ Diaphragm Material Titanium Rated Impedance 8 Ω HF Power (re:AES2-2012) 50 w Nominal Coverage (H x V) 90⁰ x 45⁰ Power System Continuous Power 800 w System Programme Power 1600 w System Peak Power 3200 w Crossover frequency 1.8 KHz Input Connector 2 x NL4 (speakON Compatible) Hardware Pole Mount Handles 2 on Sides Enclosure Enclosure Material 15 mm Plywood Finish black paint Grille Material & Finish 1.5 mm Steel Black Dimensions – Unpacked Height 964.4 mm / 37.97” Width Front 390 mm / 15.3″ Width Rear 241.7 mm / 9.5” Depth 373 mm / 14.7” Dimensions – Packed Height 1080 mm / 42.5″ Width Front 566 mm / 22.3″ Width Rear 566 mm / 22.3″ Depth 464 mm / 18.3″ Weight Net Weight (kg / lbs) 38 kg / 83.6 lbs Gross Weight (kg / lbs) 45.0 kg / 99 lbs
