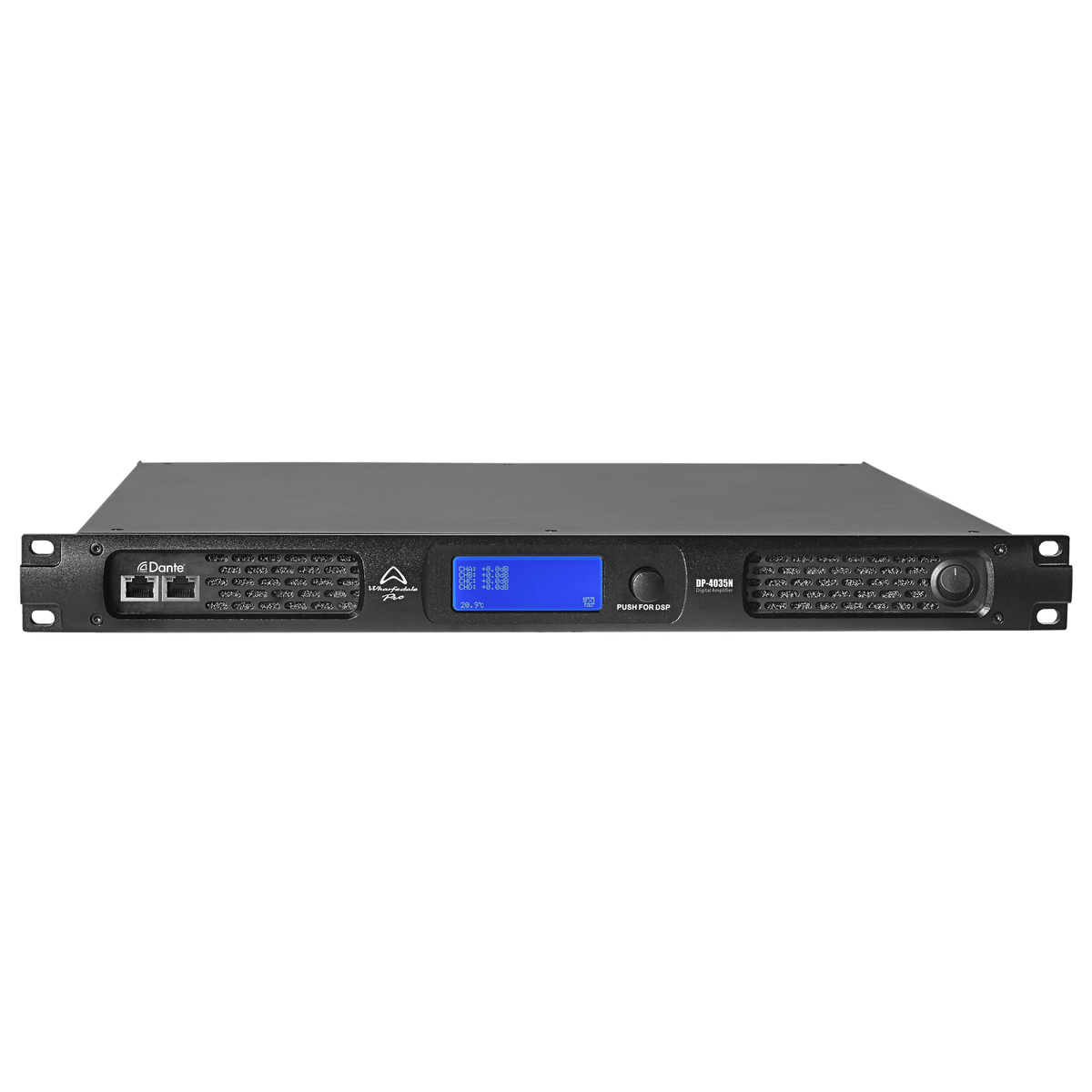

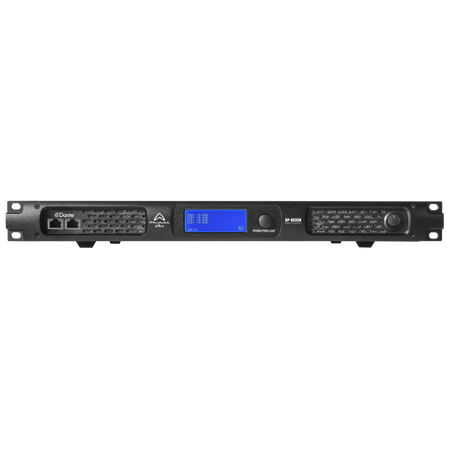

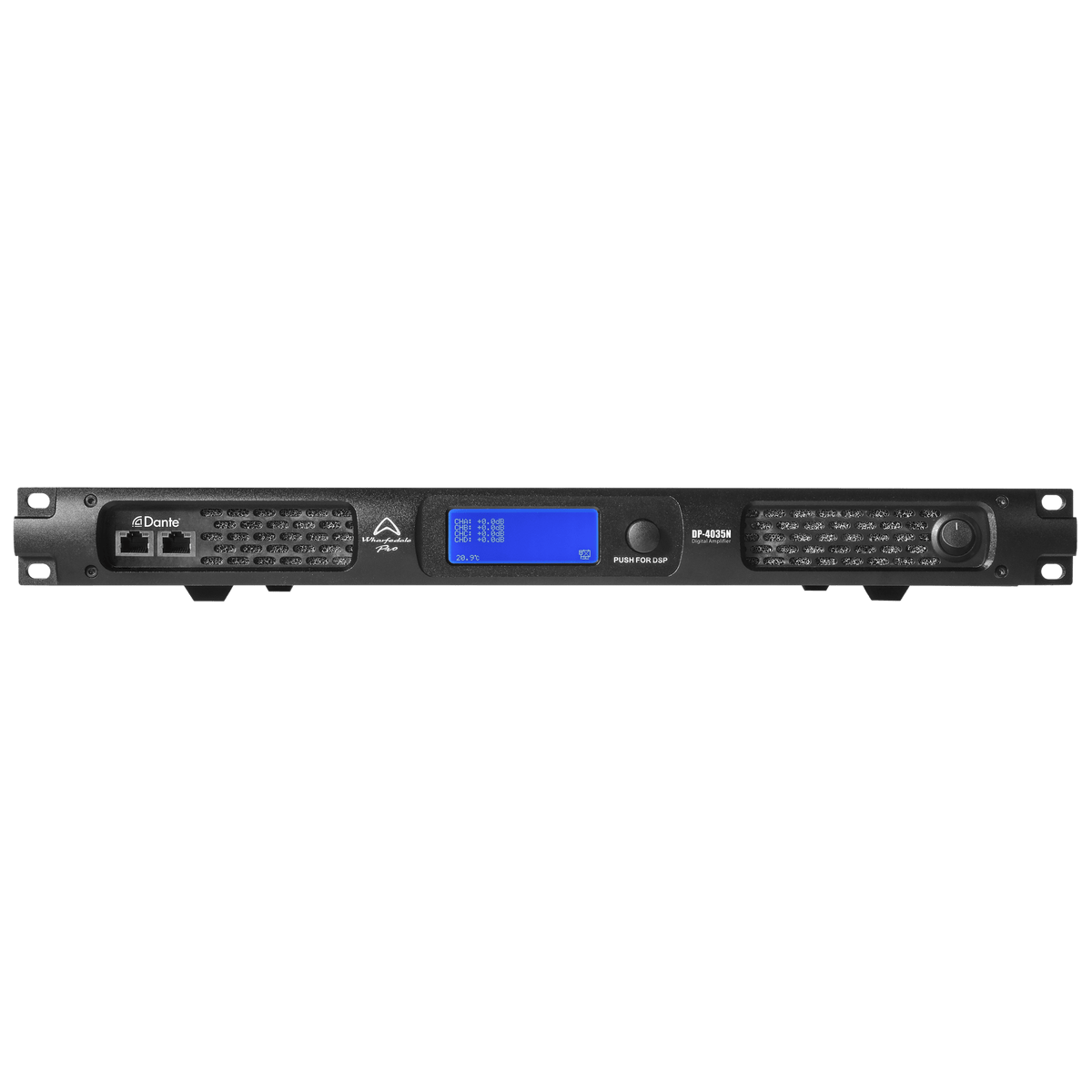

The DP-4035N is a four-channel Class D amplifier with Dante, AES/EBU and XLR inputs. Four Class D channels deliver 595 W each into 4 Ω and 1010 W each into 2 Ω, with bridged pairs reaching 2 x 2020 W at 4 Ω. DSP with FIR is controlled in software or on the front panel, and the 45 mm high chassis weighs 8 kg.
| Amp Channels | 4 |
|---|---|
| Topology | Class D |
| Stable at 2 Ohms | Yes |
| 8Ω | 4 x 350 W |
| 4Ω | 4 x 595 W |
| 2Ω | 4 x 1010 W |
| 16Ω Bridged | 2 x 700 W |
| 8Ω Bridged | 2 x 1190 W |
| 4Ω Bridged | 2 x 2020 W |
| Control | DSP Controller Software / Front Panel |
| Input Connectors | 4 x XLR Socket, Dante®, AES/EBU |
| Output Connectors | 4 x 4 Pole Speaker Connector |
| Software Control | Yes |
| Mode Switch | Software and Front Panel |
| DSP Features | DSP with FIR |
| Hi-Z | Yes |
| Input Gain/Sensitivity Switch | 35 dB |
| Slew Rate | >50 V / us |
| Output RMS Voltage (V) | 52.9 V |
| Maximum input Level | 21 dBu (8.7 Vrms) |
| Default Gain (Rated power, 1 kHz) (dB) | 17 dB |
| Gain (Rated Power, 1 kHz) | 35 dB |
| THD+N | Typical : 0.05% (10% Rated Power, 8 Ω) |
| Crosstalk | ≥90 dB (20 Hz-1 kHz, Below Rated Power, 8 Ω) |
| Amplifier Frequency Response | Typical :+0,-0.5 dB (10% Rated Power, 20 Hz-20 kHz, 8 Ω) |
| Amplifier Input Impedance | 20 kΩ (Balanced), 10 kΩ (Unbalanced) |
| Damping Factor | ≥1000 (20 Hz-200 Hz, 8 Ω) |
| SNR | ≥105 dB (Default Gain, A Weighted, 20 Hz-20 kHz, 8 Ω) |
| Protection | Power under-voltage protection, Amplifier output DC protection, Thermal Protection, Temperature Power Control, Overload Power Control |
| Main Power | 90~260 V AC,50/60 Hz |
| Included Accessory | AC Cable, User Manual, 4 x rubber feet |
| Unpacked - Height (mm) | 45 |
|---|---|
| Unpacked - Width Front (mm) | 483 |
| Unpacked - Width Rear (mm) | 483 |
| Unpacked - Depth (mm) | 376 |
| Packed - Height (mm) | 125 |
| Packed - Width Front (mm) | 510 |
| Packed - Width Rear (mm) | 510 |
| Packed - Depth (mm) | 565 |
| Weight - Nett (kg) | 8 |
| Weight - Gross (kg) | 9.5 |
Dante and AES/EBU.
