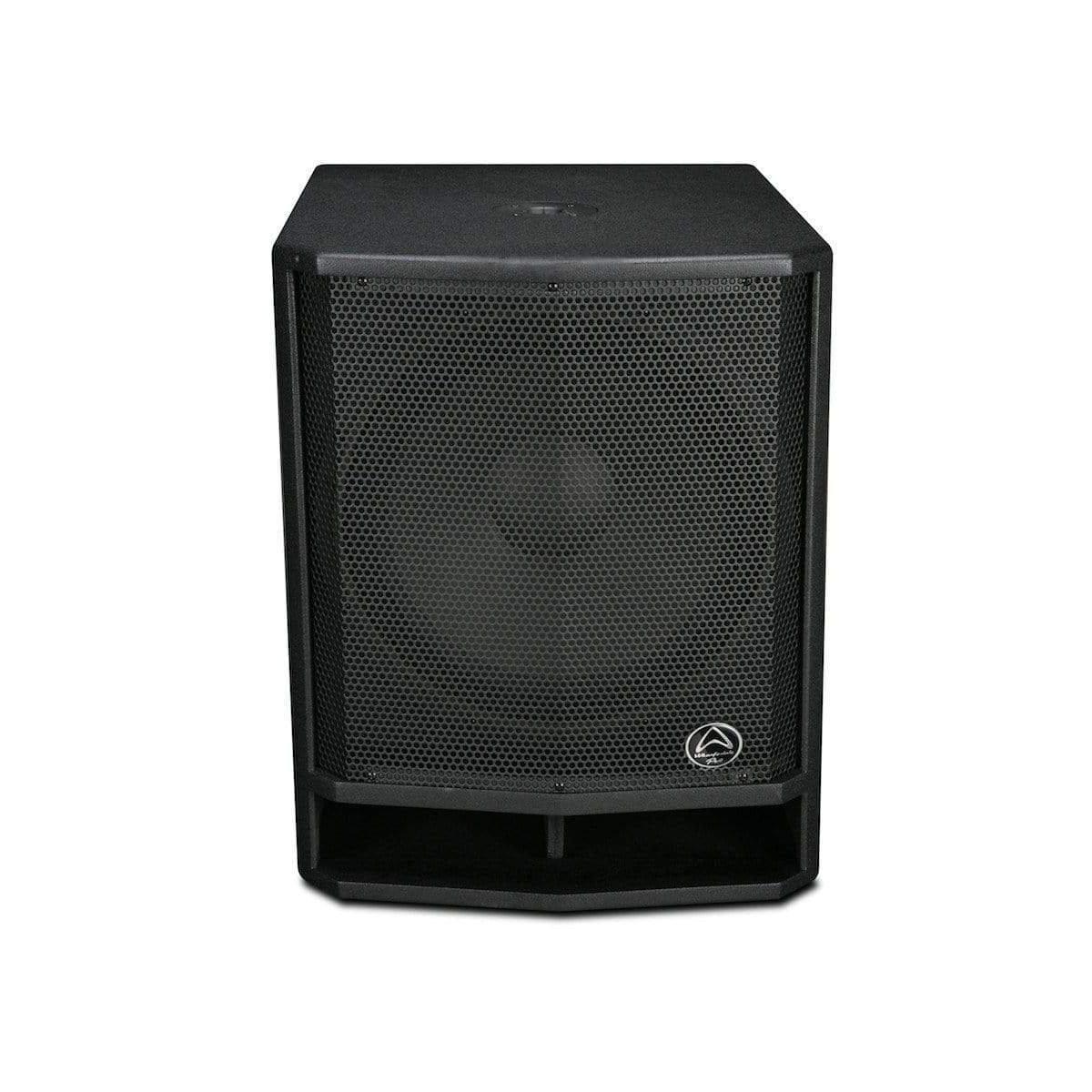

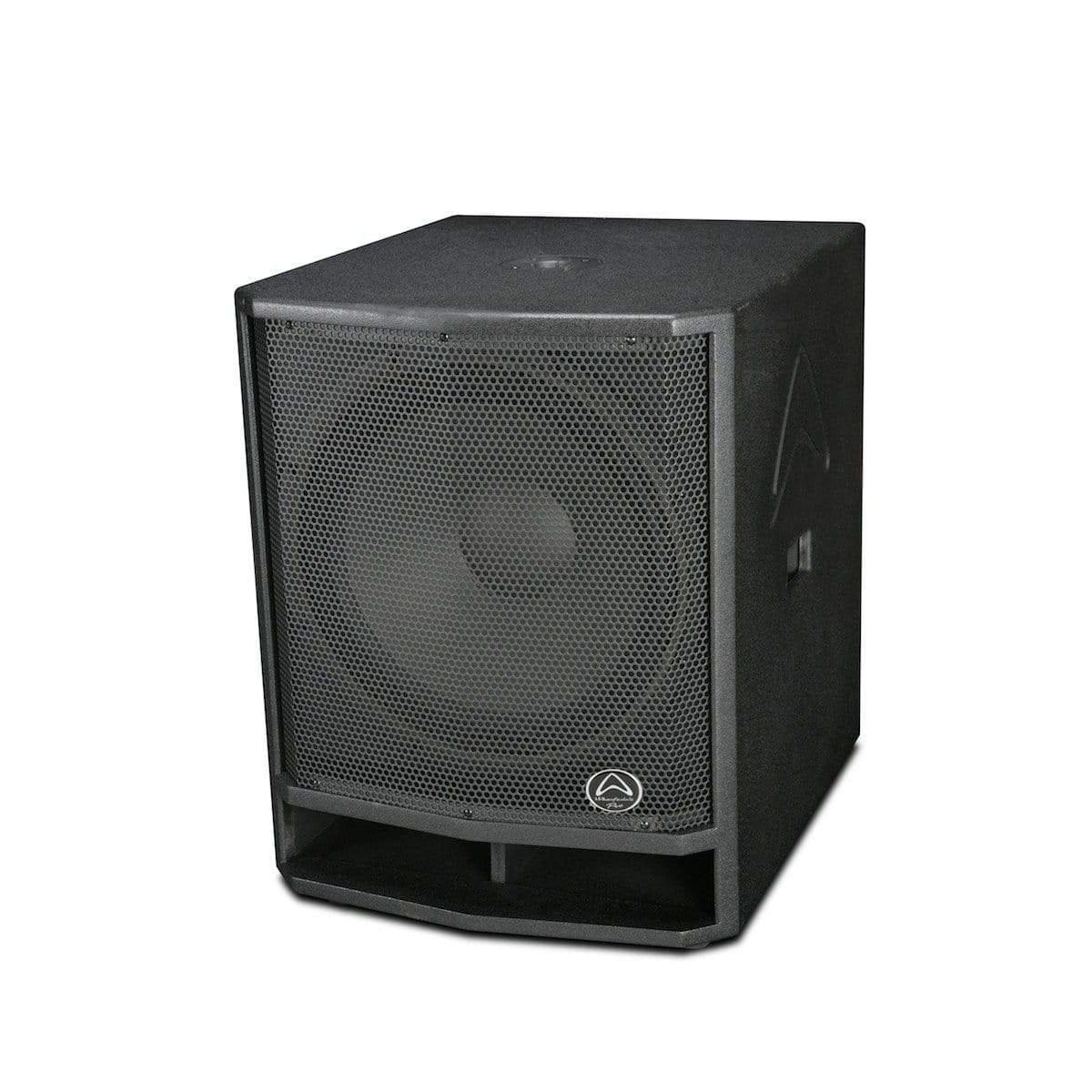

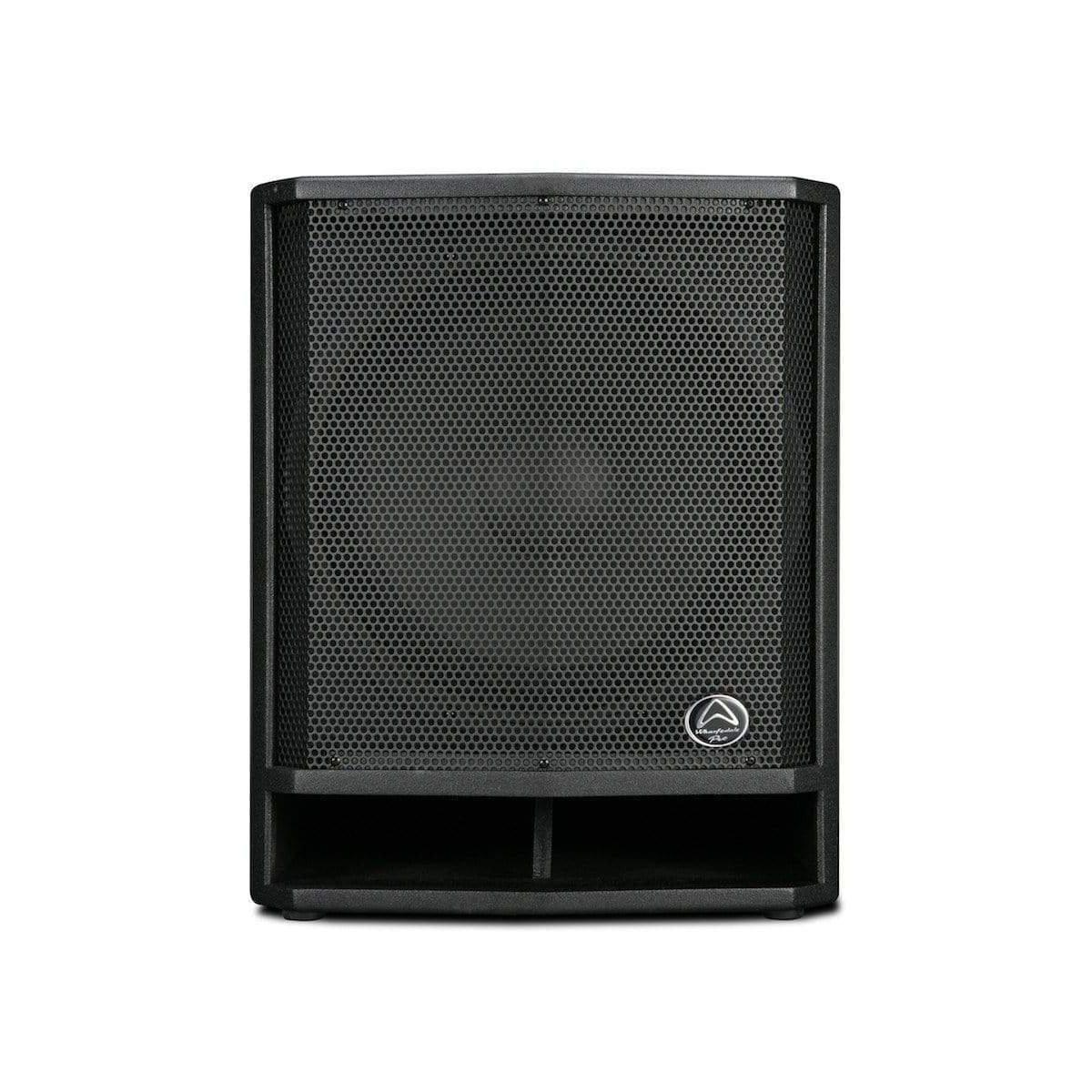

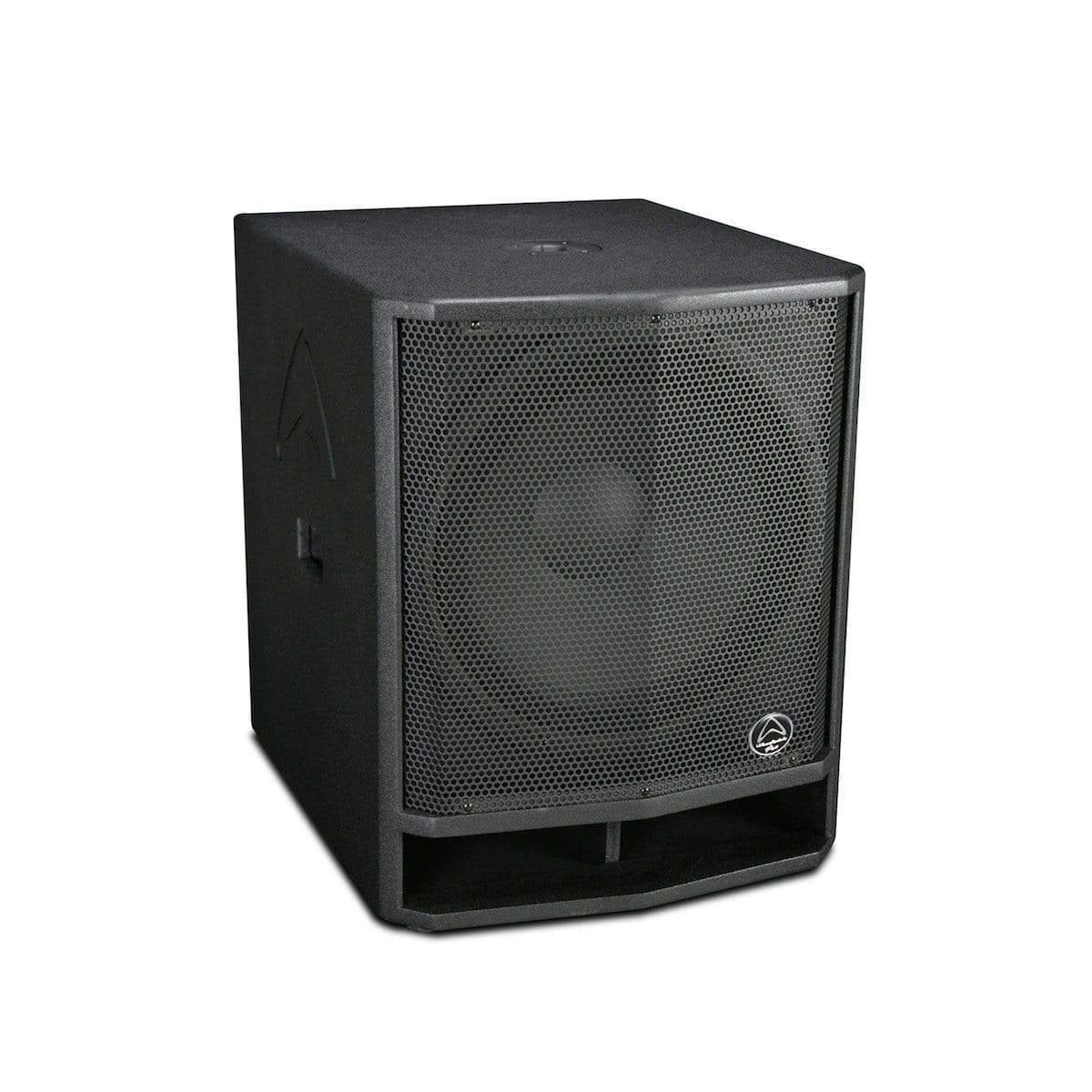

The DVP-AX18B is an active subwoofer with an 18" driver and a Class D amplifier rated at 600 W continuous. Maximum SPL is 132 dB at 1 m in half space, with response from 35 Hz to 150 Hz. It has XLR and 1/4" inputs, an XLR thru/HPF output and a 35 mm pole socket, and is built in MDF.
| Active or Passive | Active |
|---|---|
| System Type | Subwoofer |
| Configuration | Bass-reflex |
| System Continuous Power | 600 W |
| System Peak Power | 1200 W |
| Max SPL @ 1m | 132 dB (Half Space) |
| Freq Response (+/-3 dB) | 35 Hz - 150 Hz |
| Freq Range (-10 dB) | 30 Hz - 150 Hz |
| Bi-amp Mode Switch | No |
| Bluetooth | No |
| IP Certification | None |
| Driver Brand | Wharfedale Pro |
| LF Driver Size | 18" |
| LF Voice Coil Size | 2.5" |
| LF Rated Impedance | 4 Ω |
| LF Power (RE:AES2-2012) | 500 W |
| Preset Library | No |
| Input Connector | XLR & 1/4″ (Line/MIC) |
| Enclosure Material | MDF |
| Grille Material and Finish | Steel Black |
| Finish | Black Paint |
| Handles | 2 |
| Deployment | Ground |
| Pole Mount | 35 mm |
| Brackets Included | No |
| Rigging | No |
| Sensitivity 2.83 V / 1 m | n/a dB |
| System Rated Impedance | n/a |
| Transformer (T) | No |
| Transformer Taps (70 V) | No |
| Transformer Taps (100 V) | No |
| Input Connectors (T) | No |
| Amplifier design | Class D |
| Active loudspeaker Input Impedance | Balanced: 20 K |
| Link Connector | 2 x pin XLR |
| Input sensitivity | 775 mv |
| Max input level | 6 v |
| Line output | XLR THRU/HPF (Out) |
| Main Power | 220-240 V 50/60 Hz |
| Power Supply | SMPS |
| Included Accessory | User Manual, AC Cable |
| Unpacked - Height (mm) | 650 |
|---|---|
| Unpacked - Width Front (mm) | 528 |
| Unpacked - Width Rear (mm) | 528 |
| Unpacked - Depth (mm) | 639 |
| Packed - Height (mm) | 614 |
| Packed - Width Front (mm) | 725 |
| Packed - Width Rear (mm) | 725 |
| Packed - Depth (mm) | 740 |
| Weight - Nett (kg) | 38.2 |
| Weight - Gross (kg) | 44.2 |
Yes, a line output labelled XLR THRU/HPF (Out) is listed.
220-240 V, 50/60 Hz. No 100-120 V range is listed.
