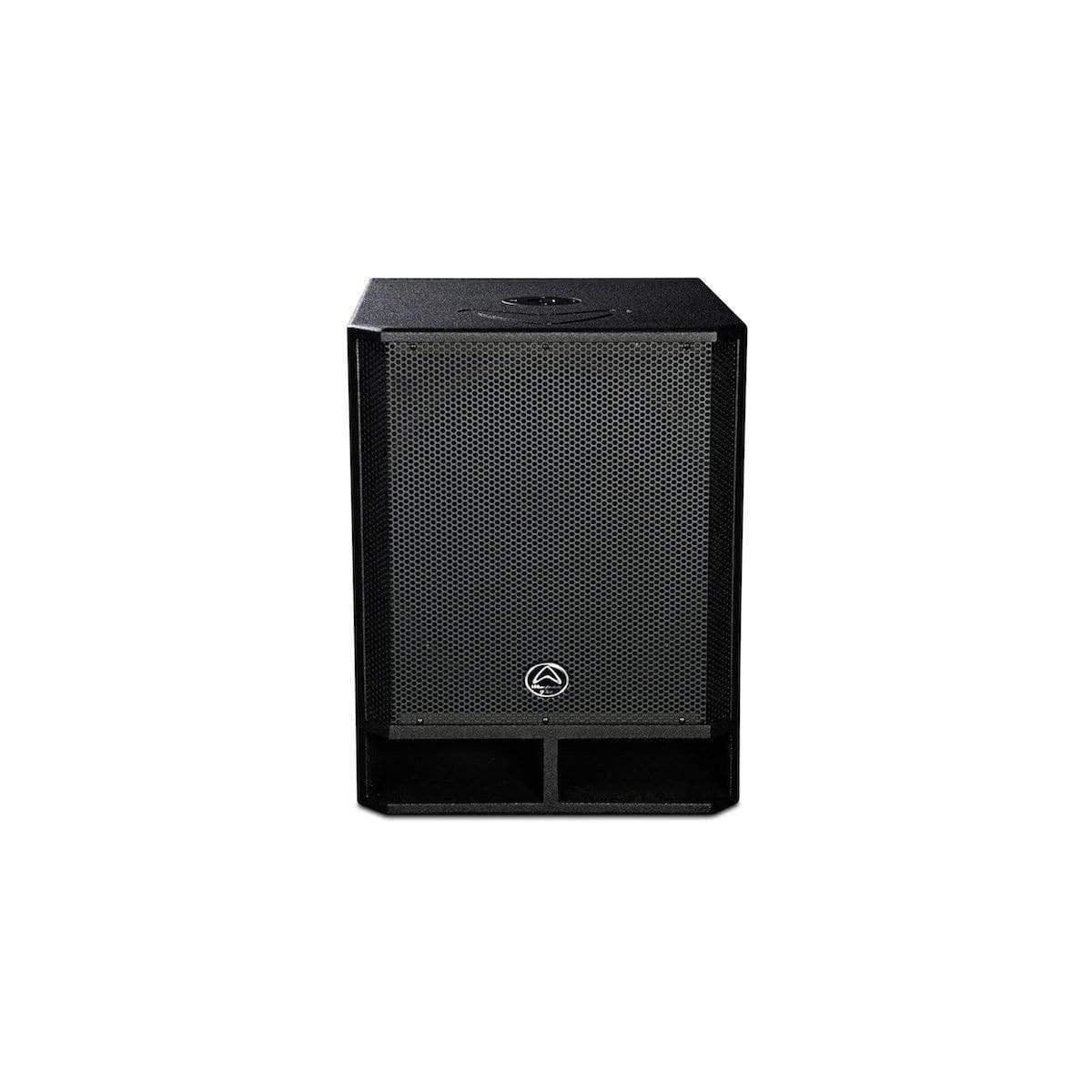

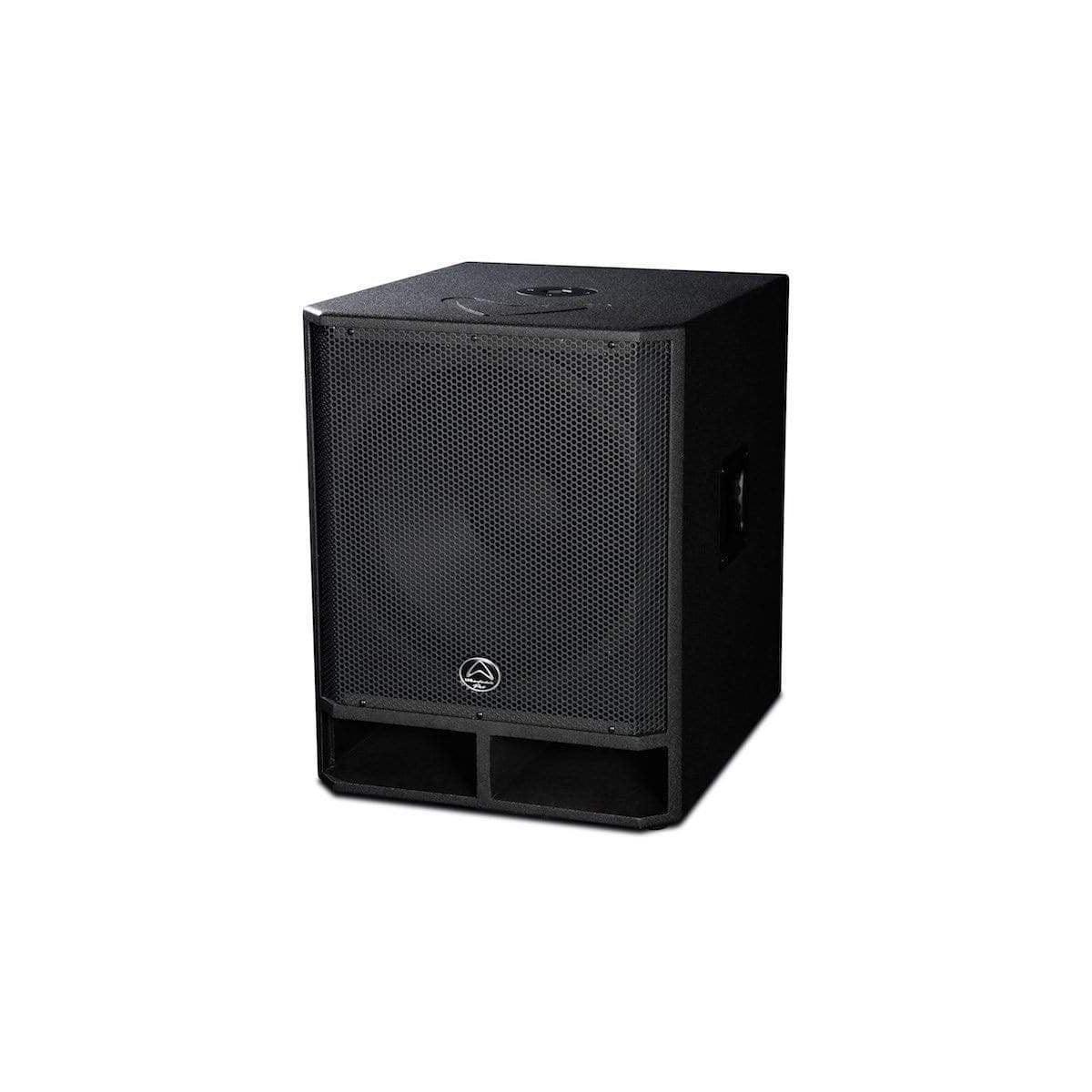

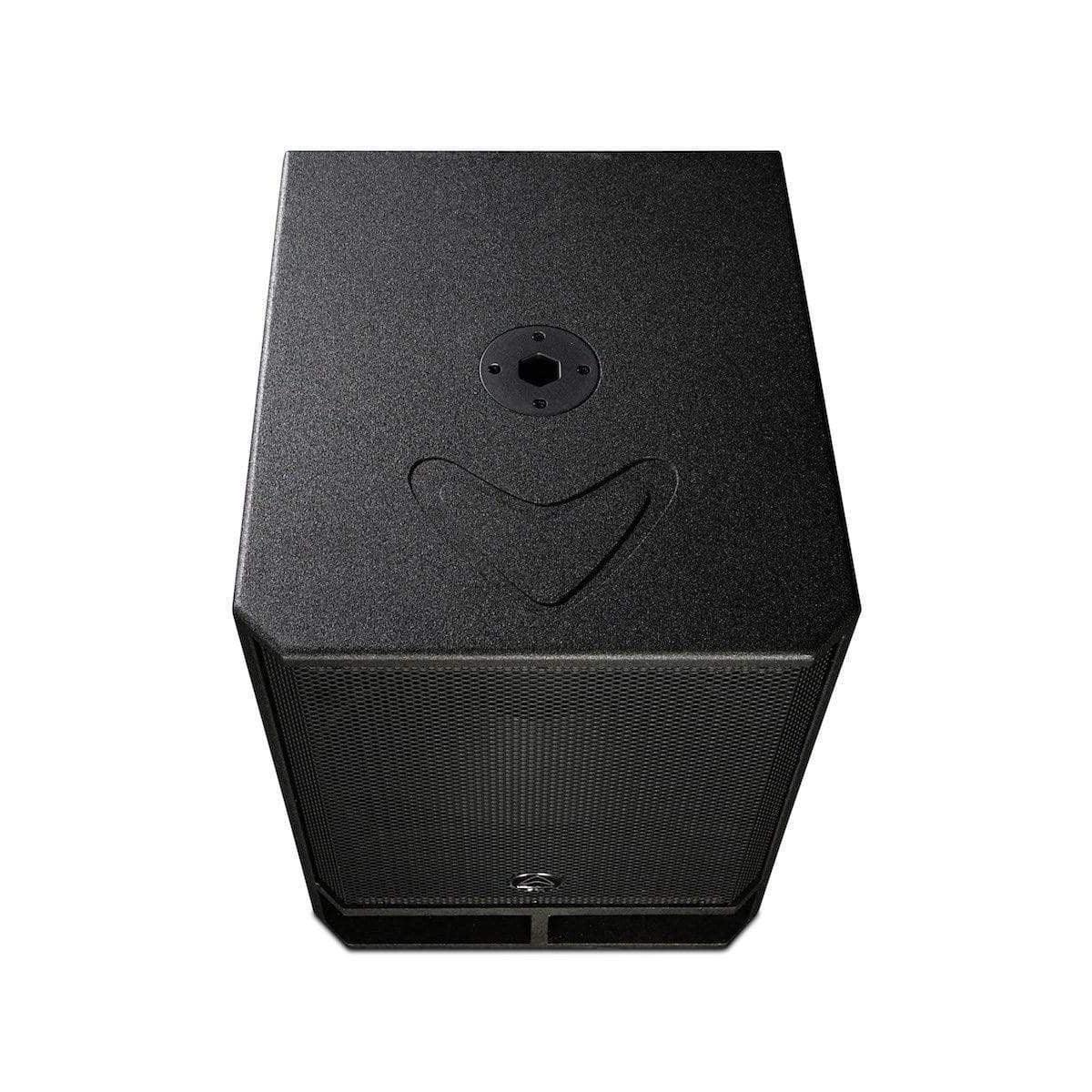

The EVO-X18B is a passive bass-reflex subwoofer with a single 18" driver and a 3" voice coil. It is rated at 600 W continuous into 4 Ω and reaches 134 dB at 1 m in half space. The MDF cabinet has a Black Rhino Paint finish and a 35 mm pole socket for mounting a top speaker.
| Active or Passive | Passive |
|---|---|
| System Type | Subwoofer |
| Configuration | Bass-reflex |
| System Continuous Power | 600 W |
| System Programme Power | 1200 W |
| System Peak Power | 2400 W |
| Max SPL @ 1m | 134 dB (Half Space) |
| Freq Response (+/-3 dB) | 35 Hz - 250 Hz |
| Freq Range (-10 dB) | 30 Hz - 250 Hz |
| Bi-amp Mode Switch | No |
| Bluetooth | No |
| IP Certification | None |
| Driver Brand | Wharfedale Pro |
| LF Driver Size | 18" |
| LF Voice Coil Size | 3" |
| LF Rated Impedance | 4 Ω |
| LF Power (RE:AES2-2012) | 600 W |
| Preset Library | Yes |
| Input Connector | 2 x 4 Pole Speaker Connector / 2 x 1/4" Jacks |
| Enclosure Material | MDF |
| Grille Material and Finish | Steel Black |
| Finish | Black Rhino Paint |
| Handles | 2 |
| Deployment | Ground |
| Pole Mount | 35 mm |
| Brackets Included | No |
| Rigging | No |
| Sensitivity 2.83 V / 1 m | 100 dB |
| System Rated Impedance | 4 Ω |
| Crossover Frequency | 150 Hz |
| Recommended HPF = BW 18 dB/OCT. | 30 Hz |
| Transformer (T) | No |
| Included Accessory | User Manual |
| Unpacked - Height (mm) | 650 |
|---|---|
| Unpacked - Width Front (mm) | 522 |
| Unpacked - Width Rear (mm) | 522 |
| Unpacked - Depth (mm) | 610 |
| Packed - Height (mm) | 690 |
| Packed - Width Front (mm) | 588 |
| Packed - Width Rear (mm) | 588 |
| Packed - Depth (mm) | 738 |
| Weight - Nett (kg) | 40.1 |
| Weight - Gross (kg) | 45.2 |
2 x 4 pole speaker connectors and 2 x 1/4" jacks.
No. Rigging is listed as no; deployment is ground.
150 Hz is listed, with a recommended high-pass filter of 30 Hz.
