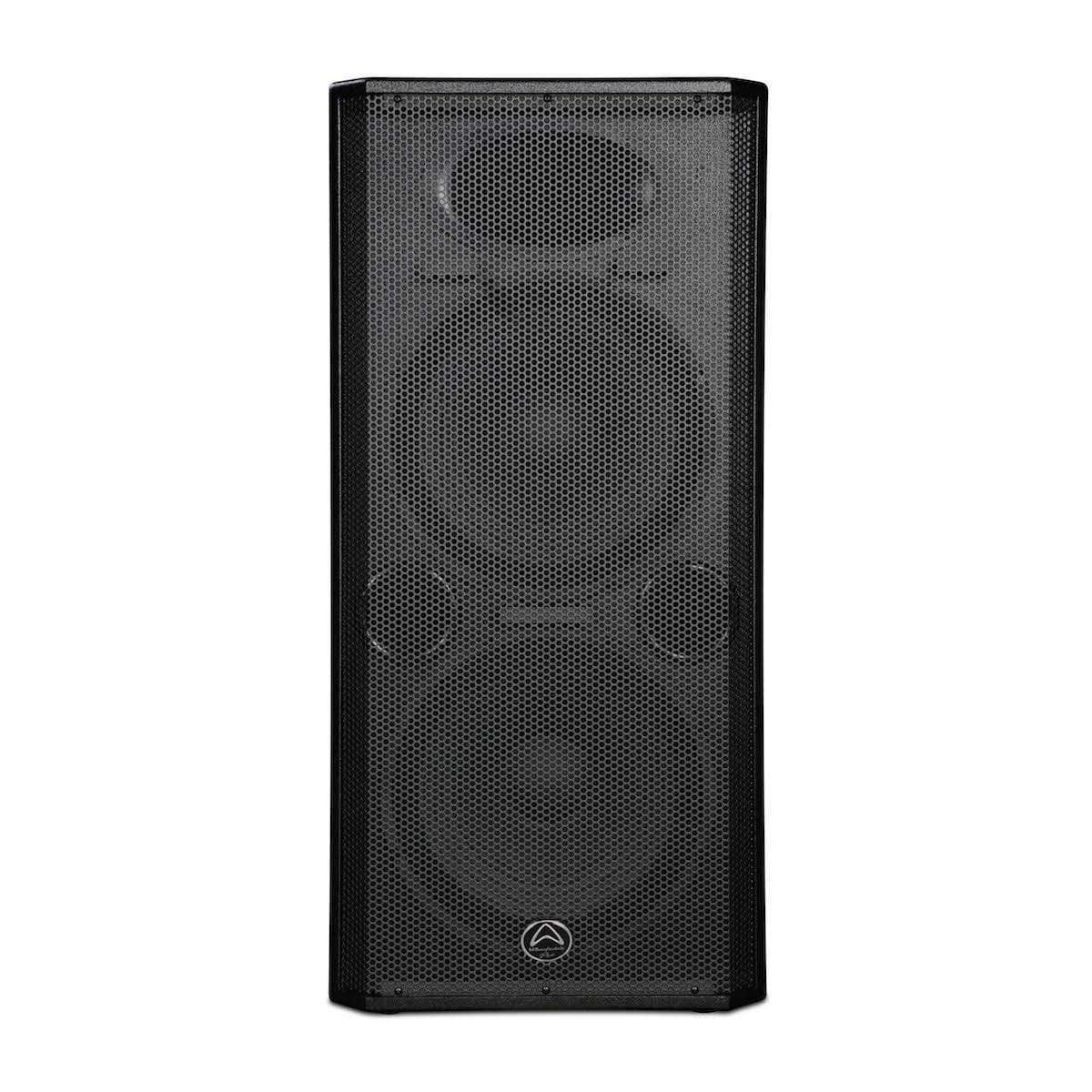

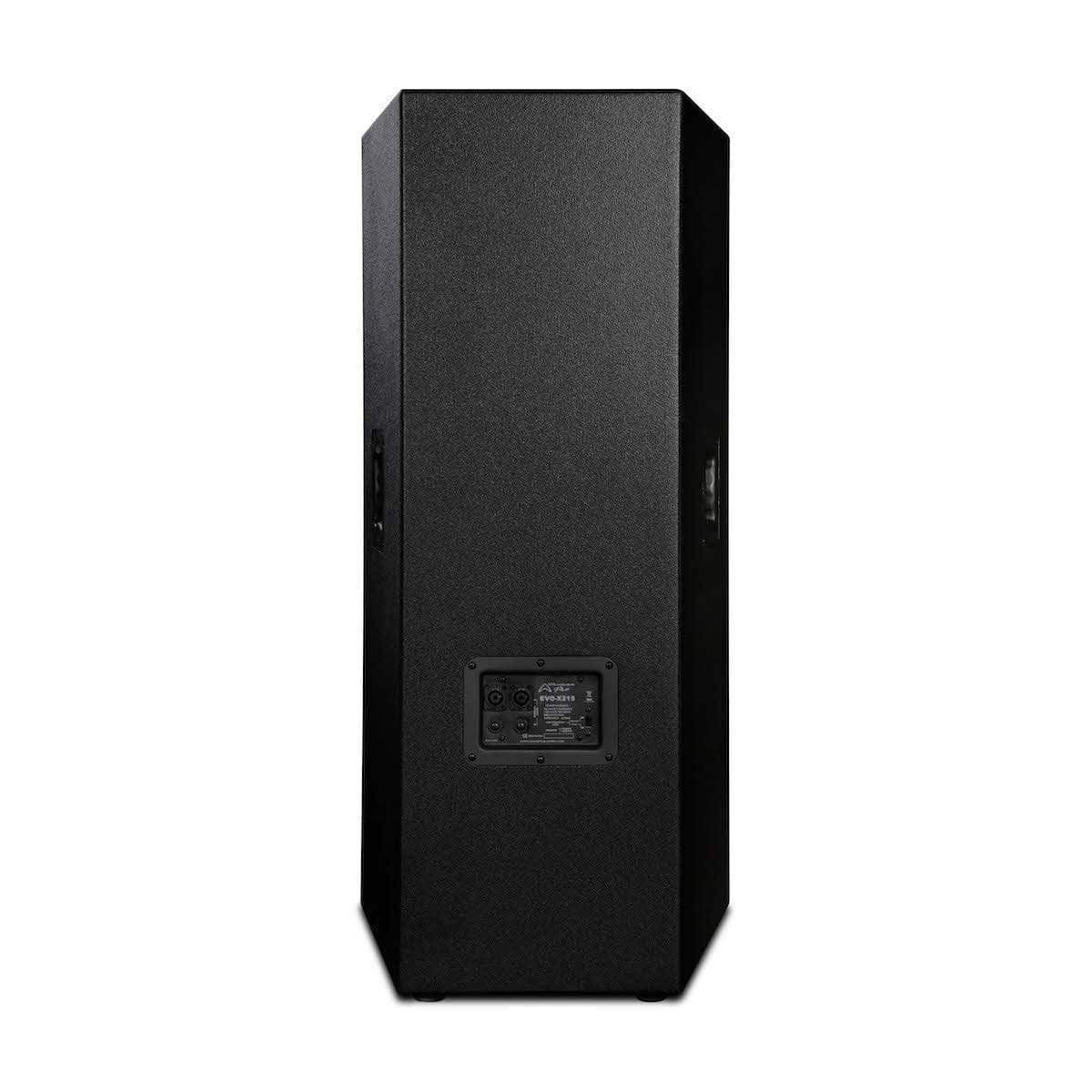

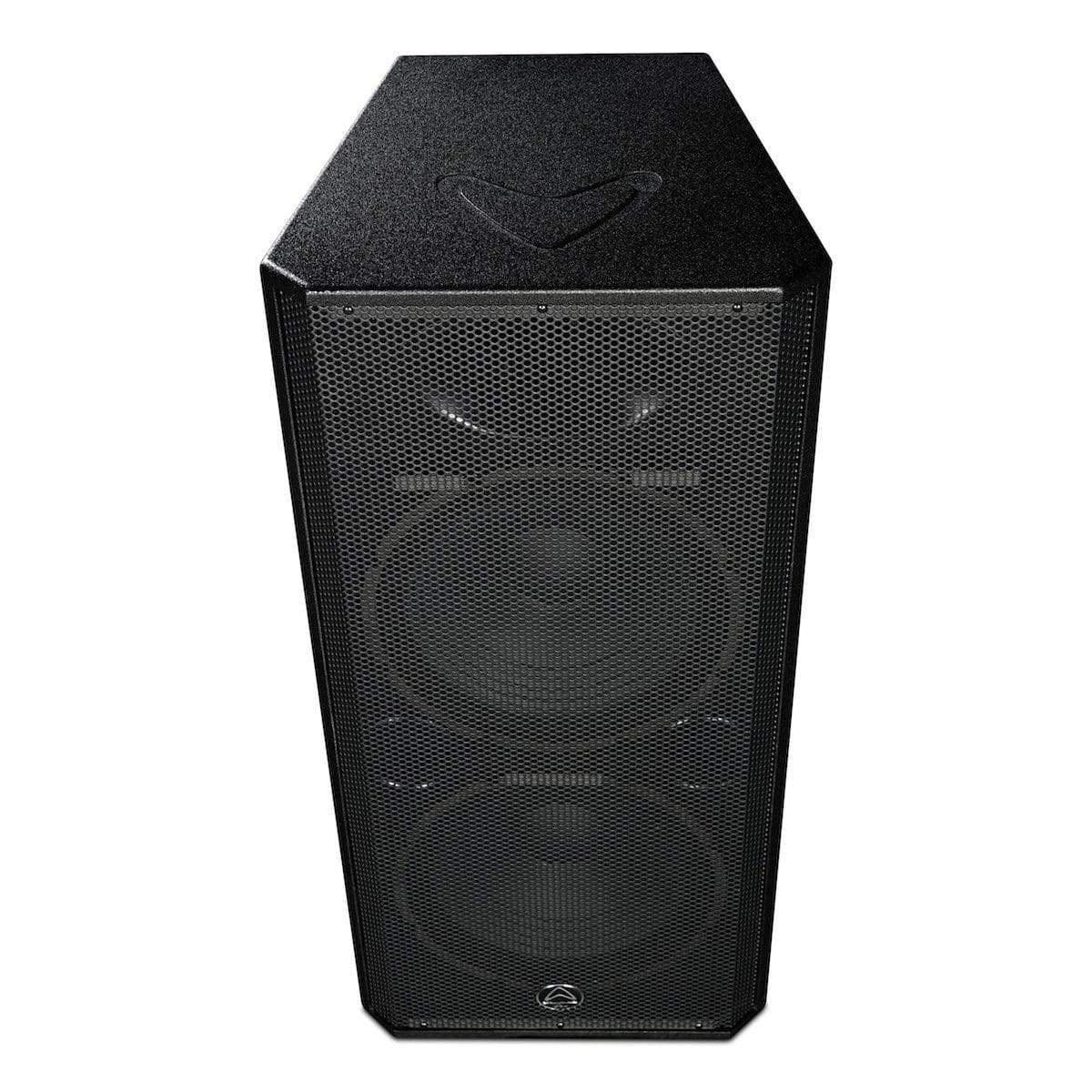

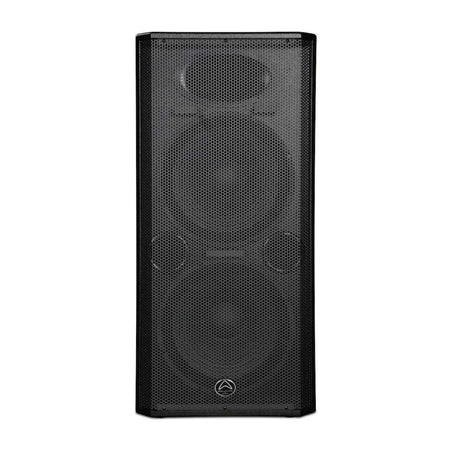

The EVO-X215 is a quasi 3-way passive speaker with two 15" woofers and a 1.75" titanium compression driver. It is rated at 700 W continuous, 1400 W programme and 2800 W peak, with a 135 dB maximum SPL and sensitivity of 100 dB. System impedance is 4 Ω, and the cabinet is intended for ground deployment.
| Active or Passive | Passive |
|---|---|
| System Type | Full-Range |
| Configuration | Quasi 3-way |
| System Continuous Power | 700 W |
| System Programme Power | 1400 W |
| System Peak Power | 2800 W |
| Max SPL @ 1m | 135 dB |
| Freq Response (+/-3 dB) | 40 Hz - 20 kHz |
| Freq Range (-10 dB) | 35 Hz - 20 kHz |
| Bi-amp Mode Switch | No |
| Bluetooth | No |
| IP Certification | None |
| Driver Brand | Wharfedale Pro |
| LF Driver Size | 2 x 15" |
| LF Voice Coil Size | 2.5" |
| LF Rated Impedance | 8 Ω |
| LF Power (RE:AES2-2012) | 2 x 350 W |
| HF Driver Type | Compression Driver |
| HF Voice Coil Size | 1.75" |
| HF Diaphragm Material | Titanium |
| HF Exit Size | 1" |
| HF Power (RE:AES2-2012) | 40 W |
| HF Rated Impedance | 8 Ω |
| Preset Library | Yes |
| Input Connector | 2 x 4 Pole Speaker Connector / 2 x 1/4" Jacks |
| Waveguide Type | Elliptical |
| Enclosure Material | MDF |
| Grille Material and Finish | Steel Black |
| Finish | Black Rhino Paint |
| Handles | 2 |
| Deployment | Ground |
| Pole Mount | None |
| Brackets Included | No |
| Rigging | No |
| Nominal Coverage (H x V) | 90° x 60° |
| Sensitivity 2.83 V / 1 m | 100 dB |
| System Rated Impedance | 4 Ω |
| Crossover Frequency | 2.3 kHz |
| Recommended HPF = BW 18 dB/OCT. | 35 Hz |
| Transformer (T) | No |
| Included Accessory | User Manual |
| Unpacked - Height (mm) | 1058 |
|---|---|
| Unpacked - Width Front (mm) | 502 |
| Unpacked - Width Rear (mm) | 330 |
| Unpacked - Depth (mm) | 467 |
| Packed - Height (mm) | 496 |
| Packed - Width Front (mm) | 564 |
| Packed - Width Rear (mm) | 564 |
| Packed - Depth (mm) | 1123 |
| Weight - Nett (kg) | 42 |
| Weight - Gross (kg) | 47.1 |
System rated impedance is 4 Ω.
No. Pole mount is listed as None and deployment as Ground.
No. Rigging is listed as No.
