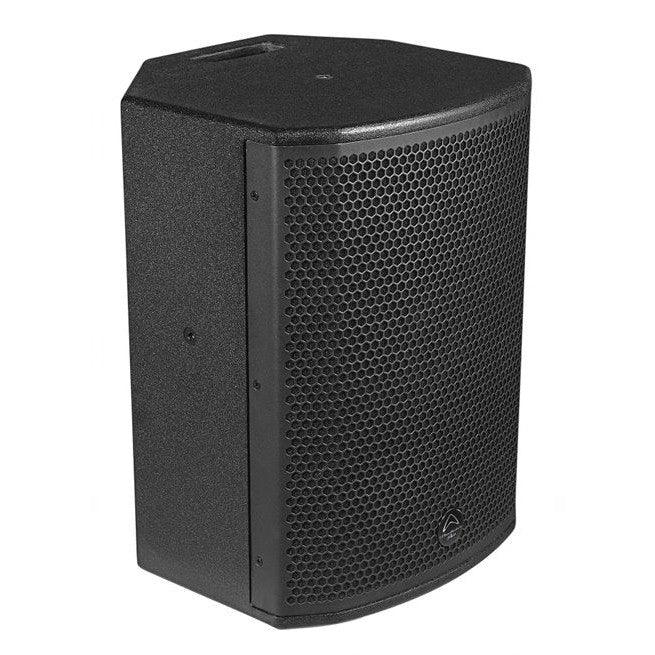

The GPL-12 is a passive coaxial 2-way speaker using a 12" Beyma woofer with a 4" voice coil and a compression driver with a 1.5" exit. It is rated 450 W continuous, 900 W programme and 1800 W peak at 8 Ω, with 131 dB maximum SPL and 60° conical coverage. The birch plywood cabinet is rigged with M8 and M10 points and a flying yoke is included.
| Active or Passive | Passive |
|---|---|
| System Type | Full-Range |
| Configuration | Coaxial 2-way |
| System Continuous Power | 450 W |
| System Programme Power | 900 W |
| System Peak Power | 1800 W |
| Max SPL @ 1m | 131 dB |
| Freq Response (+/-3 dB) | 55 Hz - 20 kHz |
| Freq Range (-10 dB) | 35 Hz - 25 kHz |
| Bi-amp Mode Switch | No |
| Bluetooth | No |
| IP Certification | None |
| Driver Brand | Beyma |
| LF Driver Size | 12" |
| LF Voice Coil Size | 4" |
| LF Rated Impedance | 8 Ω |
| HF Driver Type | Compression Driver |
| HF Voice Coil Size | 2.87" |
| HF Diaphragm Material | Composite Titanium / Polyester |
| HF Exit Size | 1.5" |
| HF Power (RE:AES2-2012) | 80 W |
| Preset Library | Yes |
| Input Connector | 2 x 4 Pole Speaker Connector |
| Waveguide Type | Spherical |
| Enclosure Material | Birch Plywood |
| Grille Material and Finish | Steel Black or White |
| Finish | Black or White Tough-Tone paint |
| Handles | 1 |
| Deployment | Flying, Wall Mount |
| Pole Mount | None |
| Brackets Included | Yes |
| Rigging | Yes |
| M8 | 4 |
| M10 | 4 |
| Nominal Coverage (H x V) | 60° conical |
| Sensitivity 2.83 V / 1 m | 98 dB |
| System Rated Impedance | 8 Ω |
| Crossover Frequency | 1.2 kHz |
| Recommended HPF = BW 18 dB/OCT. | 35 Hz |
| Transformer (T) | No |
| Included Accessory | Quick Start Guide, Flying Yoke |
| Unpacked - Height (mm) | 486 |
|---|---|
| Unpacked - Width Front (mm) | 370 |
| Unpacked - Width Rear (mm) | 182 |
| Unpacked - Depth (mm) | 360 |
| Packed - Height (mm) | 576 |
| Packed - Width Front (mm) | 435 |
| Packed - Width Rear (mm) | 435 |
| Packed - Depth (mm) | 445 |
| Weight - Nett (kg) | 22.3 |
| Weight - Gross (kg) | 25.9 |
Deployment is listed as flying or wall mount. Brackets are included, with a flying yoke, and the cabinet has 4 x M8 and 4 x M10 rigging points.

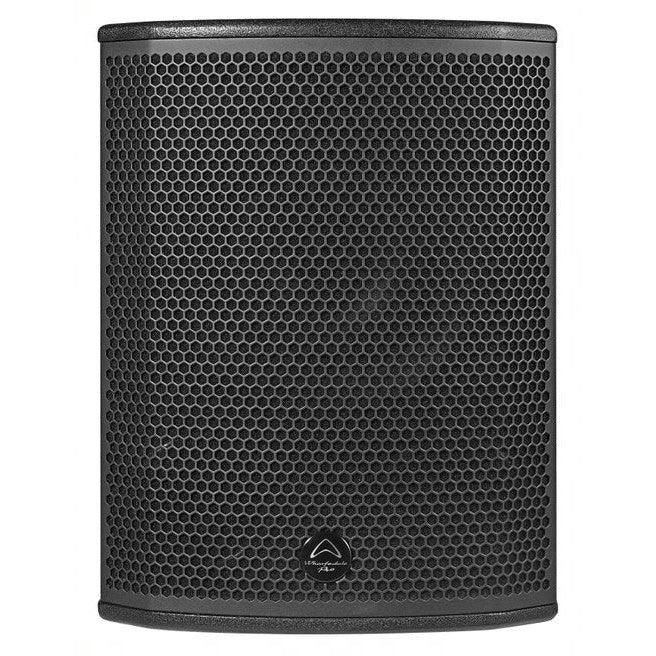

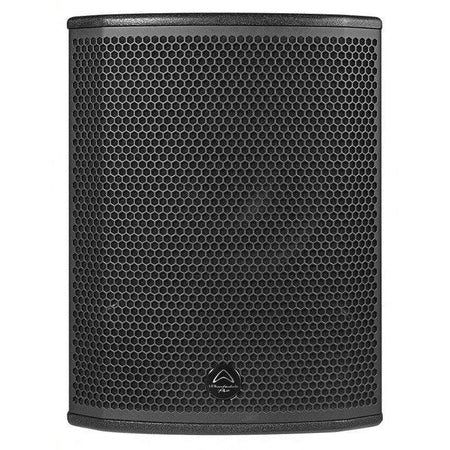

The specification lists black or white Tough-Tone paint with a black or white steel grille. This listing is the black version.

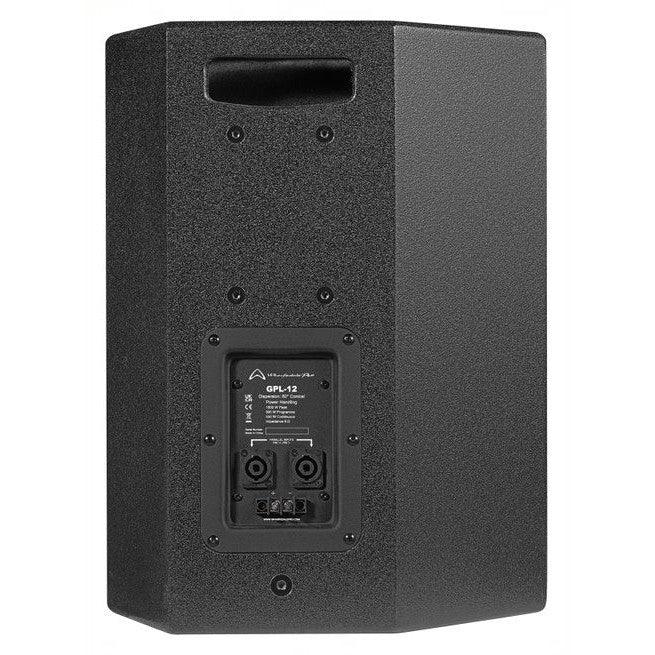

Two 4 pole speaker connectors.
