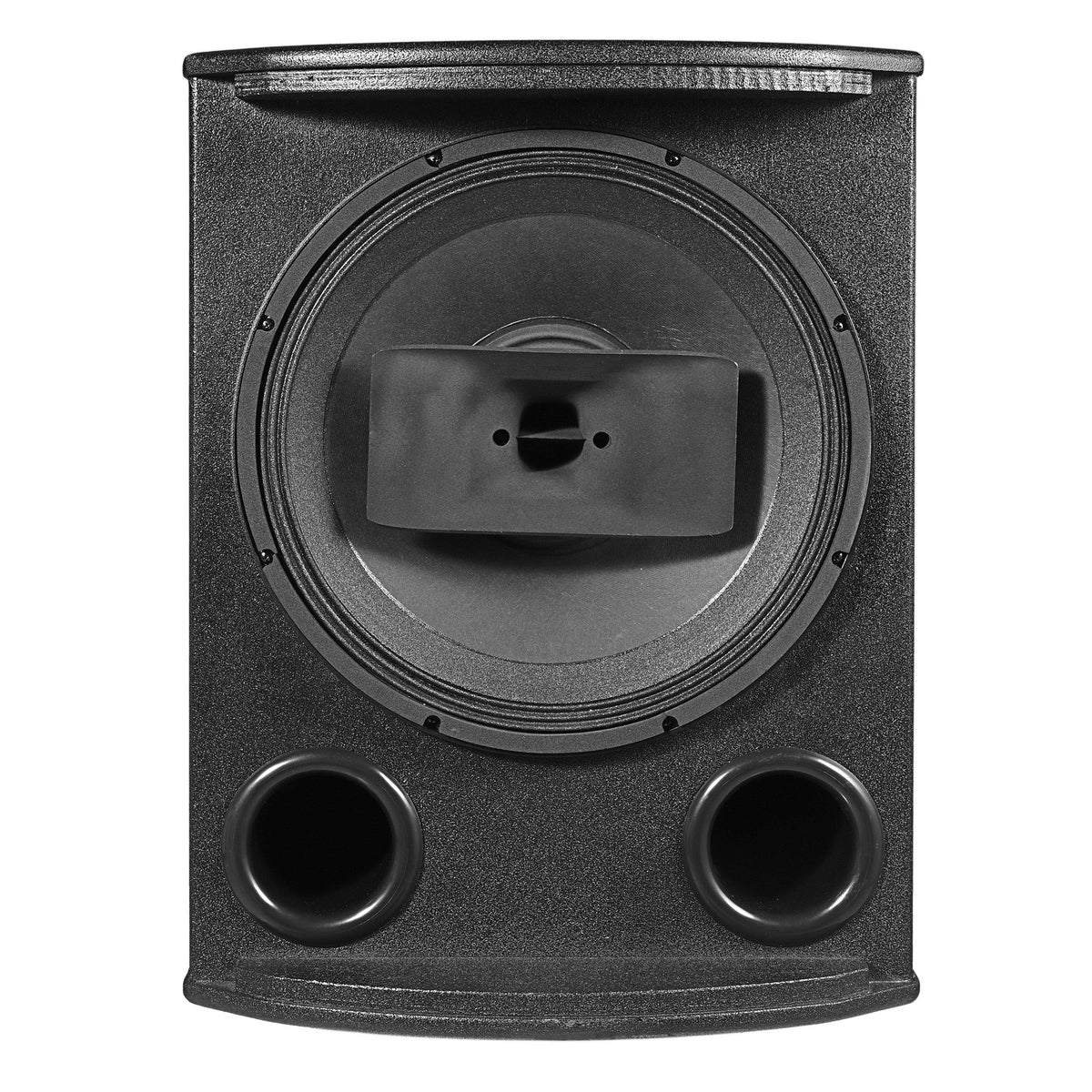

The GPL-15 is a passive coaxial two-way speaker with a 15" Beyma low-frequency driver and a compression driver mounted on the same axis. It is rated for 132 dB maximum SPL, a 42 Hz–20 kHz (±3 dB) response and 60° conical coverage. A birch plywood cabinet, brackets and a flying yoke are included for fixed installs, and it is available in black or white.
| Active or Passive | Passive |
|---|---|
| System Type | Full-Range |
| Configuration | Coaxial 2-way |
| System Continuous Power | 500 W |
| System Programme Power | 1000 W |
| System Peak Power | 2000 W |
| Max SPL @ 1m | 132 dB |
| Freq Response (+/-3 dB) | 42 Hz - 20 kHz |
| Freq Range (-10 dB) | 25 Hz - 25 kHz |
| Bi-amp Mode Switch | No |
| Bluetooth | No |
| IP Certification | None |
| Driver Brand | Beyma |
| LF Driver Size | 15" |
| LF Voice Coil Size | 4" |
| LF Rated Impedance | 8 Ω |
| HF Driver Type | Compression Driver |
| HF Voice Coil Size | 2.87" |
| HF Diaphragm Material | Composite Titanium / Polyester |
| HF Exit Size | 1.5" |
| HF Power (RE:AES2-2012) | 80 W |
| Preset Library | Yes |

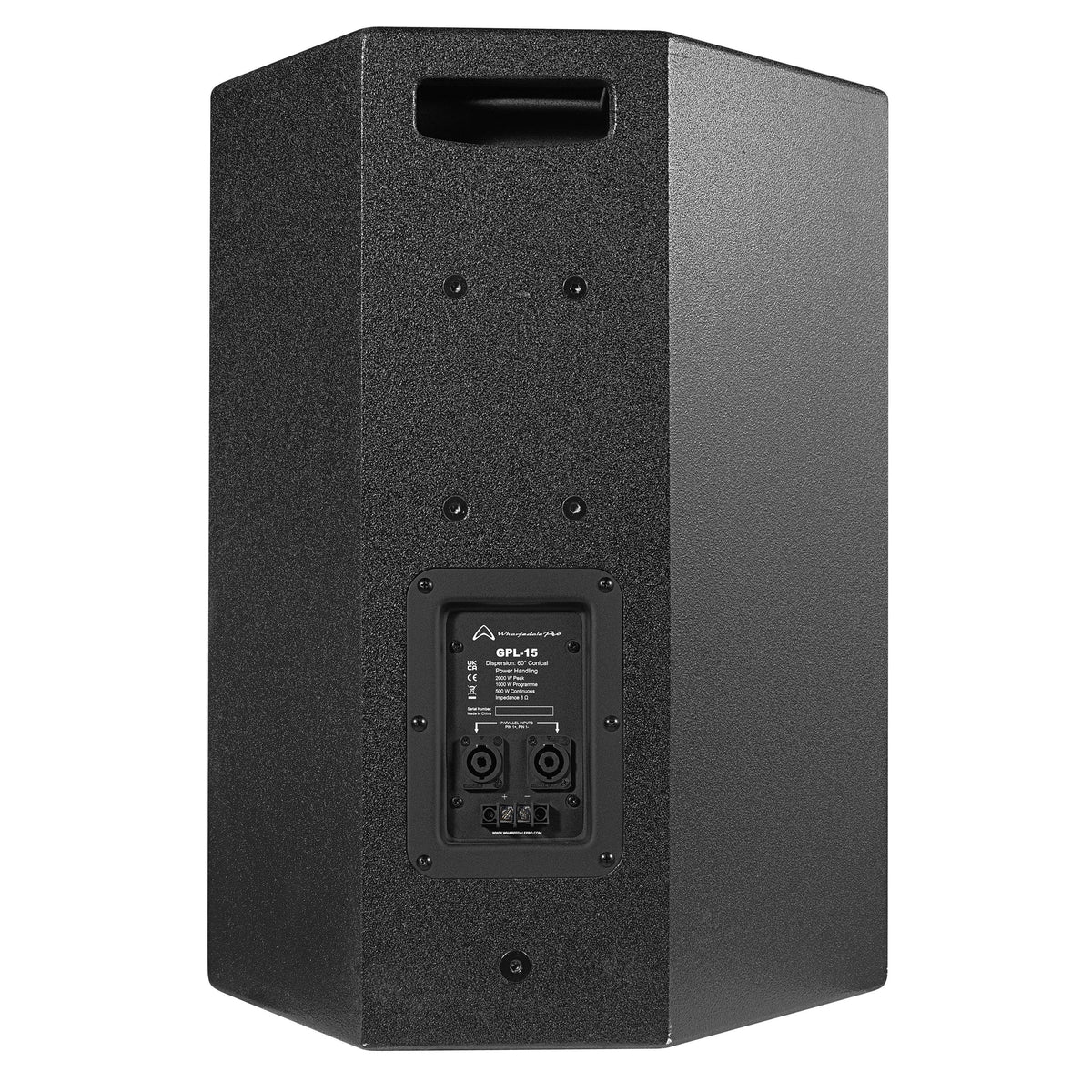

| Input Connector | 2 x 4 Pole Speaker Connector |
| Waveguide Type | Spherical |
| Enclosure Material | Birch Plywood |

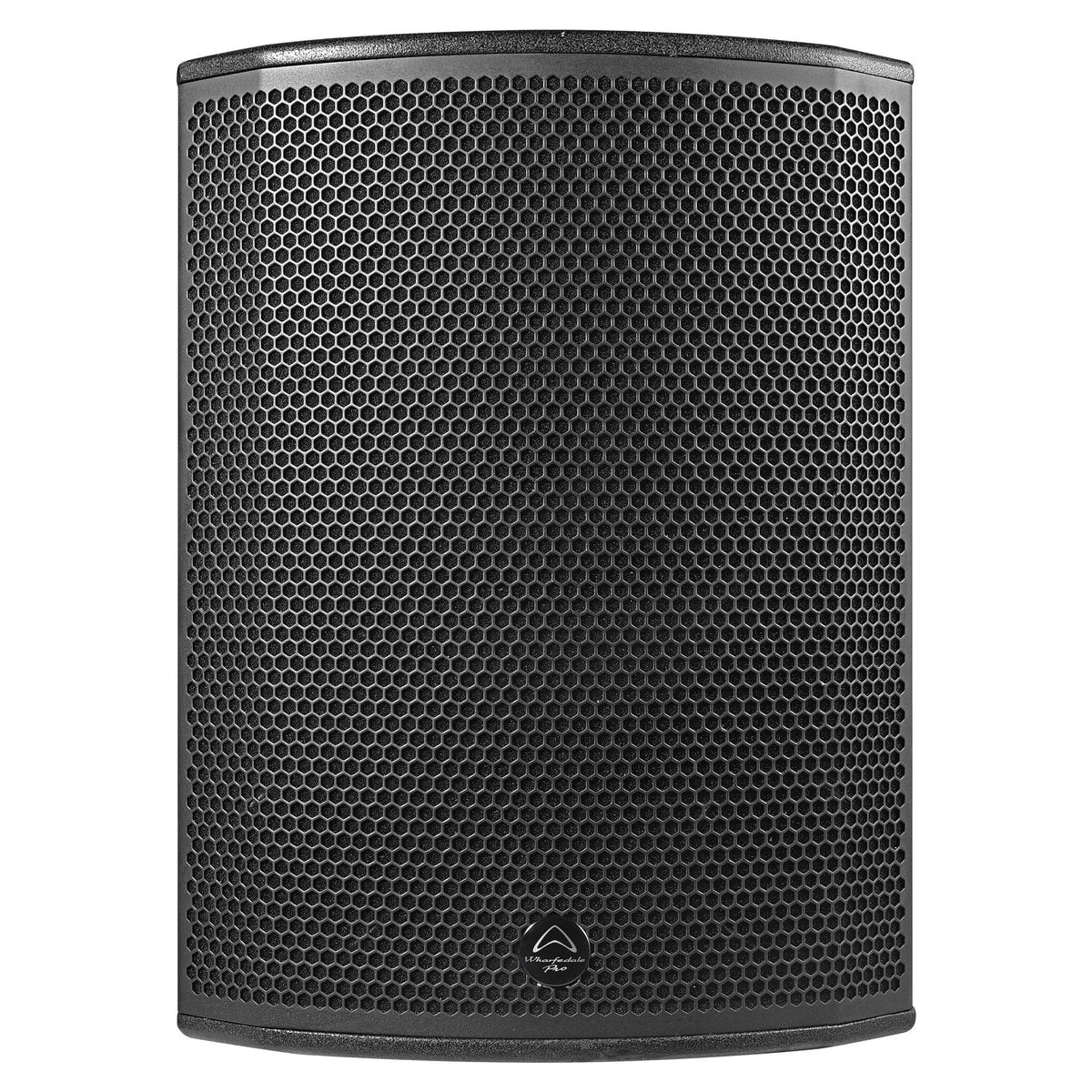

| Grille Material and Finish | Steel Black or White |
| Finish | Black or White Tough-Tone paint |
| Handles | 1 |
| Deployment | Flying, Wall Mount |
| Pole Mount | None |
| Brackets Included | Yes |
| Rigging | Yes |
| M8 | 4 |
| M10 | 4 |
| Nominal Coverage (H x V) | 60° conical |
| Sensitivity 2.83 V / 1 m | 99 dB |
| System Rated Impedance | 8 Ω |
| Crossover Frequency | 1.2 kHz |
| Recommended HPF = BW 18 dB/OCT. | 25 Hz |
| Transformer (T) | No |
| Included Accessory | Quick Start Guide, Flying Yoke |
| Unpacked - Height (mm) | 590 |
|---|---|
| Unpacked - Width Front (mm) | 450 |
| Unpacked - Width Rear (mm) | 180 |
| Unpacked - Depth (mm) | 420 |
| Packed - Height (mm) | 680 |
| Packed - Width Front (mm) | 495 |
| Packed - Width Rear (mm) | 495 |
| Packed - Depth (mm) | 525 |
| Weight - Nett (kg) | 27.2 |
| Weight - Gross (kg) | 31.8 |
Black or white Tough-Tone paint, depending on the listed variant.
A flying yoke and brackets are listed.
60° conical.
