All GPL models use premium Baltic birch plywood construction.
Not only does this create a solid and durable cabinet, but it also contributes to the overall sound and character.
Installations can be complicated enough, so Wharfedale Pro have made GPL series as easy as possible.
| System Type | 5″ coaxial passive |
| Configuration | two-way |
| Frequency Response (+/-3 dB) | 80 Hz – 20 KHz |
| (DP-N preset) | |
| Frequency Range (- 10 dB) | 68 Hz – 25 KHz |
| (DP-N preset) | |
| Sensitivity 2.83 V/1 m | 96 dB |
| Sensitivity 2.83 V/1 m half space | / |
| Calculated Maximum SPL @1 m | 125 dB |
| System Peak SPL* | 131 dB |
| *level at 1 m using pink noise with crest factor 4, with dedicated preset. | |
| System Rated Impedance | 8 Ω |
| Low Frequency Transducer | |
| Size | 155 mm / 5” |
| Voice coil size | 38.1 mm / 1.5” |
| LF Frame Material | Aluminium |
| High Frequency Transducer | |
| HF Driver Type | Compression Driver |
| Coil Size (mm / inches) | 38.1 mm / 1.5″ |
| Exit Size (mm / inches) | 25.4 / 1″ |
| Diaphragm Material | PM4 |
| Waveguide Type | Spherical |
| Nominal Coverage (H x V) | 70° conical |
| Special Features | Shorting cap for extended response |
| Waterproof LF cone | |
| Driver brand | Beyma |
| POWER | |
| T Model | 70 V : 120 / 60 / 30 / 15 W |
| 100 V : 120 / 60 / 30 W | |
| System Continuous Power (W) | 200 |
| System Programme Power (W) | 400 |
| System Peak Power (W) | 800 |
| Crossover Frequency | 2.5 KHz |
| Recommended HPF = BW18dB/oct. | 63 Hz |

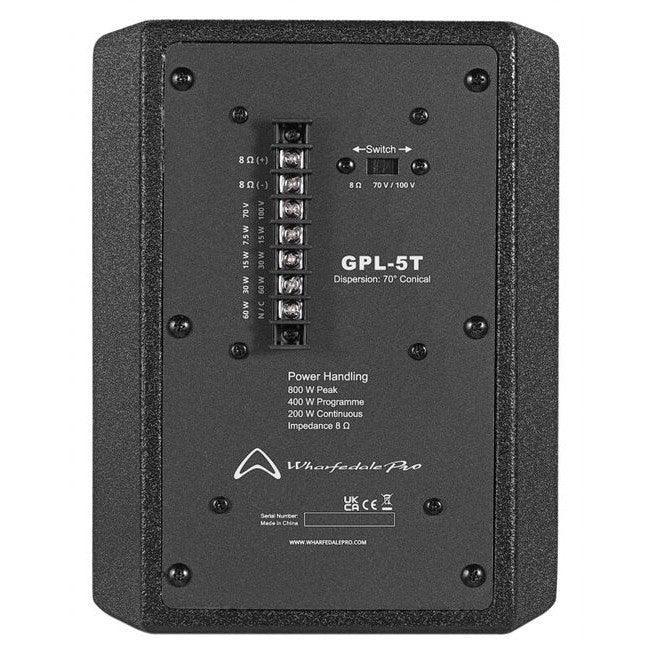

| Input Connector | 2 x speakON compatible / 1 x Barrier Strip |
| T Model barrier strip only | |
| Rigging & Hardware: | 2 x M10 threaded rigging points. |
| 4 x M8 threaded points for WPB-3 | |

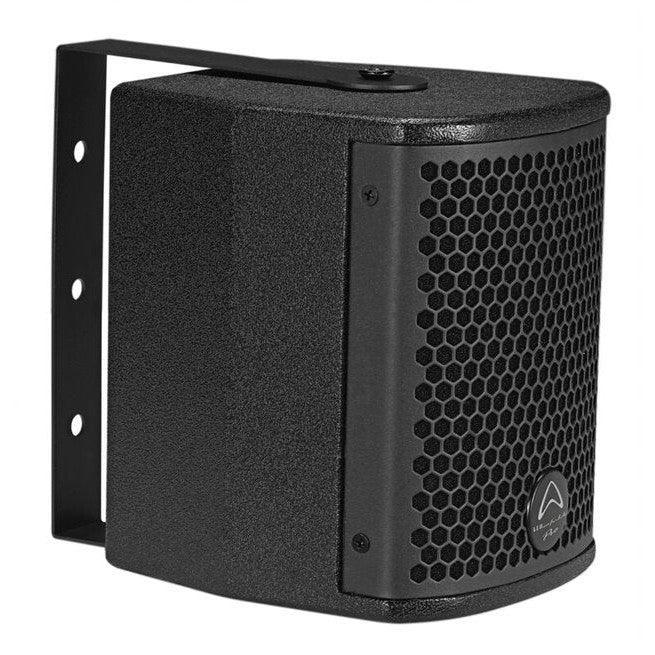

| Included Accessories | GPL-5 horizontal flying yoke |
| Handle | NO |
| Enclosure | |
| Cabinet Type | Trapezoid |
| Enclosure Material and finish | 12 mm plywood |
| / Rhino Rock | |
| Colour Options | Black paint, White on request |

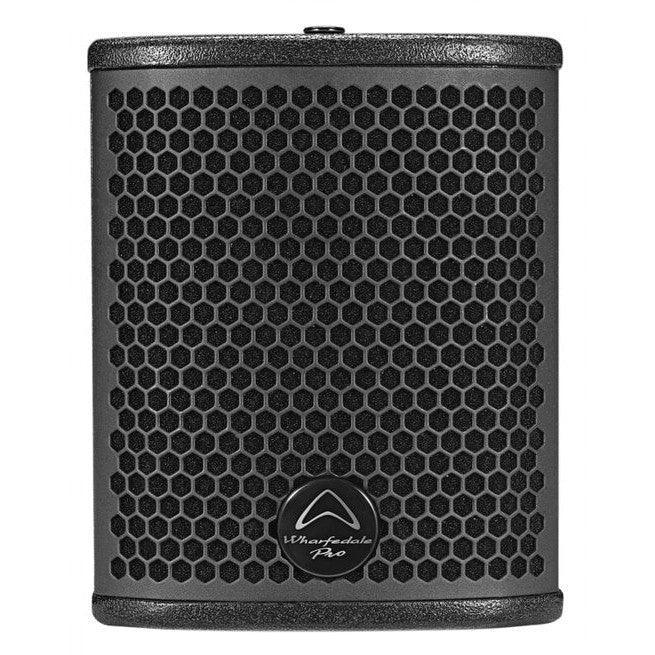

| Grille Material & Finish | Powder coated steel |
| Dimensions – Unpacked (mm / inches): | |
| Height | 235 mm / 9.25″ |
| Width Front | 190 mm / 7.5″ |
| Width Rear | 145 mm / 5.7″. |
| Depth | 205 mm / 8.1″ |
| Dimensions – Packed (mm / inches): | |
| Height | 275 mm / 10.8″ |
| Width Front | 250 mm / 9.8″ |
| Width Rear | 250 mm / 9.8″ |
| Depth | 265 mm / 10.4″ |
| Weight | |
| Net Weight | 5.12 kg / 11.30 lbs |
| Gross Weight | 5.70 kg / 12.5 lbs |
