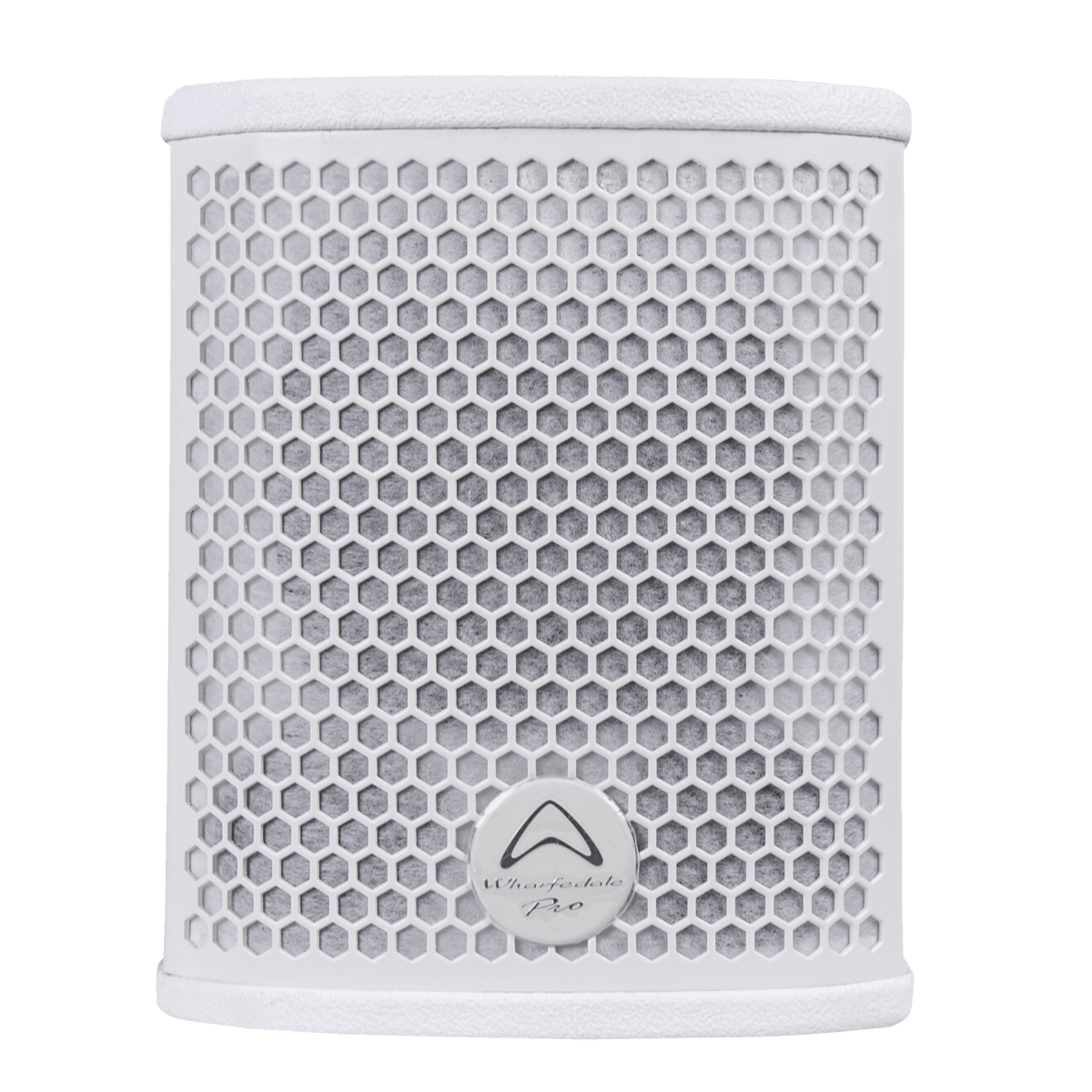

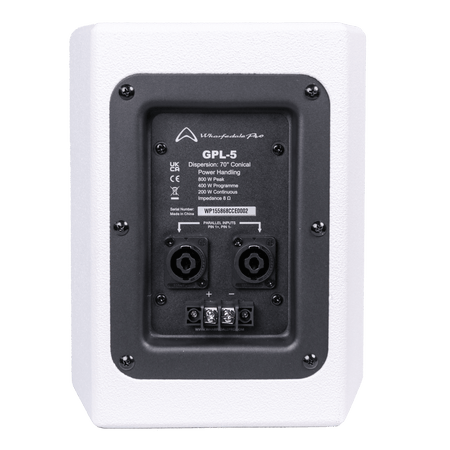

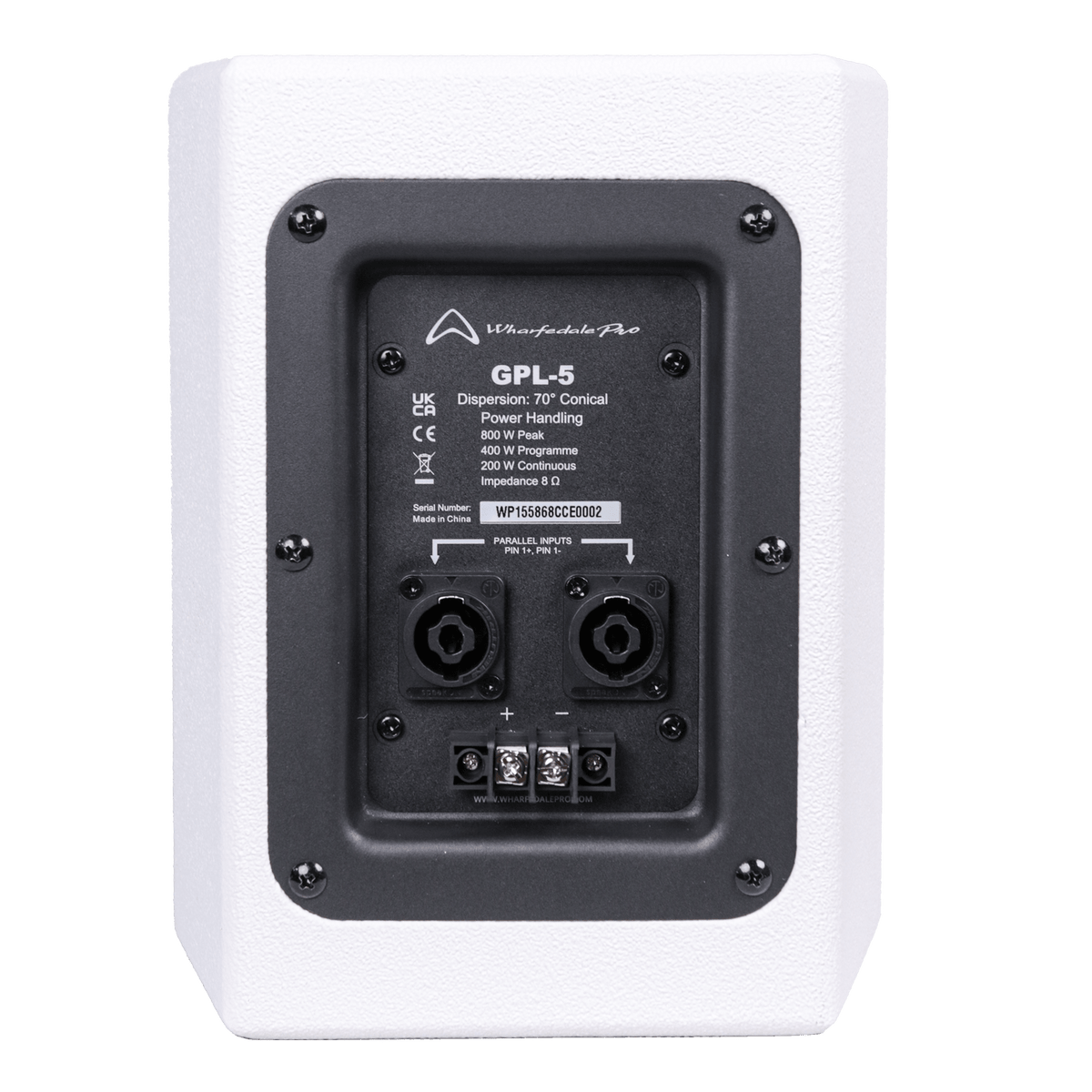

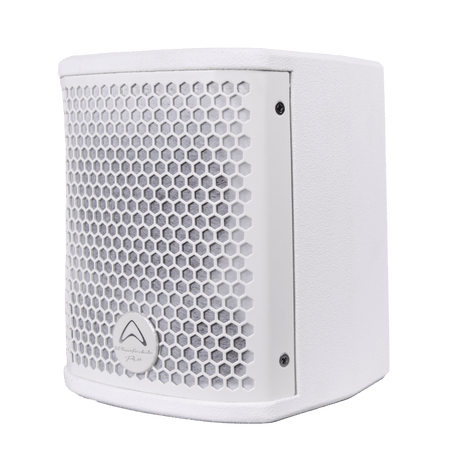

With a more natural and prominent sound than standard point source systems, Wharfedale Pro announce the GPL Series.
Compact cabinets and coaxial drive units make the GPL series perfect for theatre, enterprise, bars, nightclubs and live music applications. 12 new models, including bass-reflex and a band-pass subwoofer, available in either black or white finishes means that the GPL series is serious for fixed installation projects where audio quality matters.
A unique characteristic of the GPL series is that all full range models feature an original design waveguide horn. This allows the high frequency range to be addressed directly to the audience and reduces undesired reflections. The “HQ” models of the series are equipped with a turntable constant directivity horn for even more accurate asymmetrical coverage.
| System Type | 5″ coaxial passive |
| Configuration | Two-way |
| Frequency Response (+/-3 dB) | 80 Hz – 20 KHz |
| Frequency Range (- 10 dB) | 68 Hz – 25 KHz (DP-N preset) |
| Sensitivity 2.83 V/1 m | 96 dB |
| Sensitivity 2.83 V/1 m half space | / |
| Calculated Maximum SPL @1 m | 125 dB |
| System Peak SPL* | 131 dB |
| System Rated Impedance | 8 Ω |
| Low Frequency Transducer | |
| Size | 155 mm / 5” |
| Voice Coil Size | 38.1 mm / 1.5” |
| LF Frame Material | Aluminium |
| High Frequency Transducer | |
| HF Driver Type | Compression Driver |
| Coil Size (mm / inches) | 38.1 mm / 1.5″ |
| Exit Size (mm / inches) | 25.4 / 1″ |
| Diaphragm Material | PM4 |
| Waveguide Type | Spherical |
| Nominal Coverage (H x V) | 70° conical |
| Special Features | Shorting cap for extended response |
| Waterproof LF cone |
| Sample | Sample |
