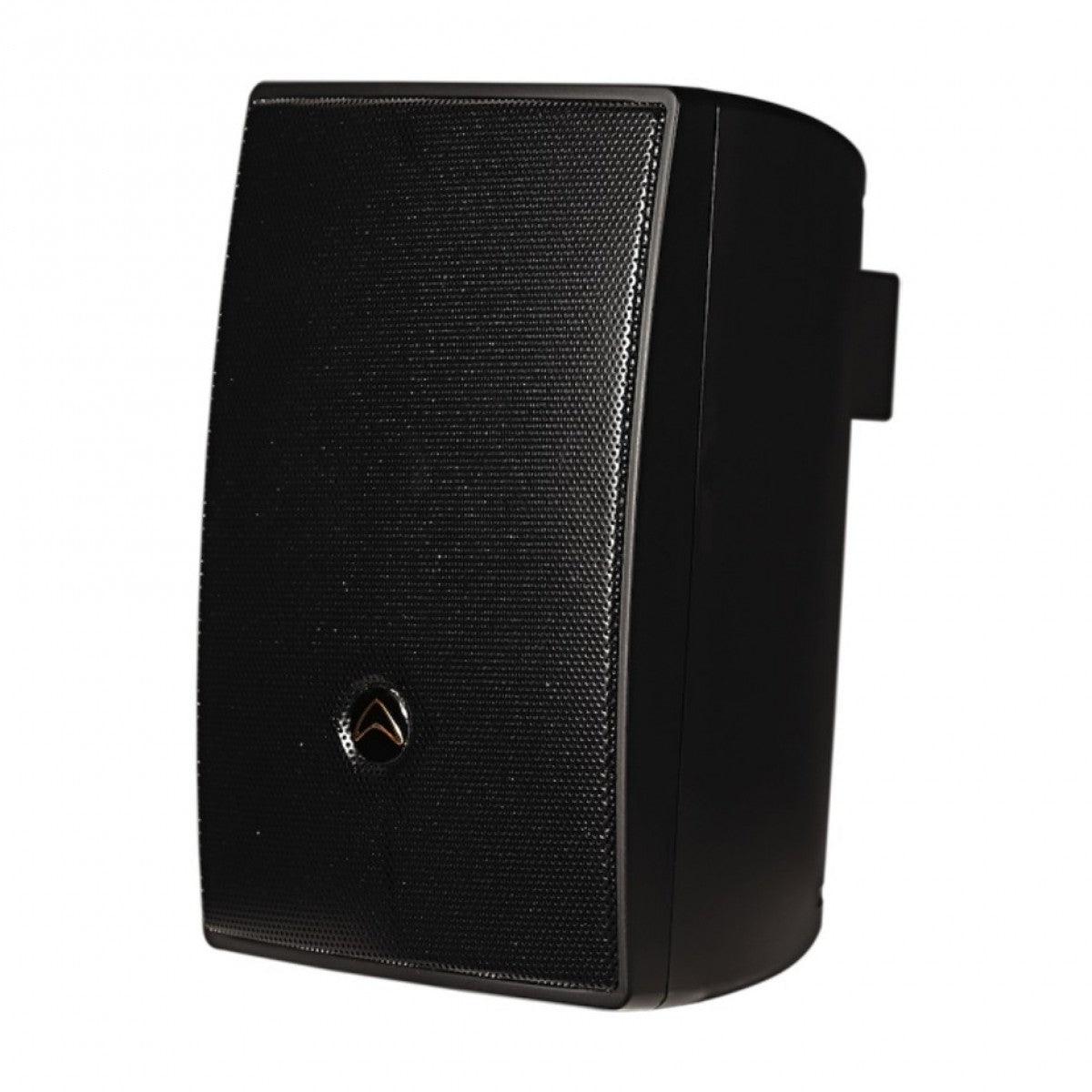

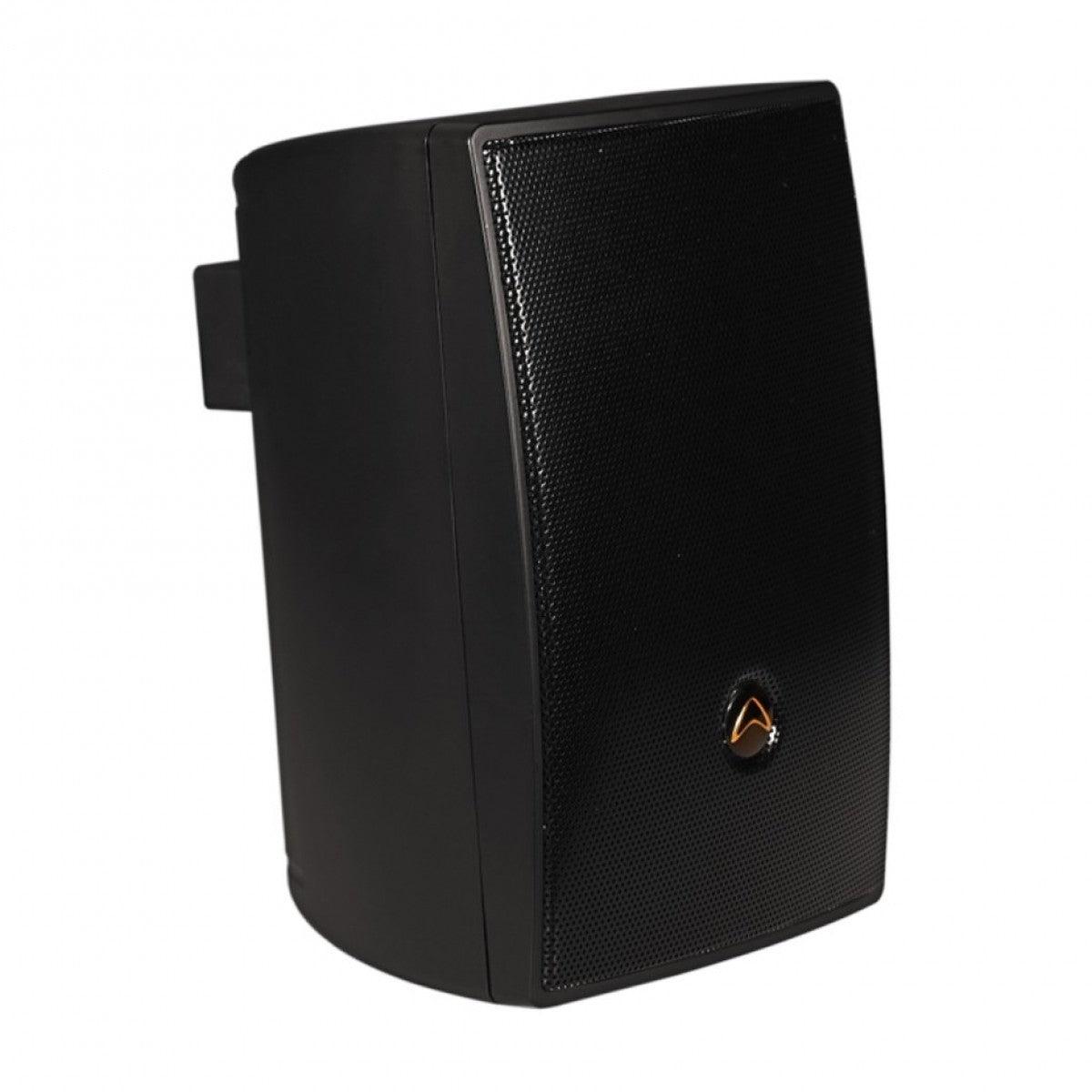

Wharfedale Pro i4T Speaker Passive Wall Mount

SKU: i4T

Log in to view price Trade pricing — AED / USD

In stock
Request Bulk Pricing

Ask an AV specialist

Video chat Chat Email +971 50 559 4871

  • Full Specifications

    Download Product Data Sheet

    KEY FEATURES

    • 4.0″ LF driver
    • 1.0″ HF dome tweeter
    • ABS plastic construction
    • Wall brackets included
    • 8 Ω or 70v/100v versions available
    • Available in black or white



    DESCRIPTION

    The i series are IP54 Certified.

    With IP54 certification, all i series installation loudspeakers are protected from limited dust ingress and are protected from water spray from any direction.

    The pictures show some of the tests that take place during this certification process.

    Full peace of mind – protection against extreme conditions.

    The beauty of I series is that you don’t have to worry about finding specialist mounting hardware. The fully-adjustable mounting brackets are included.

    These brackets are simple to install and give comprehensive adjustment angles due to the semi-circular ‘ball and socket’ design.

    I series are easy to mount, easy to adjust and simple to securely lock in place. There is also a threaded insert for attachment of the included seismic restraint tether.

    SPECIFICATIONS

    System Type Passive
    Configuration Two-way
    Frequency Response (+/-3 dB)
    100 Hz – 20 KHz
    Frequency Range (-10 dB)
    60 Hz – 20 KHz
    Sensitivity (2.83v/1 m) 83 dB
    Calculated Maximum SPL @ 1 m 95 dB
    System Rated Impedance n/a
    Low Frequency Transducer
    Size 4″
    Voice Coil Size 1″
    Rated Impedance 8Ω
    LF Power (re:AES2-2012) 25 w
    High Frequency Transducer
    HF Driver Type
    Soft dome tweeter
    Voice Coil Size 1″
    Diaphragm Material Silk
    Rated Impedance 8 Ω
    HF Power (re:AES2-2012) 10 w
    Nominal Coverage (H x V) 110° x 130°
    Power
    System Continuous Power
    70v : 6.25 w / 12.5 w / 25 w
    System Programme Power
    100 v : 12.5 w / 25 w
    System Peak Power
    Crossover frequency 2.8 KHz
    Input Connector
    Screw terminal
    Hardware
    Wall mount bracket included
    Enclosure
    Enclosure Material and finish Plastic (ABS)
    Colour Options
    Black or White
    Grille Material & Finish Aluminium
