In a constant quest for performance improvements, our R&D Team have done it again.
The original Programme series have been a main-stay of installation business for over a decade, but….. it’s time for improvements.
The new Programme-X series brings increased SPL’s, new drivers, higher than normal quality 70 V / 100 V transformer options and new physical dimensions to aid any installation configuration. Every feature has been meticulously considered to suit the fixed installation market.

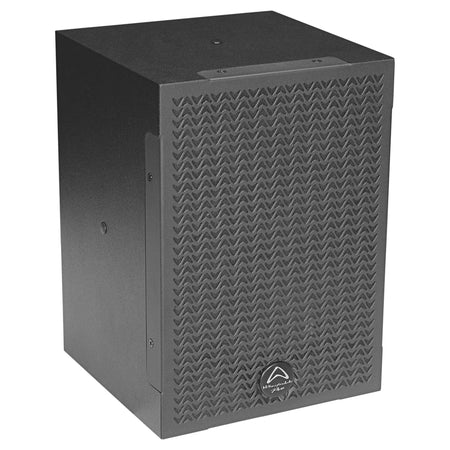

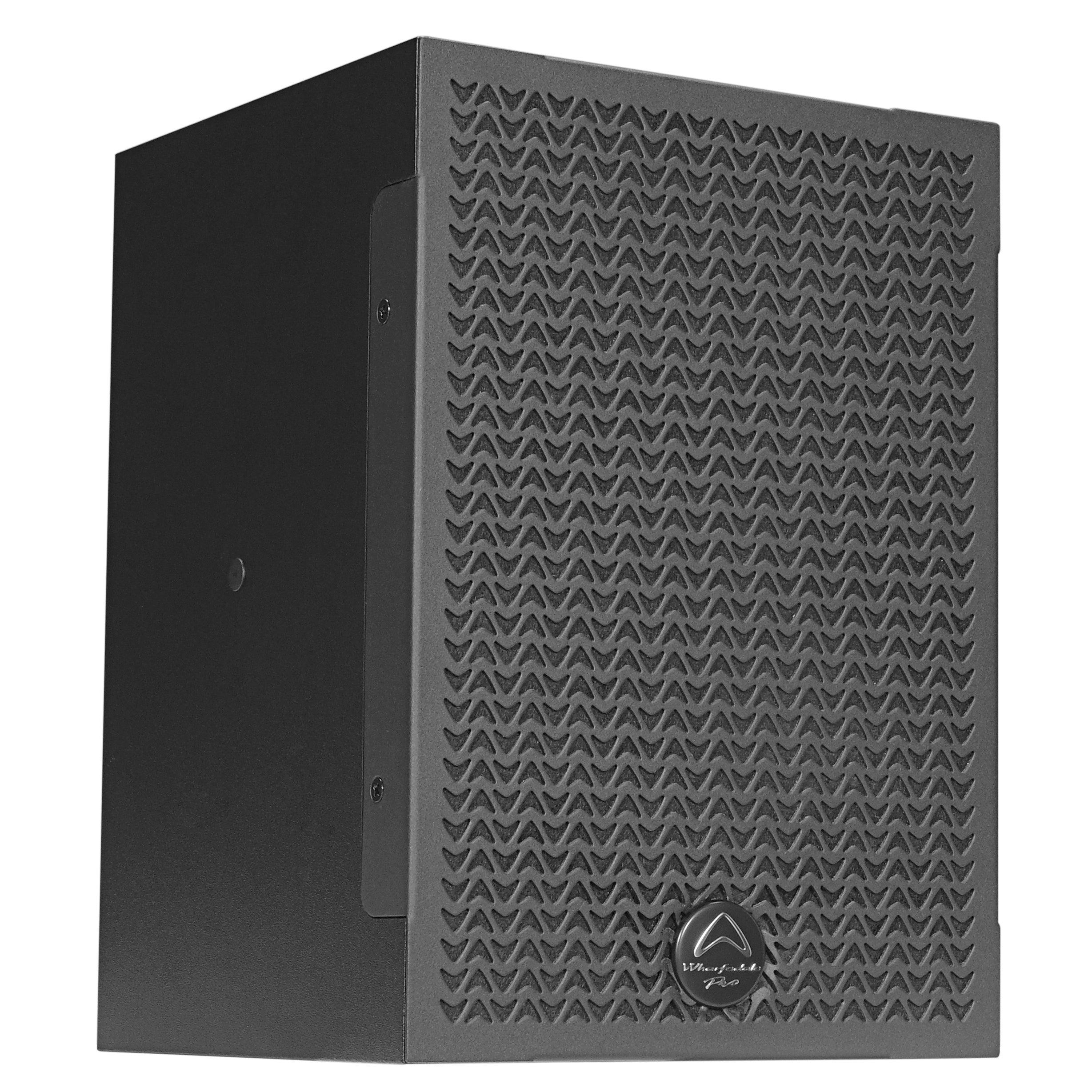

Five new models, plus with the improved high impedance 70 V / 100 V (T) options using specifically selected low distortion transformers. Available in black or white paint finish and supplied with U brackets to make the installation easy!
A Programme-X fits almost anywhere.

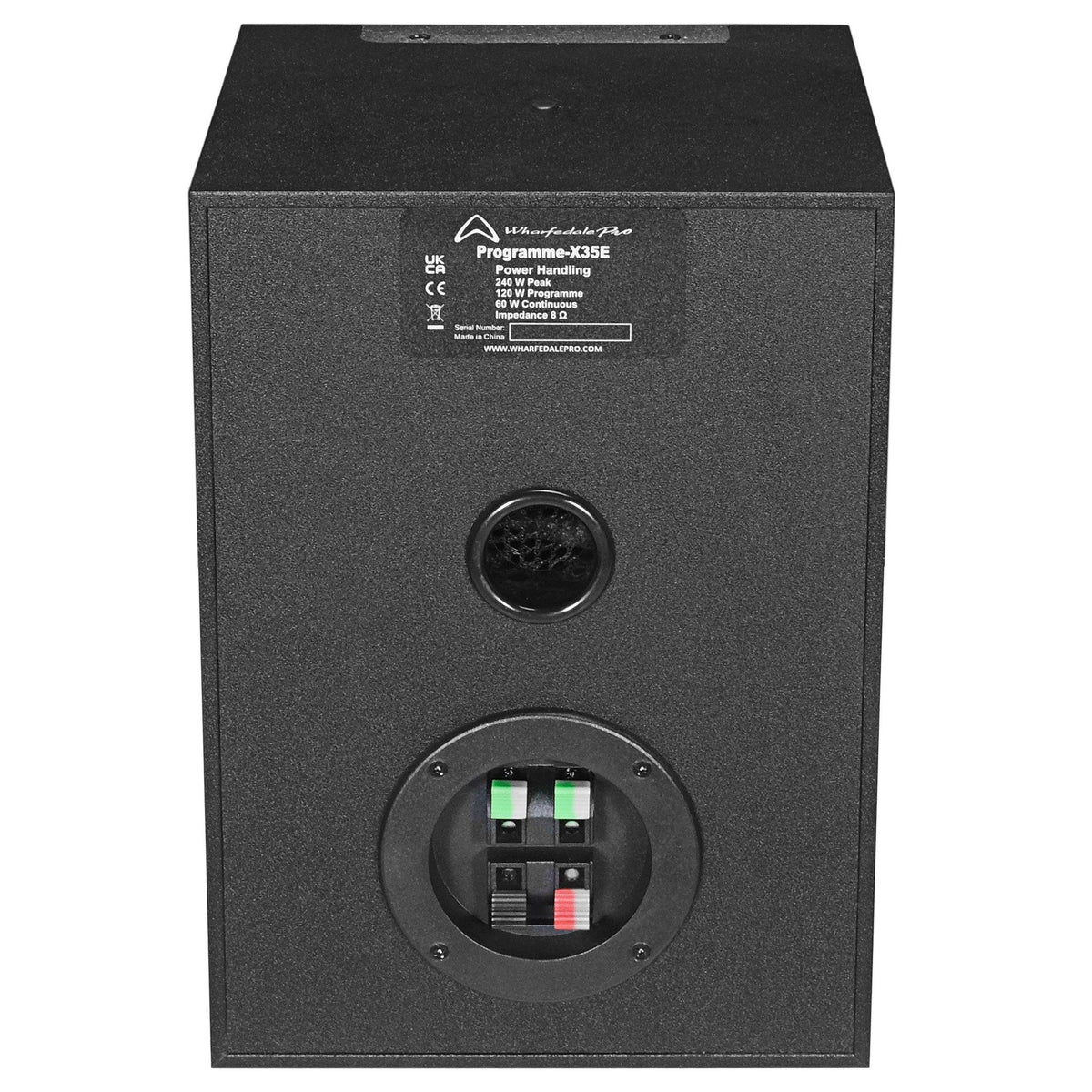

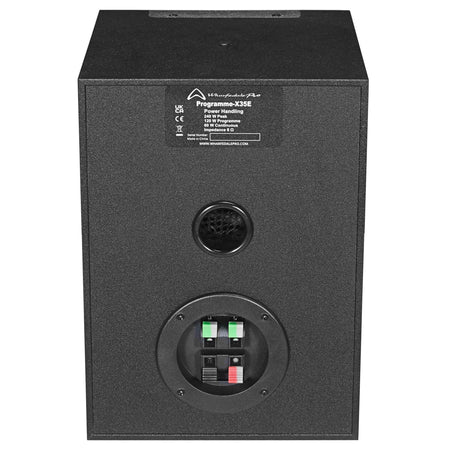

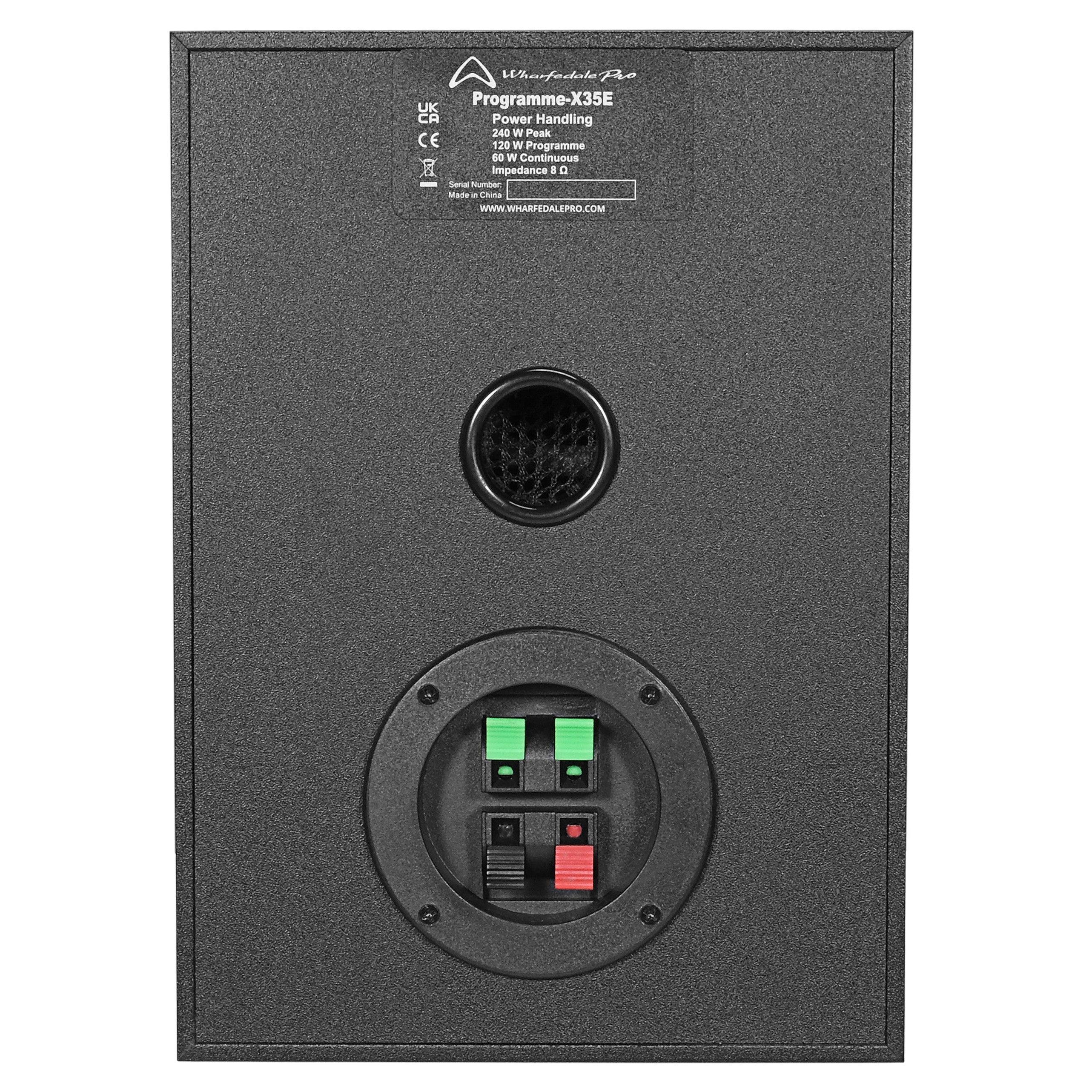

Standard Programme-X models are 8 Ohm and many models feature both Barrier strip and NL4 (speakON compatible) connectors
All Programme-X models are available with quality, specifically selected low distortion internal transformers. The ‘T’ models allow for easy installation into any 70 V / 100 V system. T Models can also operate at 8 Ohms.
| Model Name | X35E |
| System Type | 6.5″ Passive |
| Configuration | Two-way |
| Frequency Response (+/-3 dB) | 65 Hz – 20 KHz |
| Frequency Range (- 10 dB) | 60 Hz – 20 KHz |
| Sensitivity (2.83v/1m) | 88 dB |
| Calculated Maximum SPL @1 m | 112 dB |
| System Rated Impedance | 8 Ω |
| Low Frequency Transducer | |
| Size | 165.1 mm / 6.5″ |
| Voice Coil Size | 25.5 mm / 1″ |
| Rated Impedance | 8 Ω |
| LF Power (re:AES2-2012) | 60 w |
| High Frequency Transducer | |
| HF Driver Type | Dome Tweeter |
| Voice Coil Size | 25.4 mm / 1″ |
| Exit Size | 25.4 mm / 1″ |
| Diaphragm Material | silk Dome |
| Rated Impedance | 8 Ω |
| HF Power (re:AES2-2012) | 10 w |
| Nominal Coverage (H x V) | 70˚ x 70˚ |
| Power | |
| System Continuous Power | 60 w |
| System Programme Power | 120 w |
| System Peak Power | 240 w |
| Crossover frequency | 2.3 KHz |
| Recommended HPF = BW 18 dB/oct. | 43 Hz |

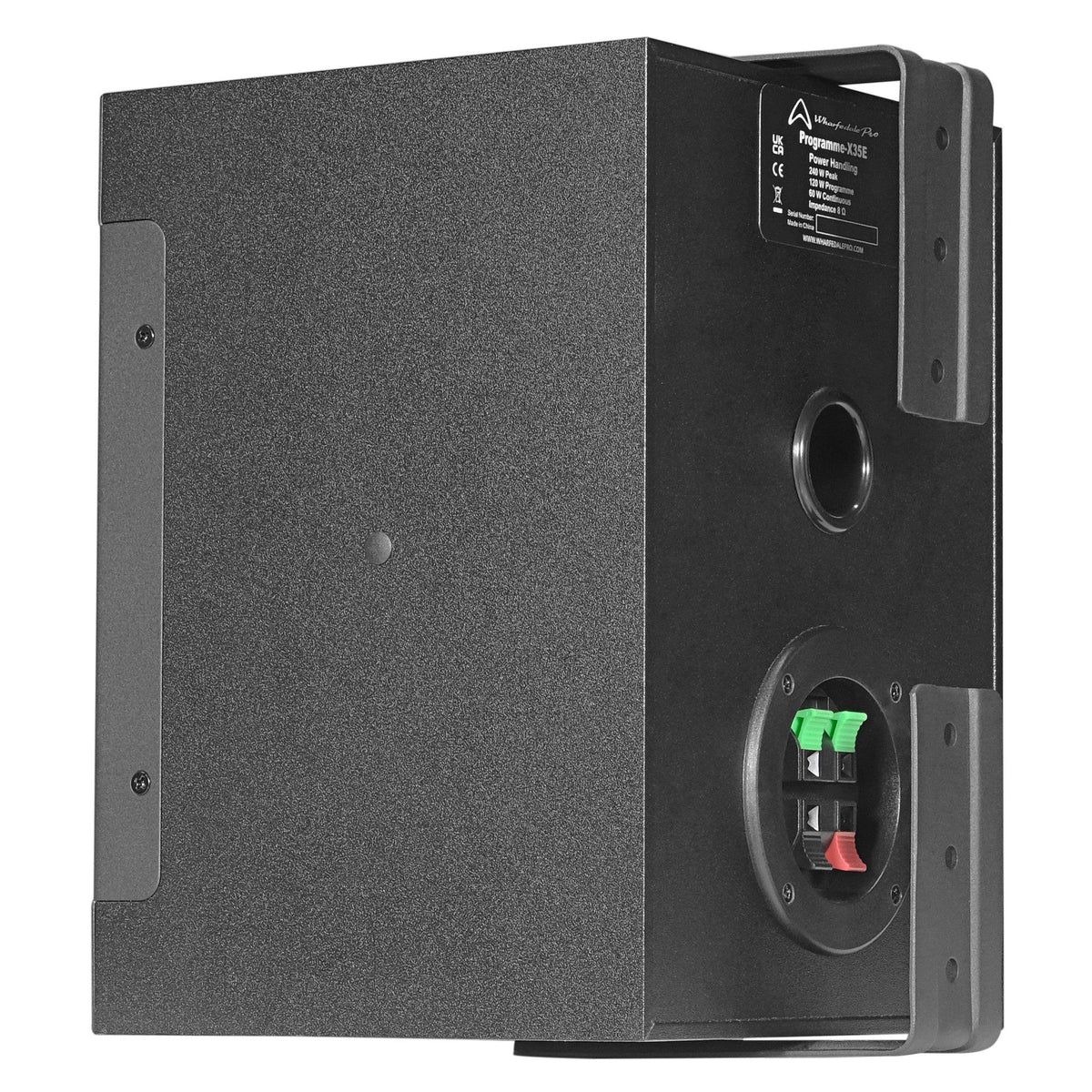

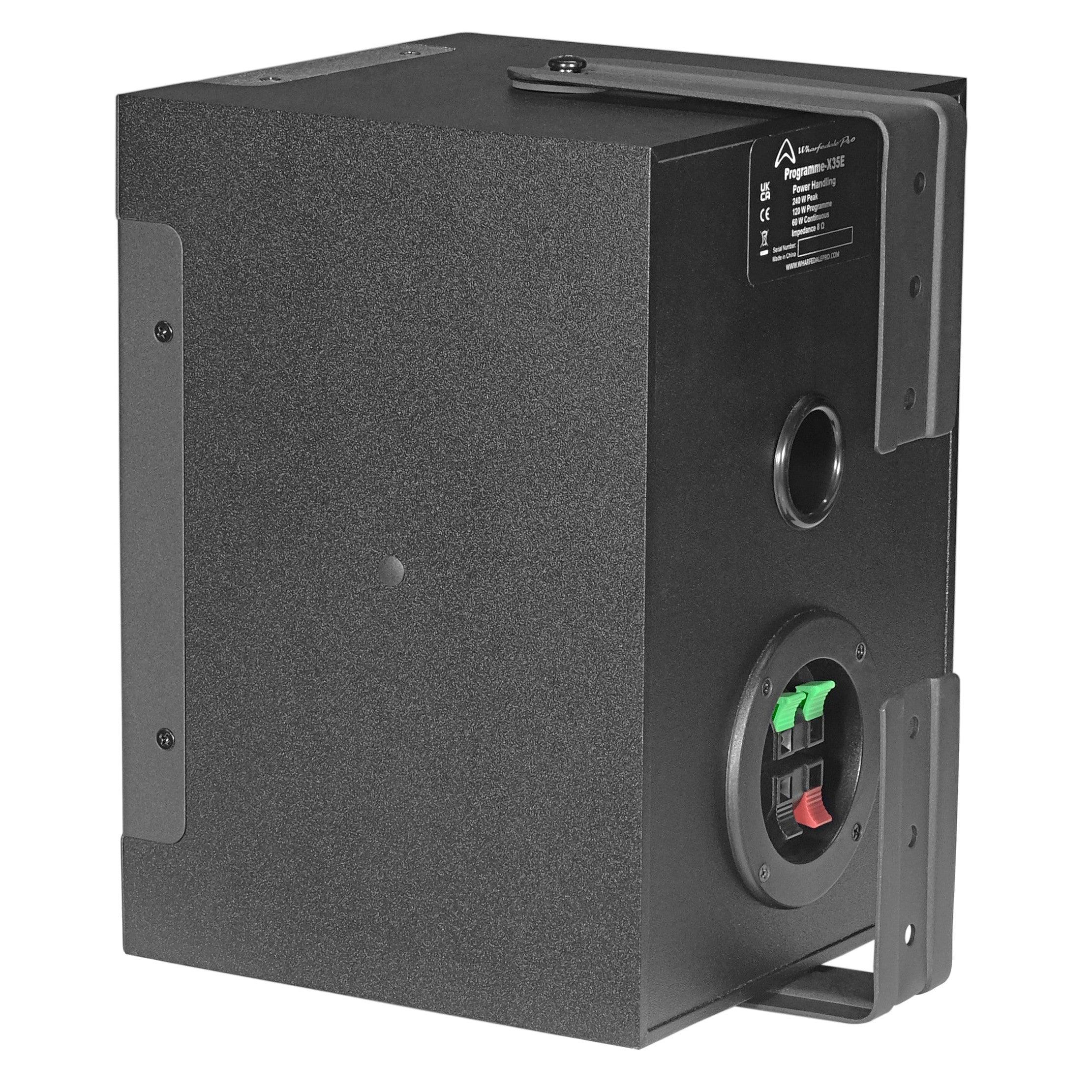

| Input Connector | Bare Wire Spring |
| Input Connectors (T) | Barrier Strip |
| Transformer (T) | 100 V / 70 V |
| Transformer Taps (70 V) | 5,10,20,40 W |
| Transformer Taps (100 V) | 10,20,40 W |
| Hardware | |
| Rigging | M6 x 4 |
| Pole Mount | N/A |
| Enclosure | |
| Enclosure Material | MDF |
| Finish | Black Paint |

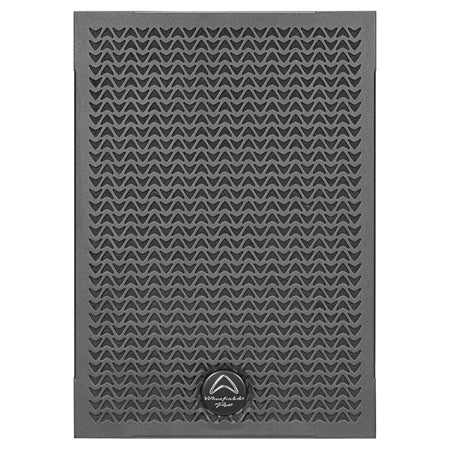

| Grille Material & Finish | Black Full (Steel) |
| Dimensions – Unpacked | |
| Height | 275 mm / 10.83″ |
| Width Front | 196 mm / 7.72″ |
| Width Rear | 196 mm / 7.72″ |
| Depth | 192 mm / 7.56″ |
