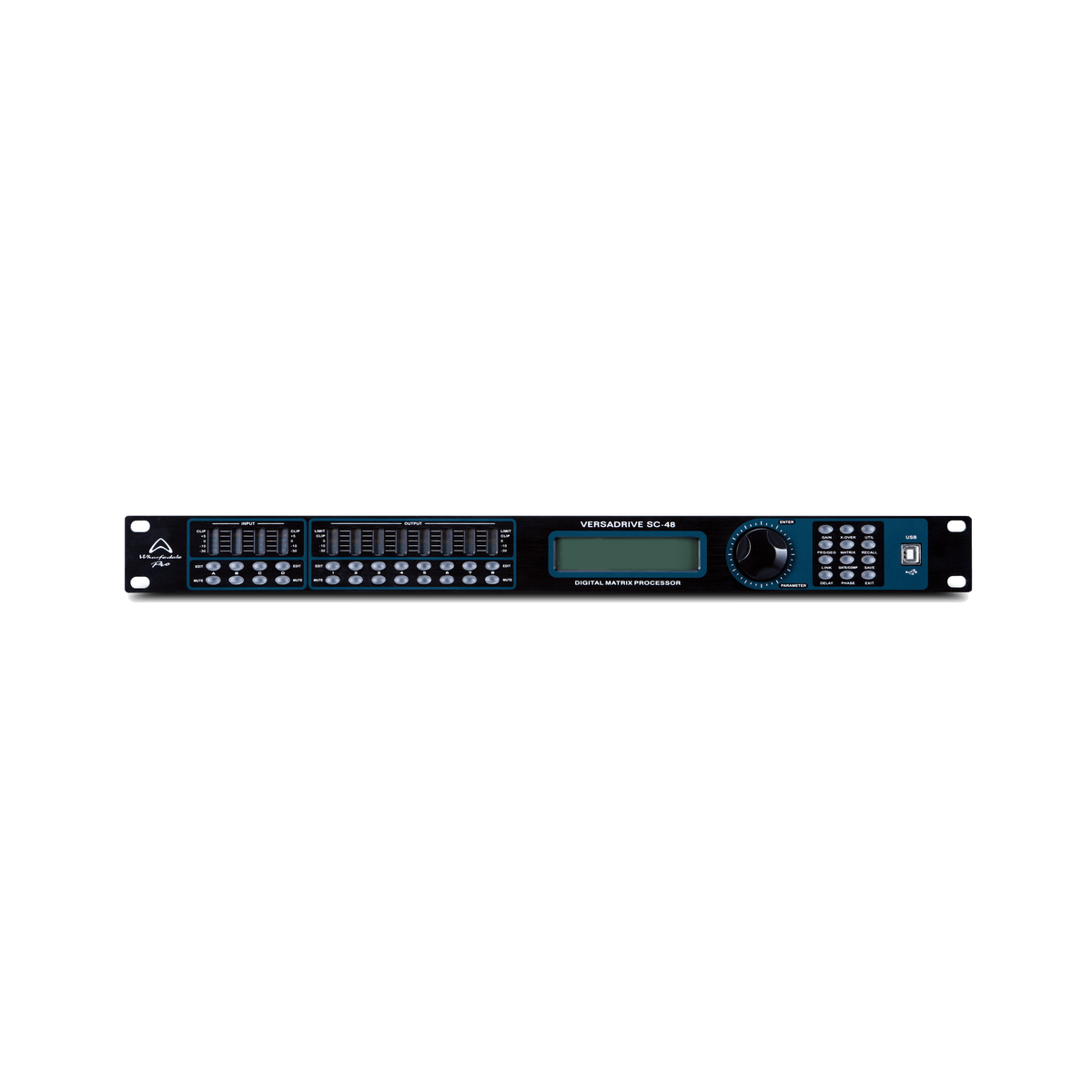

Wharfedale Pro SC48 Complete digital sound processing solution

SKU: SC48

Log in to view price Trade pricing — AED / USD

Only 3 left
Low inventory - Hurry up!
Request Bulk Pricing

Ask an AV specialist

Video chat Chat Email +971 50 559 4871

  • Full Specifications

    KEY FEATURES

    • Complete digital sound processing solution
    • 8-band parametric EQ with low/high shelf
    • Limiter / Crossover / Filter
    • Independent processing for each output channel
    • Password protection for venue install
    • 24-bit 96 KHz AD/DA convertors
    • 40-bit internal processing
    • USB / RS232 and RS485 connectivity
    • User friendly software included



    DESCRIPTION

    Effects to control your rig

    A huge selection of effects are at your fingertips.

    The input side includes Gain, Mute, Link, High-pass filter, Low-pass filter, Noise Gate, 8-band parametric EQ, 31 band graphic EQ, Phase and Delay.

    For the output section, make your setup using any combination of Crossover, 5-band parametric EQ, Gain, Mute, Compressor / Limiter, Phase, Delay and Linking.

    Expand your rig

    While one Versadrive is powerful in its own right, the RS485 connection opens up capabilities to link up to 255 units, with remote control from up-to 1500 metres.

    Complete stadiums, superclubs or any multi-room install is now easily managed by one person on their laptop. The USB connection and supplied software work as another visual aid with access to update your own presets for different events.

    SPECIFICATIONS

    Input Effects Gain, Mute, Link, High-pass filter, Low-pass filter, Noise Gate, 8PEQ, 31 band graphic EQ, Phase, Delay
    Output Effects Crossover, 5PEQ, Gain, Mute, Compressor / Limiter, Phase, Delay, Link
    Software Included via CD or download, with full matrix input-output control and intuitive UI
    User Presets 20
    Total Units Linkable 255 via RS485 and optional wireless router

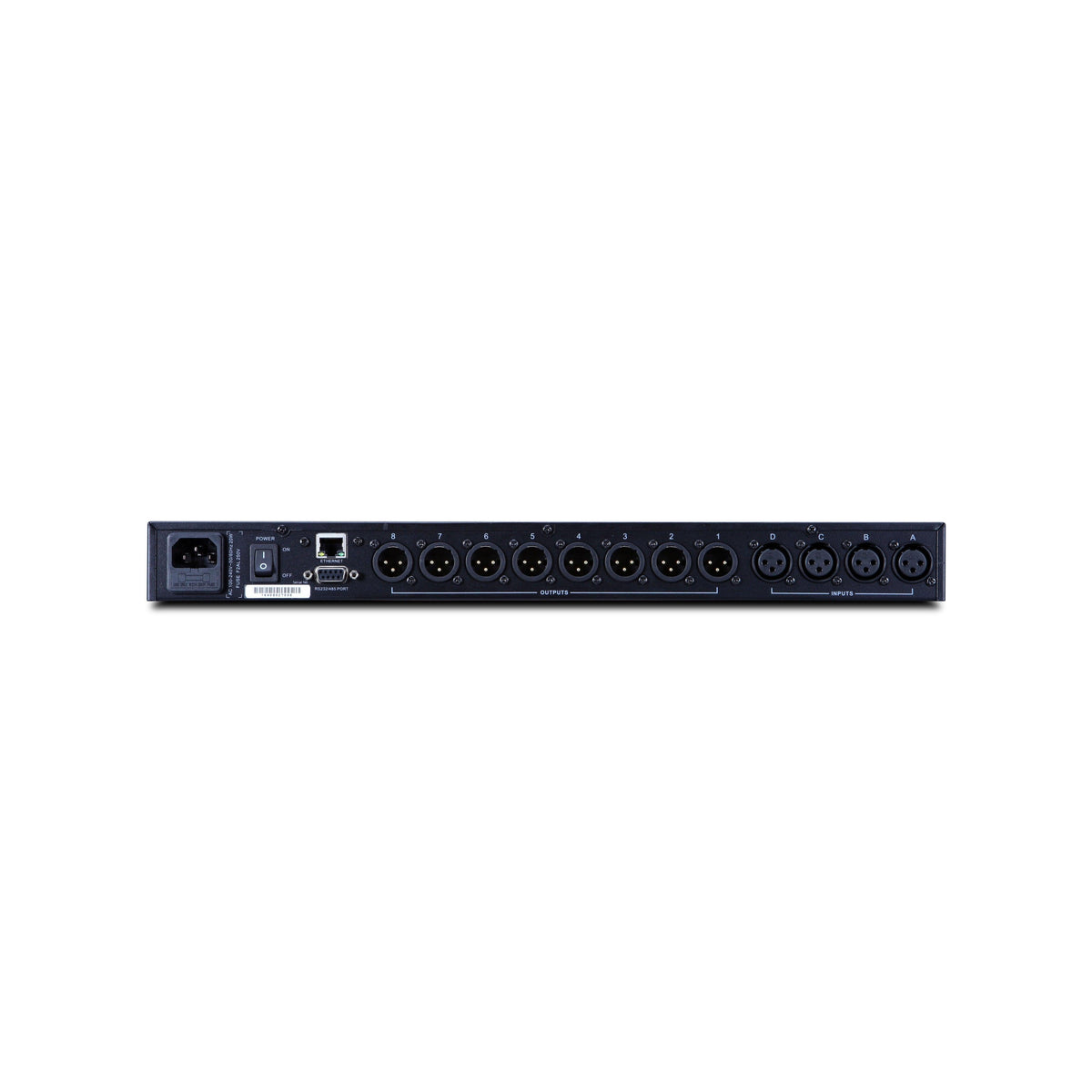

    Audio Inputs  4 x Balanced XLR
    Audio Outputs  8 x Balanced XLR
    USB 1 (PC Control)
    Ethernet 1
    RS232 Port 1
    Frequency Response 20 Hz – 20 KHz
    S/N Ratio >115 dB
    Distortion (THD) <0.005 at 1 KHz (0 dBu)
    Max Output Level +20 dBu
    Impedance <500 Ω
    D/A Converters 24-bit Sigma Delta
    Sampling Rate 96 KHz
    Display 20 x 2 LCD Parameter / Function Display, 5-Segment LED Level Display
