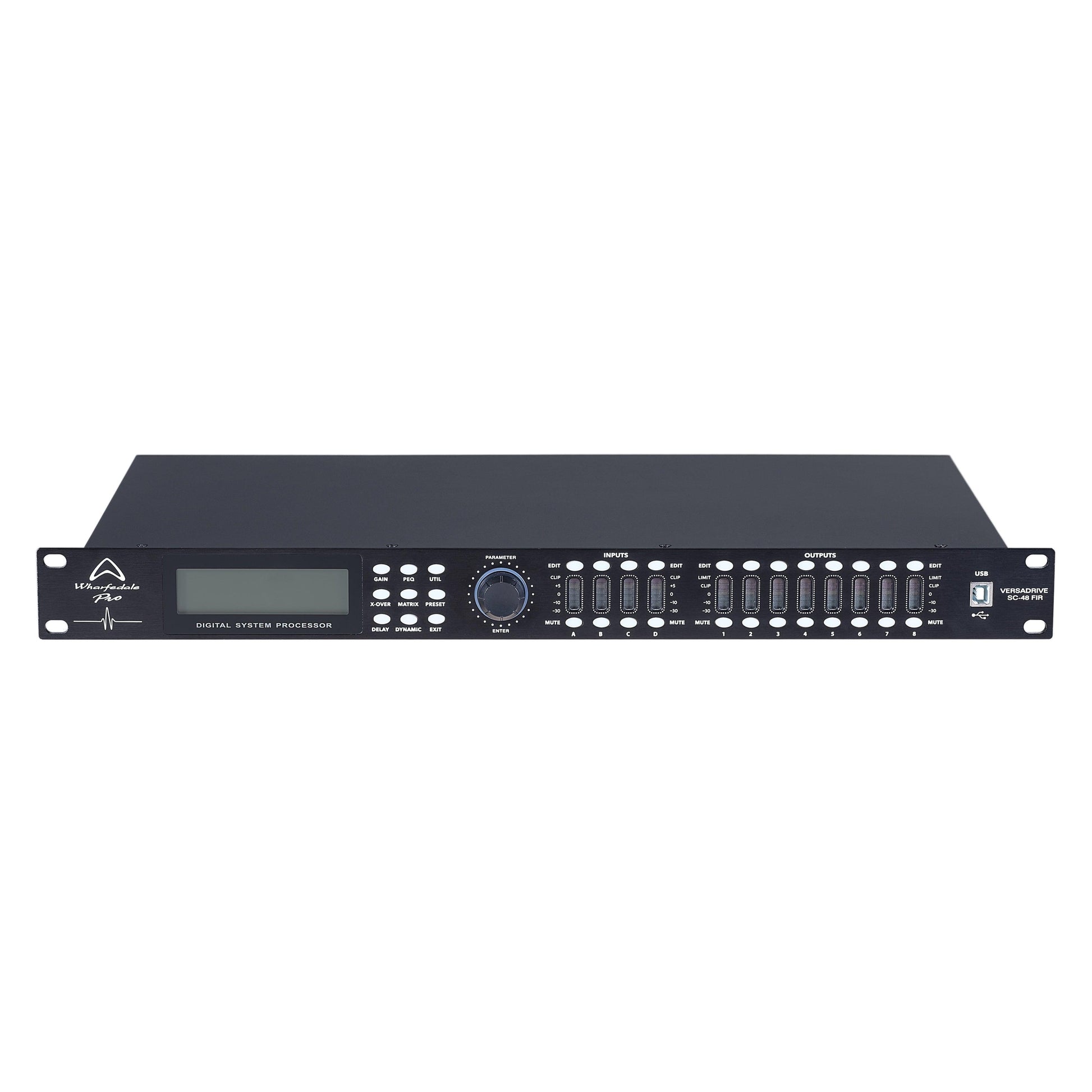

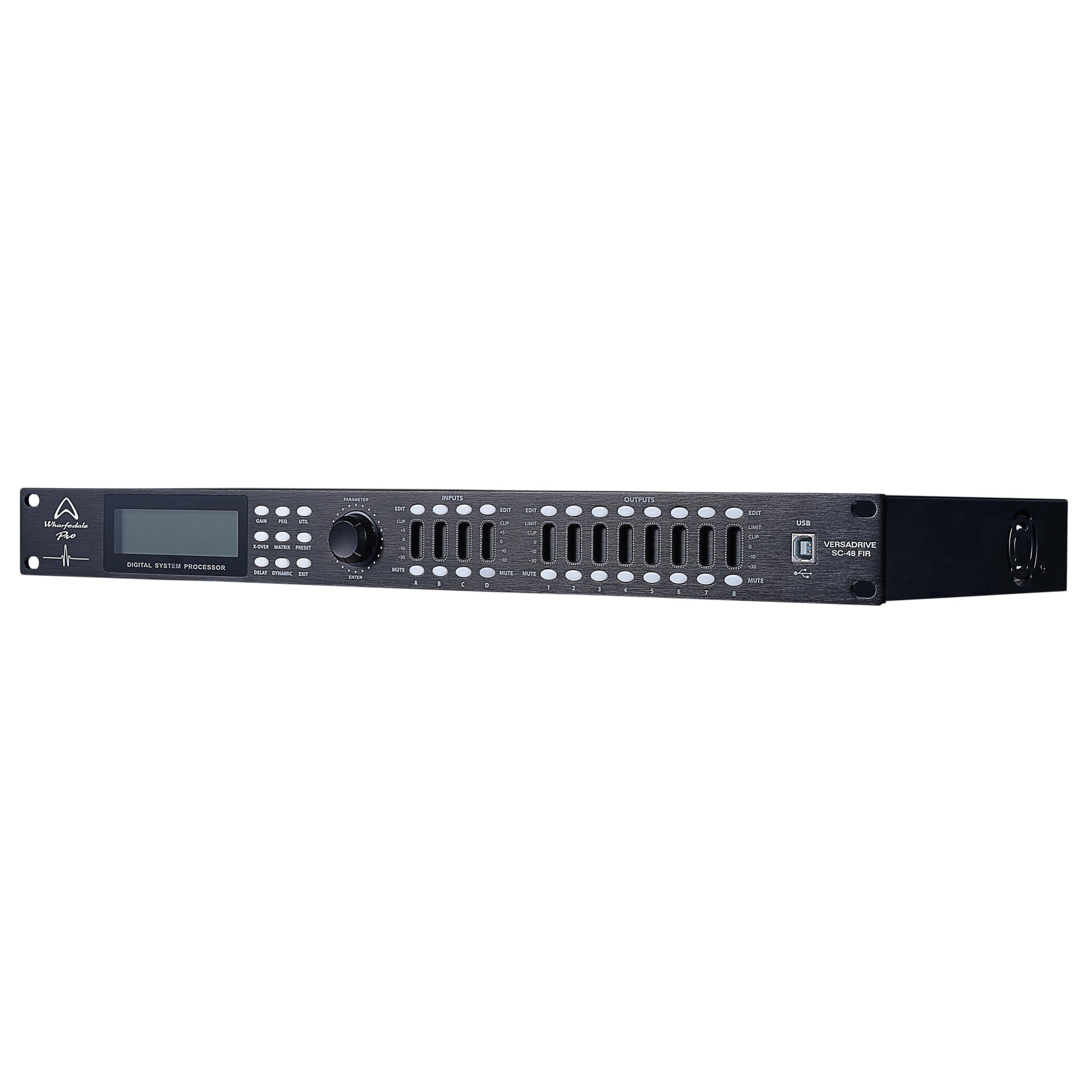

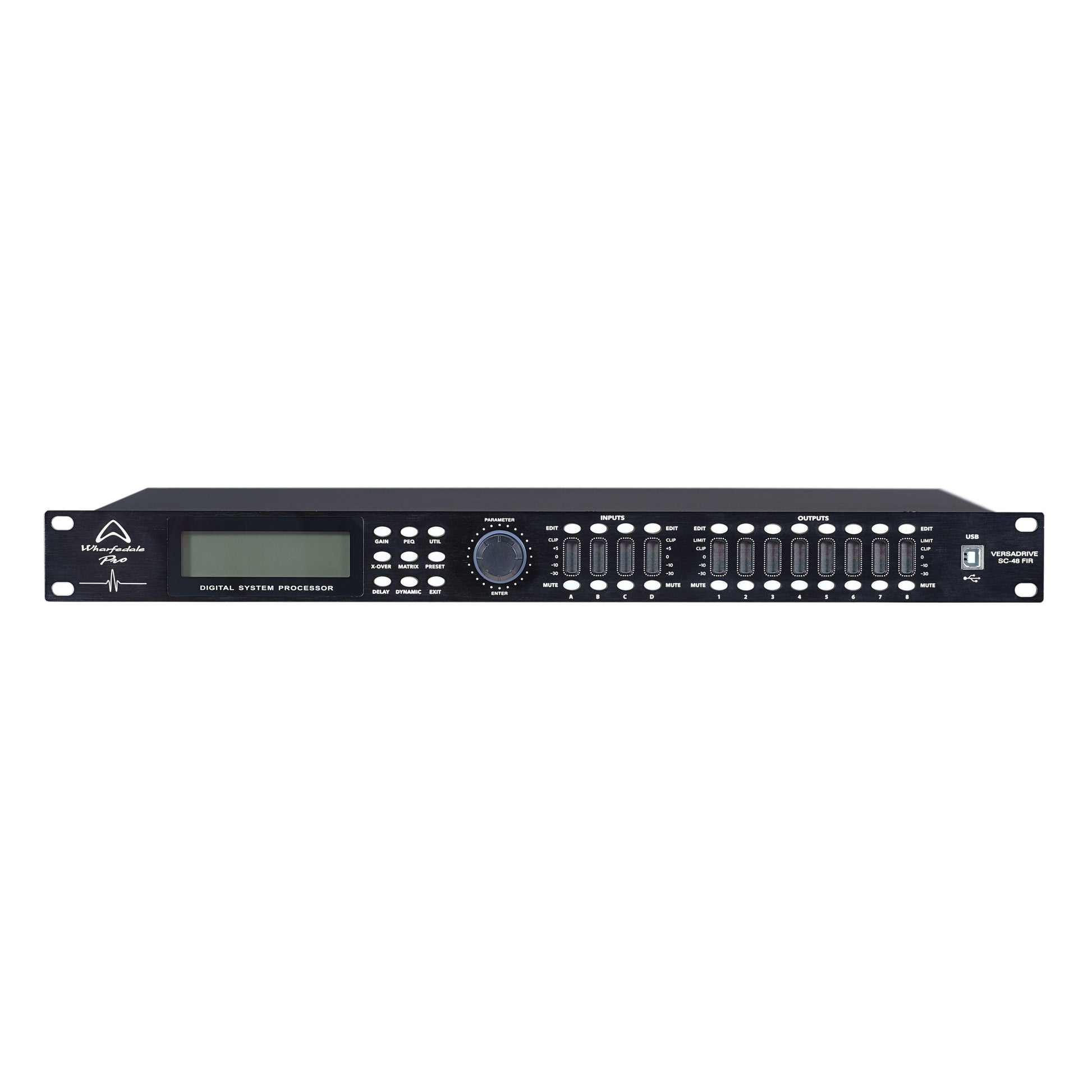

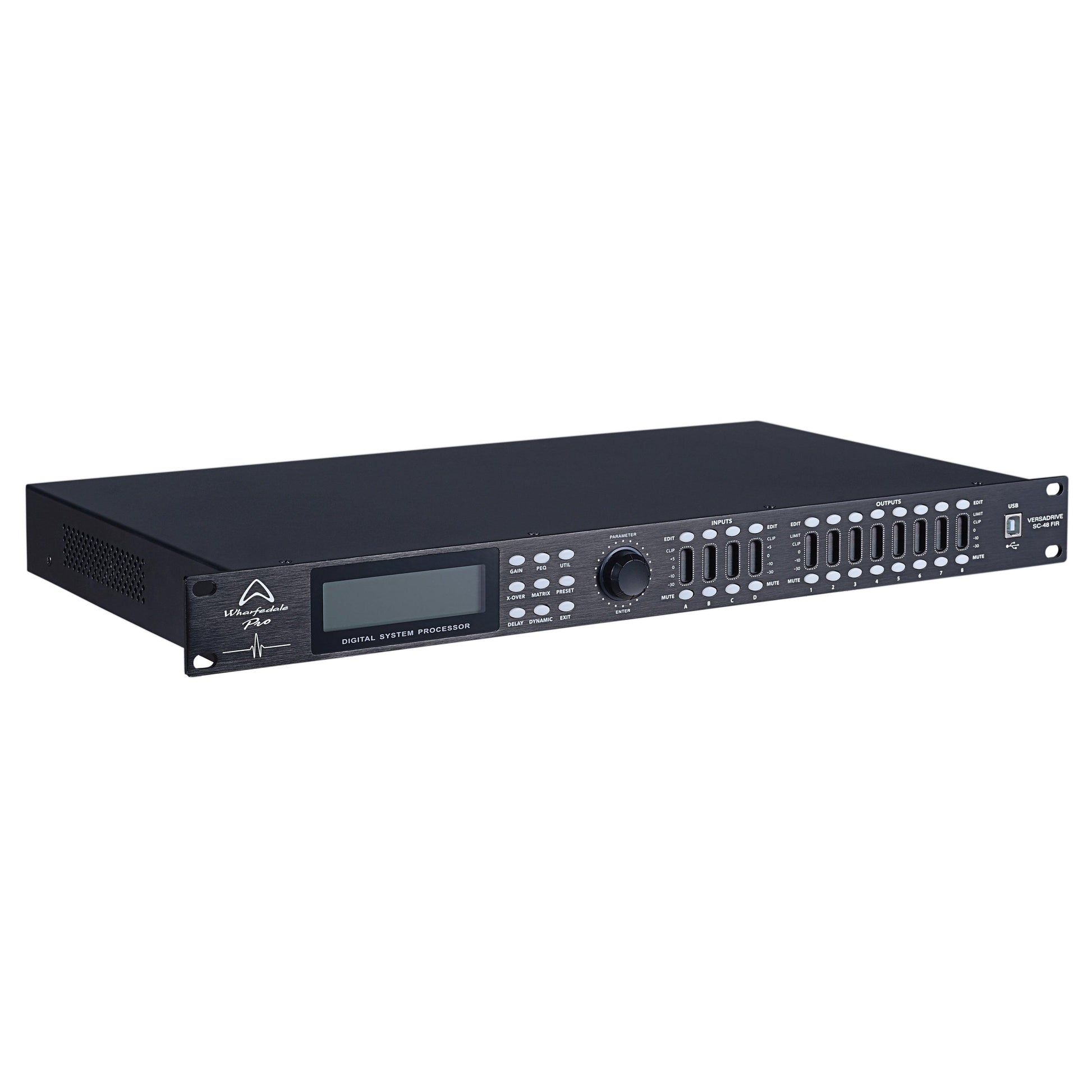

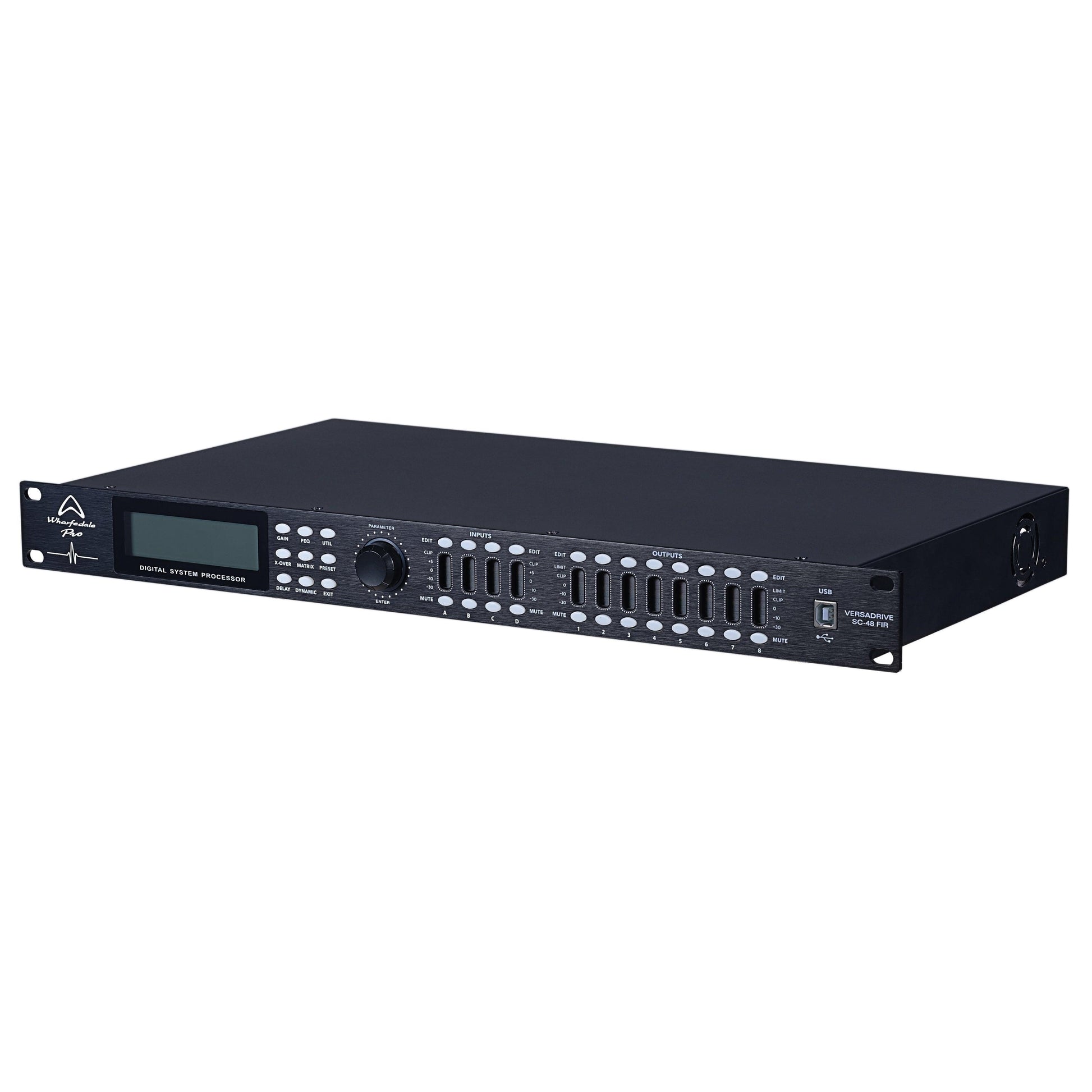

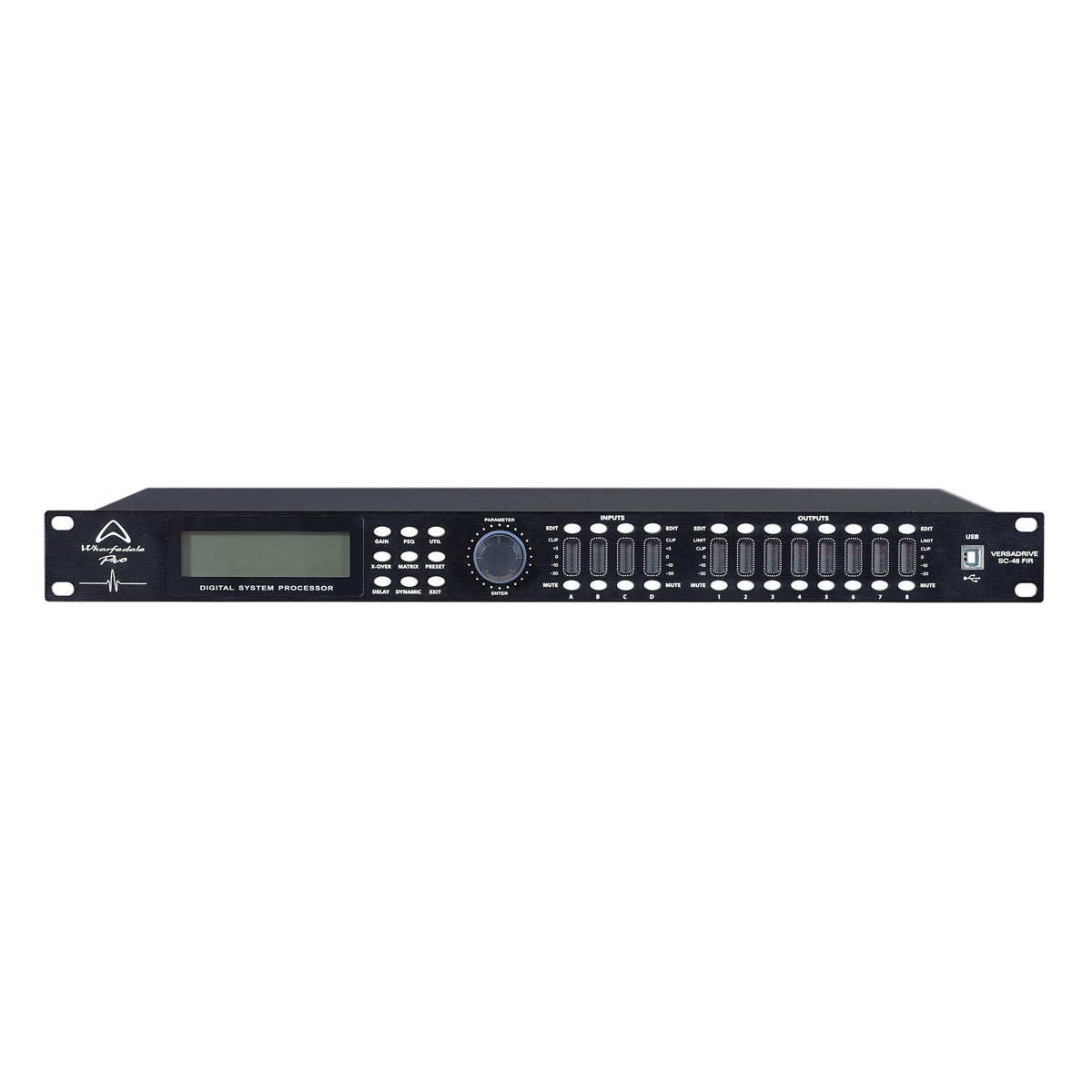

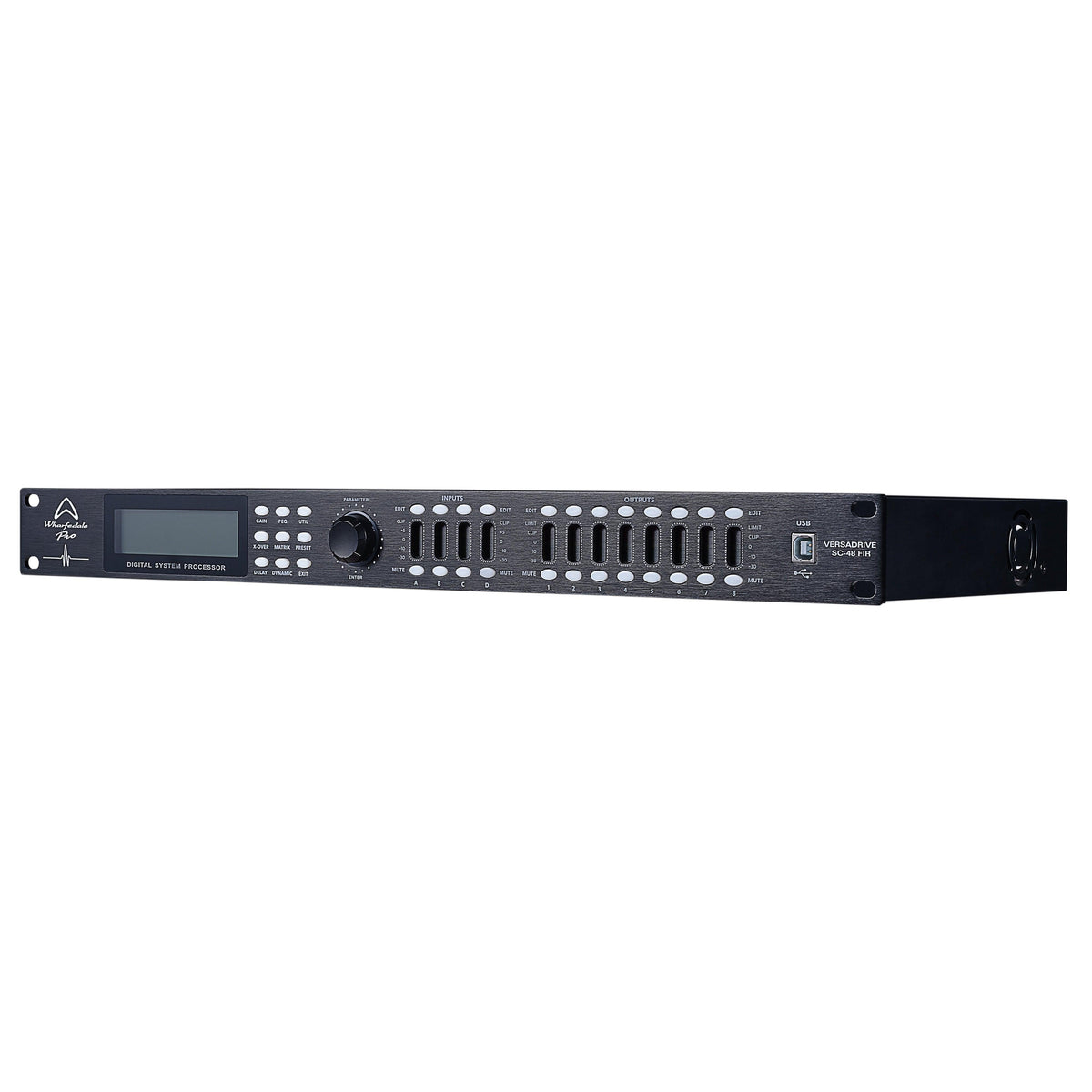

The VERSADRIVE SC-48 FIR is a speaker processor with 4 XLR inputs and 8 XLR outputs, and the FIR row is listed as Yes. Processing is 24-bit sigma-delta at a 96 KHz sampling rate, and the controller data connection is Ethernet. Software is included and a password lock is fitted.
| Inputs | 4 |
|---|---|
| Outputs | 8 |
| Input Type | USB / RS232 and RS485 |
| Controller Data Connection | Ethernet |

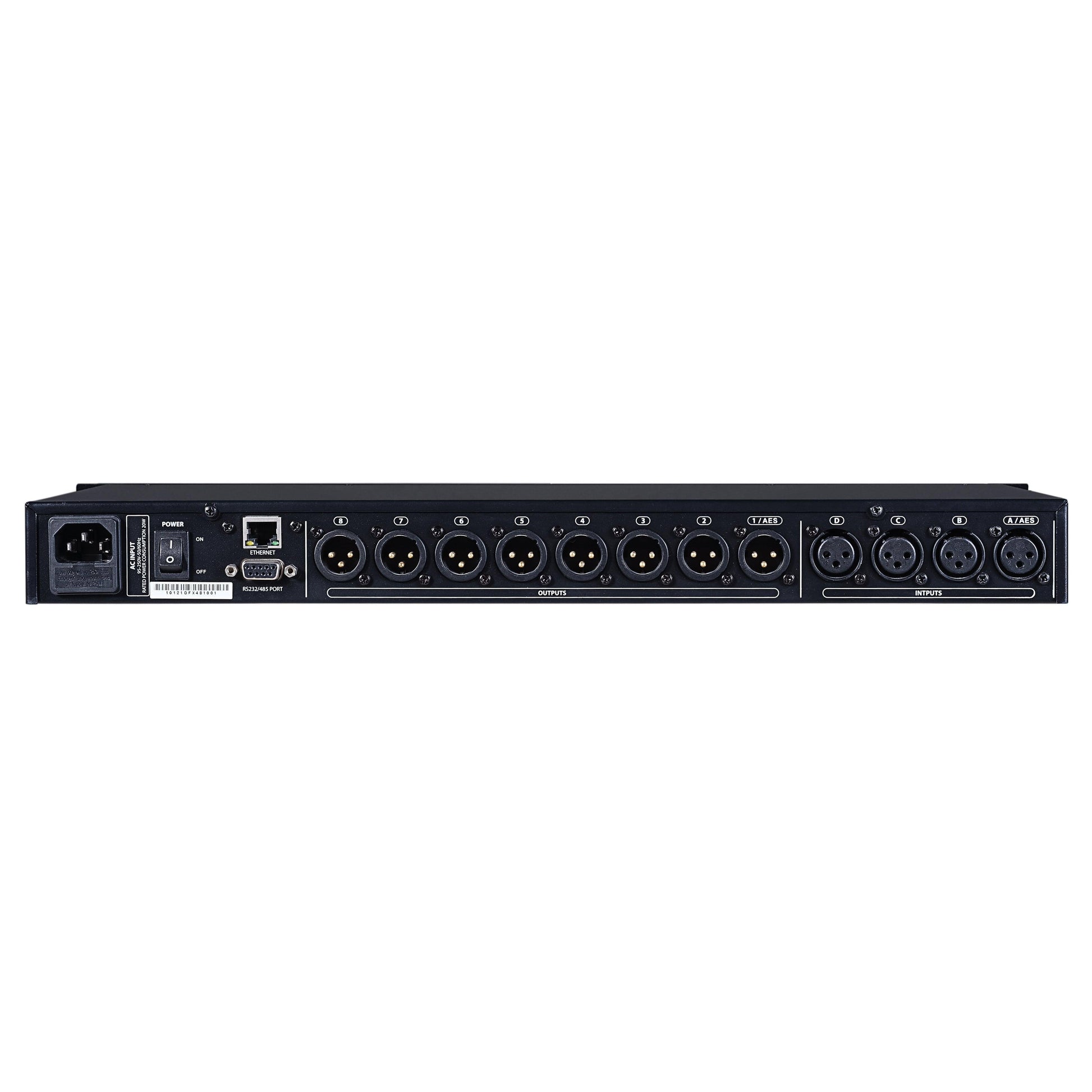

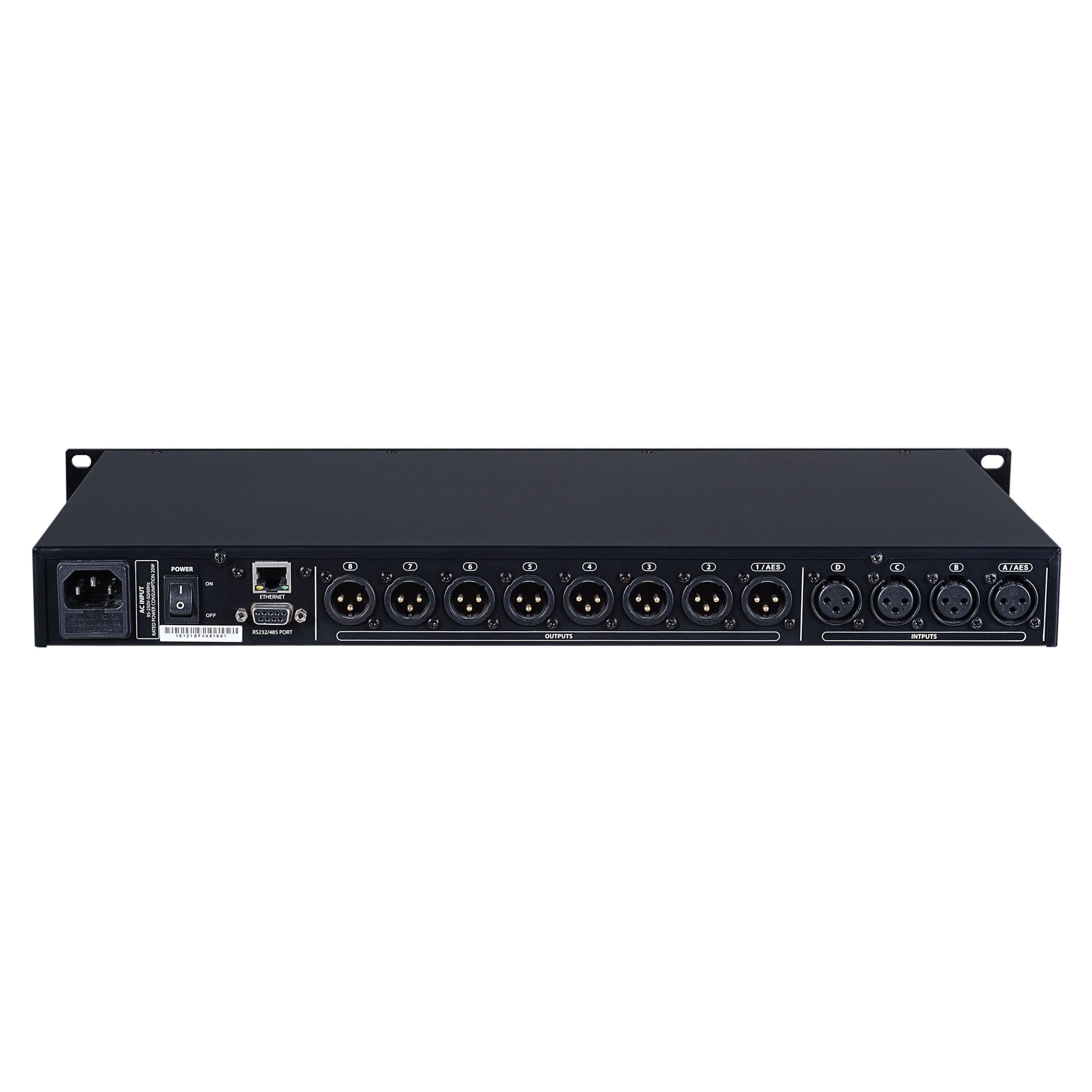

| Input Connections | XLR |
| Output Connections | XLR |
| Input Impedance | Balanced 500 KΩ, Unbalanced <500 KΩ |
| Input Effects | Gain, Mute, Link, High-pass filter, Low-pass filter, Noise Gate, 8-band parametric EQ, 31 band graphic EQ, Phase, Delay |
| Output Effects | Crossover, 5-band parametric EQ, Gain, Mute, Compressor / Limiter, Phase, Delay, Linking |
| Max Input Level | +18 dBu |
| Max Output Level | +20 dBu |
| Frequency Response | 20 Hz-20 KHz，-0.3 dBu |
| FIR | Yes |
| SNR | >115 dBu |
| THD+N | <0.005 at 1 KHz (0 dBu) |
| Digital Processing | 24-bit sigma-delta，96 KHz sampling rate |
| Software Included | Yes |
| User Presets | Yes |
| RS232 Port | Yes |
| Impedance | Balanced 500 KΩ, Unbalanced <500 KΩ |
| Crosstalk | <100 dB below full scale |

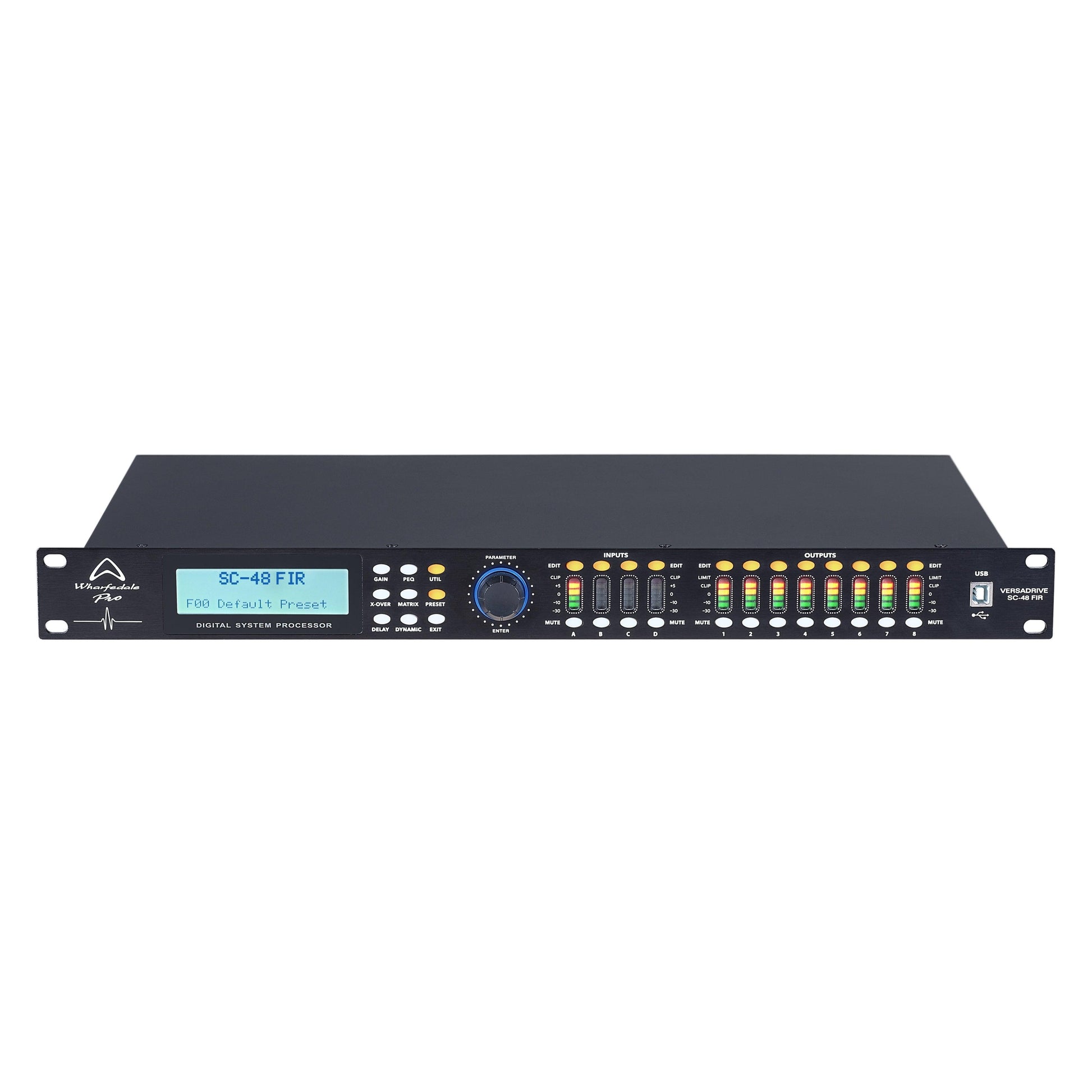

| Display Type | 20 × 2 LCD Display |
| Password Protected | Yes |
| Included Accessory | Power Cable, User Manual |
| Unpacked - Height (mm) | 45 |
|---|---|
| Unpacked - Width Front (mm) | 480 |
| Unpacked - Width Rear (mm) | 480 |
| Unpacked - Depth (mm) | 245 |
| Weight - Nett (kg) | 2.88 |
Yes. The FIR row is listed as Yes.
The Controller Data Connection row is Ethernet, and the Input Type row lists USB / RS232 and RS485.
