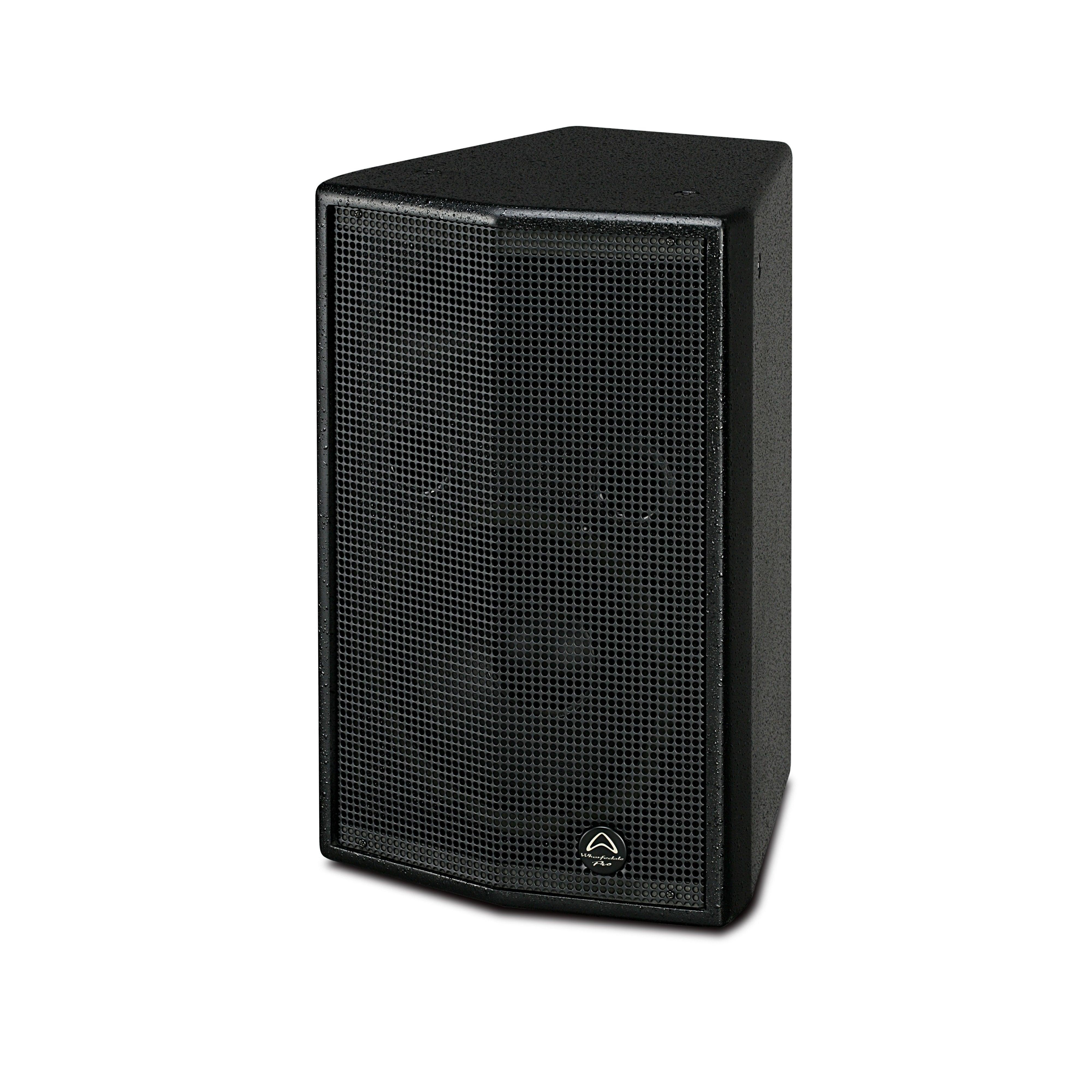

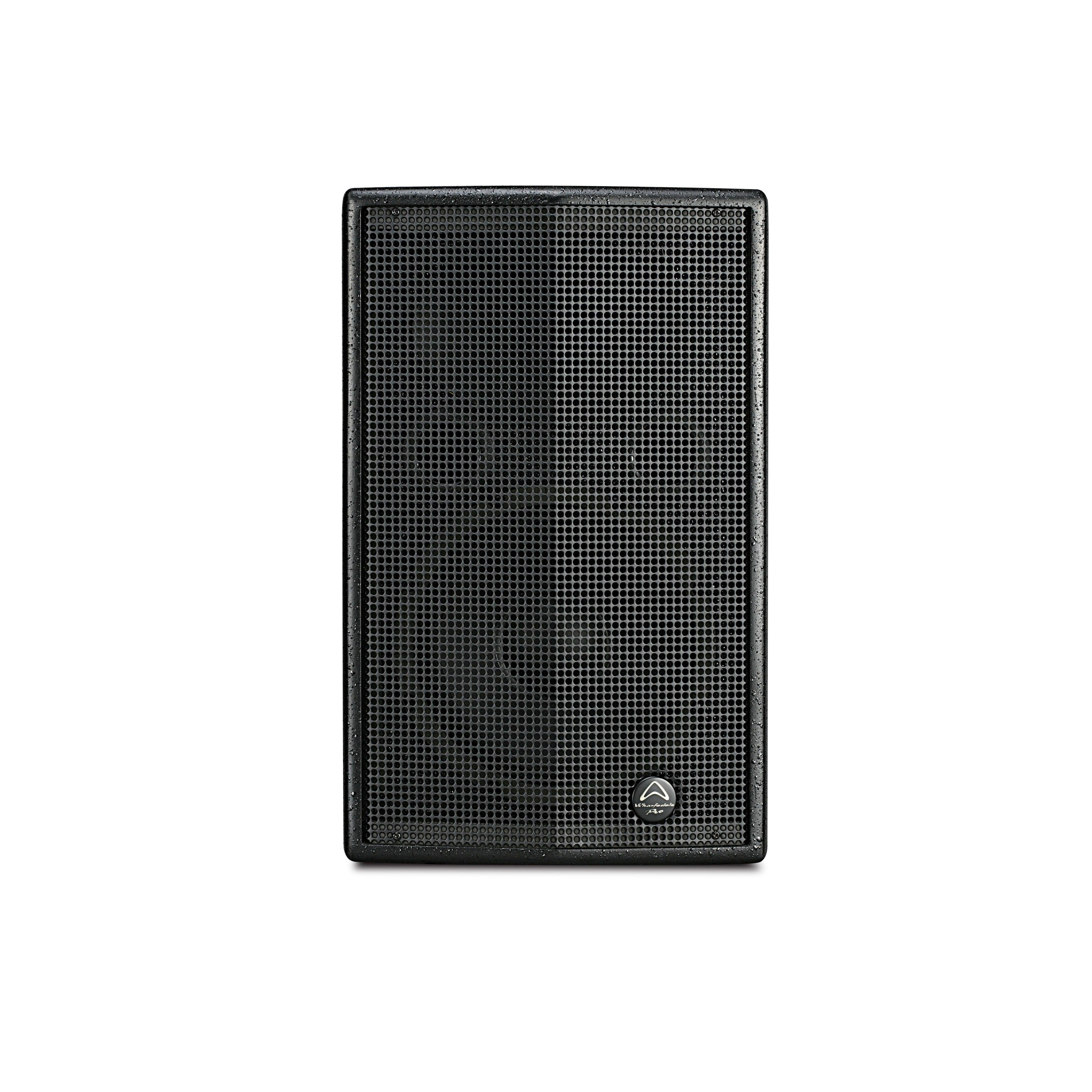

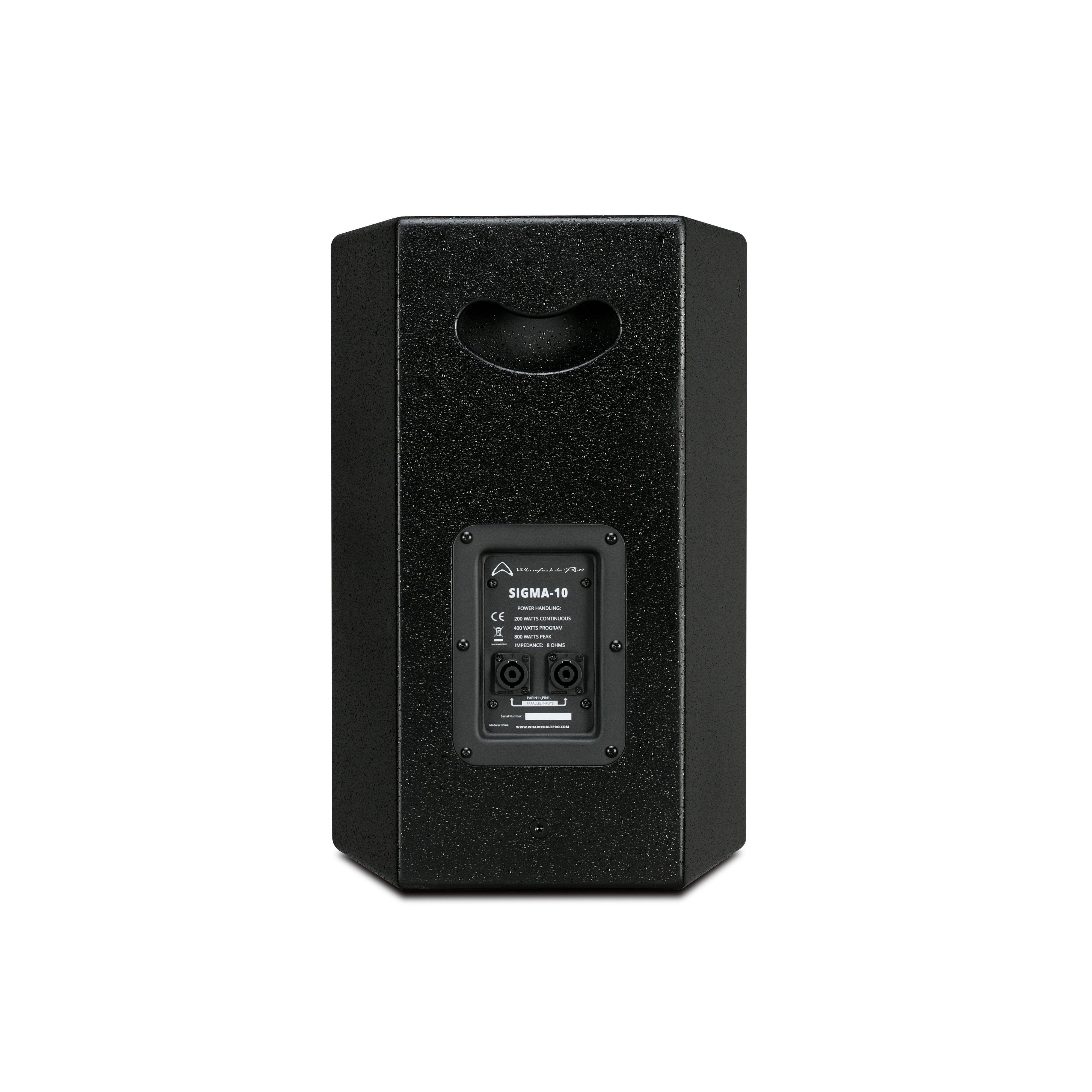

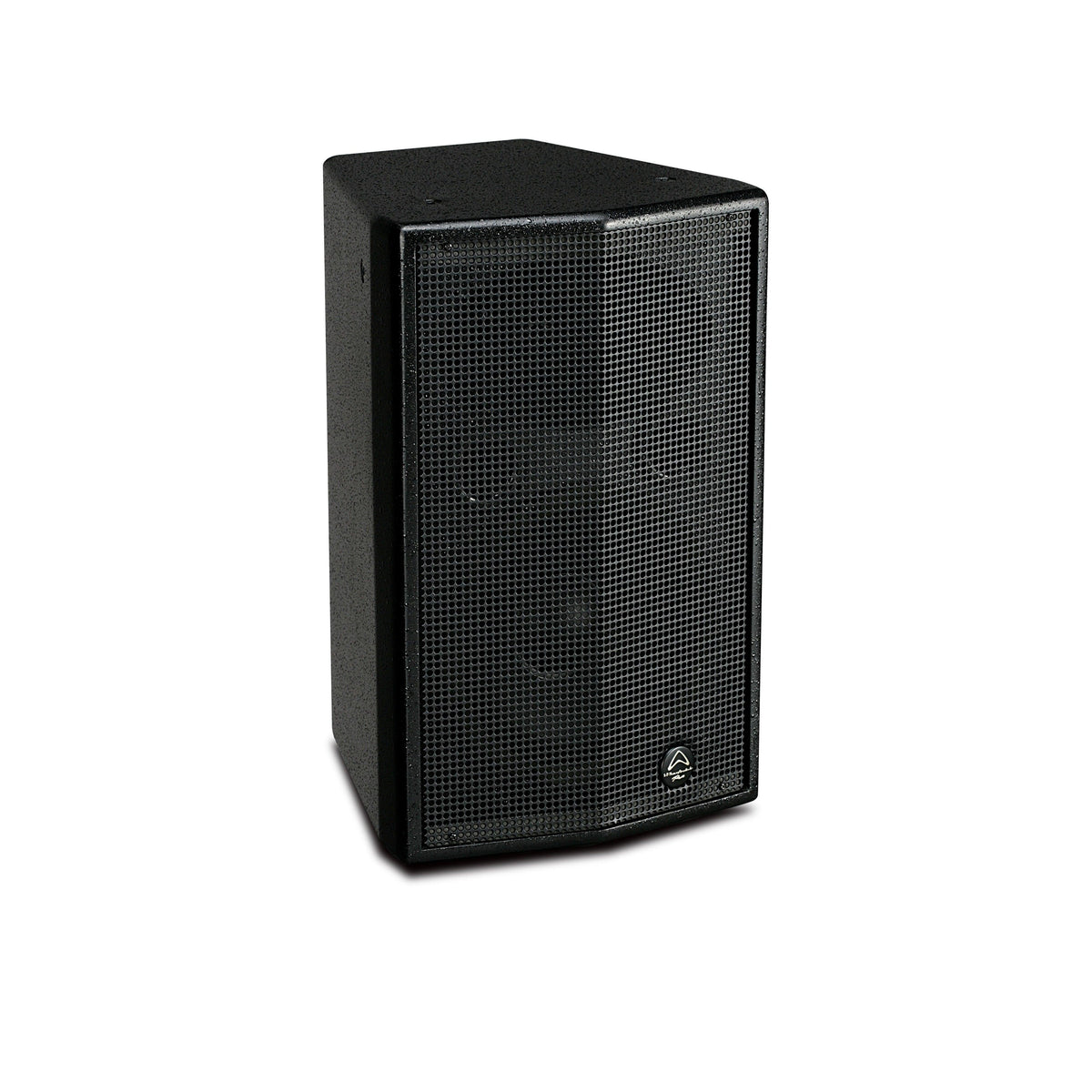

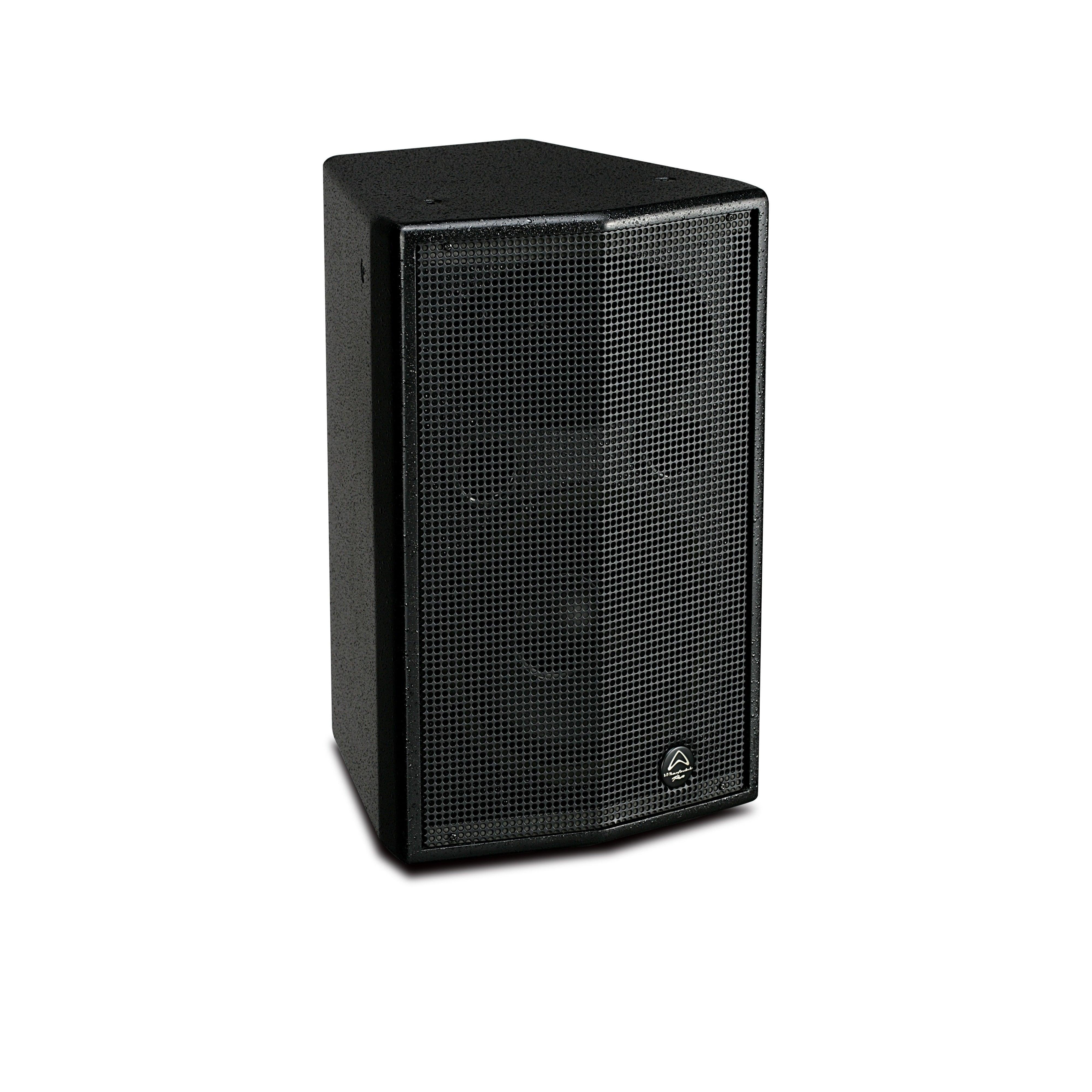

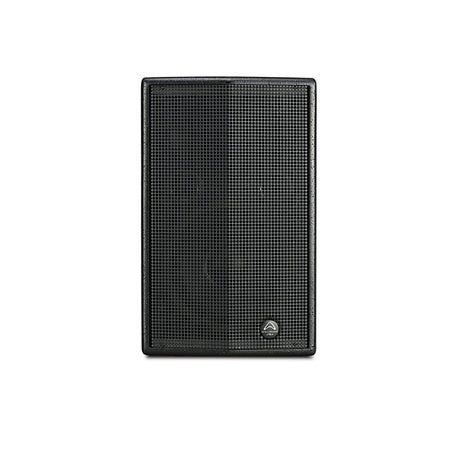

Wharfedale Pro SIGMA-10 Passive PA Speaker (Discontinued)
Log in to view price Trade pricing — AED / USD
Ask an AV specialist
-
Full Specifications
KEY FEATURES
- 10″ LF driver
- 1.5″ LF voice coil
- 1.75″ HF compression driver
- 124 dB Max SPL @ 1 m
- 400 watts Programme
- 800 watts Peak
DESCRIPTION
Wharfedale Pro engineers have matched the acoustic properties of the cabinet to the proprietary driver technology within, while taking physical aspects into consideration to ensure optimal positioning and size for installation.
By using a newly-developed angled-corner port system, cabinet height and overall size has been reduced – ideal for unobtrusive mounting within your venue. Additionally the angle-corner port system is fine-tuned acoustically to ensure low- end punch – just as you would expect with a larger PA speaker.
The cabinet of a full-range Sigma loudspeaker also features a pole mount socket ensuring the long-throw HF driver projects the sound directly to your audience. There are also 5 x M8 rigging points for safe and secure flying where needed. Sigma series are also coated in the latest generation chip-resistant, Rhino Rock paint.
SPECIFICATIONS
Model Name SIGMA-10 System Type Passive Configuration Two-way Frequency Response (+/-3 dB) 65 Hz – 18 KHz Frequency Range (-10 dB) 60 Hz – 20 KHz Sensitivity 2.83 v / 1 m 97 dB Calculated Maximum SPL @1 m 126 dB System Rated Impedance 8 Ω Low Frequency Transducer Size (mm / inches) 254 mm / 10” Voice Coil Size (mm / inches) 38 mm / 1.5” Rated Impedance 8 Ω LF Power re:AES2-2012 200 w High Frequency Transducer HF Driver Type Compression Driver Coil Size (mm / inches) 44 mm / 1.75” Exit Size (mm / inches) 1″ Diaphragm Material Titanium Rated Impedance 8 Ω HF Power re:AES2-2012 40 w Nominal Coverage (H x V) 90˚ x 60˚ Power System Continuous Power 200 w System Programme Power 400 w System Peak Power 800 w Crossover frequency 2.4 KHz Input Connector 2 x NL4 (speakON compatible) Hi Pass output connector Hardware Dual-angle (0° /10°) 35 mm socket M8 x 5 1 handle on back Enclosure Enclosure Material 15 mm MDF Finish Black Paint / White Paint Grille Material & Finish 1.2 mm steel, painted Dimensions – Unpacked Height 500 mm / 19.5″ Width Front 383 mm / 13.3″ Width Rear 213 mm / 8.4″ Depth 339 mm / 13.3″ Dimensions – Packed Height 585 mm / 23″ Width Front 451 mm / 18″ Width Rear 254 mm / 10″ Depth 384 mm / 13.3″ Weight Net Weight 15.4 kg / 34 lbs Gross Weight 17.8 kg / 38.5 lbs
