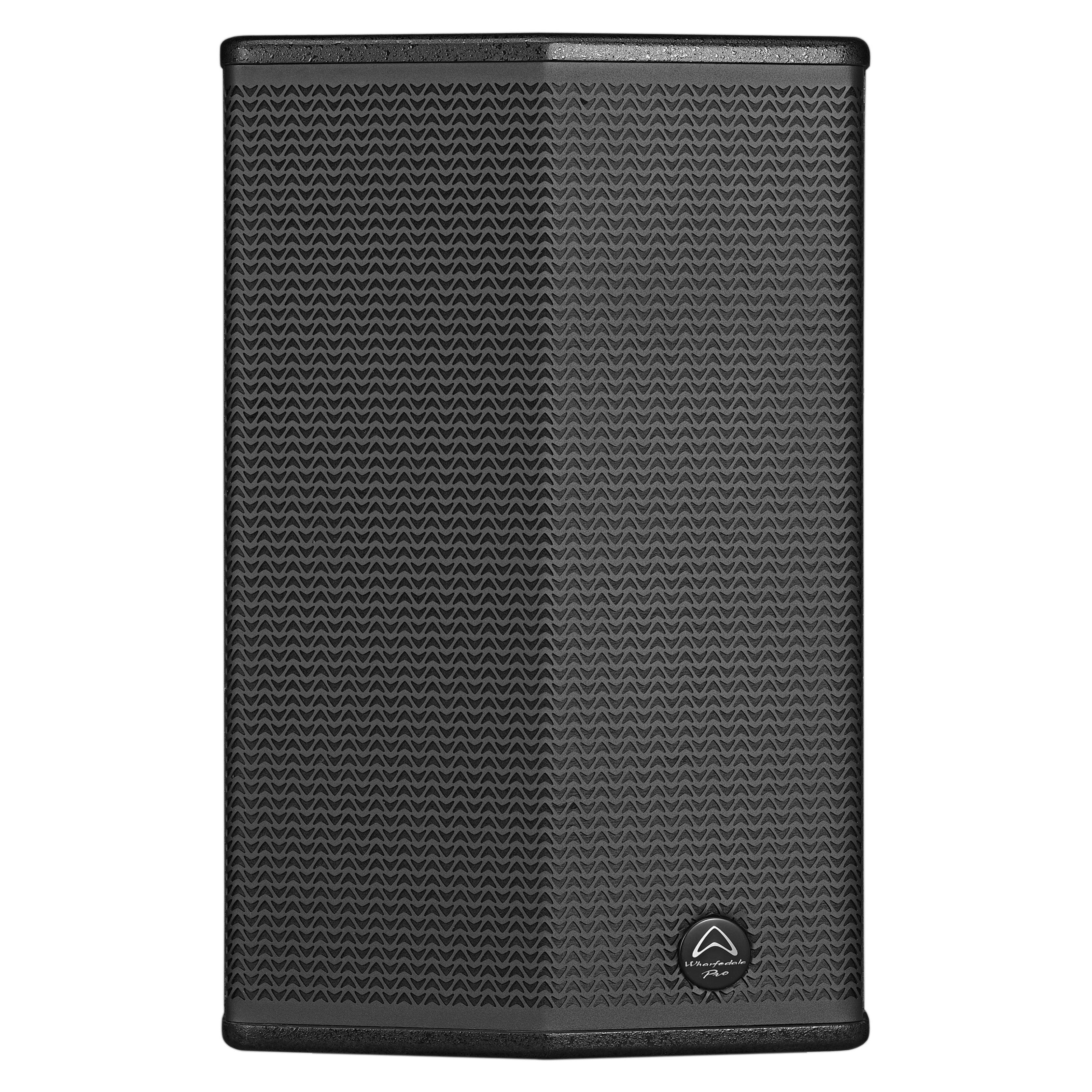

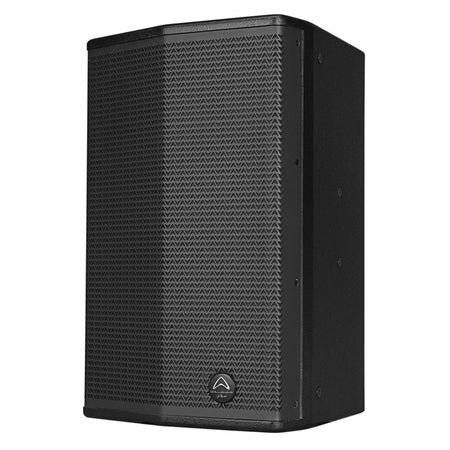

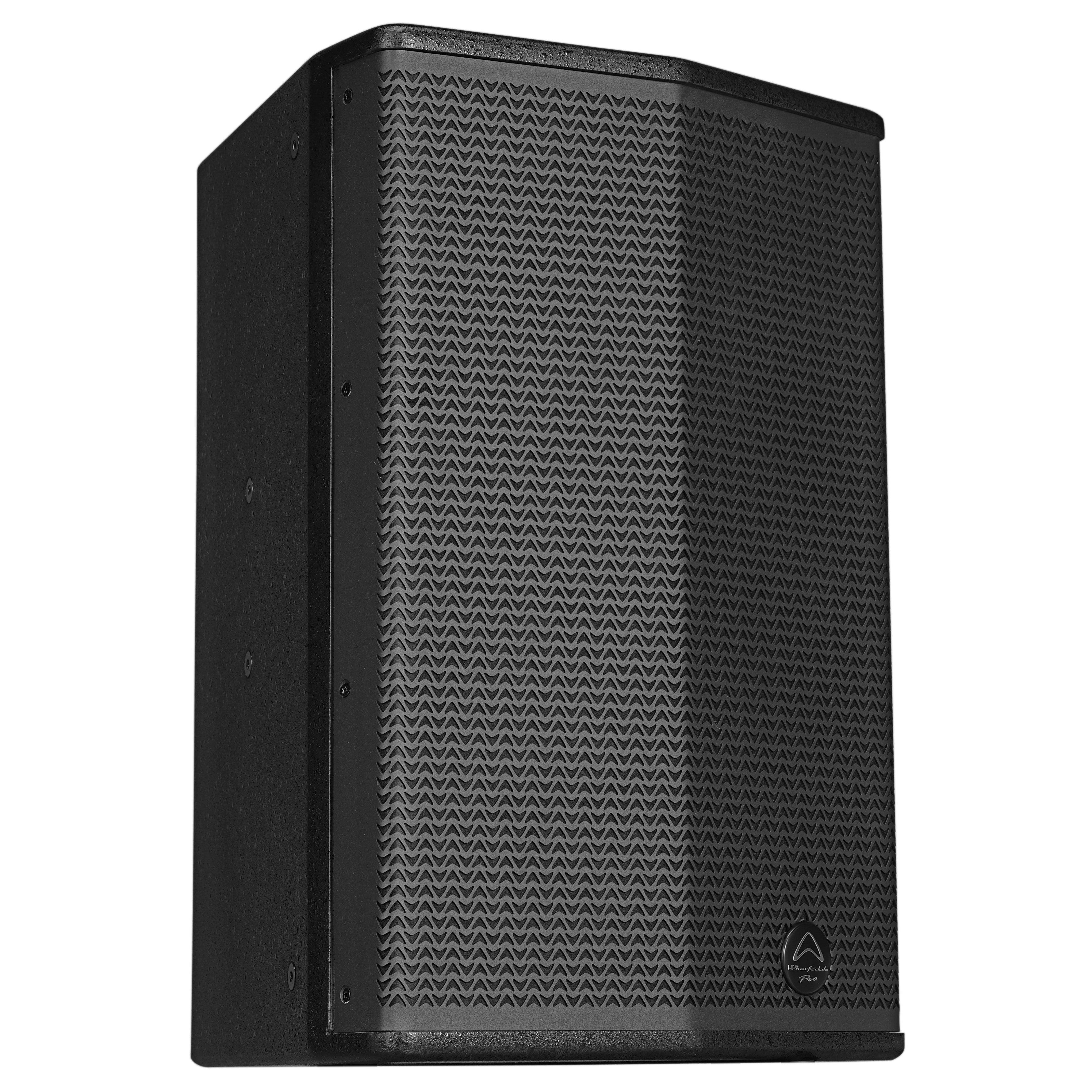

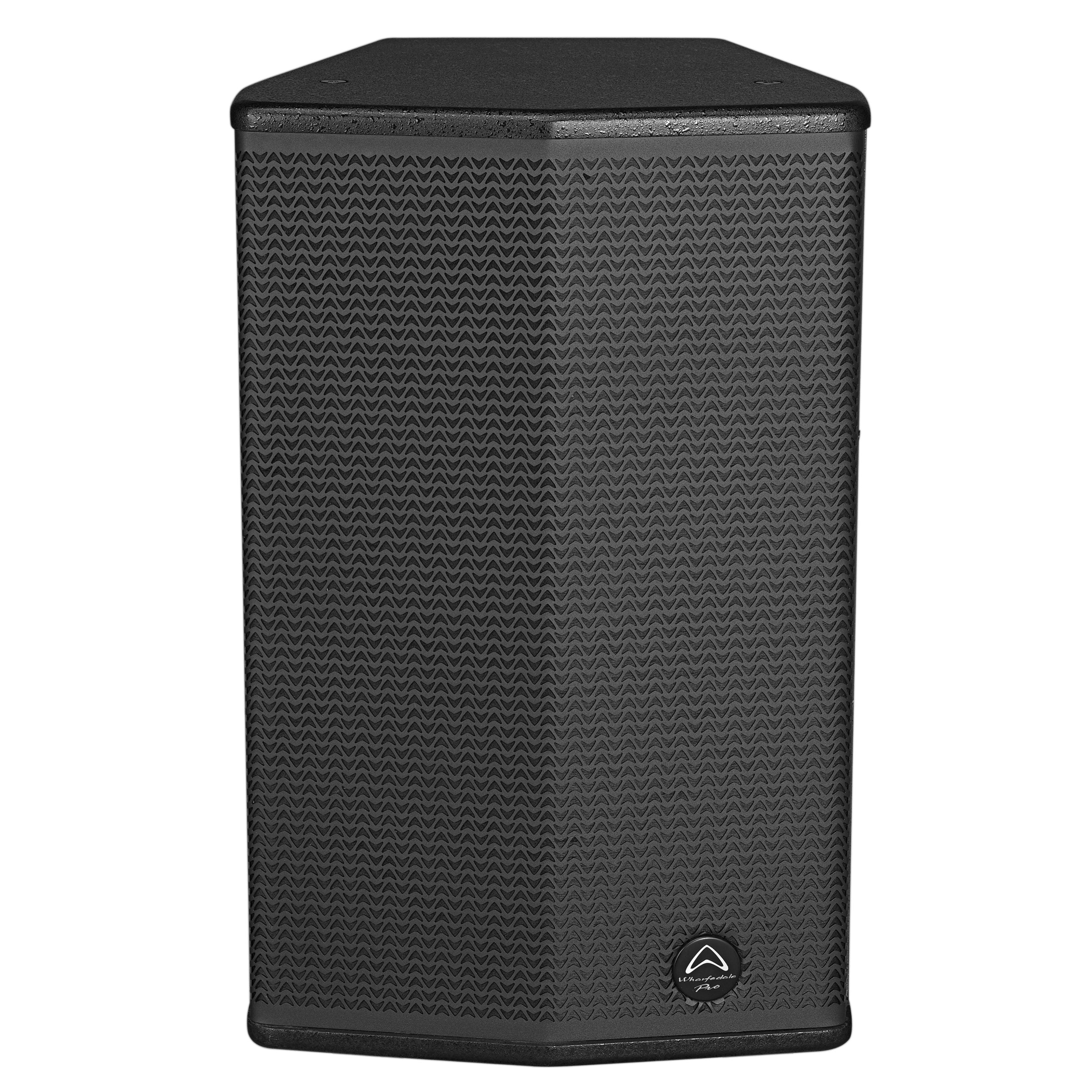

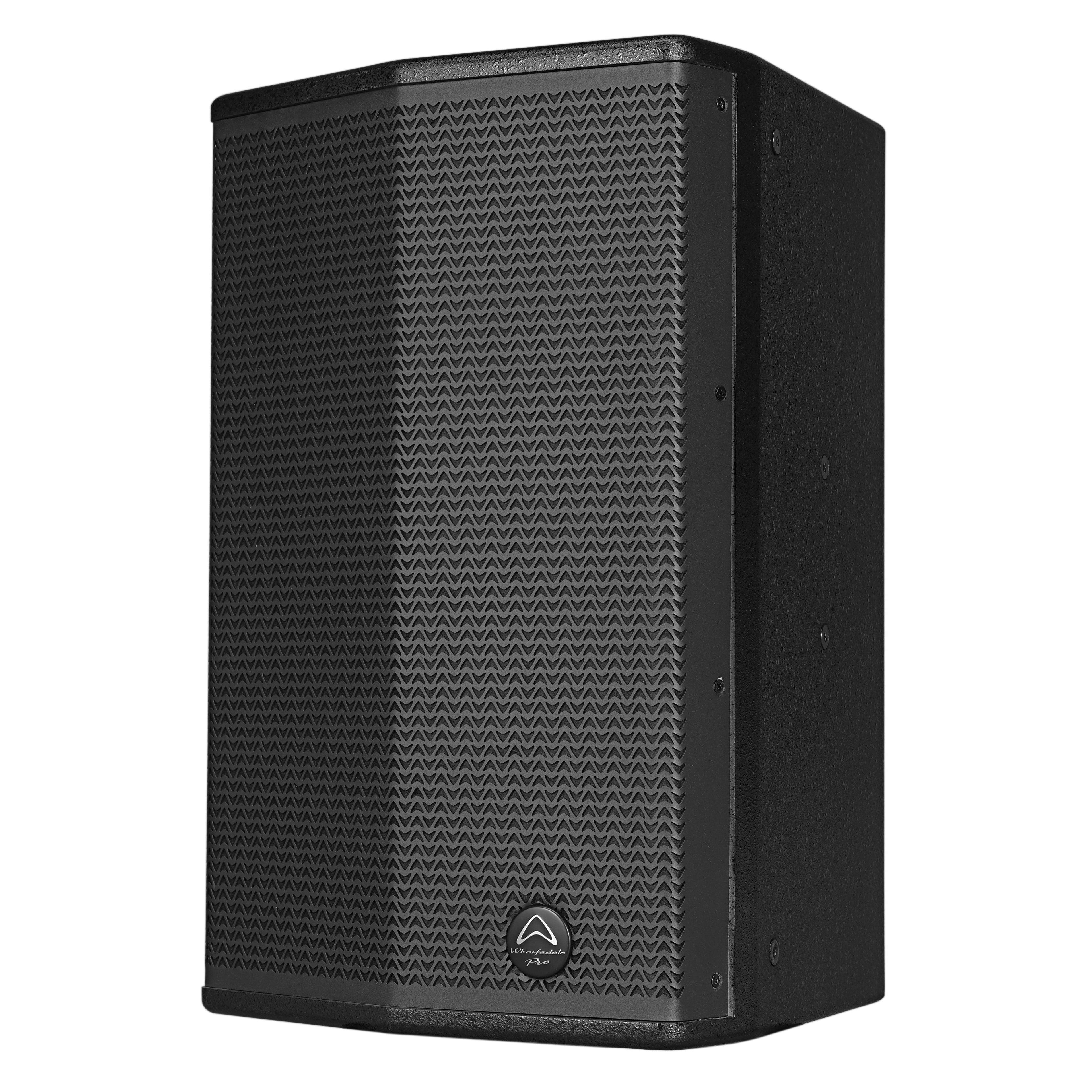

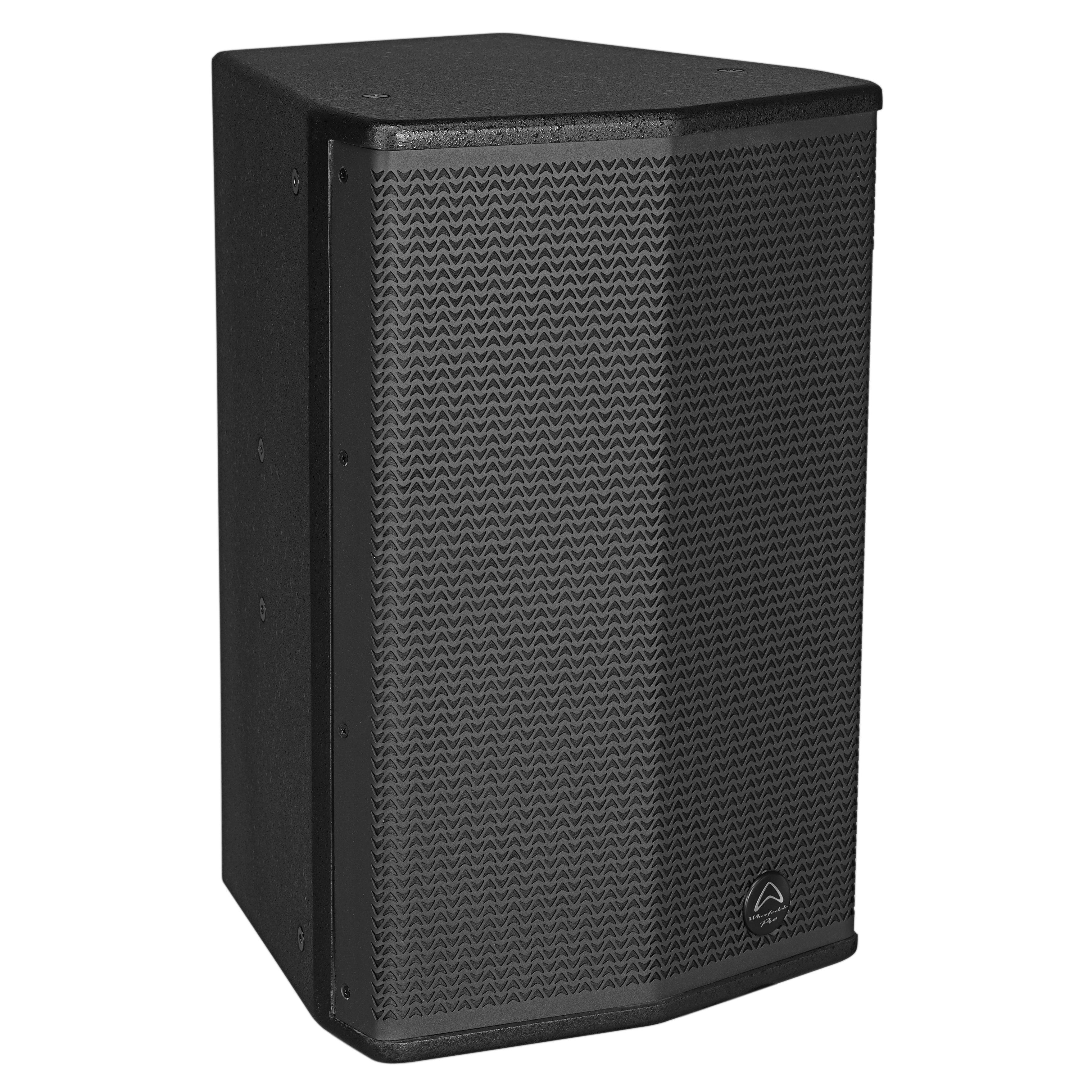

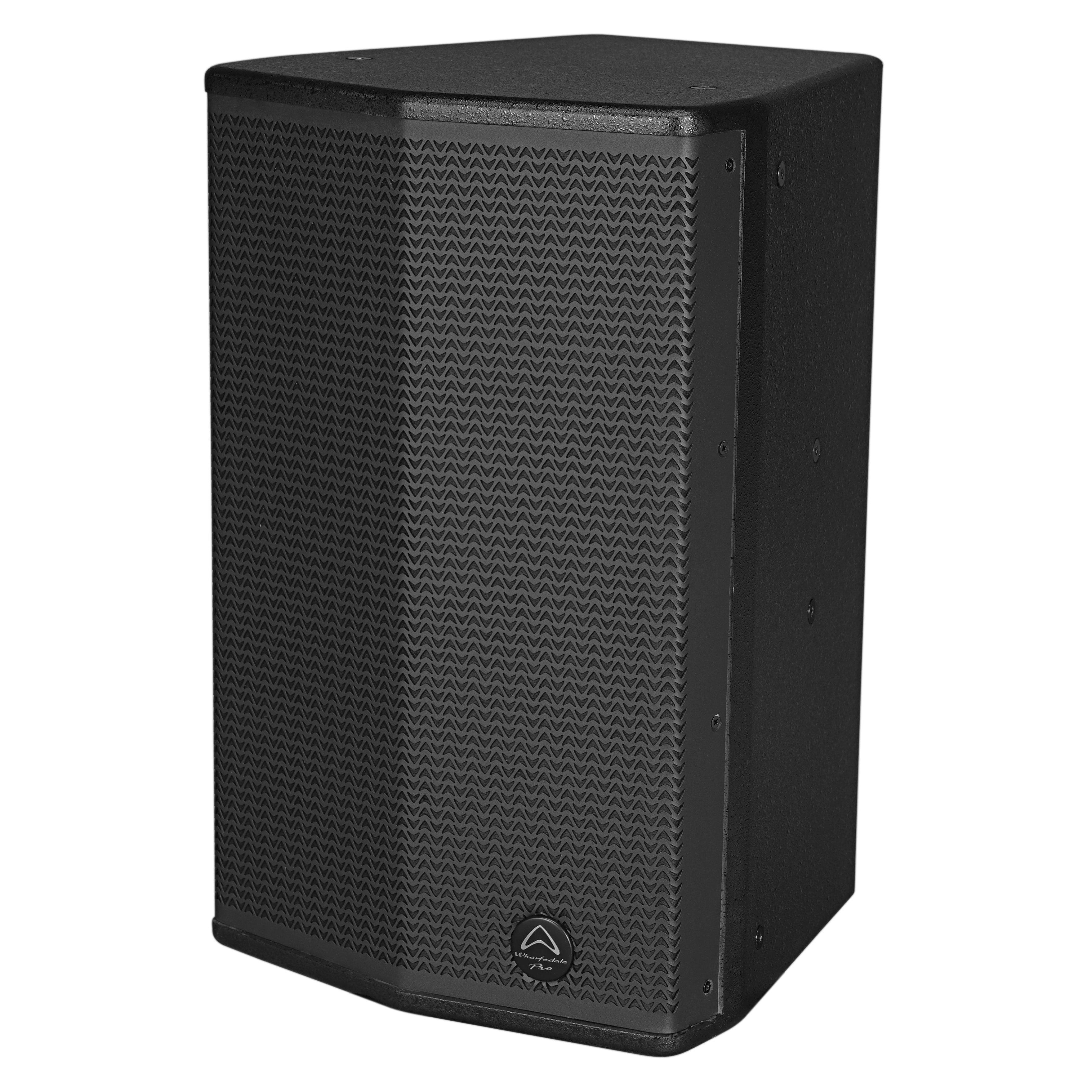

Wharfedale Pro SIGMA-X12 Passive PA Speaker
Log in to view price Trade pricing — AED / USD
Ask an AV specialist
-
Full Specifications
KEY FEATURES
- 300 W AES (Continuous)
- 600 W Programme
- 1200 W Peak
- 129 dB Max SPL @ 1 m
DESCRIPTION
A complete re-design of the classic SIGMA series of Installation loudspeakers. 7 new models with a fresh new cosmetic for 2022.

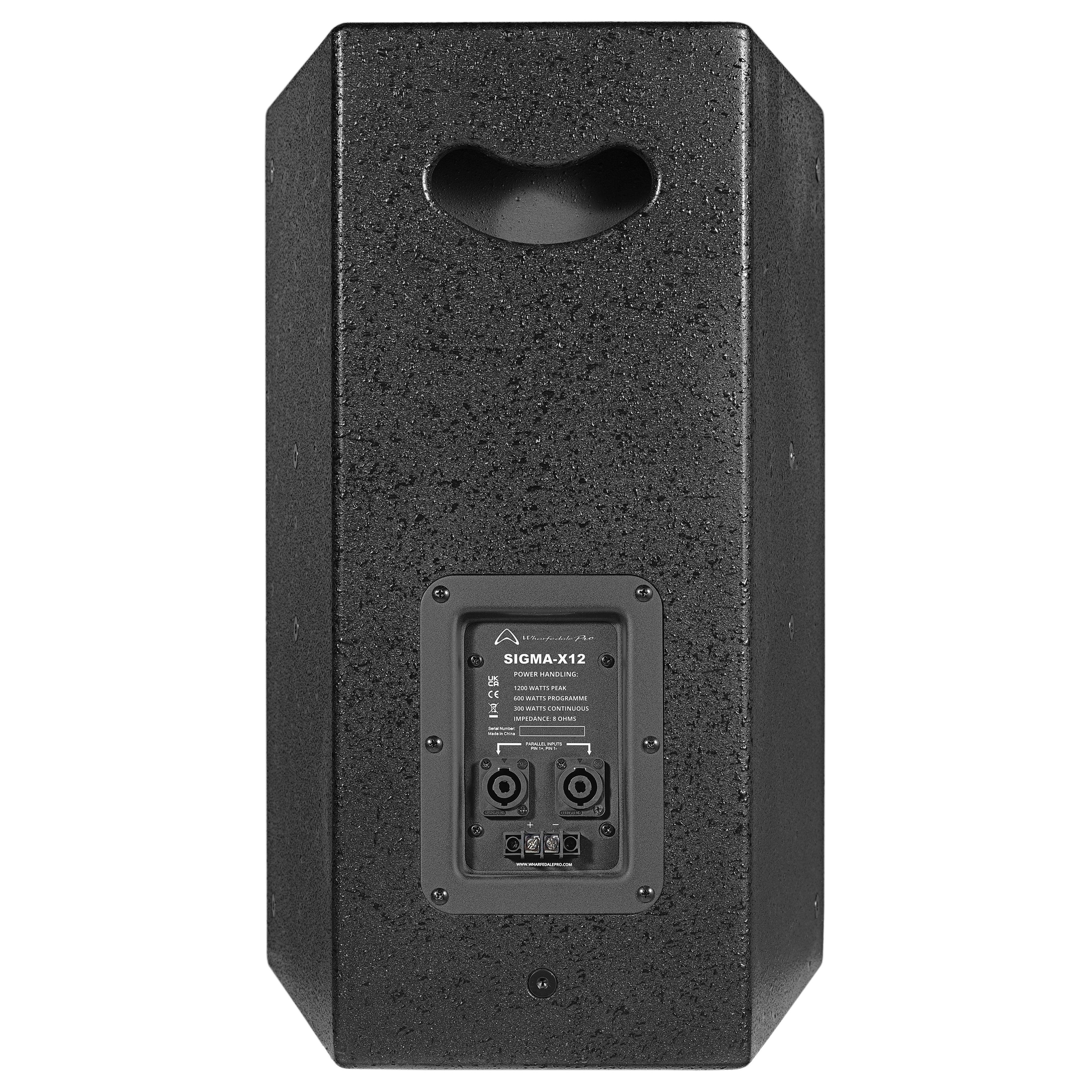

Building on the reliable performance of the established SIGMA series, the new SIGMA-X features newly designed front grilles and support materials to make the installation simply look and sound great. Available in black or white durable paint finishes, SIGMA-X models now also include both speakON and barrier strip connections, making installation easy!Improved mounting and rigging options make SIGMA-X simple to install into almost any location. The improved audio definition is also welcomed as SIGMA-X has been completely re-evaluated by the Wharfedale Pro International R&D team.
SPECIFICATIONS
Model Name SIGMA-X12 System Type Passive Configuration Two-Way Frequency Response (+/-3 dB) 60 Hz - 18 KHz Frequency Range (-10 dB) 55 Hz - 20 KHz Sensitivity 2.83 V / 1 m 98 dB Calculated Maximum SPL @1 m 129 dB System Rated Impedance 8 Ω Low Frequency Transducer Size (mm / inches) 305 mm / 12'' Voice Coil Size (mm / inches) 64 mm / 2.5'' Rated Impedance 8 Ω LF Power re:AES2-2012 300 W High Frequency Transducer HF Driver Type Compression Driver Coil Size (mm / inches) 44 mm / 1.75'' Exit Size (mm / inches) 1" Diaphragm Material Titanium Rated Impedance 8 Ω HF Power re:AES2-2012 40 W Waveguide Type Constant Directivity /
RotatableNominal Coverage (H x V) 90˚ x 60˚ LF Driver 1 x 12" HF Driver 1 x 1.75" Titanium

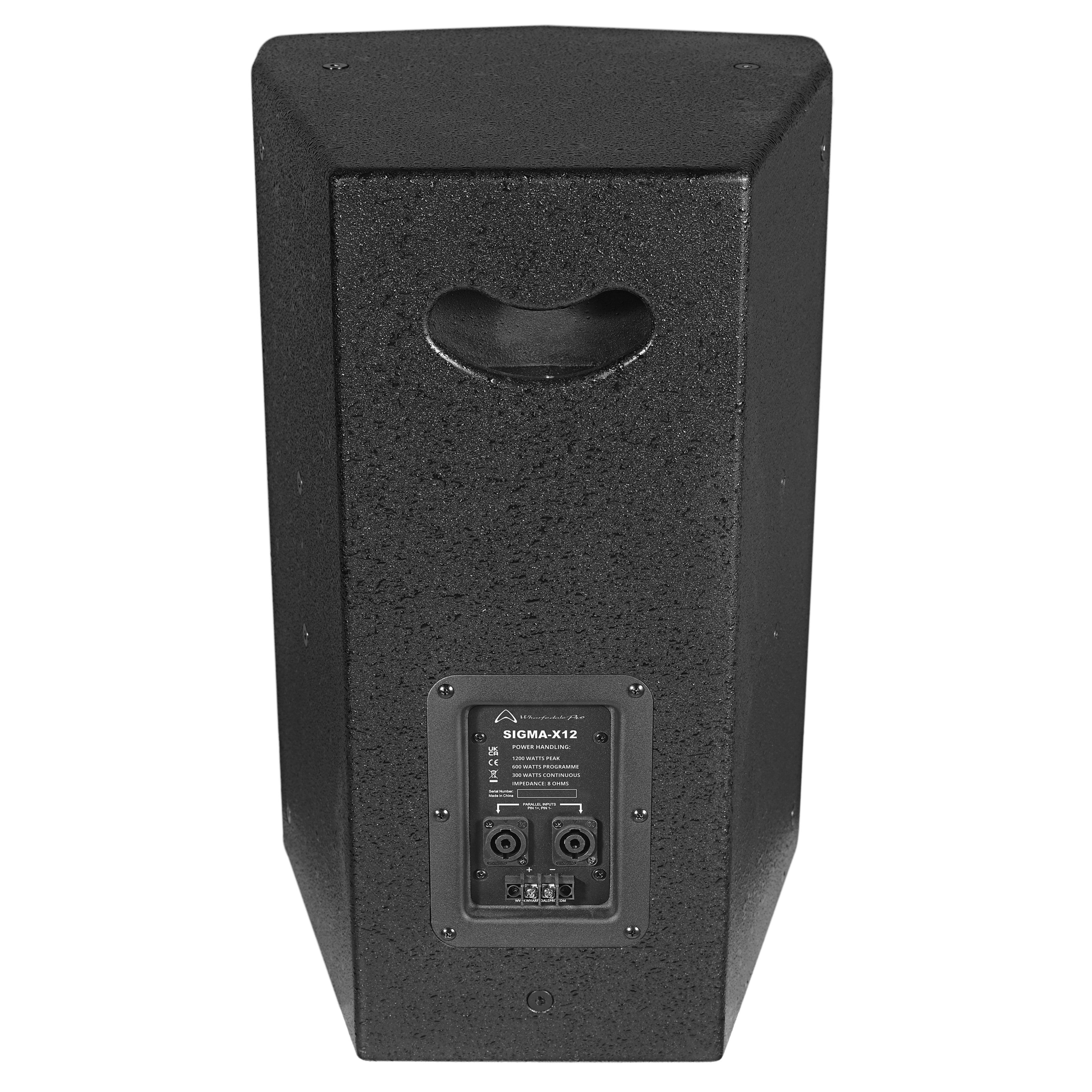

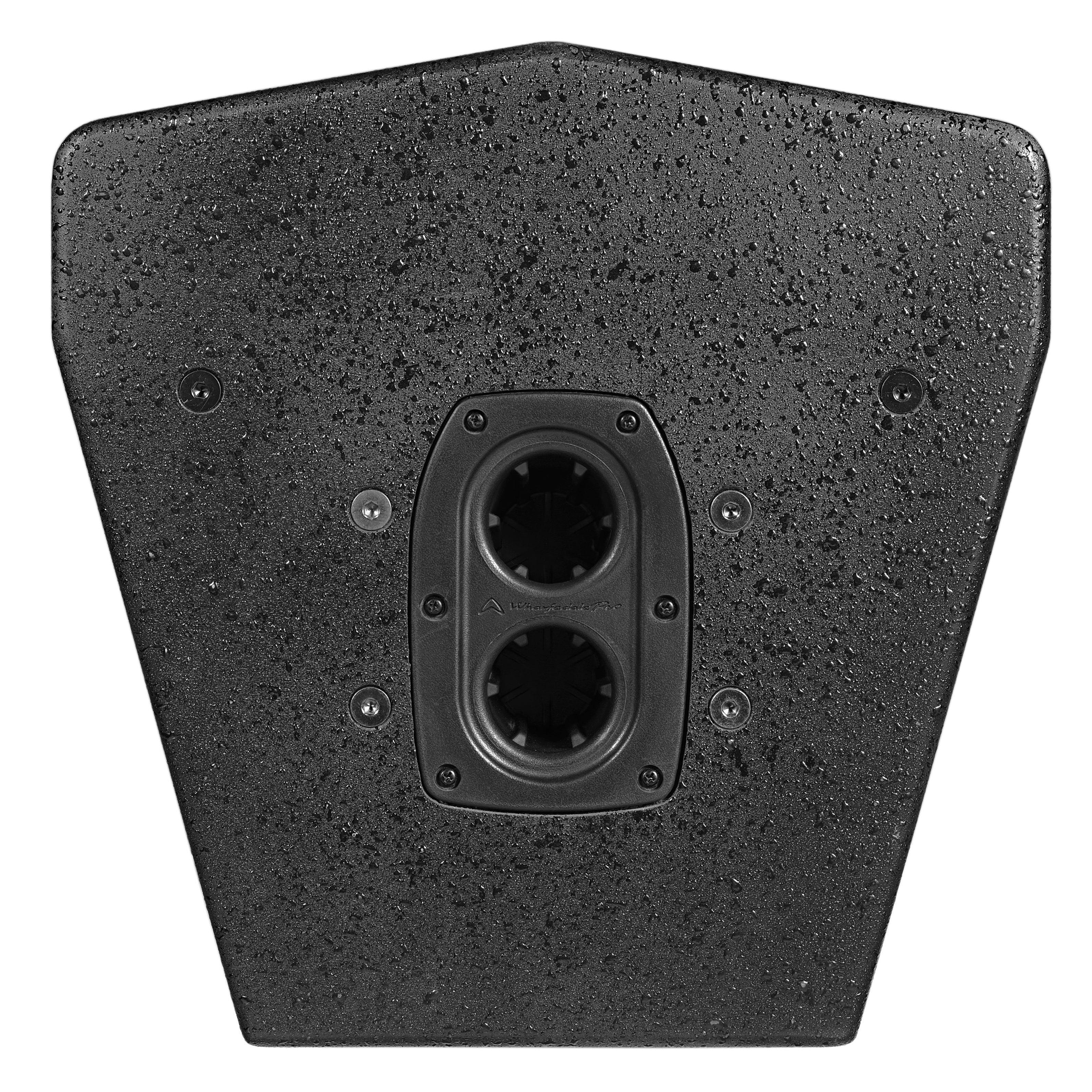

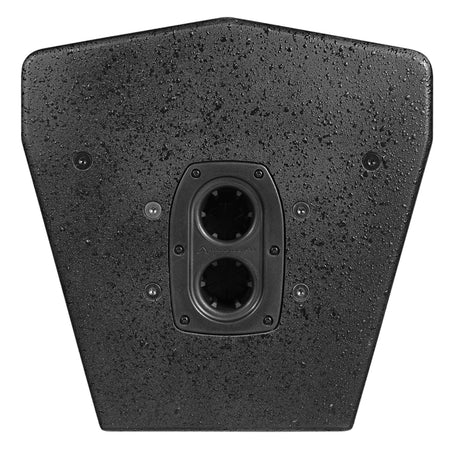

Compression DriverPower System Continuous Power 300 W System Programme Power 600 W System Peak Power 1200 W Crossover frequency 2.2 KHz Recommended HPF = BW 18 dB/oct. 38 Hz Input Connector 2 x speakON / 1x Barrier Strip Hardware Dual-angle (0° / 10°)
35 mm socketM8 x 17 1 handle on back Enclosure Enclosure Material 15 mm MDF Finish Black Paint / White Paint Grille Material & Finish 1.2 mm steel, painted Dimensions - Unpacked Height 551 mm / 21.7" Width Front 354 mm / 14" Width Rear 218 mm / 8" Depth 359 mm / 14" Dimensions - Packed Height 616 mm / 24.3" Width Front 468 mm / 18.4" Width Rear 260 mm / 10.2" Depth 404 mm / 15.9" Weight Net Weight 19.1 kg / 42.02 lbs Gross Weight 20.74 kg / 48.2 lbs Optional Wall-mount bracket WPB-1 / WPB-2 Sample Sample
