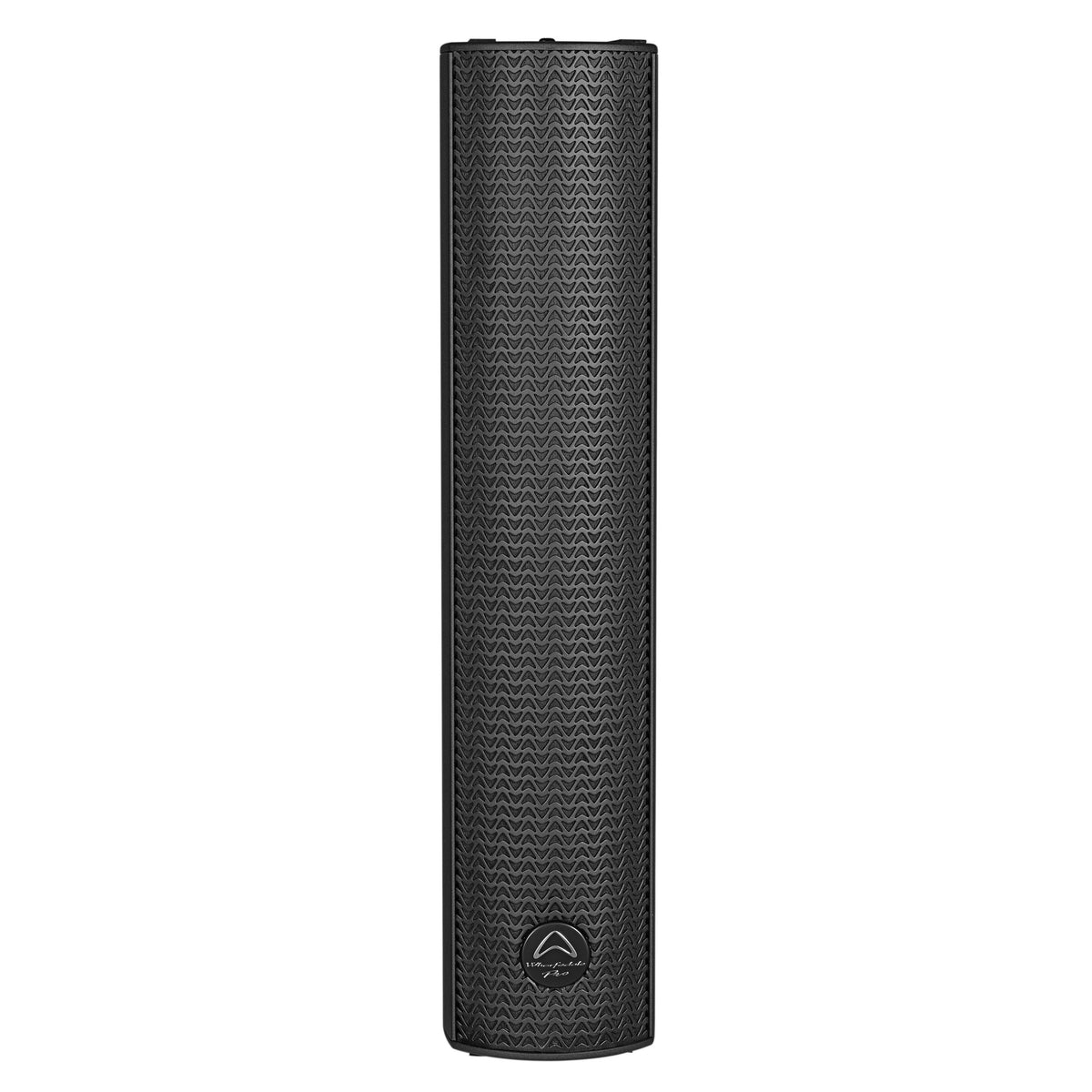

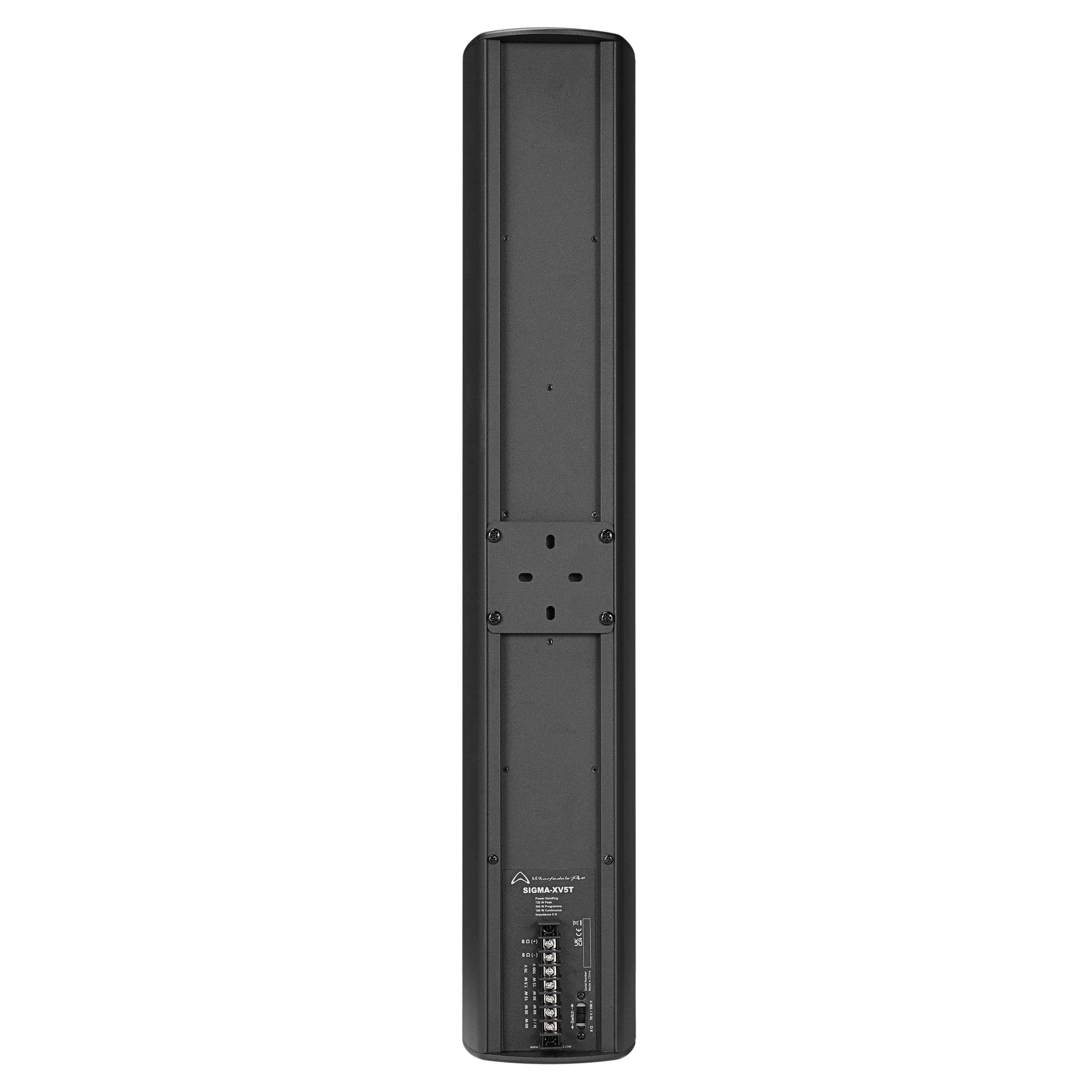

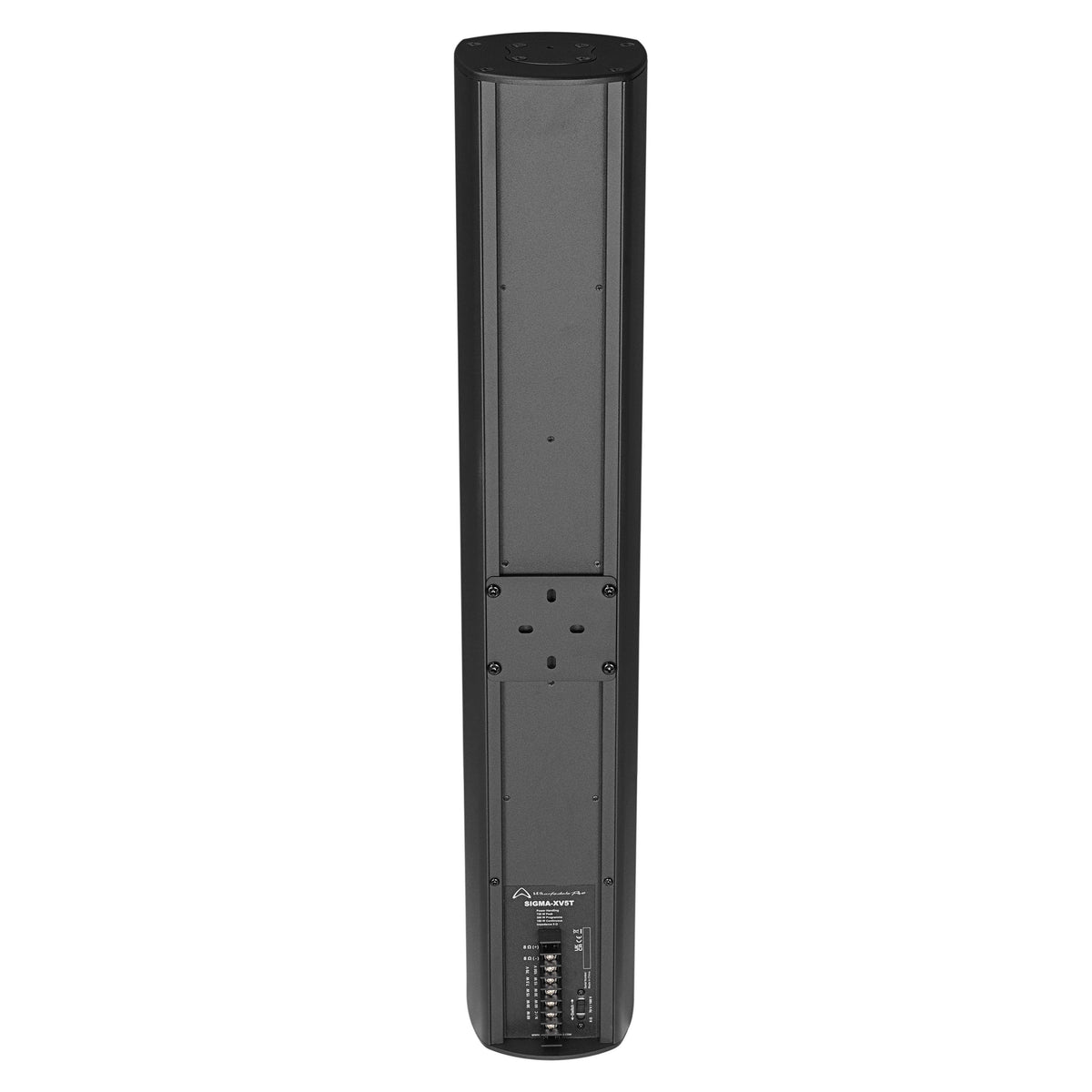

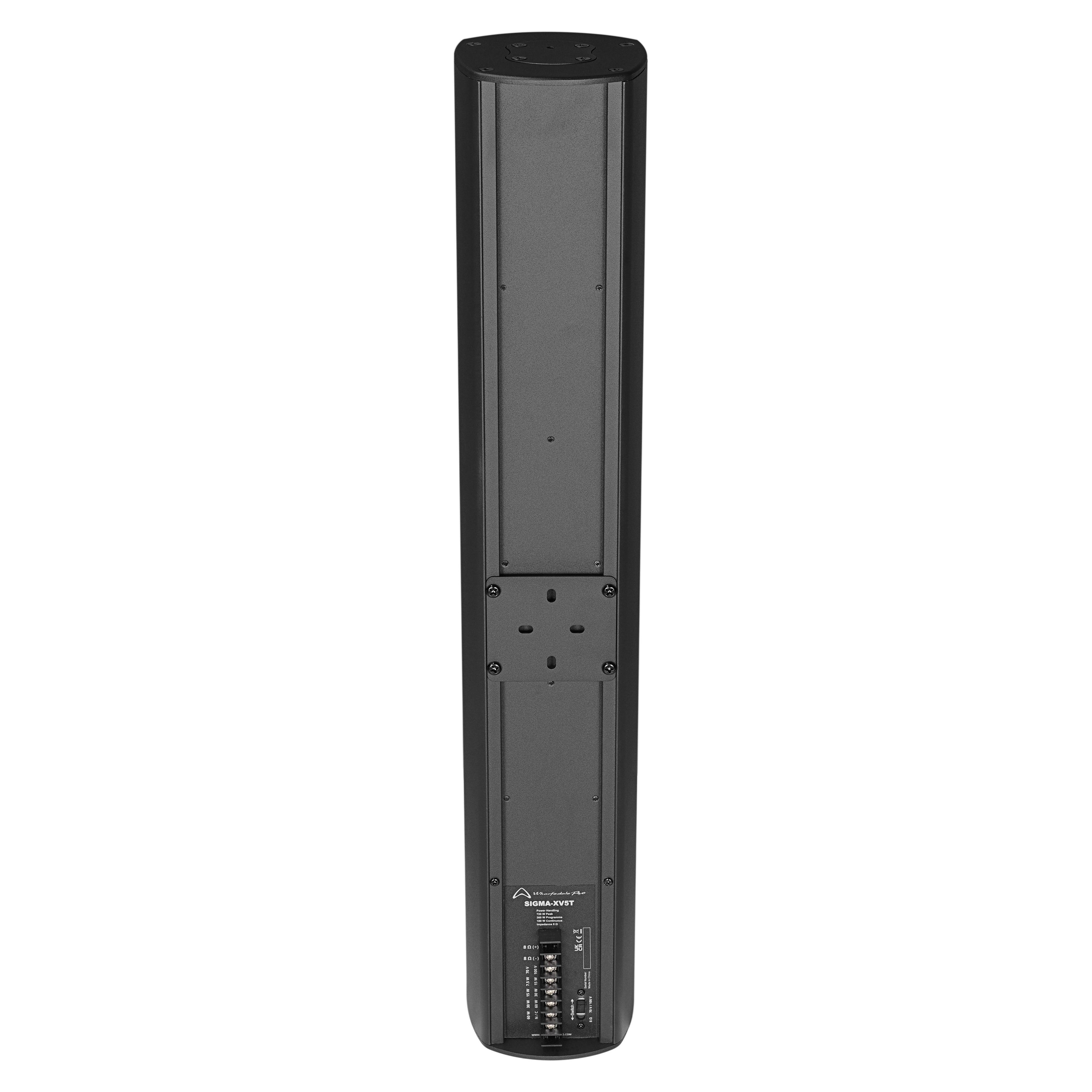

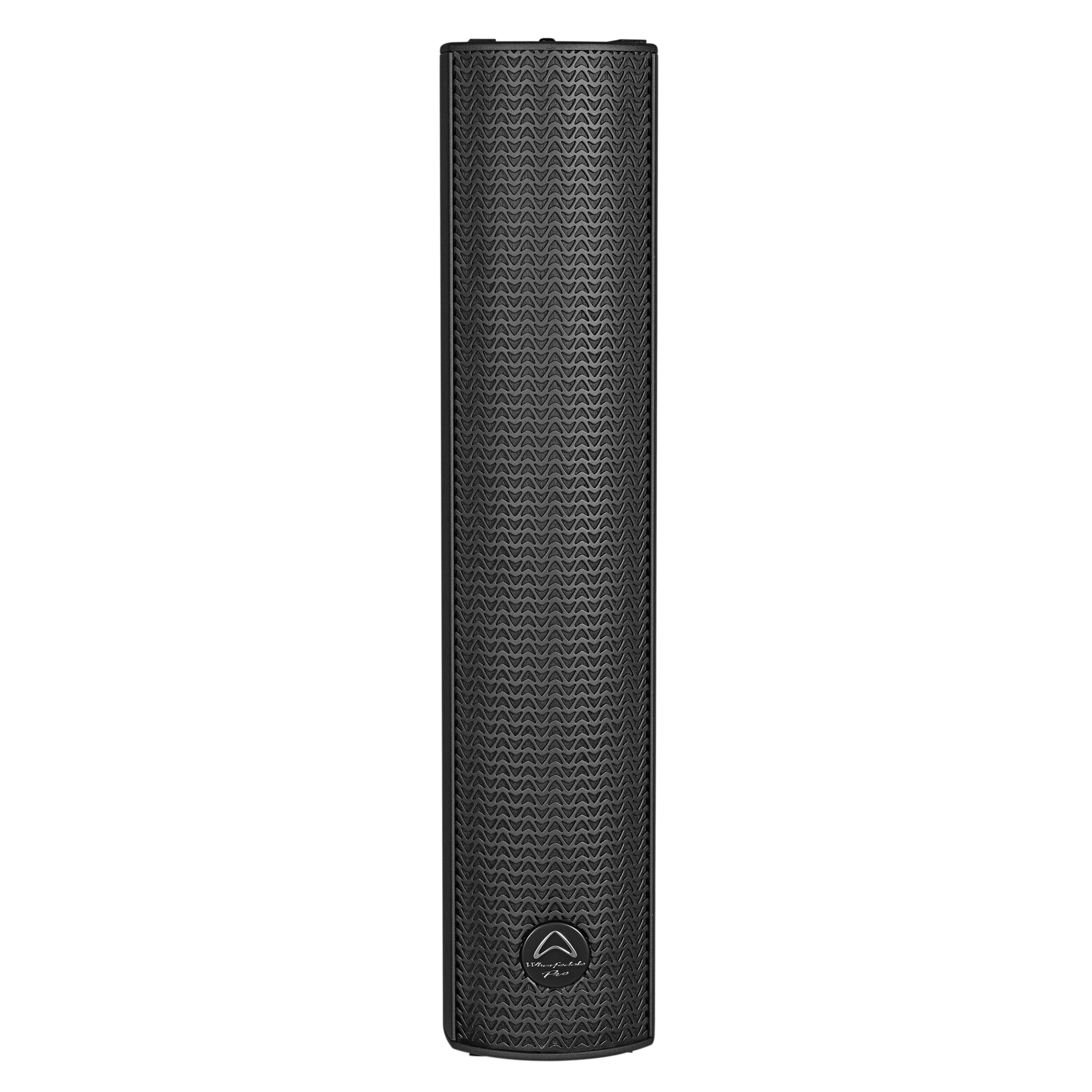

Elevate your sound with the Wharfedale Pro SIGMAXV5T Column Array Speaker! This versatile system delivers powerful, clear audio thanks to its 5 x 3" drivers and 1" high frequency driver. Packing a punch at 180W RMS and reaching a maximum SPL of 123dB, it's perfect for a variety of applications. The durable aluminum paint body and included U-bracket ensure easy installation in various settings.
| Model Name | SIGMA-XV5T |
| System Type | Passive |
| Configuration | Two-Way |
| Frequency Response (+/-3 dB) | 160 Hz – 18 KHz |
| Frequency Range (-10 dB) | 150 Hz – 20 KHz |
| Sensitivity 2.83 V / 1 m | 95 dB |
| Calculated Maximum SPL @1 m | 123 dB |
| System Rated Impedance | 8 Ω |
| Low Frequency Transducer | |
| Size (mm / inches) | 5 x 75 mm / 3″ |
| Voice Coil Size (mm / inches) | 33 mm / 1.3″ |
| Rated Impedance | 4 Ω |
| LF Power re:AES2-2012 | 40 W |
| High Frequency Transducer | |
| HF Driver Type | 1 x 1″ High Frequency driver |
| Coil Size (mm / inches) | 25.4 mm / 1″ |
| Exit Size (mm / inches) | 25.4 mm / 1″ |
| Diaphragm Material | PEI |
| Rated Impedance | n/a |
| HF Power re:AES2-2012 | n/a |
| Waveguide Type | Mini EVO-Fold |
| Nominal Coverage (H x V) | 120˚ x 30˚ |
| LF Driver | 5 x 3″ |
| HF Driver | 1 x 1″ PEI EVO-Fold Driver |
| Power | |
| System Continuous Power | 180 W |
| System Programme Power | 360 W |
| System Peak Power | 720 W |
| Transformer (T) | 100 V / 70 V |
| Transformer Taps (70 V) | 7.5,15,30,60 W |
| Transformer Taps (100 V) | 15,30,60 W |
| Crossover frequency | 2.5 KHz |
| Recommended HPF | 160 Hz |
| = BW 18 dB/oct. | |
| Input Connector | Barrier Strip |
| Hardware | U Bracket included |
| Enclosure | |
| Enclosure Material | Aluminum |
| Finish | Black Paint / White Paint |
| Grille Material & Finish | 1.2 mm steel, painted |
| Dimensions – Unpacked | |
| Height | 720 mm / 28.3″ |
| Width Front | 126 mm / 4.96″ |
| Width Rear | 92 mm / 3.62″ |
| Depth | 145 mm / 5.71″ |
| Dimensions – Packed | |
| Height | 865 mm / 30.1″ |
| Width Front | 210 mm / 8.27″ |
| Width Rear | 210 mm / 8.27″ |
| Depth | 210 mm / 8.27″ |
| Weight | |
| Net Weight | 8.4 kg / 18.4 lbs |
| Gross Weight | 9.2 kg / 20.24 lbs |
| Optional Wall-mount bracket | WPB-SV |
