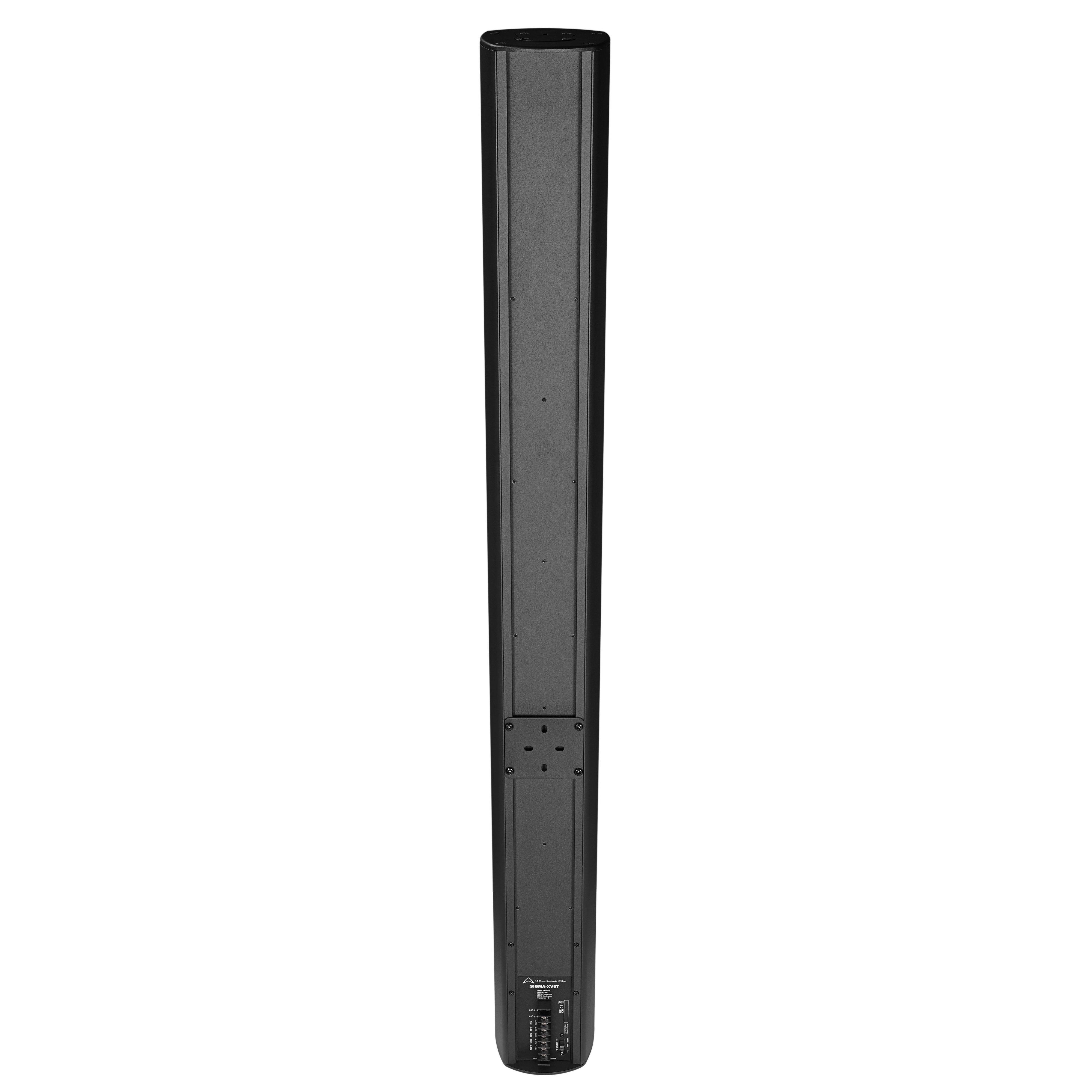

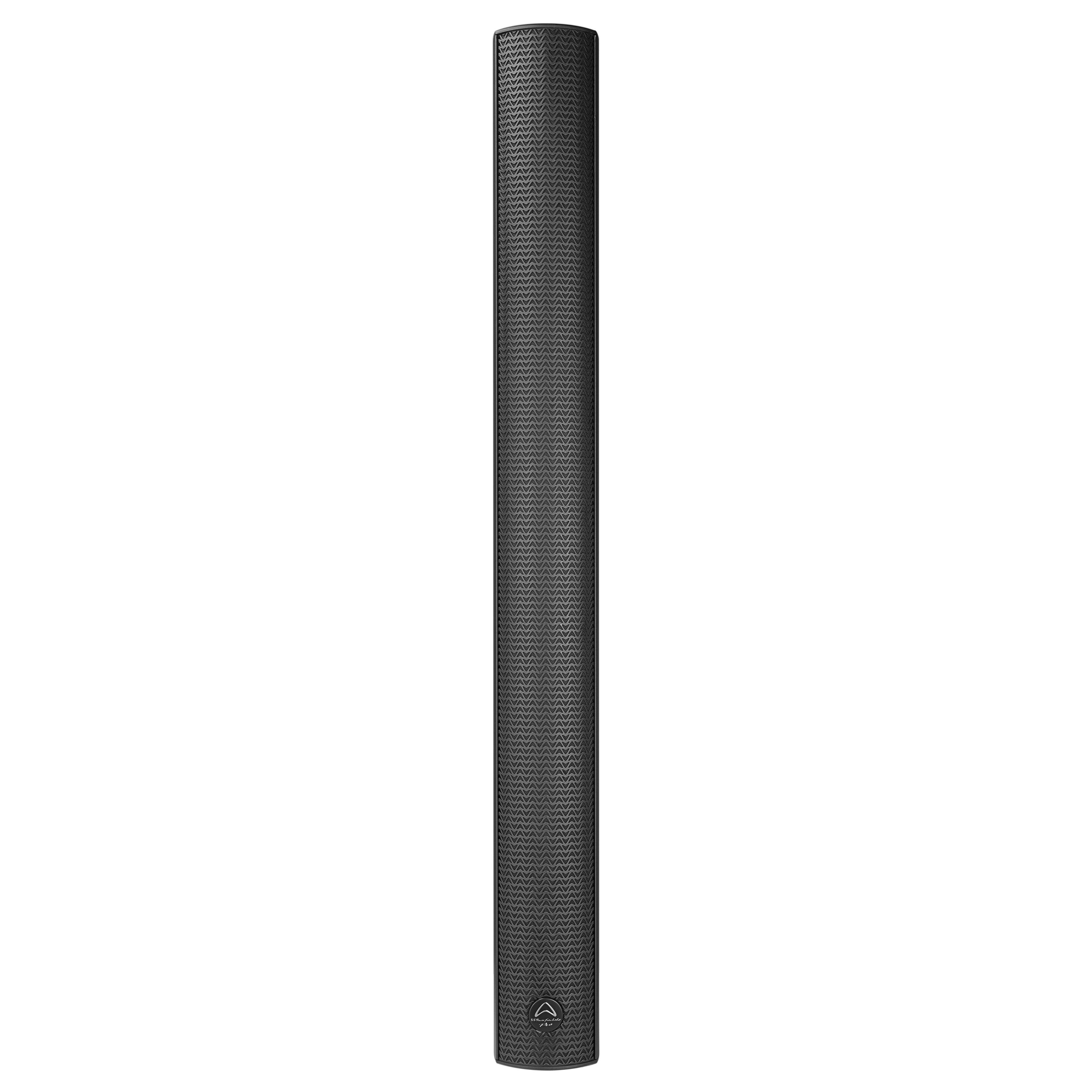

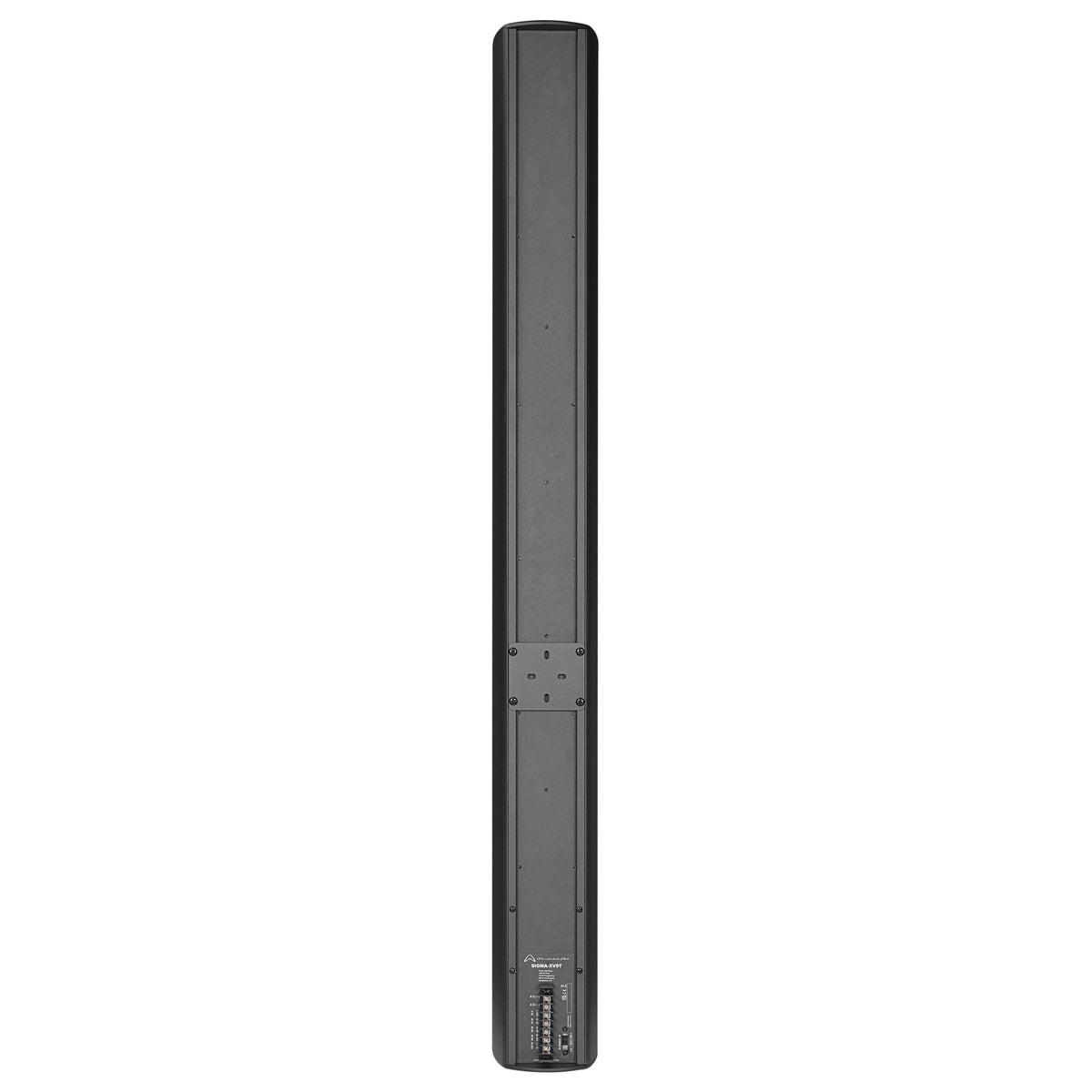

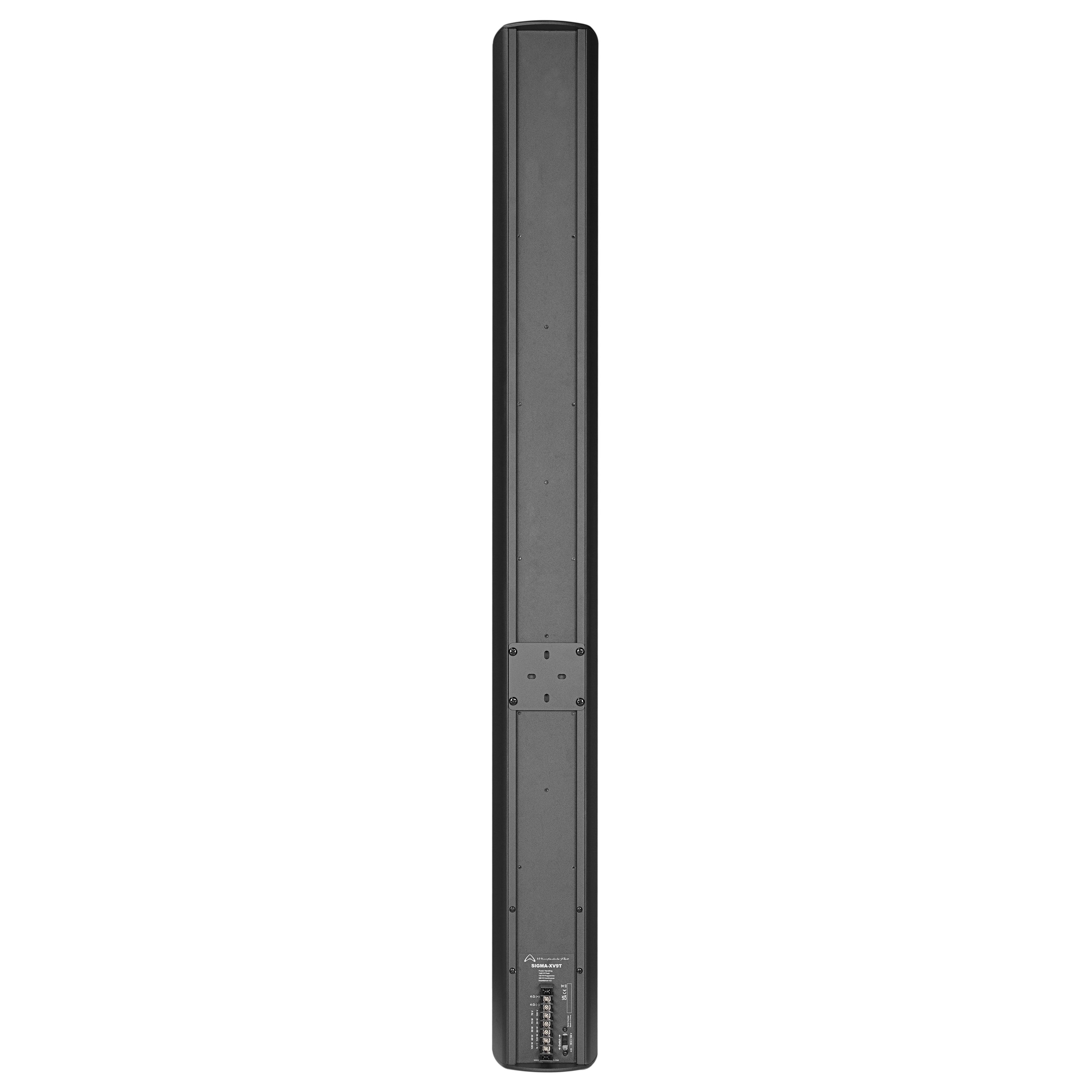

Wharfedale Pro SIGMA-XV9T Column Array Speaker
Log in to view price Trade pricing — AED / USD
Ask an AV specialist
-
Full Specifications
Unleash powerful sound for any event or venue with the Wharfedale Pro SIGMAXV9T! This column array speaker packs a punch with 9 x 3" drivers and a robust 360W RMS output. The aluminum paint body ensures durability, making it a reliable choice for professional use.
FEATURES:
- 9 x 3″ full range drivers
- 2 x HF compression driver
- 360 W AES (Continuous)
- 720 W Programme
- 1440 W Peak
- 128 dB Max SPL @ 1 m
- 70 V / 100 V Hi-Z model available
SPECIFICATIONS:
Model Name SIGMA-XV9T System Type Passive Configuration Two-Way Frequency Response (+/-3 dB) 130 Hz – 18 KHz Frequency Range (-10 dB) 120 Hz – 20 KHz Sensitivity 2.83 V / 1 m 97 dB Calculated Maximum SPL @1 m 128 dB System Rated Impedance 4 Ω Low Frequency Transducer Size (mm / inches) 9 x 75 mm / 3″ Voice Coil Size (mm / inches) 33 mm / 1.3″ Rated Impedance 4 Ω LF Power re:AES2-2012 40 W High Frequency Transducer HF Driver Type 2 x 1″ High Frequency drivers Coil Size (mm / inches) 25.4 mm / 1″ Exit Size (mm / inches) 25.4 mm / 1″ Diaphragm Material PEI Rated Impedance n/a HF Power re:AES2-2012 n/a Waveguide Type Mini EVO-Fold Nominal Coverage (H x V) 120˚ x 20˚ LF Driver 9 x 3″ HF Driver 2 x 1″ PEI EVO-Fold Driver Power System Continuous Power 360 W System Programme Power 720 W System Peak Power 1440 W Transformer (T) 100 V / 70 V Transformer Taps (70 V) 15,30,60,120 W Transformer Taps (100 V) 30,60,120 W Crossover frequency 2.5 KHz Recommended HPF 160 Hz = BW 18 dB/oct. Input Connector Barrier Strip Hardware U Bracket included Enclosure Enclosure Material Aluminum Finish Black Paint / White Paint Grille Material & Finish 1.2 mm steel, painted Dimensions – Unpacked Height 1210 mm / 47.6″ Width Front 126 mm / 4.96″ Width Rear 92 mm / 3.62″ Depth 145 mm / 5.71″ Dimensions – Packed Height 1285 mm / 50.6″ Width Front 210 mm / 8.27″ Width Rear 210 mm / 8.27″ Depth 210 mm / 8.27″ Weight Net Weight 13.9 kg / 30.58 lbs Gross Weight 15.4 kg / 33.88 lbs Optional Wall-mount bracket WPB-SV
