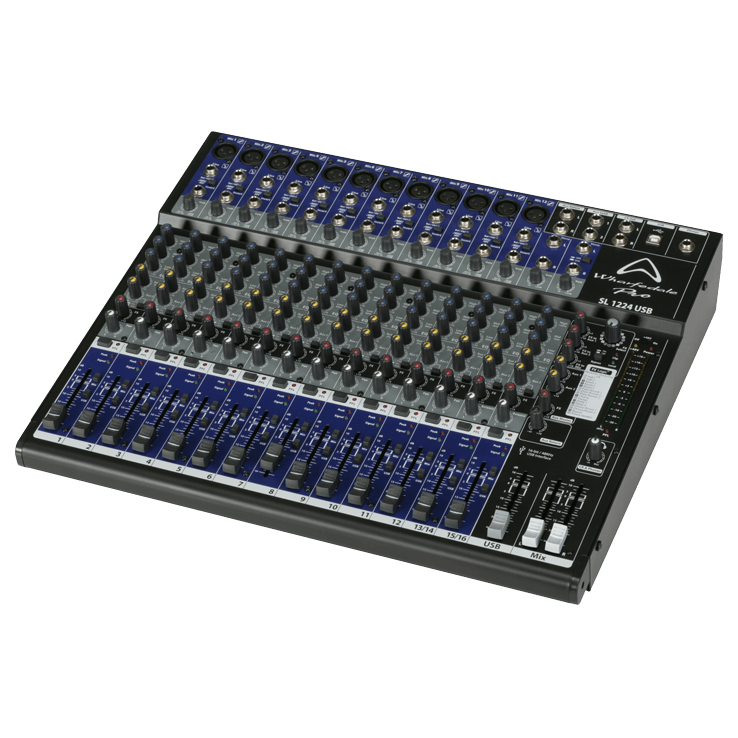

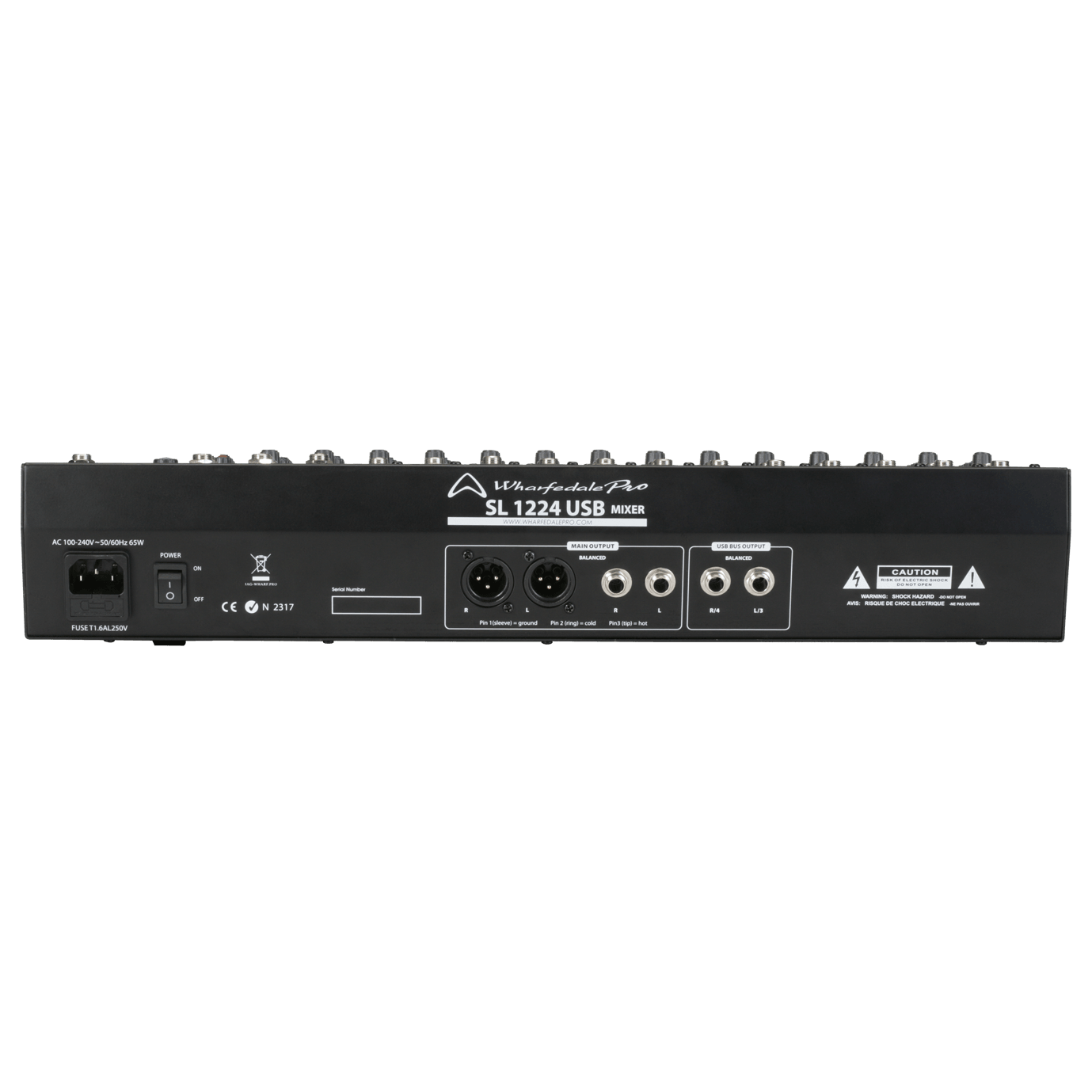

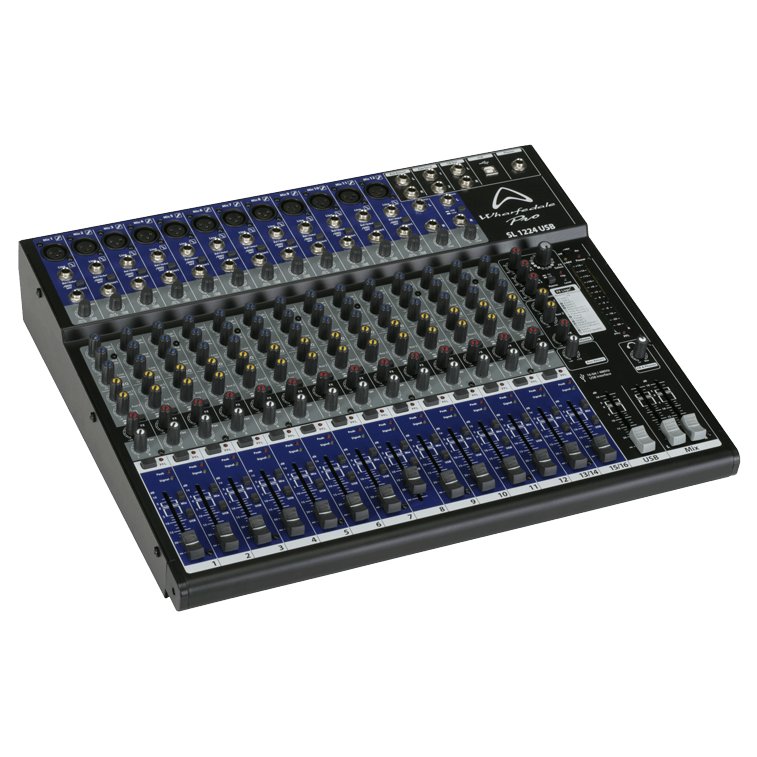

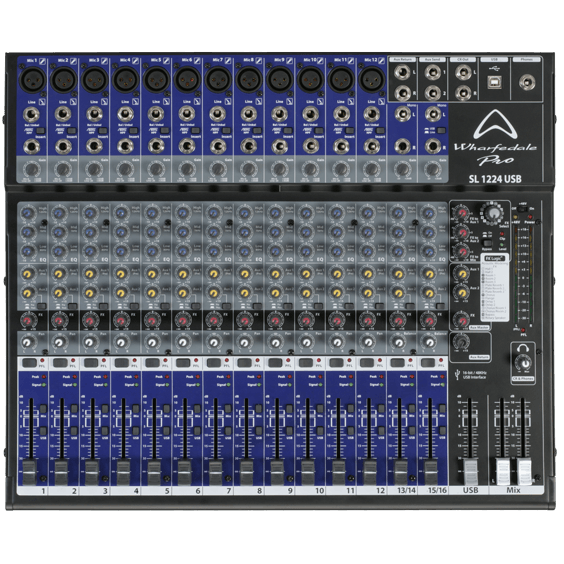

Wharfedale Pro SL1224USB Mixer Audio 16 CH 12 Mono & 2 Stereo FX and USB Interface

SKU: SL1224USB

Log in to view price Trade pricing — AED / USD

Only 2 left
Low inventory - Hurry up!
Request Bulk Pricing

Ask an AV specialist

Video chat Chat Email +971 50 559 4871

  • Full Specifications

    Download Product Data Sheet

    FEATURES-

    • 12 x XLR input
    • 14 x 6.3mm line input
    • 3-band EQ
    • Insert points
    • 2 x 6.3mm outputs
    • 2 x XLR balanced outputs
    • USB Interface
    • 16 x internal FX

    DESCRIPTION-

    Designed to cater for a wide range of mid format mixing duties, the SL Series includes many features suited to both live sound and home studio applications.

    A high quality class-compliant 2-input 2-output 16-bit / 48 KHz USB interface features on all models, with larger models featuring a flexible record bus and dedicated return channel that is great for live and home recording.

    Studio grade microphone preamps are used throughout the range and have balanced XLR inputs. All channels also deliver balanced/unbalanced TRS line level connectivity. In addition, all of the mono channels on larger models have a TRS insert point.

    An ultra musical 3-band EQ is available on all channels, with an additional high pass filter on the mono channels. The SL824 USB and SL1224 USB feature a built in FX processor with 16 presets, giving unlimited creative potential. The on-board FX is supplemented by a dedicated FX send and 2 auxiliaries.

    SPECIFICATIONS-

    Model Name SL1224USB
    Channels 14
    Inputs 12 x XLR, 14 x 6.3 mm jack
    Outputs 2 x XLR, 2 x 6.3 mm jack
    Headphone Output 6.3 mm jack
    Auxiliary sends 2
    FX 16x Effects: (1)Hall1 (2)Hall2 (3)Room1 (4)Room2
    (5)Room3 (6)Platereverb1 (7)Platereverb2
    (8)Platereverb3 (9)Chorus (10)Flange (11)Delay1
    (12)Delay2 (13)Chorus/Room1 (14)Chorus/Room2 (15)Bypass (16)Rotaryspeaker
    EQ 3 Band with HPF
    Phantom Power Yes
    USB 16 bit / 48 KHz
    Signal To Noise Ratio -127 dBu ±5 dBu Mic Pre Equivalent Input Noise
    Frequency Response 20 Hz – 20 KHz ±2 dB
    Display 12 Segment Level LED with power and Phantom Power indicato
    Rack mount kit No
    Dimensions: (H x W x D) 80 x 400 x 475 mm
    Weight 6.85 kg / 15.10 lbs
