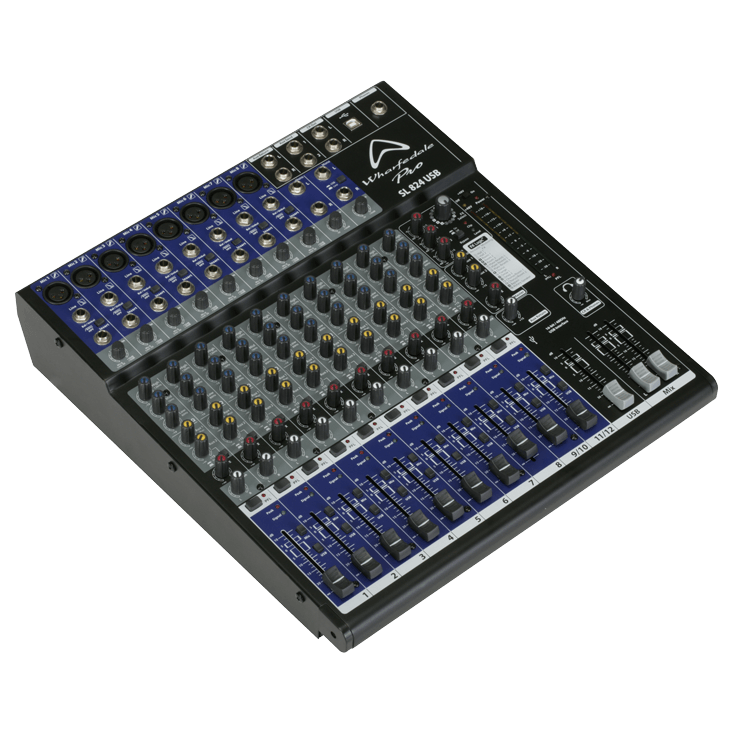

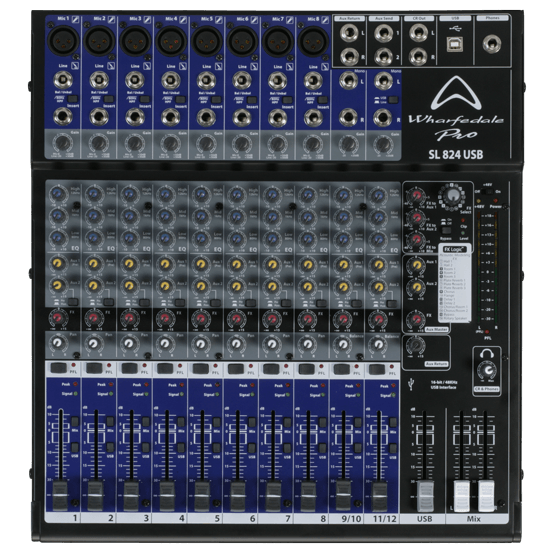

The SL824USB is a mixer with 8 microphone preamps, 2 auxiliary sends and 3-band EQ with high-pass filter. It has 16 built-in effects and a USB interface at 16 bit / 48 KHz for Linux, Mac and Windows. Rack ears are included, and the unit is 80 mm high, 400 mm wide and 369 mm deep.
| Total Channels | 12 |
|---|---|
| Inputs | 10 x XLR, 12 x 6.3 mm jack |
| Outputs | 2 x XLR, 2 x 6.3 mm jack |
| Balanced Inputs | Yes |
| Balanced Outputs | Yes |
| Total Mic Preamps | 8 |
| Phantom Power | Studio Grade Phantom Power |
| Headphone Output | 6.3 mm Jack |
| Control Room Output | Yes |
| PFL (Pre Fade Listen) | Yes |
| Auxiliary Sends | 2 |
| Total FX | 16 |
| FX Types | (1) Hall1 (2) Hall2 (3) Room1 (4) Room2 (5) Room3 (6) Platereverb1 (7) Platereverb2 (8) Platereverb3 (9) Chorus (10) Flange (11) Delay1 (12) Delay2 (13) Chorus/Room1 (14) Chorus/Room2 (15) Bypass (16) Rotaryspeaker |
| FX Send | Yes |
| EQ | 3-Band with HPF |
| Pan / Balance Control | Yes |
| USB | 16 bit / 48 KHz |
| Plug and Play | Yes |
| Compatibility | Linux, Mac, Windows |
| Signal To Noise Ratio | -127 dBu ±5 dBu Mic Pre Equivalent Input Noise |
| Frequency Response | 20 Hz-20 KHz ±2 dB |
| Rack Mount Kit | Yes |
| Included Accessory | Power cable, USB Cable, User Manual, rack ears |
| Unpacked - Height (mm) | 80 |
|---|---|
| Unpacked - Width Front (mm) | 400 |
| Unpacked - Width Rear (mm) | 400 |
| Unpacked - Depth (mm) | 369 |
| Packed - Height (mm) | 190 |
| Packed - Width Front (mm) | 480 |
| Packed - Width Rear (mm) | 480 |
| Packed - Depth (mm) | 510 |
| Weight - Nett (kg) | 5.2 |
| Weight - Gross (kg) | 7.4 |
Yes. A rack mount kit is listed and rack ears are included.
A power cable, USB cable, user manual and rack ears.
