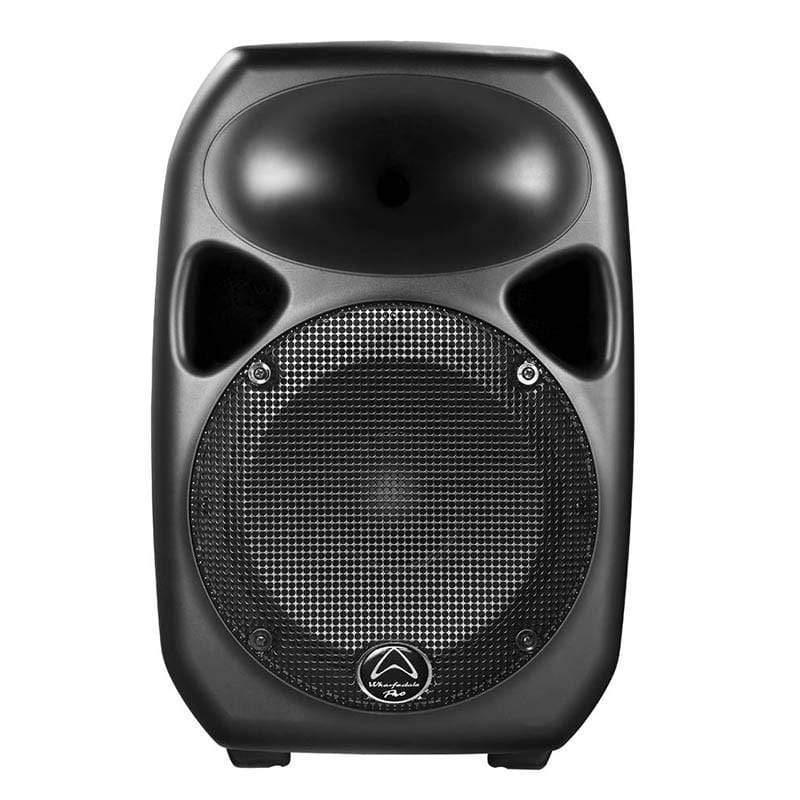

The TITAN-12D is an active 2-way speaker with a 12" low-frequency driver, a titanium-diaphragm compression driver and a Class D amplifier. It is rated 300 W continuous and 600 W peak, with a 55 Hz - 20 kHz (+/-3 dB) response and 90° x 60° coverage. The cabinet is black polypropylene with a steel grille and 2 handles.
| Active or Passive | Active |
|---|---|
| System Type | Full-Range |
| Configuration | 2-way |
| System Continuous Power | 300 W |
| System Peak Power | 600 W |
| Freq Response (+/-3 dB) | 55 Hz - 20 kHz |
| Bi-amp Mode Switch | No |
| Bluetooth | No |
| IP Certification | None |
| Driver Brand | Wharfedale Pro |
| LF Driver Size | 12" |
| HF Driver Type | Compression Driver |
| HF Diaphragm Material | Titanium |
| HF Exit Size | 1" |
| Preset Library | No |

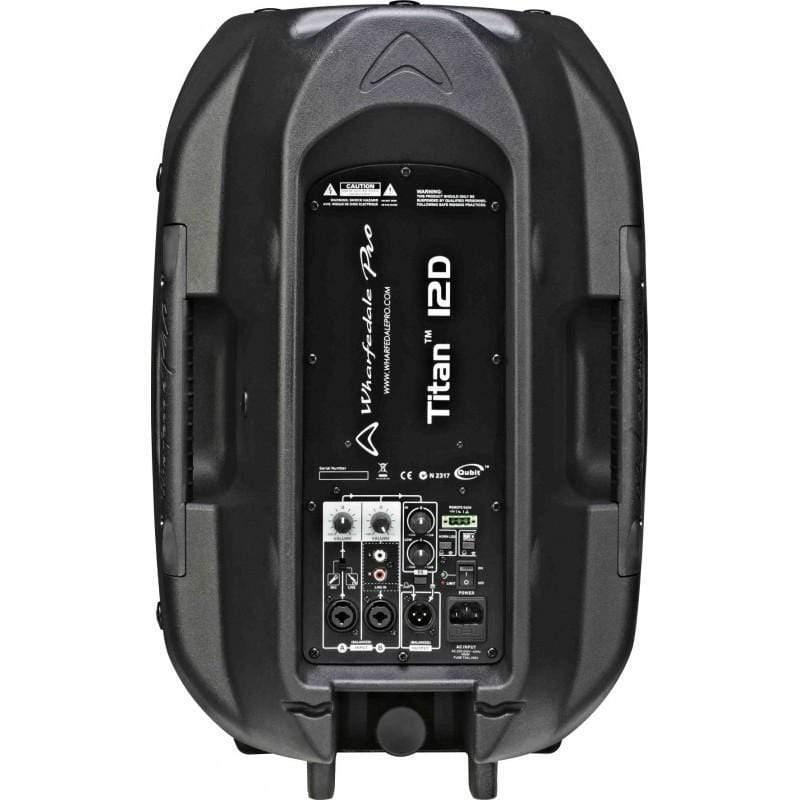

| Input Connector | Combo Jack: 1/4" - XLR Summed Dual RCA Jacks |
| Waveguide Type | Elliptical |
| Enclosure Material | Polypropylene |
| Grille Material and Finish | Steel Black |
| Finish | Black Polypropylene |
| Handles | 2 |
| Deployment | Flying, Ground, Pole, Wall Mount |
| Pole Mount | 35 mm |
| Brackets Included | No |
| Rigging | Yes |
| M8 | 10 |
| Nominal Coverage (H x V) | 90° x 60° |
| System Rated Impedance | n/a |
| Crossover Frequency | 2.3 kHz |
| Transformer (T) | No |
| Amplifier design | Class D |
| Link Connector | pin XLR |
| Input sensitivity | XLR - 1/4” Combo jack: 0dBu (-2.2dBv or 0.775Vrms) / RCA: 0dBu (-2.2dBv or 0.775Vrms) |
| Max input level | +22 dBu |
| Line output | Switchable LOOP/MIX Balanced socket XLR |
| Main Power | AC100-120 V~/220-240 V~,50/60 Hz |
| Power Supply | High Efficiency Switching Mode Power Supply |
| Included Accessory | User Manual, AC Cable, Dust cover |
| Unpacked - Depth (mm) | 312 |
|---|---|
| Packed - Height (mm) | 408 |
| Packed - Width Front (mm) | 435 |
| Packed - Width Rear (mm) | 435 |
| Packed - Depth (mm) | 663 |
| Weight - Nett (kg) | 12.44 |
| Weight - Gross (kg) | 15.78 |
A user manual, an AC cable and a dust cover are listed as included accessories.
Flying, ground, pole and wall mount, with a 35 mm pole mount. Rigging is listed as Yes.
Polypropylene, in a black finish, with a black steel grille.
