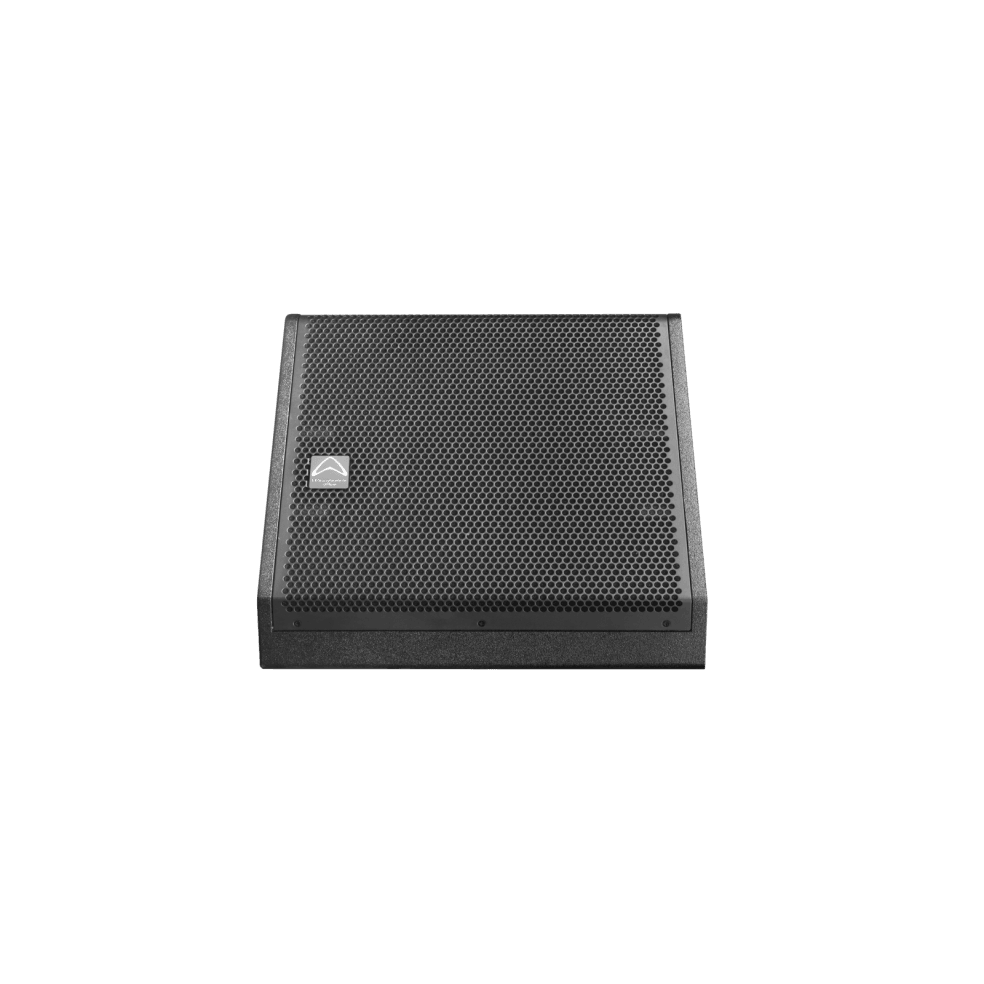

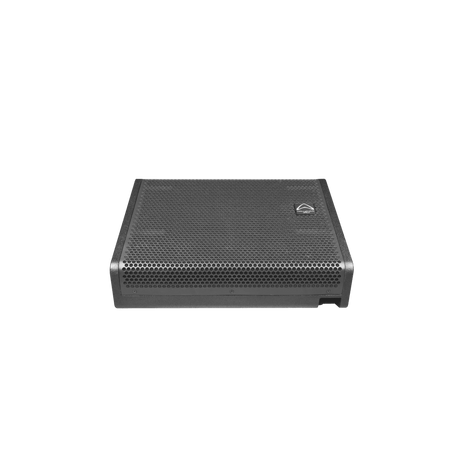

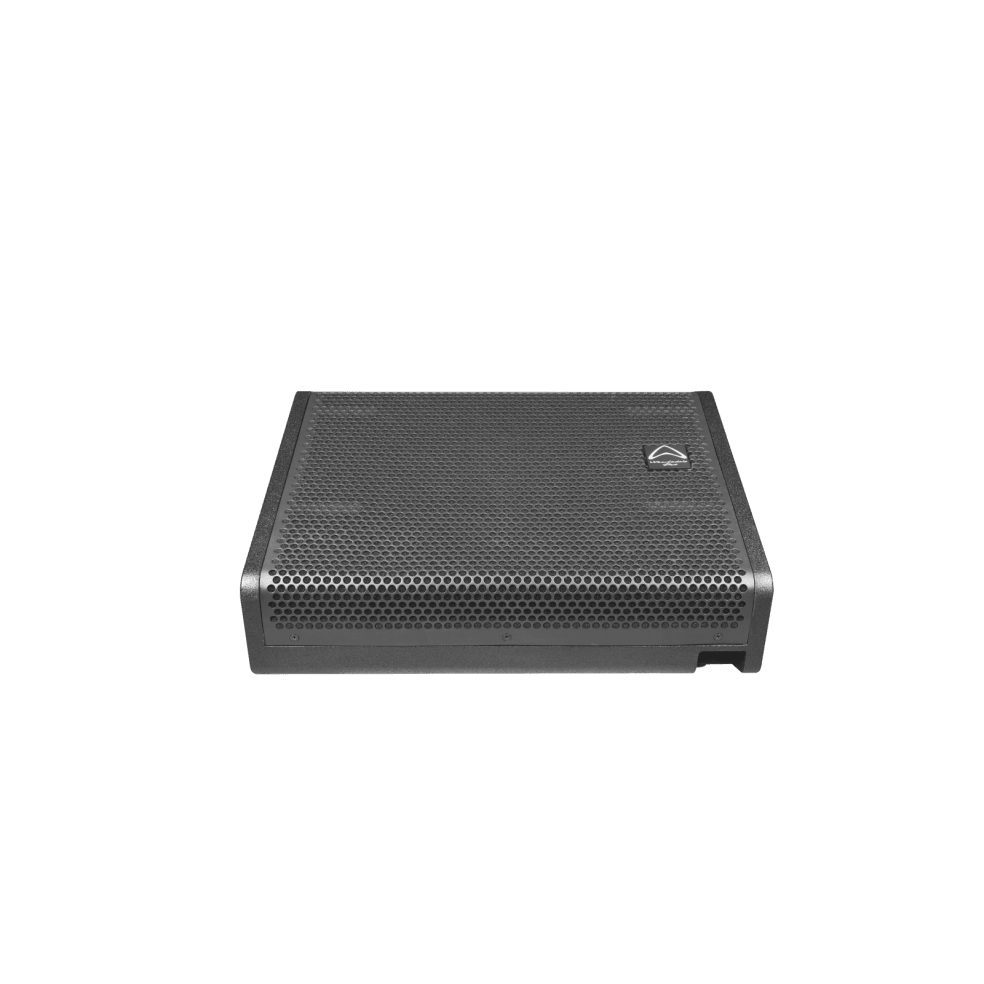

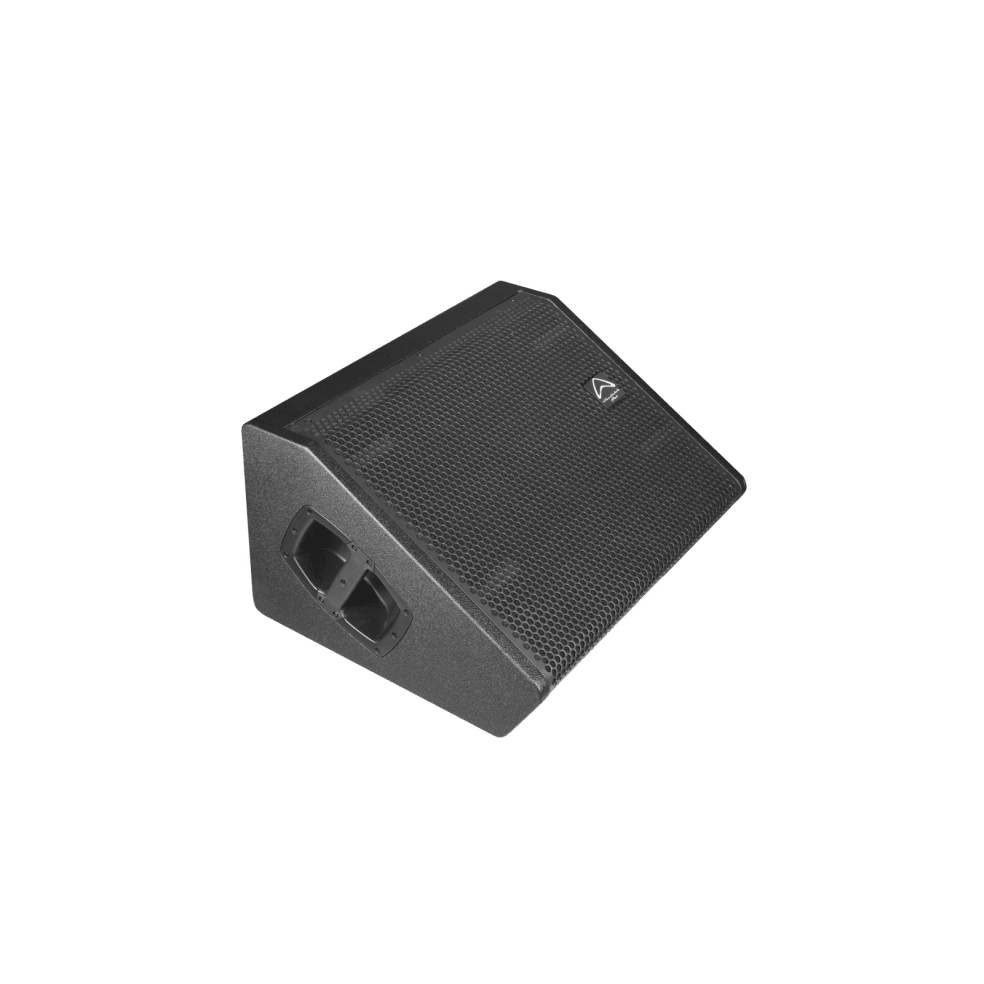

Wharfedale Pro WDG12 Speaker Monitor Passive

SKU: WDG12

Log in to view price Trade pricing — AED / USD

In stock
Request Bulk Pricing

Ask an AV specialist

Video chat Chat Email +971 50 559 4871

  • Full Specifications

    Download Product Data Sheet

    KEY FEATURES

    • Versatile floor monitors….with more
    • Coaxial design
    • Deploy as 25° or 60°
    • Spherical waveguides

    • Durable Tough-Tone paint finish. Put your boot on it!!

    • Optional WPB-W12/ 15 U-Brackets and WPB-7 for easy wall mounting



    DESCRIPTION

    WDG series has been engineered to re-define the traditional floor monitor. Available in active or passive and with 12” and 15” models, WDG has some handy tricks up its trouser leg……

    WDG-12 feature Wharfedale Pro coaxial drivers and a spherical waveguide delivering 70°  nominal coverage.
    All models are versatile due to thoughtful cabinet design. WDG monitors can be deployed as 25° degrees for far field or 60° near field applications. There is also a 35 mm pole socket and WDG can even be deployed on the optional WPB-7 or U- brackets.

    SPECIFICATIONS

    System Type
    12″ coaxial passive
    Configuration two-way
    Frequency Response (+/-3 dB)
    58 Hz – 20 KHz
    Frequency Range (- 10 dB)
    40 Hz – 25 KHz
    Sensitivity 2.83 V/1 m 98 dB
    Calculated Maximum SPL @1 m 127 dB
    System Peak SPL* 133 dB
    *level at 1 m using pink noise with crest factor 4, with dedicated preset.
    System Rated Impedance 8 Ω
    Low Frequency Transducer
    Size 312 / 12”
    Voice Coil Size (mm / inches) 65 / 2.5″
    LF Frame Material Aluminium
    High Frequency Transducer
    HF Driver Type
    Compression Driver
    Voice Coil Size (mm / inches) 51 / 2″
    Exit Size (mm / inches) 25.4 / 1″
    Diaphragm Material titanium
    Waveguide Type Spherical
    Nominal Coverage (H x V) 70°
    Driver brand
    Wharfedale Pro
    POWER
    System Continuous Power (W) 250
    System Programme Power (W) 500
    System Peak Power (W) 1000
    Crossover Frequency 2 KHz
    Recommended HPF = BW 18 dB/oct. 35 Hz

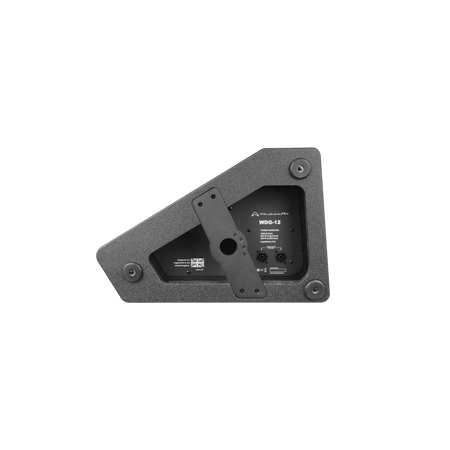

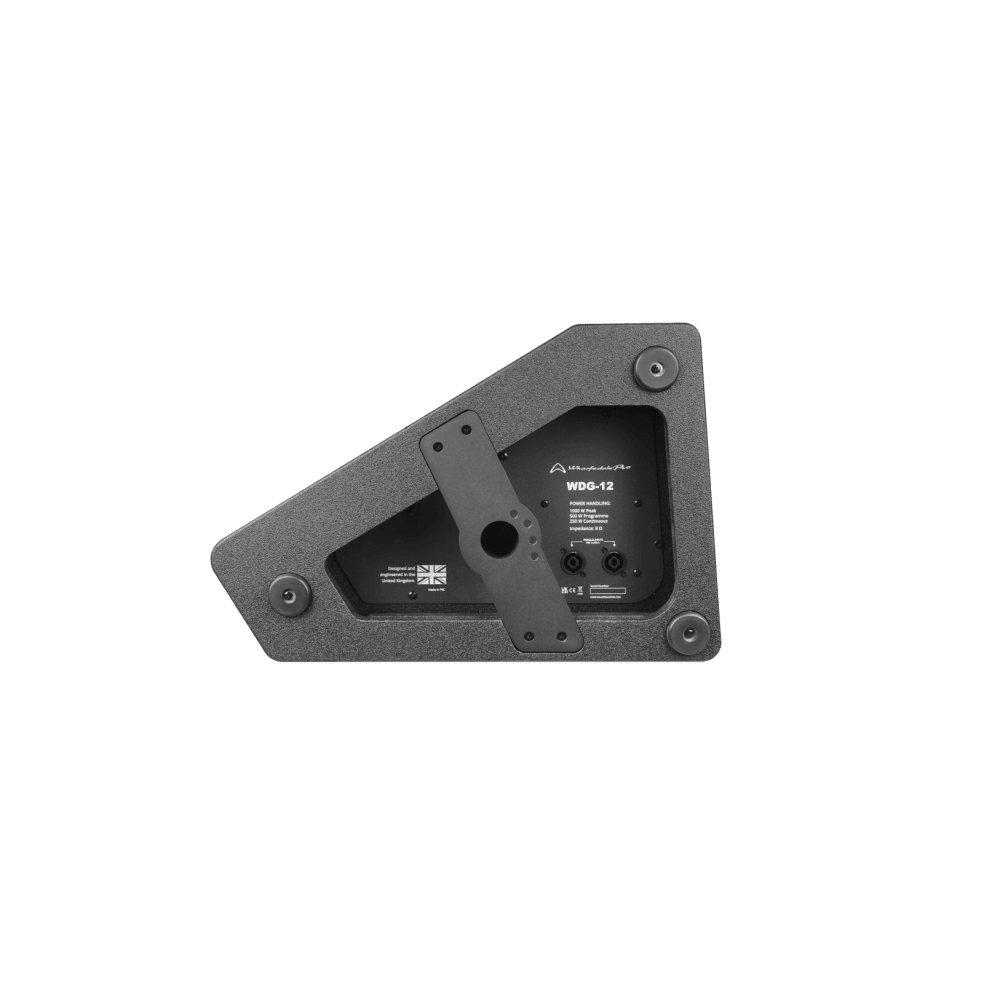

    Rigging & Hardware:
    4 x M8
    35 mm Pole-mount
    4 x M8 threaded points for WPB-7 or PowerdriveTM Series 100 products
    Optional Accessories
    WDG-12 horizontal flying yoke
    Heavy-duty transport soft cover
    Handle 1 ON TOP
    Enclosure
    Cabinet Type
    Polygonal shape
    Enclosure Material and finish
    15 mm plywood
    / Tough-Tone
    Colour Options
    Black paint, White on request
    Grille Material & Finish
    Powder coated steel
    Monitor Angle (degrees) 60 – 25
    Dimensions – Unpacked (mm / inches):
    Height
    310 mm / 12.2″
    Width
    540 mm / 21.3″
    Depth
    471.7 mm / 18.6″
    Dimensions – Packed (mm / inches):
    Height
    635 mm / 24.9″
    Width
    560 mm / 22.1″
    Depth
    398 mm / 15.7″
