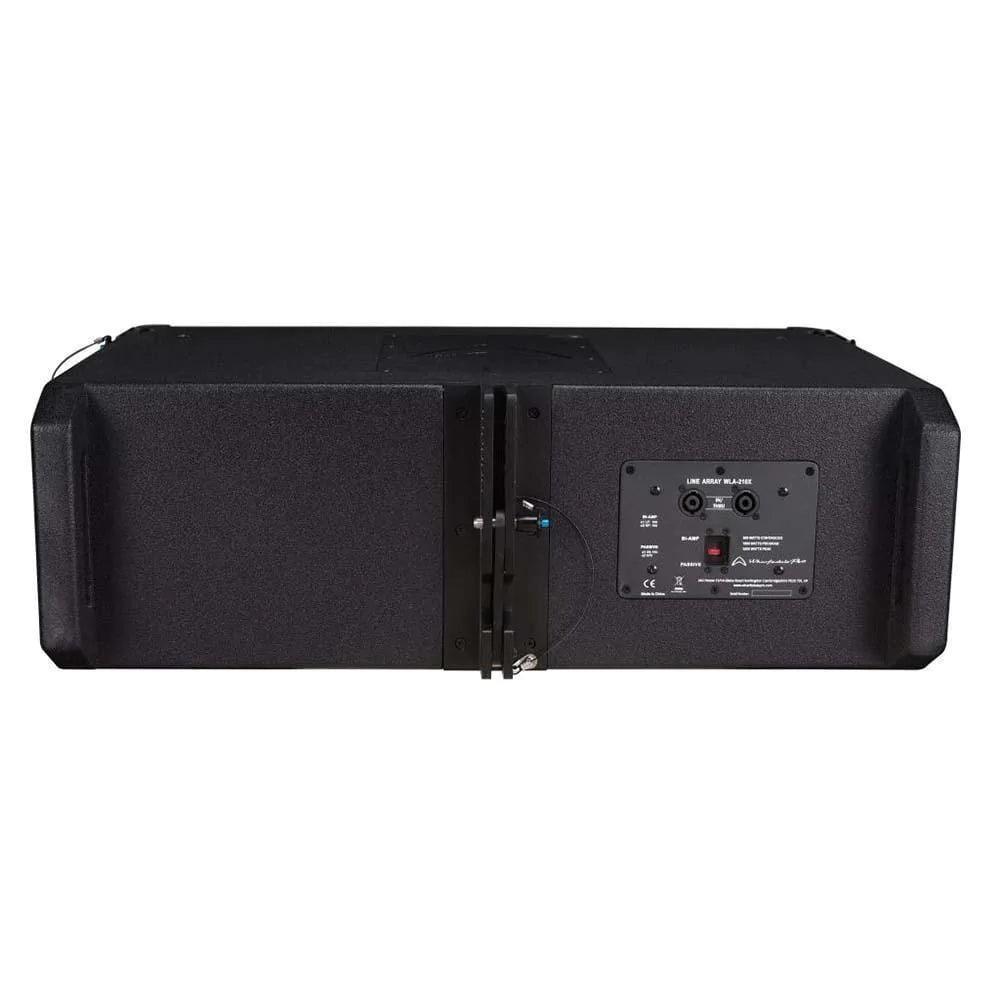

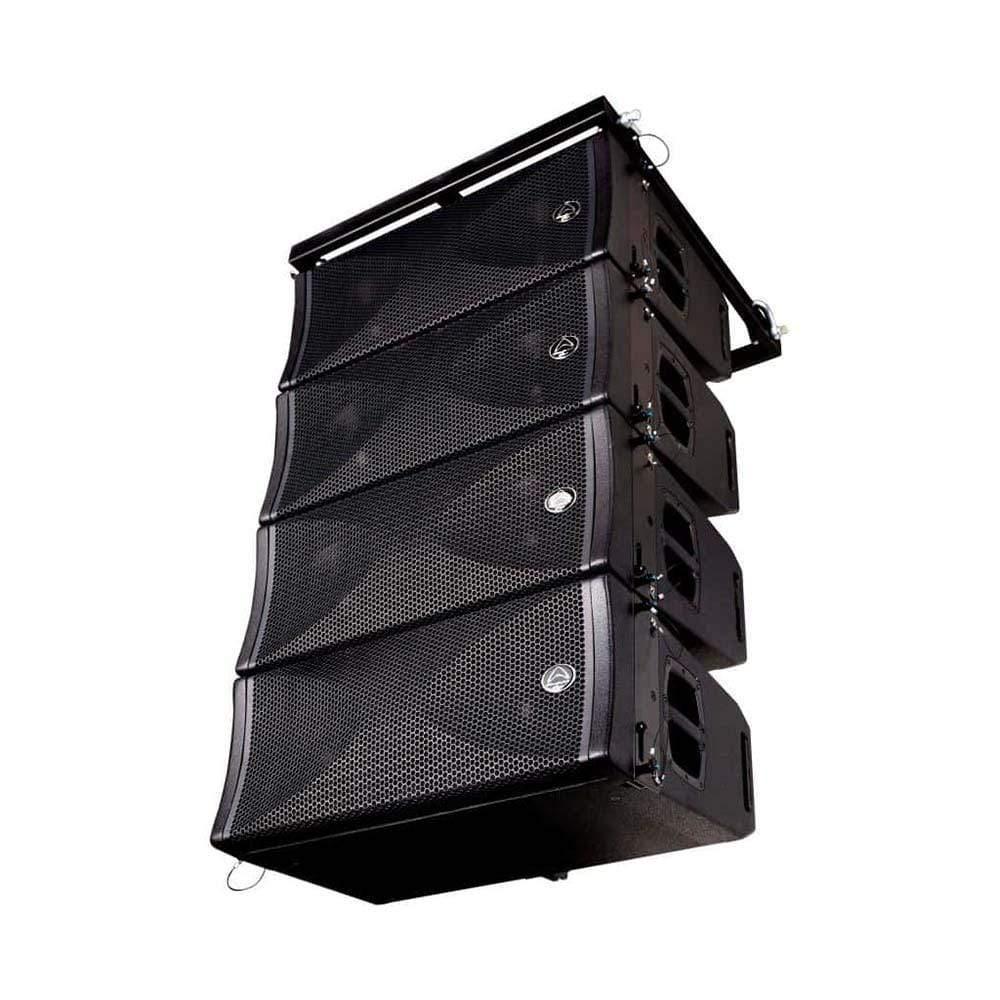

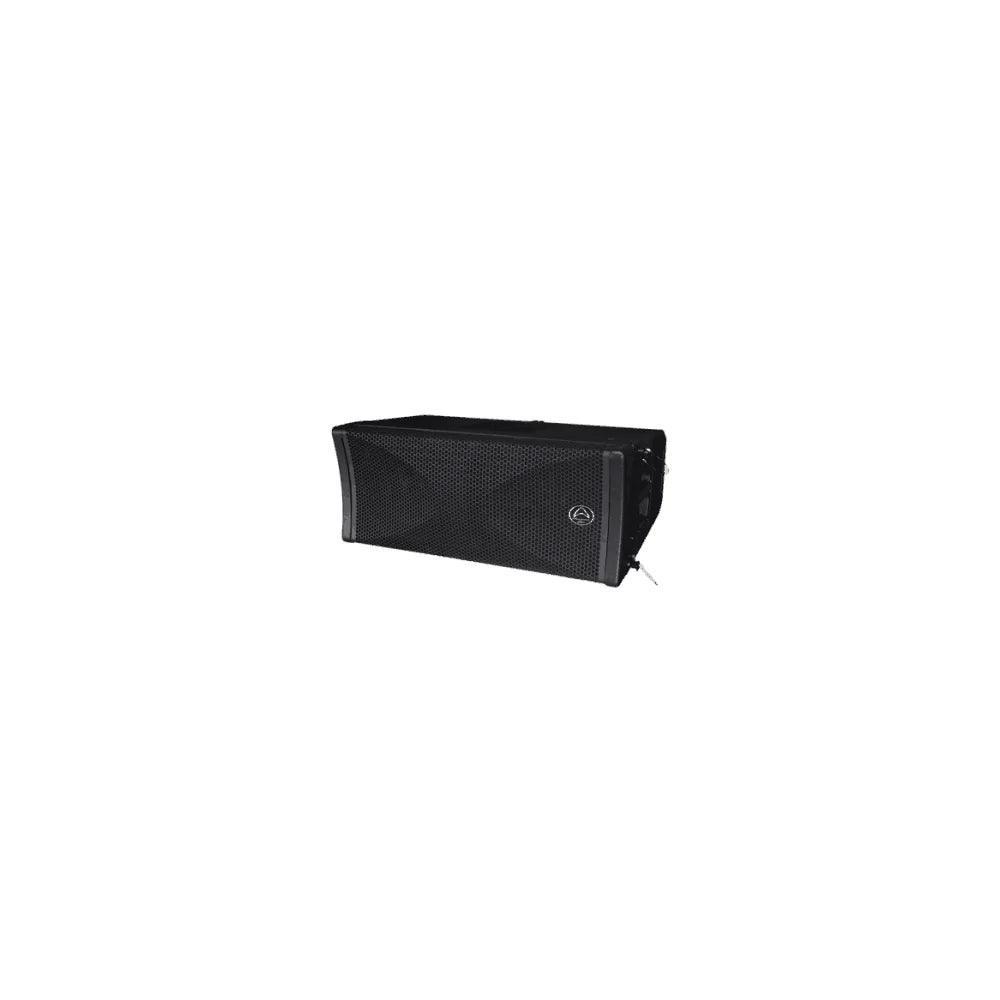

The WLA-210X is a passive two-way line array element with two 10" low-frequency drivers and a neodymium compression driver with titanium diaphragm. It is rated for 138 dB maximum SPL, a 65 Hz–20 kHz (±3 dB) response and 100° horizontal coverage. A bi-amp mode switch lets it run passive at 800 W continuous or bi-amped with 800 W to the LF and 90 W to the HF.
| Active or Passive | Passive |
|---|---|
| System Type | Array Element |
| Configuration | 2-way |
| System Continuous Power | Passive: 800 W / Bi-amp LF: 800 W / Bi-amp HF: 90 W |
| System Programme Power | Passive: 1600 W / Bi-amp LF: 1600 W / Bi-amp HF: 180 W |
| System Peak Power | Passive: 3200 W / Bi-amp LF: 3200 W / Bi-amp HF: 360 W |
| Max SPL @ 1m | 138 dB |
| Freq Response (+/-3 dB) | 65 Hz – 20 KHz |
| Freq Range (-10 dB) | 60 Hz – 20 KHz |
| Bi-amp Mode Switch | Yes |
| Bluetooth | No |
| IP Certification | None |
| Driver Brand | Wharfedale Pro |
| LF Driver Size | 2 x 10" |
| LF Magnet Material | Ferrite |
| LF Frame Material | Aluminium |
| LF Voice Coil Size | 2.5” |
| LF Rated Impedance | 2 x 8 Ω |
| LF Power (RE:AES2-2012) | 2 x 400 W |
| HF Driver Type | Compression Driver – Neo |
| HF Voice Coil Size | 3” |
| HF Diaphragm Material | Titanium |
| HF Exit Size | 1.4” |
| HF Power (RE:AES2-2012) | 80 W |
| HF Rated Impedance | 8 Ω |
| Preset Library | Yes |
| Input Connector | 2 x 4 Pole speaker connector |
| Waveguide Type | Coherent Array Shaping Technology (CAST) |
| Enclosure Material | Birch Plywood |
| Grille Material and Finish | Steel Black |
| Finish | Black Tough-Tone |
| Handles | 2 |
| Deployment | Ground, Flying |
| Pole Mount | None |
| Rigging | Yes |
| Nominal Coverage (H x V) | 100° x System dependant |
| Sensitivity 2.83 V / 1 m | 102 dB |
| System Rated Impedance | 16 Ω |
| Crossover Frequency | 1.5 KHz |
| Recommended HPF = BW 18 dB/OCT. | 60 Hz |
| Included Accessory | User Manual |
| Unpacked - Front Height (mm) | 314 |
|---|---|
| Unpacked - Rear Height (mm) | 240.2 |
| Unpacked - Width Front (mm) | 760 |
| Unpacked - Width Rear (mm) | 760 |
| Unpacked - Depth (mm) | 504 |
| Packed - Height (mm) | 840 |
| Packed - Width Front (mm) | 395 |
| Packed - Width Rear (mm) | 395 |
| Packed - Depth (mm) | 585 |
| Weight - Nett (kg) | 34.7 |
| Weight - Gross (kg) | 38.1 |
Yes. A bi-amp mode switch selects passive or bi-amp operation.
16 Ω system rated impedance in passive mode.
100° horizontal; vertical coverage depends on the array.
