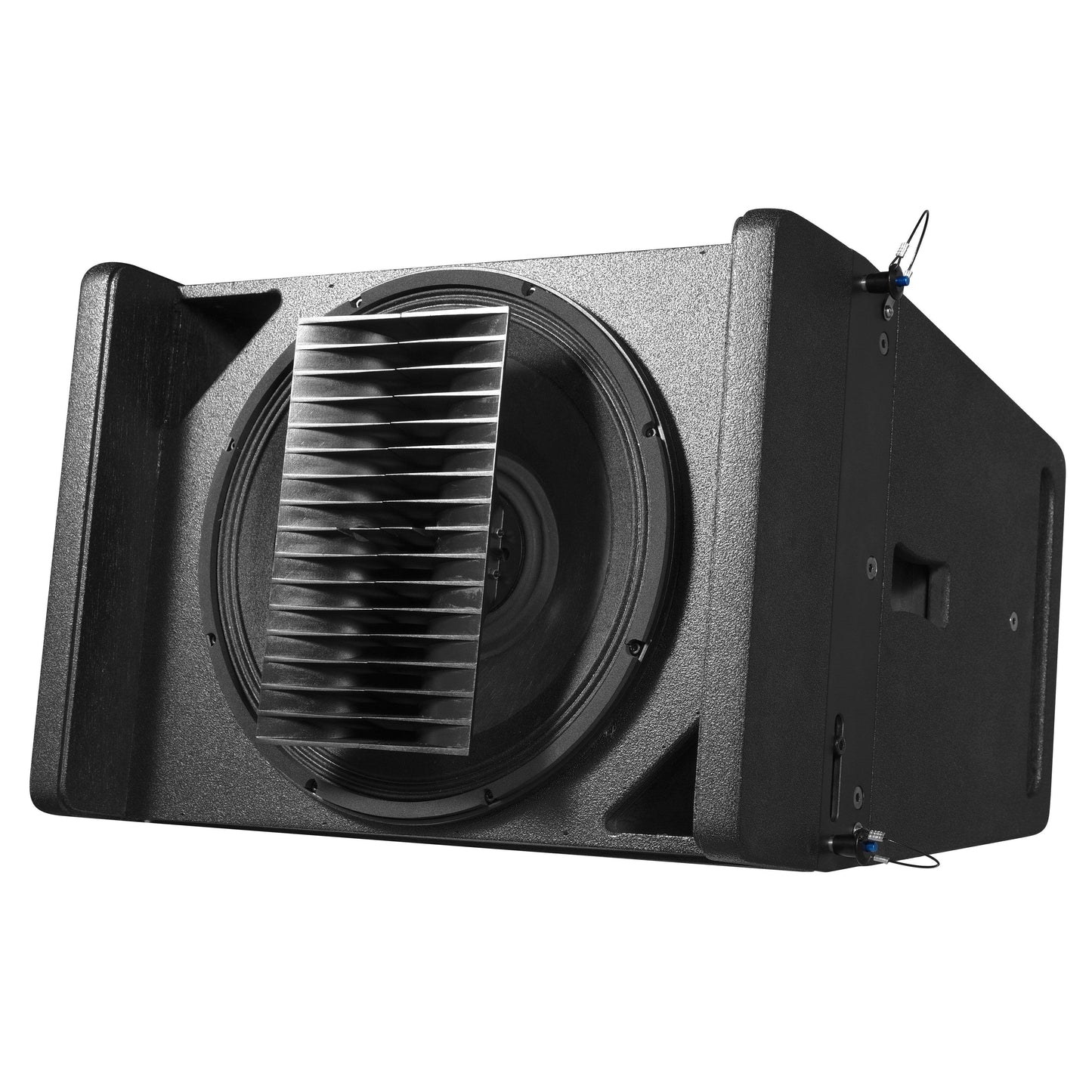

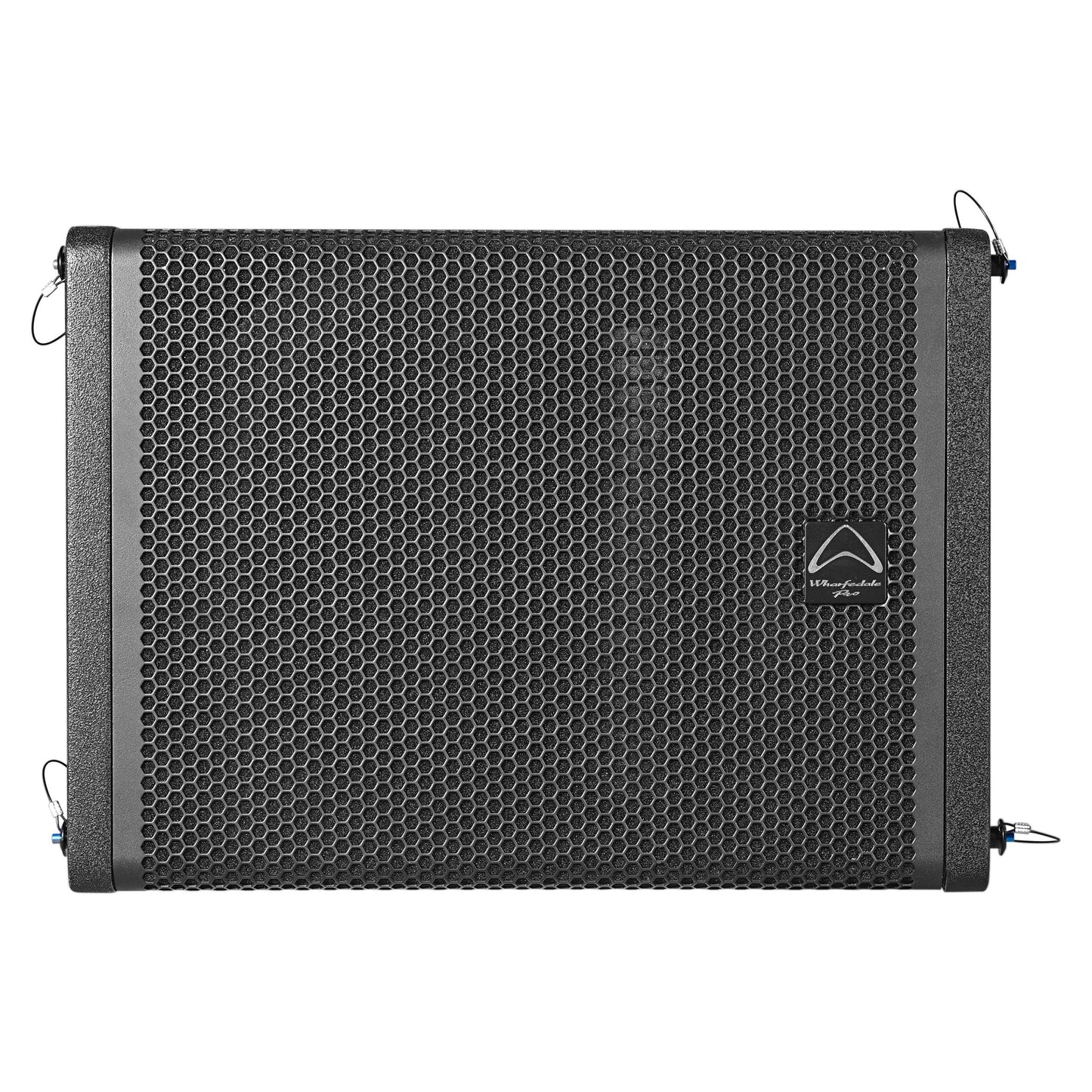

The WLA-115 pairs a Beyma 15" low-frequency driver with a 1.5" exit compression driver in a trapezoid birch plywood cabinet. It is rated at 500 W continuous into 8 Ω and reaches 135 dB at 1 m, with response down to 42 Hz. Three-point rigging and a pole mount allow flown, ground or pole use.
| Active or Passive | Passive |
|---|---|
| System Type | Array Element |
| Configuration | Coaxial 2-way |
| System Continuous Power | 500 W |
| System Programme Power | 1000 W |
| System Peak Power | 2000 W |
| Max SPL @ 1m | 135 dB |
| Freq Response (+/-3 dB) | 42 Hz – 20 kHz |
| Freq Range (-10 dB) | 25 Hz – 25 kHz |
| Bi-amp Mode Switch | No |
| Bluetooth | No |
| IP Certification | None |
| Driver Brand | Beyma |
| LF Driver Size | 15" |
| LF Magnet Material | Ferrite |
| LF Frame Material | Aluminium |
| LF Voice Coil Size | 4" |
| HF Driver Type | Compression Driver |
| HF Voice Coil Size | 2.87″ |
| HF Diaphragm Material | Composite Titanium / Polyester |
| HF Exit Size | 1.5″ |
| HF Power (RE:AES2-2012) | 80 W |
| HF Rated Impedance | 16 Ω |
| Vertical Splay Angle Range | 0°- 5° – 10° – 15° |
| Horizontal Splay Angle | 15° |
| Preset Library | Yes |

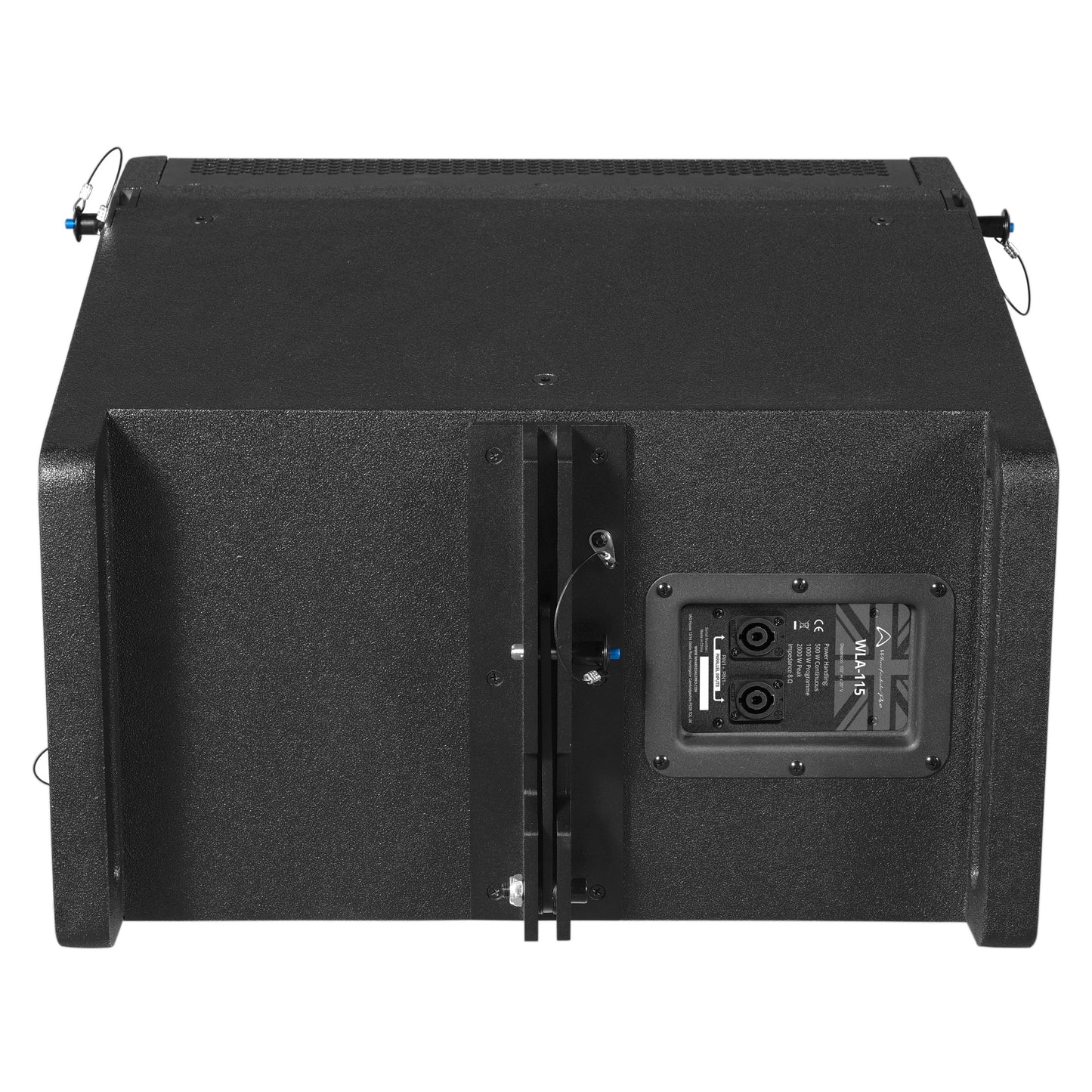

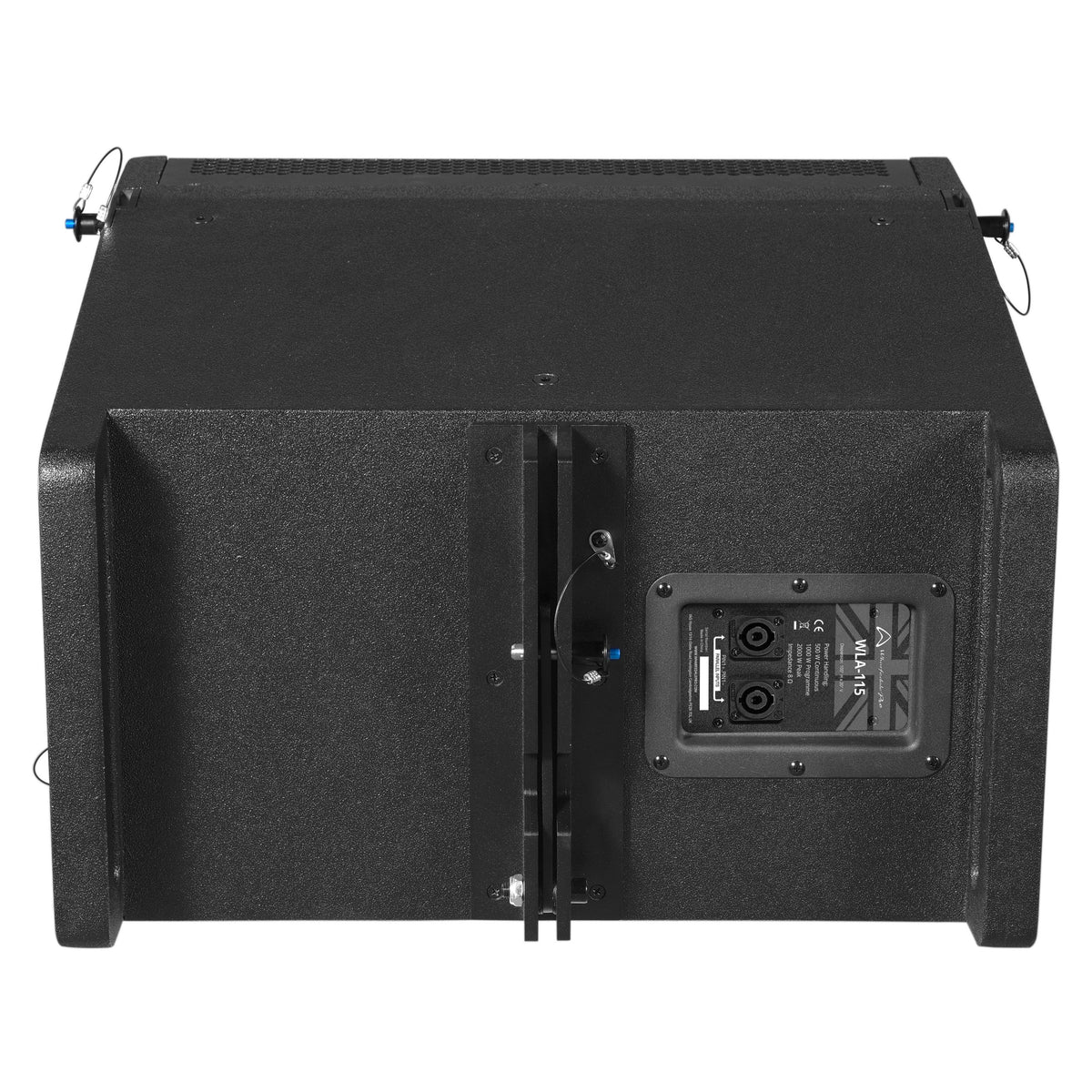

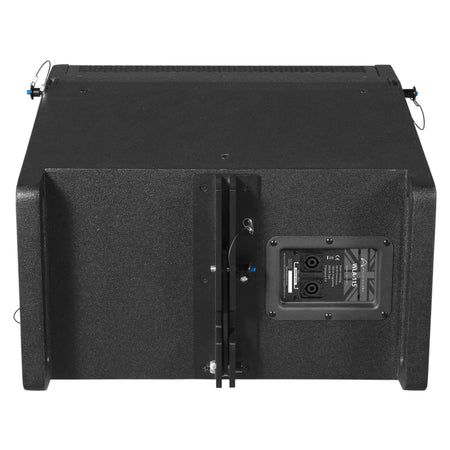

| Input Connector | 2 x 4 Pole Speaker Connector |
| Waveguide Type | EVO-Fold |
| Cabinet Type | Trapezoid |
| Enclosure Material | Birch Plywood |
| Grille Material and Finish | Powder Coated Perforated Steel |
| Finish | Black Tough-Tone |
| Handles | 2 side / 2 back |
| Deployment | Flying, Ground, Pole |
| Pole Mount | 35 mm Dual Angle -2.5° / +7.5° |
| Brackets Included | Yes |
| Rigging | Yes |
| Integral Rigging | 3 Points |
| Nominal Coverage (H x V) | 100° x System dependant |
| Sensitivity 2.83 V / 1 m | 102 dB |
| System Rated Impedance | 8 Ω |
| Crossover Frequency | 1.2 kHz |
| Recommended HPF = BW 18 dB/OCT. | 25 Hz |
| Transformer (T) | No |
| Included Accessory | User Manual |
| Unpacked - Front Height (mm) | 408 |
|---|---|
| Unpacked - Rear Height (mm) | 302 |
| Unpacked - Width Front (mm) | 566 |
| Unpacked - Width Rear (mm) | 566 |
| Unpacked - Depth (mm) | 543 |
| Packed - Height (mm) | 676 |
| Packed - Width Front (mm) | 495 |
| Packed - Width Rear (mm) | 495 |
| Packed - Depth (mm) | 640 |
| Weight - Nett (kg) | 33.4 |
| Weight - Gross (kg) | 36.5 |
The specification lists 25 Hz at BW 18 dB/oct.
Passive. It is driven by an external amplifier through the 2 x 4 pole speaker connector at 8 Ω.
33.4 kg net and 36.5 kg gross.
