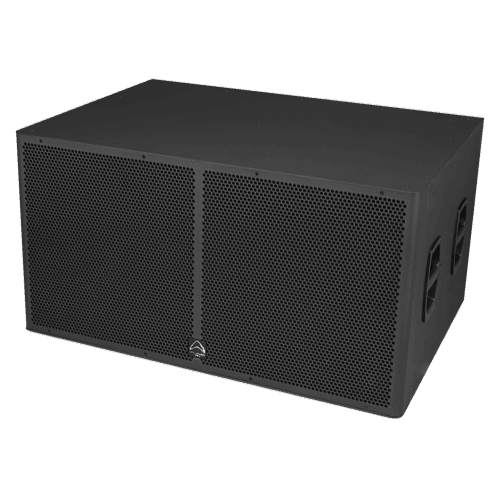

The WLA-218BXF is a passive dual 18" bass-reflex subwoofer with IPX6 certification. It is rated 2000 W continuous and 8000 W peak into 4 Ω and reaches 148 dB in half space. A single WY-24K4Z waterproof connector handles input, and the cabinet has four handles for ground deployment.
| Active or Passive | Passive |
|---|---|
| System Type | Subwoofer |
| Configuration | Bass-reflex |
| System Continuous Power | 2000 W |
| System Programme Power | 4000 W |
| System Peak Power | 8000 W |
| Max SPL @ 1m | 148 dB (Half Space) |
| Freq Response (+/-3 dB) | 30 Hz - 800 Hz |
| Freq Range (-10 dB) | 25 Hz - 1.0 KHz |
| Bi-amp Mode Switch | No |
| Bluetooth | No |
| IP Certification | IPX6 |
| Driver Brand | Wharfedale Pro |
| LF Driver Size | 2 x 18" |
| LF Magnet Material | Ferrite |
| LF Frame Material | Aluminium |
| LF Voice Coil Size | 4" |
| LF Rated Impedance | 2 x 8 Ω |
| LF Power (RE:AES2-2012) | 2 x 1000 W |
| Preset Library | No |
| Input Connector | Single WY-24K4Z Waterproof Input Connector |
| Enclosure Material | Birch Plywood |
| Grille Material and Finish | Black Aluminium |
| Finish | Waterproof Black Paint |
| Handles | 4 |
| Deployment | Ground |
| Pole Mount | None |
| Rigging | No |
| Sensitivity 2.83 V / 1 m | 109 dB |
| System Rated Impedance | 4 Ω |
| Crossover Frequency | Preset Dependent |
| Recommended HPF = BW 18 dB/OCT. | 25 Hz |
| Included Accessory | User Manual |
| Unpacked - Front Height (mm) | 568 |
|---|---|
| Unpacked - Rear Height (mm) | 568 |
| Unpacked - Width Front (mm) | 1073 |
| Unpacked - Width Rear (mm) | 1073 |
| Unpacked - Depth (mm) | 757 |
| Packed - Height (mm) | 650 |
| Packed - Width Front (mm) | 830 |
| Packed - Width Rear (mm) | 830 |
| Packed - Depth (mm) | 1150 |
| Weight - Nett (kg) | 105 |
| Weight - Gross (kg) | 111 |
No. Rigging is listed as No and deployment as ground.
A single WY-24K4Z waterproof input connector.
