Safely protected from the rain, are the all-important drivers.
Dual 8.0″ Wharfedale Pro LF drivers with 2.0″ voice coils deliver a smooth and powerful sound as expected from a WLA series array.
The HF compression driver uses a neo magnet and a 3.0″ voice coil to produce detailed HF without harshness, even at high volumes.
The WLA-28SUBXF features 2 x 15″ custom Wharfedale Pro drivers with 4.0″ voice coils.
Designed for flying or ground stacking, this sub delivers a Max SPL @ 1 meter of 145 dB
CONNECTORS
All models of the WLA-28XF system use certified input connectors.
Inside the carton box there are also the cable connectors needed for easy system setup.

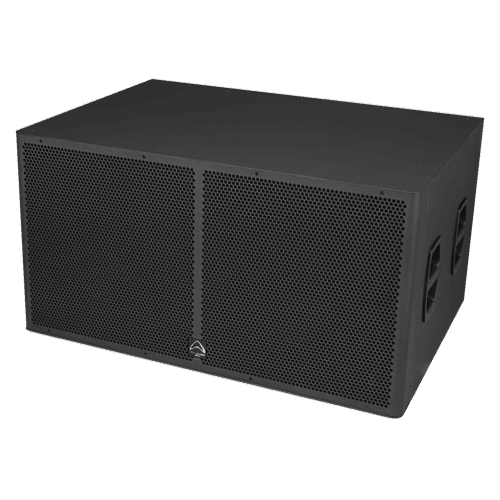

| Model Name | WLA-218BXF |
| System Type | Passive |
| Configuration | 2 x 18″ Subwoofer |
| Frequency Response (+/- 3dB) | 30-800 Hz |
| Frequency Range (- 10 dB) | 25-1.0 KHz |
| (Passive)Sensitivity 2.83v/1m | 109 dB |
| (Passive)Calculated Maximum SPL @1m | 148 dB |
| System Rated Impedance | 4Ω |
| Low Frequency Transducer | |
| Size (mm / inches) | 470 mm / 18” |
| Voice Coil Size (mm / inches) | 102 mm / 4.0” |
| LF Magnet Material | ferrite |
| LF Frame Material | aluminium |
| Rated Impedance | 8 Ω x 2 |
| LF Power re:AES2-2012 | 1000 W x 2 |
| High Frequency Transducer | |
| HF Driver Type: | – |
| Coil Size (mm / inches) | – |
| Exit Size (mm / inches) | – |
| HF Magnet Material | – |
| Diaphragm Material | – |
| Rated Impedance | – |
| HF Power re:AES2-2012 | – |
| Waveguide Type | – |
| Nominal Coverage (H x V) | – |
| System Continuous Power (w) | 2000 W |
| System Programme Power (w) | 4000 W |
| System Peak Power (w) | 8000 W |
| Crossover frequency | |
| Hardware | 1 x WY-24K4Z (waterproof) |
| Rigging | |
| pole mount | No |
| handles | Yes |
| cabinet type | square |
| Enclosure Material and finish | 18 mm plywood/3.0 mm Aluminium |
| Colour Options | Waterproof black paint |
| Grille Material & Finish | 3.0 mm Black Aluminium |
| Dimensions – Unpacked (mm / inches): | |
| Height front | 568 mm / 22.4″ |
| Height Rear | 568 mm / 22.4″ |
| Width | 1073 mm / 42.2″ |
| Depth | 757 mm / 29.8″ |
| Dimensions – Packed (mm / inches): | |
| Height | 644 mm / 25.4″ |
| Width Front | 1143 mm / 45.0″ |
| Width Rear | 1143 mm / 45.0″ |
| Depth | 827 mm / 32.6″ |
| Weight | |
| Net Weight (kg / lbs) | 97.0kg / 213.4 lbs |
| Gross Weight (kg / lbs) | 111.0kg / 244.2 lbs |
