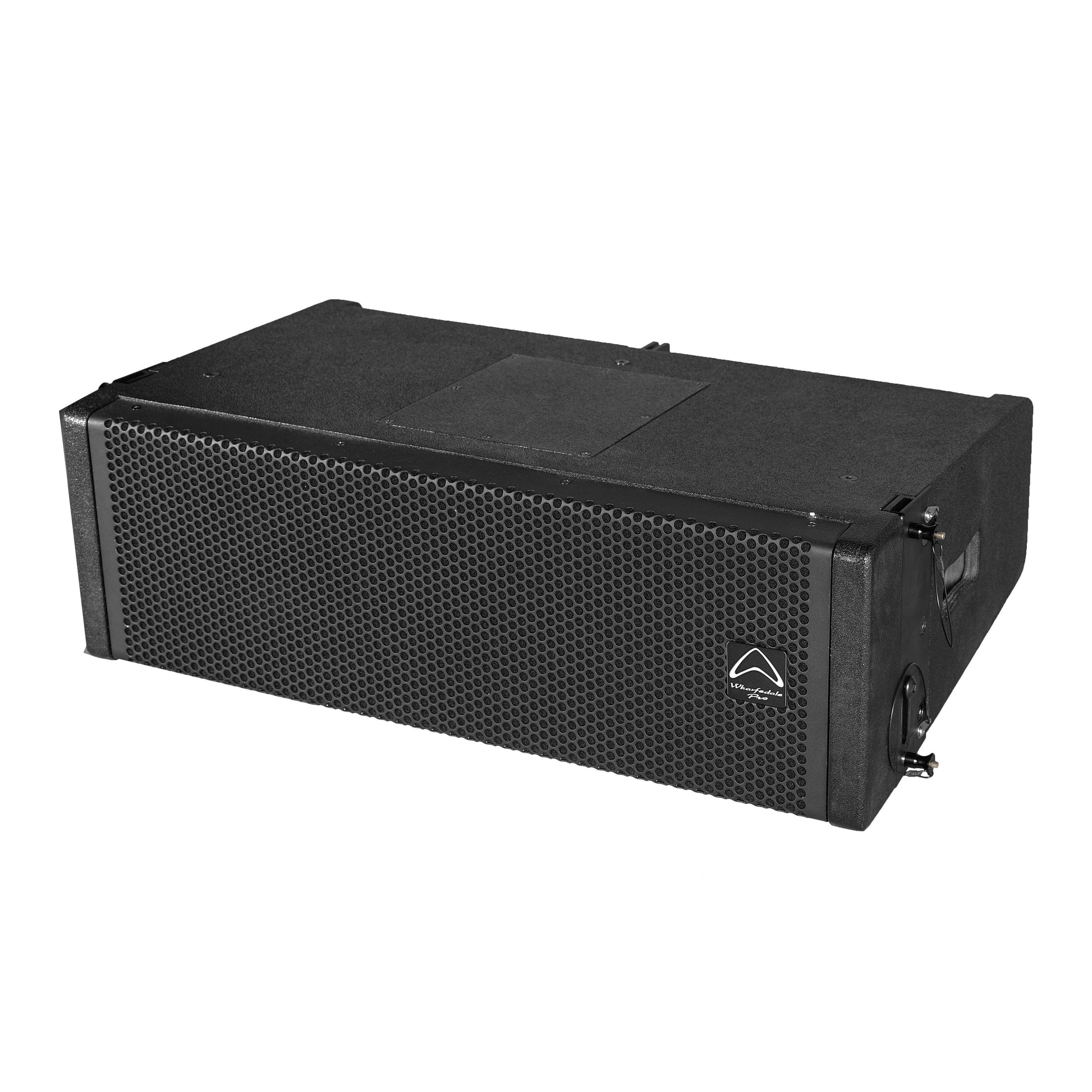

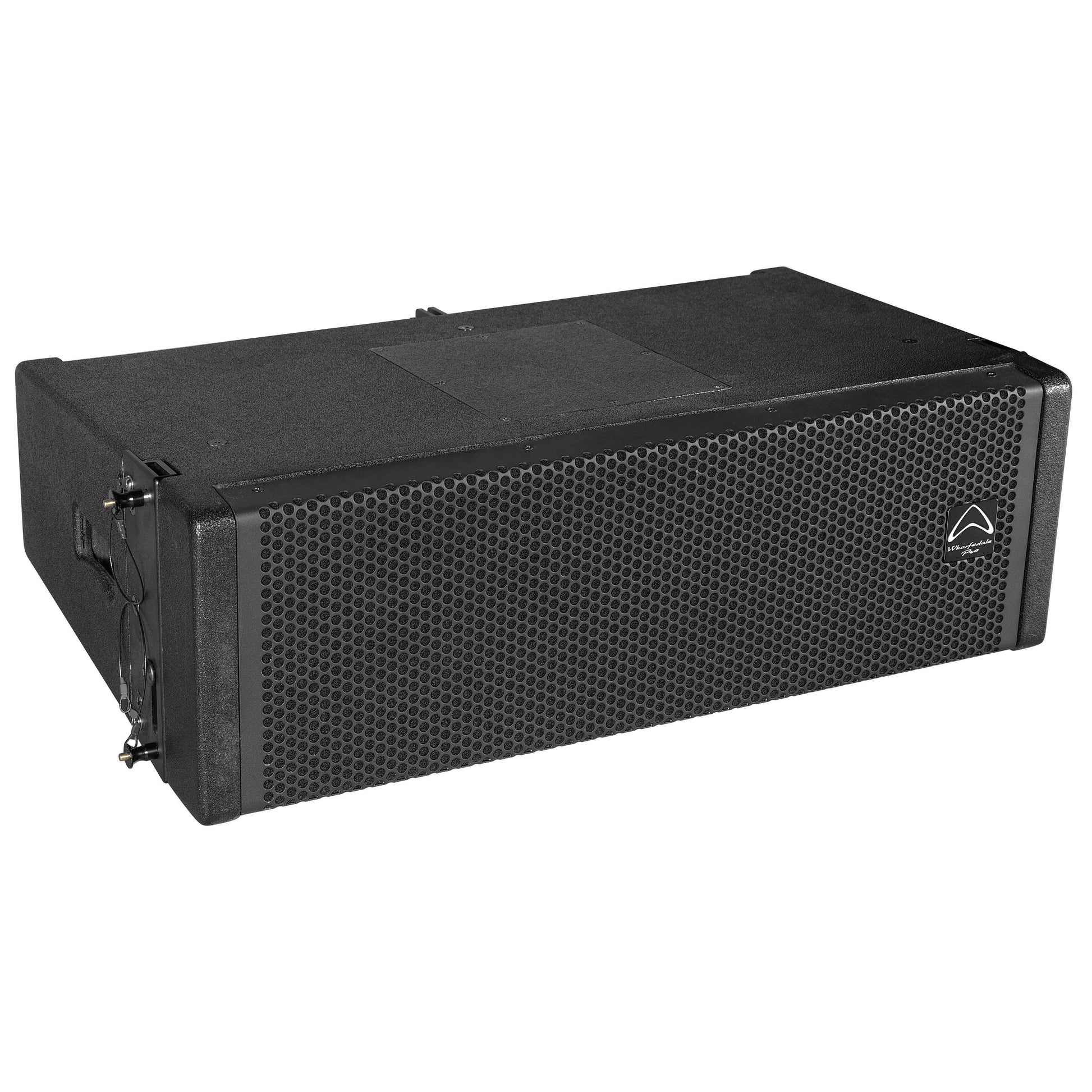

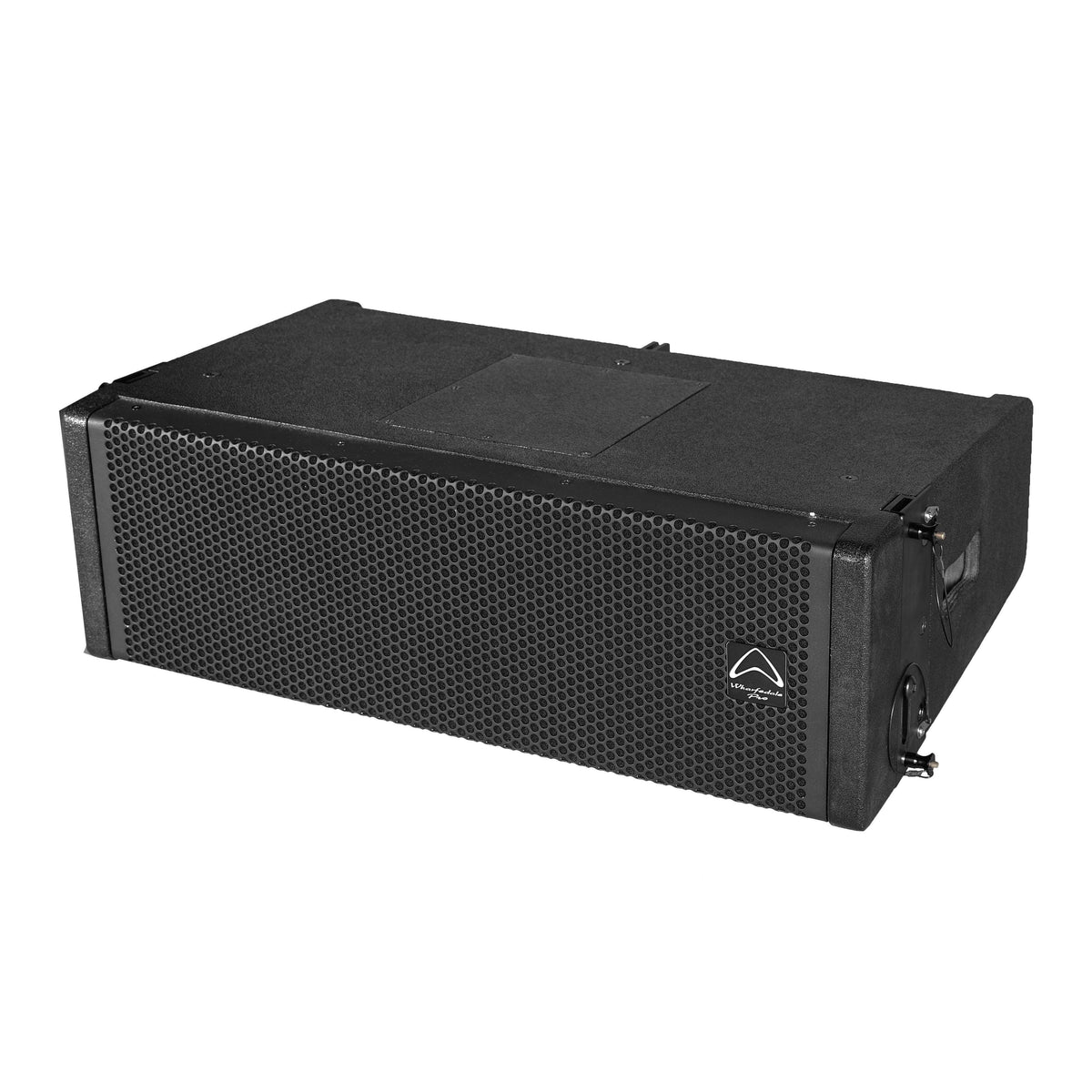

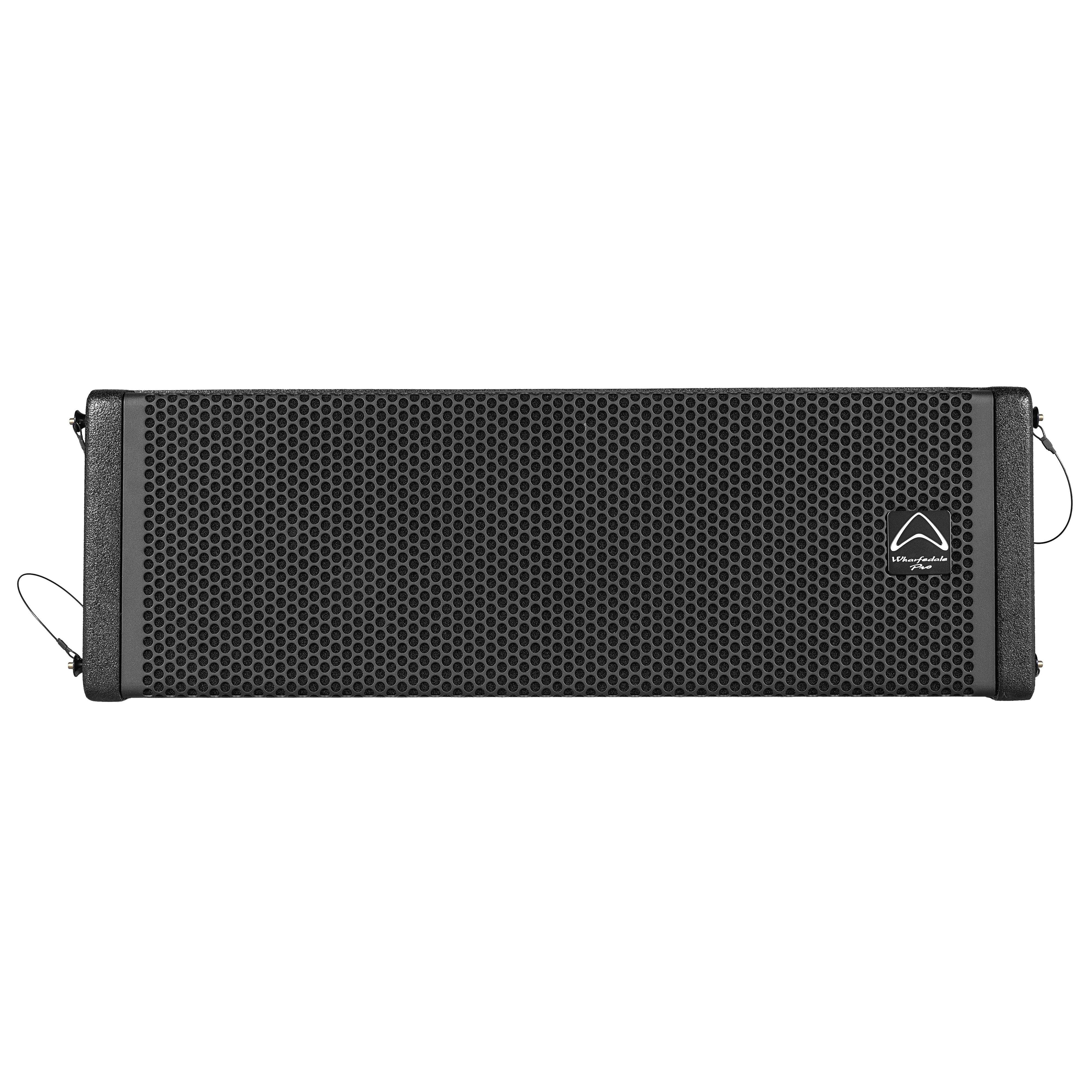

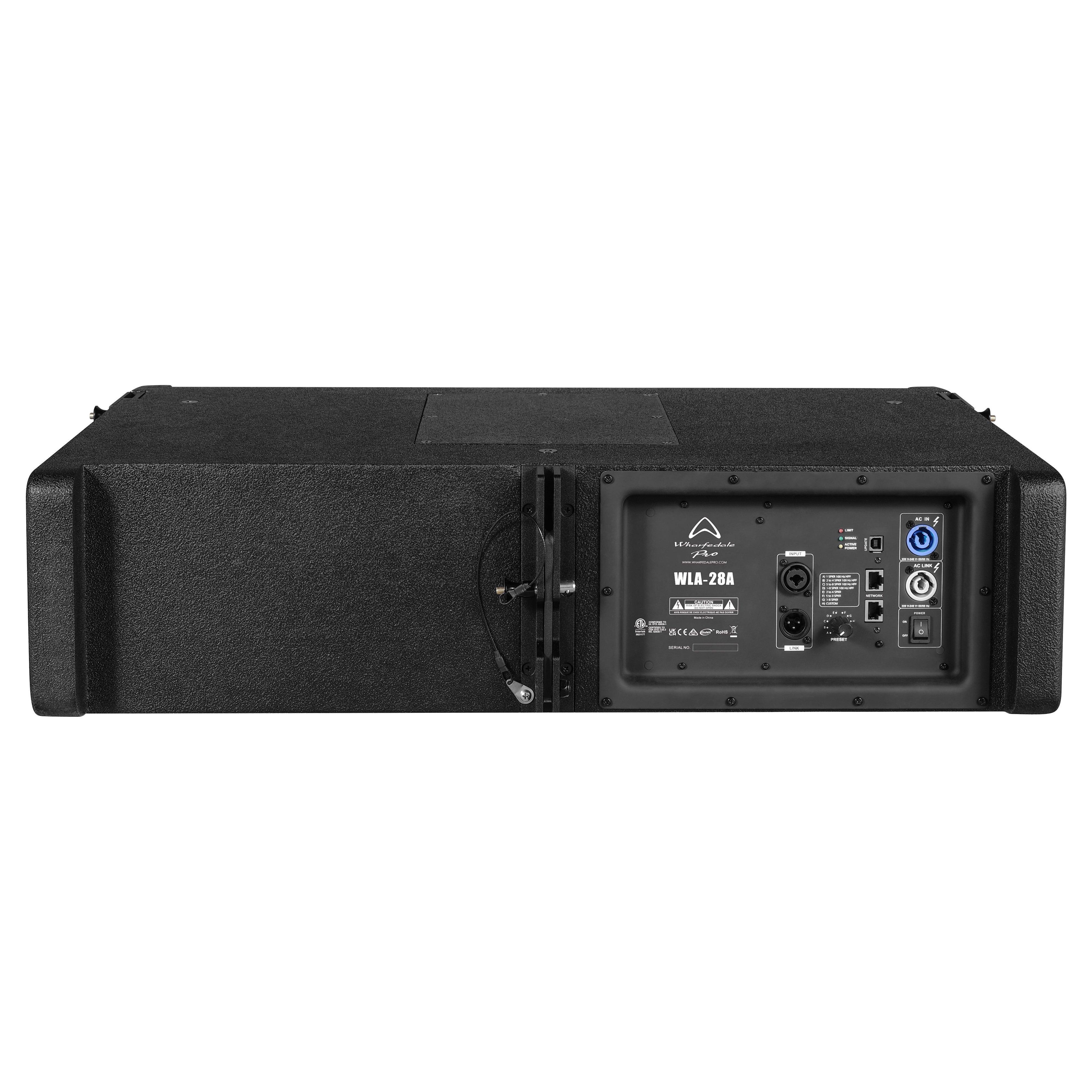

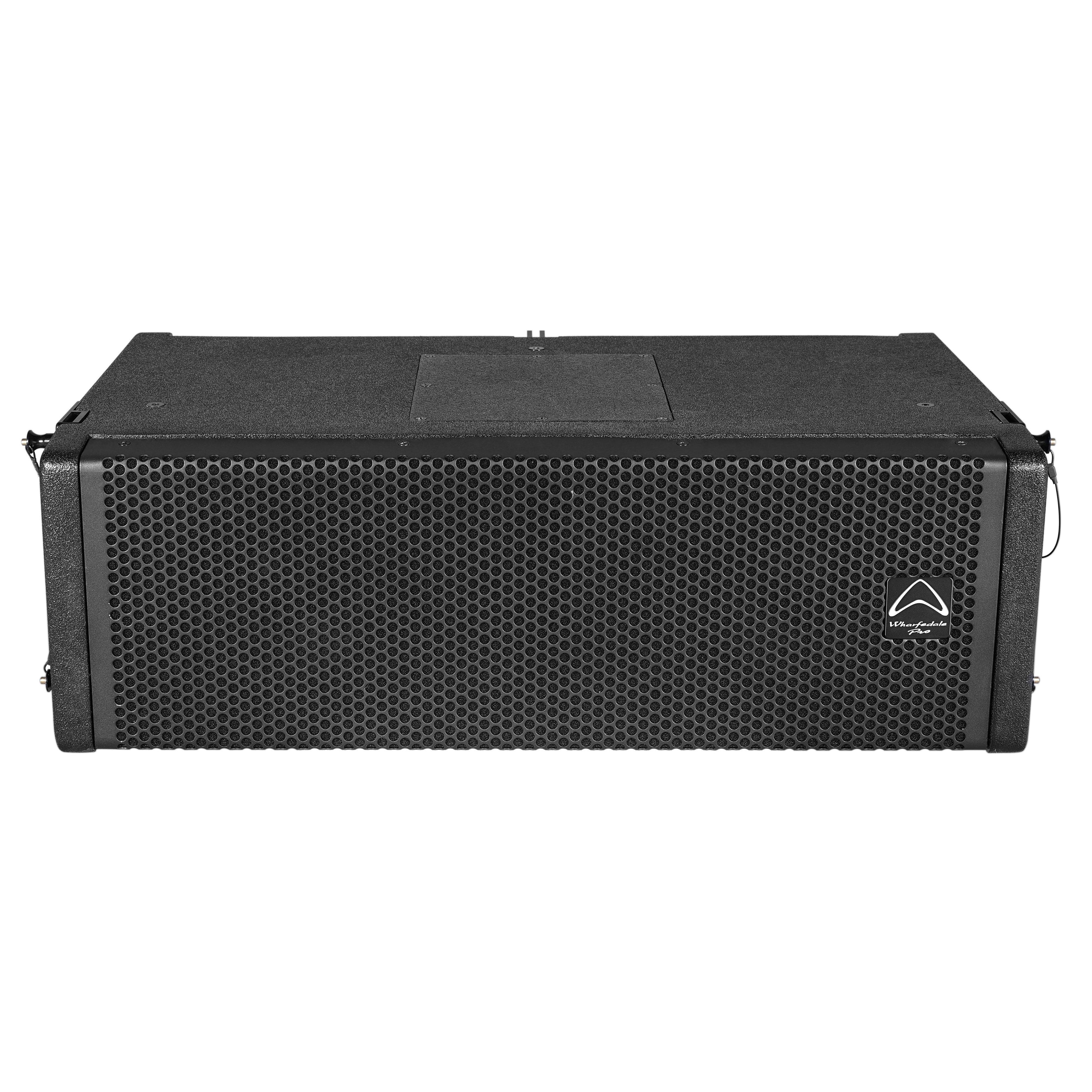

The WLA-28A is an active two-way line array element pairing two 8" low-frequency drivers with a neodymium compression driver and titanium diaphragm behind a CAST waveguide. It reaches 132 dB maximum SPL with a 60 Hz–20 kHz (±3 dB) response and 100° horizontal coverage. Class D amplification, DSP with 8 FIR presets, and USB and RS485 connections are built in, and 3-point integral rigging supports flying or ground use.
| Active or Passive | Active |
|---|---|
| System Type | Array Element |
| Configuration | 2-way |
| System Continuous Power | LF: 650 W / HF: 100 W |
| System Peak Power | LF: 1300 W / HF: 200 W |
| Max SPL @ 1m | 132 dB |
| Freq Response (+/-3 dB) | 60 Hz - 20 KHz |
| Freq Range (-10 dB) | 55 Hz – 20 KHz |
| Bi-amp Mode Switch | No |
| Bluetooth | No |
| IP Certification | None |
| Driver Brand | Wharfedale Pro |
| LF Driver Size | 2 x 8" |
| LF Magnet Material | Ferrite |
| LF Frame Material | Aluminium |
| LF Voice Coil Size | 2″ |
| HF Driver Type | Compression Driver – Neo |
| HF Voice Coil Size | 3" |
| HF Diaphragm Material | Titanium |
| HF Exit Size | 1.4″ |
| HF Power (RE:AES2-2012) | 90 W |
| HF Rated Impedance | 8 Ω |
| Preset Library | No |
| Input Connector | XLR 1/4" Combo Jack |
| Waveguide Type | Coherent Array Shaping Technology (CAST) |
| Enclosure Material | Birch Plywood |
| Grille Material and Finish | Steel |
| Finish | Black Tough-Tone |
| Handles | 2 |
| Deployment | Flying, Ground |
| Pole Mount | None |
| Rigging | Yes |
| Integral Rigging | 3 Points |
| Nominal Coverage (H x V) | 100° x System dependant |
| Sensitivity 2.83 V / 1 m | 100 dB |
| Crossover Frequency | 1.5 KHz |
| Amplifier design | Class D |
| Driver Protection | Independent L/ H Limiters and DC |
| Thermal Protection | Amplifier Shut Down. Auto Reset |
| DC and Short Protection | Yes |
| Signal Processing | DSP based, 8 FIR presets resident in Input Module |
| Power On Protection | Power switch on/off mute |
| Low Line Voltage Shut Down | 80% Nominal Line Voltage |
| Limiter Indicator | Red LED |
| Signal Indicator | Green LED |
| Power/Active Indicator | White LED |
| Find Function Indicator | Blue LED |
| Active loudspeaker Input Impedance | Balanced: 10 KΩ |
| Link Connector | Balanced Pin XLR |
| Input sensitivity | +4 dBu |
| Max input level | +18 dBu |
| Update | USB Type B |
| Network (RS485) | RJ45 |
| AC Input Connector | powerCON |
| AC Loop Through Connector | powerCON |
| Main Power | AC 100-120 V~/ 220-240 V~,50/60 HZ |
| Power Supply | High Efficiency Switching Mode Power Supply |
| Included Accessory | User Manual, WLA-RH4 Rain hood |
| Unpacked - Front Height (mm) | 250 |
|---|---|
| Unpacked - Rear Height (mm) | 181 |
| Unpacked - Width Front (mm) | 760 |
| Unpacked - Width Rear (mm) | 760 |
| Unpacked - Depth (mm) | 463.2 |
| Packed - Height (mm) | 850 |
| Packed - Width Front (mm) | 325 |
| Packed - Width Rear (mm) | 325 |
| Packed - Depth (mm) | 540 |
| Weight - Nett (kg) | 29.3 |
| Weight - Gross (kg) | 31.5 |
Active, with a built-in Class D amplifier and DSP.
The user manual and a WLA-RH4 rain hood.
Via 3 integral rigging points; flying and ground deployment are both listed.
