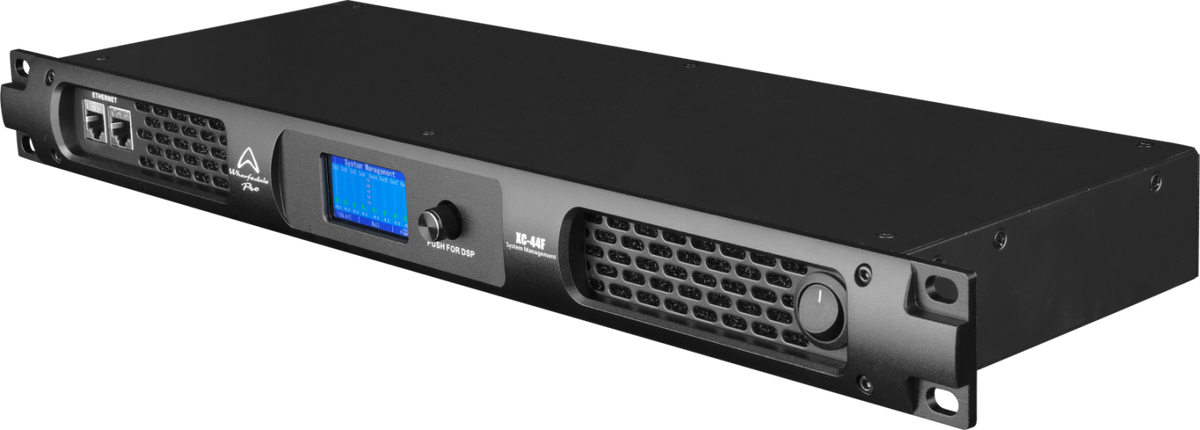

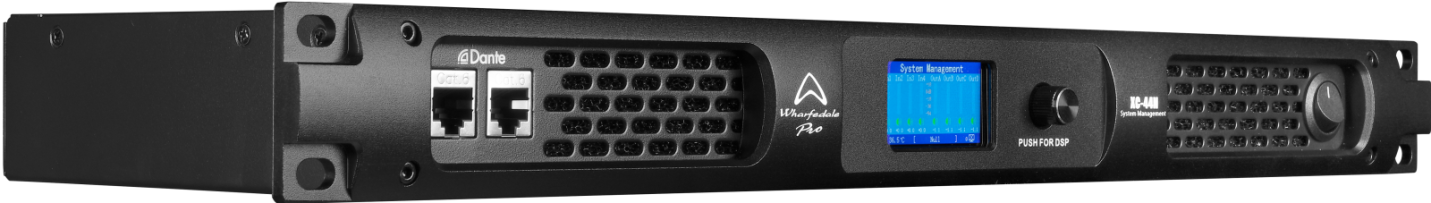

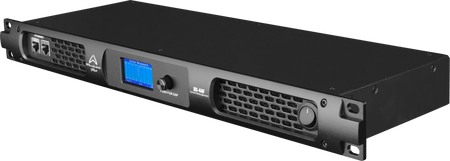

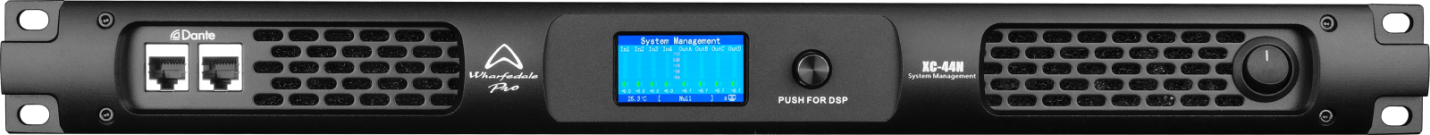

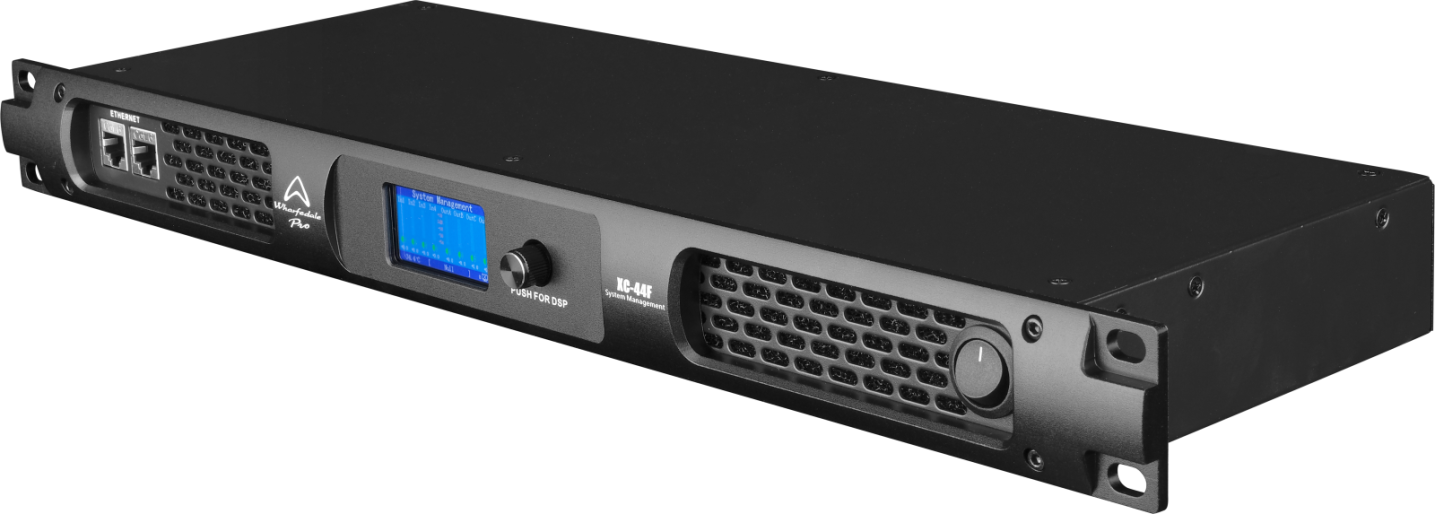

Wharfedale Pro XC44N Digital System Controller with 4-in/4-out DSP, Dante Support
Log in to view price Trade pricing — AED / USD
Ask an AV specialist
-
Full Specifications
KEY FEATURES
- 4 in – 4 out DSP control
- Compatibility with DP-F and DP-N amplifier platforms
- Comprehensive FIR preset library

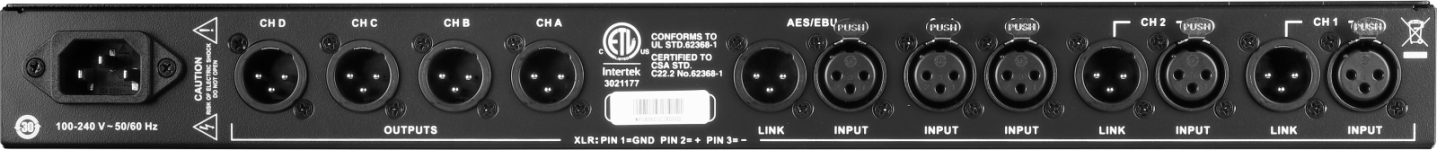

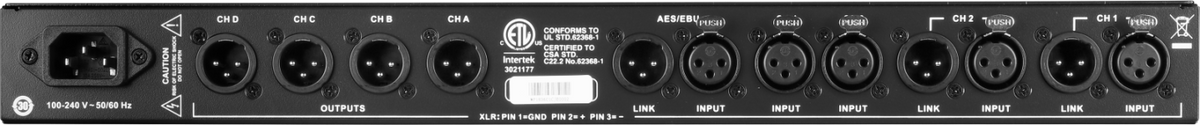

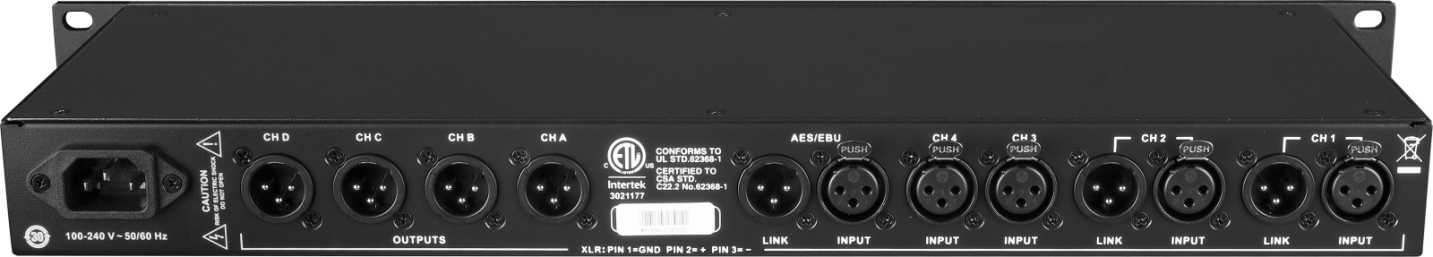

- AES / EBU digital inputs with Link outs.
- Locking XLR input connectors
DESCRIPTION
The XC Series System Management controllers harvest the DSP engine capabilities of our successful DP-F and DP-N amplifiers to deliver both protection and enhanced definition to any system.
Equipped with an extensive loudspeaker preset library, FIR filters and advanced dynamics protection, the XC Series simply improves performance across all applications.
These 4 in – 4 out controllers are available with two interface options. XC-44F with Ethernet and XC-44N with Dante ™ connectivity. Both models are controlled with the Wharfedale Pro DSP Controller software where FIR presets for almost every Wharfedale Pro loudspeaker are available for free download. Both XC Series models feature AES / EBU input and analogue link outputs on Ch 1 and Ch 2.SPECIFICATIONS
Input / output 4 x 4 Input type Analog, AES/EBU, Dante ™ Input impedance 20 kΩ（Balanced，10 kΩ（Unbalanced) Output impedance 600 Ω Max input level +20 dBu Max output level +20 dBu THD+N <0.02% (1 KHz,0 dB) Frequency response typical: +0, -1 dB (0 dB, 20 Hz-20 KHz) Cross-talk <-95 dB（1KHz） SNR >105 dB（A weighted） Delay <1.8 ms（Analog input/output，48 KHz） Main power 100-240 VAC ±10%, 50/60 Hz
