Home / Wharfedale Pro XLA118SUB Line Array Subwoofer Passive
Wharfedale Pro
Authorised Distributor

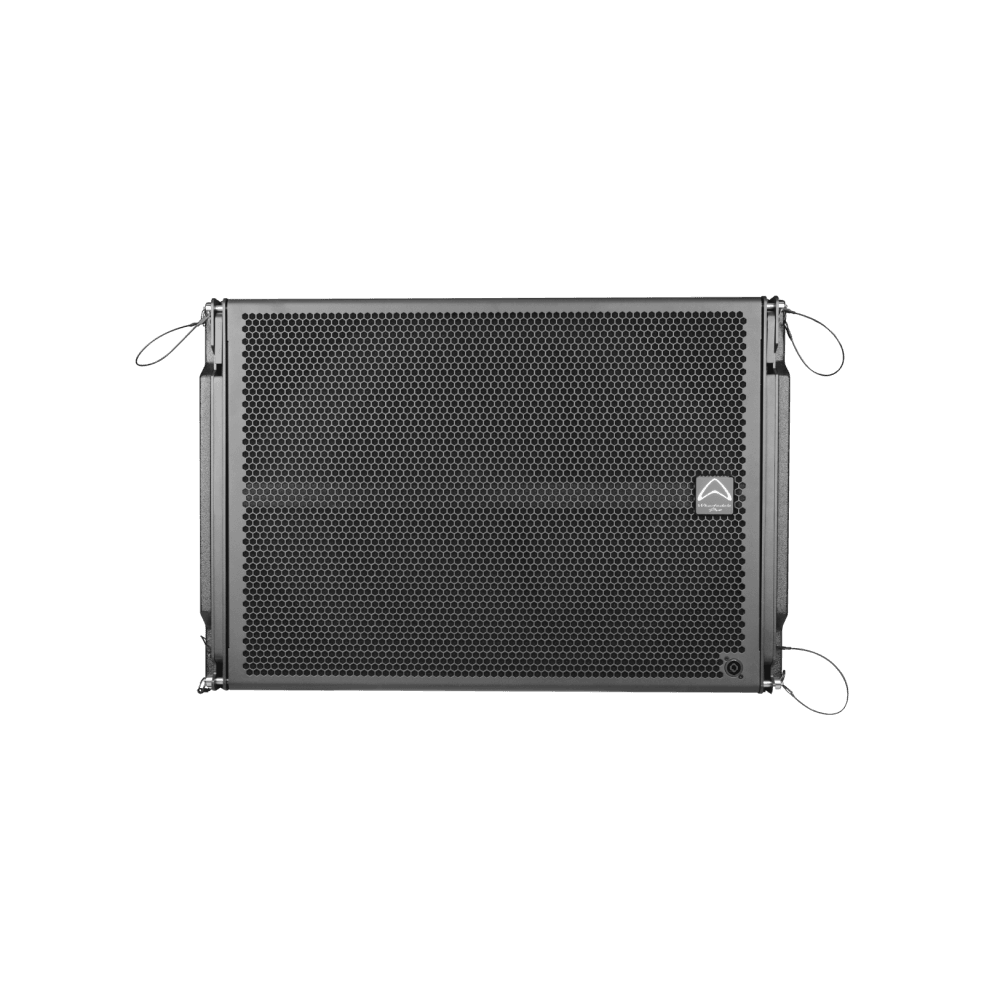

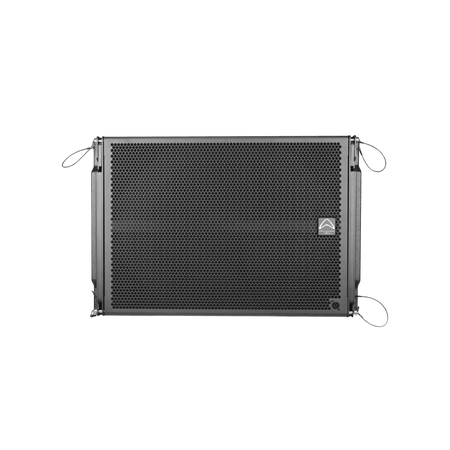

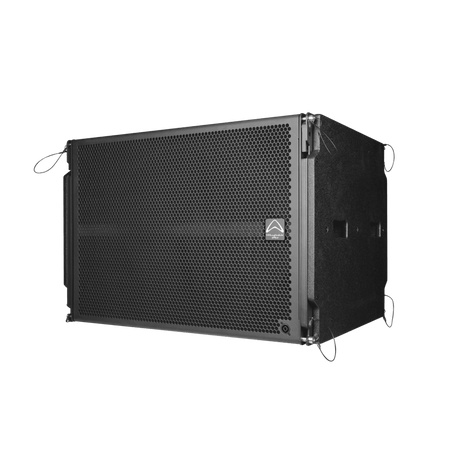

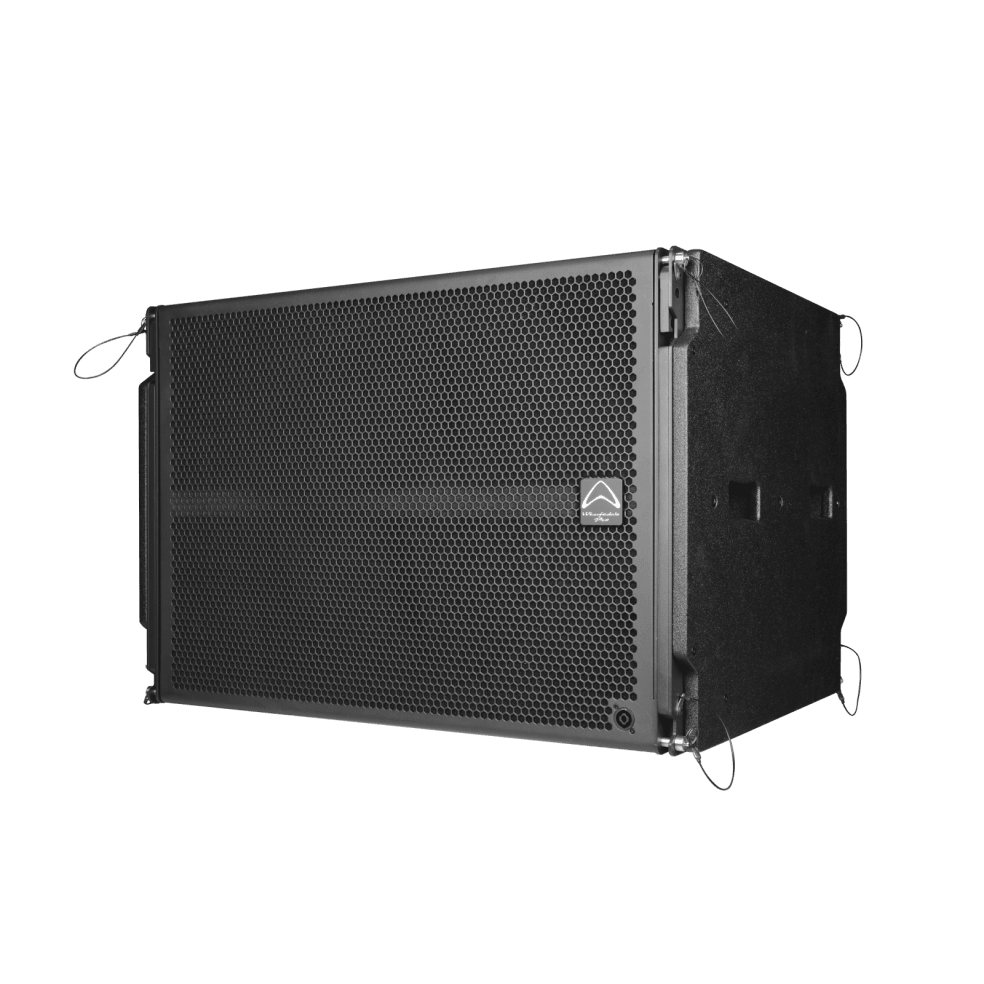

Wharfedale Pro XLA118SUB Line Array Subwoofer Passive

SKU: XLA118SUB

Log in to view price Trade pricing — AED / USD

Only 2 left
Low inventory - Hurry up!
Request Bulk Pricing

Ask an AV specialist

Video chat Chat Email +971 50 559 4871

  • Full Specifications

    Download Product Data Sheet

    KEY FEATURES

    • Flying 18″ Subwoofer
    • Beyma 18” driver with 4.0” DUO in/out voice coil
    • Waterproof LF cone
    • Inverted Stack Gradient Array (iSGA) configurable



    DESCRIPTION

    The XLA Series is Wharfedale Pro’s all-new flagship line array system. With two subwoofer models and a 3-way full-range coaxial element, the system employs advanced acoustical engineering to deliver stunning, immersive sound.

    At the core of the XLA-308 full-range element is a centrally mounted coaxial mid-high transducer, integrated with Wharfedale Pro’s innovative EVO-FLOW waveguide. Flanked by two advanced 8” neodymium woofers in separate vented enclosures, this design ensures precise, high-performance low-frequency output while maintaining compact dimensions and reduced weight. Custom drivers, crafted by B&C in Italy, provide exceptional clarity, uniformity, and sonic detail across all frequencies above 500 Hz.

    For deep, powerful bass and unmatched system versatility, XLA Series offers two subwoofers. The XLA-118SUB is Wharfedale Pro’s first cardioid-arrayable flown subwoofer, designed for maximum flexibility and precision.



    SPECIFICATIONS

    Design Subwoofer
    System Type
    18″ Subwoofer
    Configuration
    Single driver, ported subwoofer
    Frequency Response (+/-3 dB)
    35 Hz – 125 Hz
    Frequency Range (- 10 dB)
    28 Hz – 160 Hz
    Sensitivity 2.83 V/1 m 103 dB*
    Calculated Maximum SPL @ 1 m 141 dB*
    System Peak SPL 147 dB**
    System Rated Impedance 4 Ω
    Low Frequency Transducer
    Size
    470 mm / 18″
    Voice Coil Size
    101.6 mm / 4.0″ DUO in/out voice coil
    LF Frame Material
    Cast Aluminium
