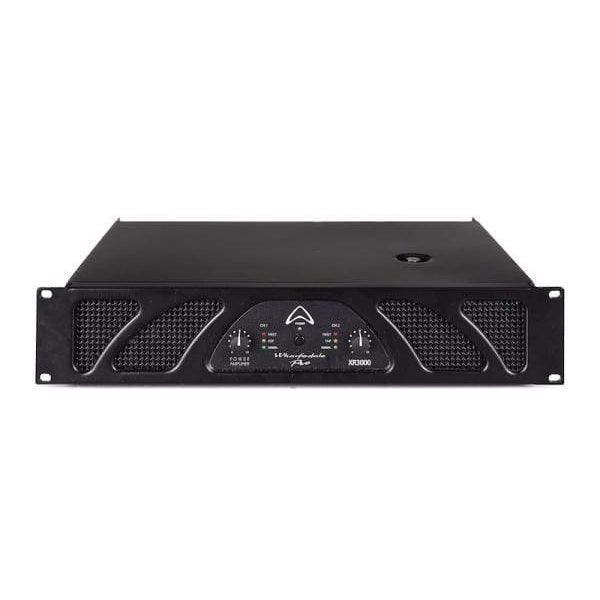

The XR3000 is a two-channel amplifier rated at 2 x 700 W into 8 Ω, 2 x 1050 W into 4 Ω and 1 x 2050 W bridged into 8 Ω. It is a Class H design in an 88 mm-high chassis that is 482 mm wide, with XLR inputs and 4 pole speaker outputs.
| Amp Channels | 2 |
|---|---|
| Topology | Class H |
| 8Ω | 2 x 700 W |
| 4Ω | 2 x 1050 W |
| 8Ω Bridged | 1 x 2050 W |

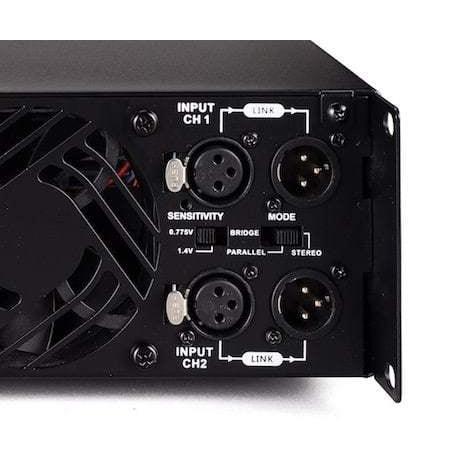

| Input Connectors | 2 x XLR Socket |
| Output Connectors | 2 x 4 Pole Speaker Connector |
| Link Connectors | 2 x XLR Pin |
| Mode Switch | Parallel / Stereo / Bridge Mode |
| DSP Features | None |
| Input Gain/Sensitivity Switch | 0.775 V / 1.4 V |
| Slew Rate | >20 V / us |
| Output RMS Voltage (V) | 74.9 V |
| Maximum input Level | 22 dBu (9.7 Vrms) |
| Crosstalk | -75 dB (1 kHz), -60 dB (10 kHz) |
| Amplifier Frequency Response | 20 Hz - 20 kHz |
| Amplifier Input Impedance | 20 KΩ |
| Damping Factor | > 200 |
| SNR | ≥100 |
| Protection | Protection circuit against short circuit, no load, on/off noise, radio interference |
| Included Accessory | User Manual |
| Unpacked - Height (mm) | 88 |
|---|---|
| Unpacked - Width Front (mm) | 482 |
| Unpacked - Width Rear (mm) | 482 |
| Unpacked - Depth (mm) | 325 |
| Packed - Height (mm) | 140 |
| Packed - Width Front (mm) | 520 |
| Packed - Width Rear (mm) | 520 |
| Packed - Depth (mm) | 560 |
| Weight - Nett (kg) | 13.34 |
| Weight - Gross (kg) | 16.7 |
2 x 1050 W, one figure per channel. Into 8 Ω it is 2 x 700 W.
Yes. The mode switch offers Bridge mode, listed at 1 x 2050 W into 8 Ω.
13.34 kg net and 16.7 kg gross.
