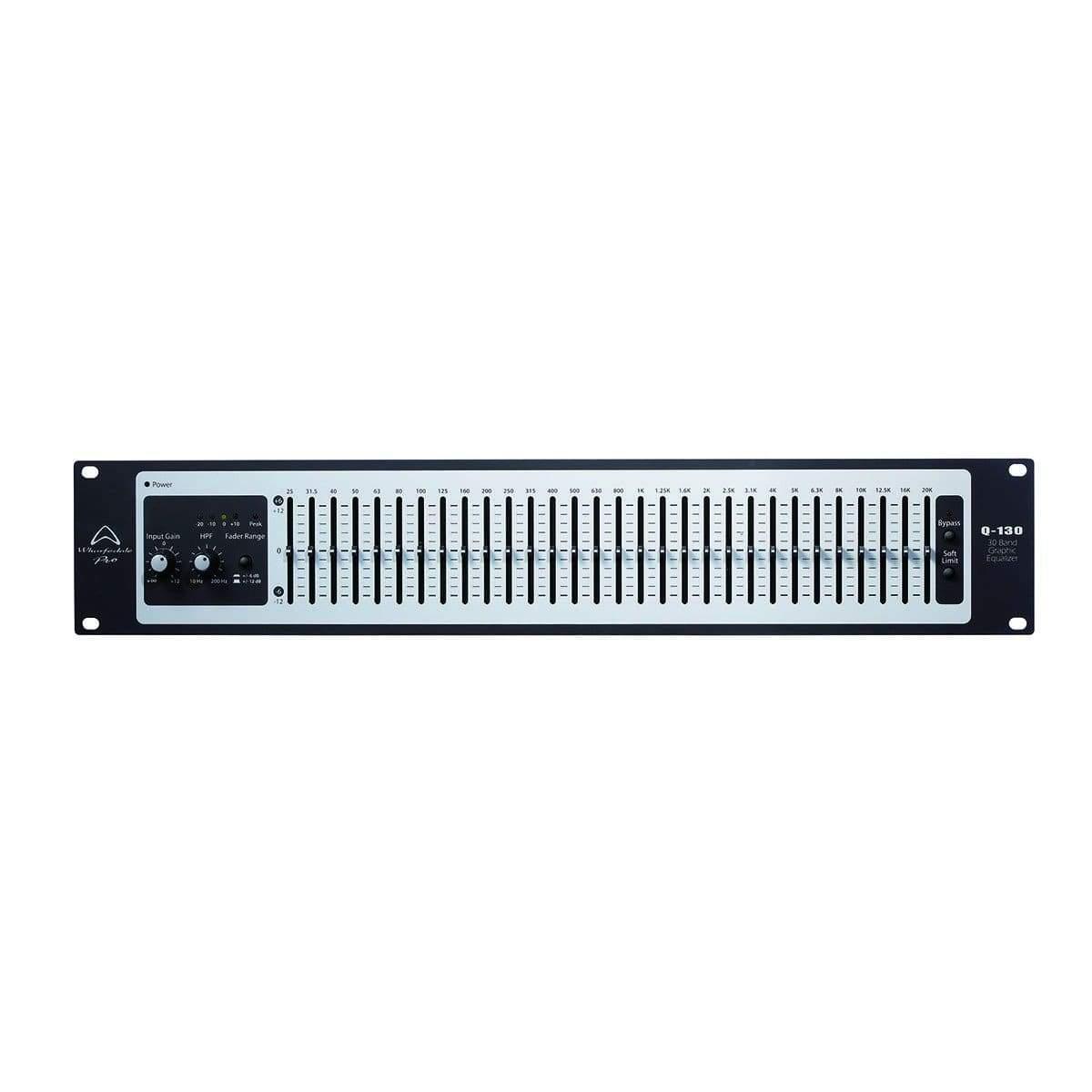

Wharfedale Pro Q130 Equalizer Graphic 30 BAND 1/3 Octave (Discontinued)
Log in to view price Trade pricing — AED / USD
Ask an AV specialist
-
Full Specifications
The Q Series equalizers have been designed for complex tonal correction and elimination of feedback of difficult acoustic environments, suitable for improving the intelligibility of an installed system, or taming feedback in a portable live sound reinforcement system. The Q-130 is a single channel, constant Q, 30 bands graphic equalizer.
-
Constant Q Filters
-
Professional long throw slide faders
-
Switchable 6dB / 12dB fader range
-
Switchable 40Hz 12dB/Oct HPF
-
Switchable bypass with LED indicator
-
Sweepable 40Hz -100Hz 12dB/oct HPF
-
Built-in soft limit protection
-
XLR/ 1/4‚ jack inputs / outputs
-
Ground lift switch
-
4 Segment level and clip LED display
Weight 4kg Dimensions 482.6mm x 170mm x 88 mm Dynamic Range 108dB Frequency Response 20Hz - 20kHz Inputs 1 x XLR, 1 x 6.3mm Jack Low Cut 50Hz 12dB/Oct HPF Outputs 1 x XLR, 1 x 6.3mm Jack Range +/- 6dB or +/-12dB Signal-to-Noise Ratio 90dB THD 0.004% -
