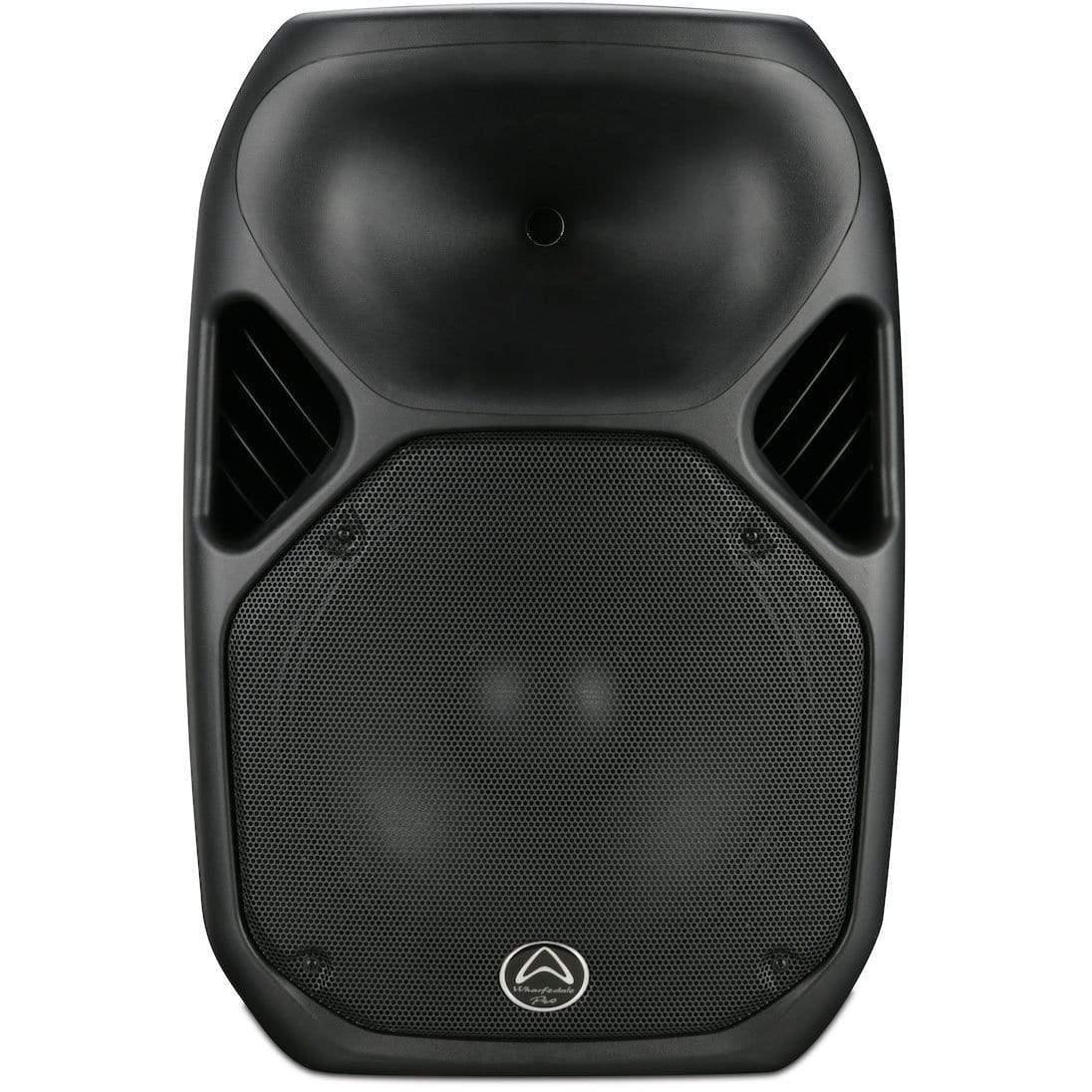

The Titan 15Z is a passive two-way speaker rated at 700 W continuous, 1400 W programme and 2800 W peak into 8 Ω. A 15" woofer with a 4" voice coil and a 2" voice coil titanium compression driver reach 133.5 dB maximum SPL. Response is 45 Hz - 20 kHz (+/-3 dB), and the enclosure is IP54 rated polypropylene.
| Active or Passive | Passive |
|---|---|
| System Type | Full-Range |
| Configuration | 2-way |
| System Continuous Power | 700 W |
| System Programme Power | 1400 W |
| System Peak Power | 2800 W |
| Max SPL @ 1m | 133.5 dB |
| Freq Response (+/-3 dB) | 45 Hz - 20 kHz |
| Freq Range (-10 dB) | 40 Hz - 20 kHz |
| Bluetooth | No |
| IP Certification | IP54 |
| Driver Brand | Wharfedale Pro |
| LF Driver Size | 15" |
| LF Voice Coil Size | 4" |
| LF Rated Impedance | 8 Ω |
| LF Power (RE:AES2-2012) | 700 W |
| HF Driver Type | Compression Driver |
| HF Voice Coil Size | 2" |
| HF Diaphragm Material | Titanium |
| HF Exit Size | 1" |
| HF Power (RE:AES2-2012) | 50 W |
| HF Rated Impedance | 8 Ω |
| Preset Library | Yes |
| Input Connector | 2 x 4 Pole Speaker Connector |
| Waveguide Type | Hybrid Symmetry Horn |
| Enclosure Material | Polypropylene |
| Grille Material and Finish | Steel Black |
| Finish | Black Polypropylene |
| Handles | 2 |
| Deployment | Flying, Ground, Pole, Wall Mount |
| Pole Mount | 35 mm |
| Brackets Included | No |
| Rigging | Yes |
| M8 | 10 |
| Nominal Coverage (H x V) | 100° x 80° |
| Sensitivity 2.83 V / 1 m | 99 dB |
| System Rated Impedance | 8 Ω |
| Crossover Frequency | 2.1 kHz |
| Recommended HPF = BW 18 dB/OCT. | 40 Hz |
| Transformer (T) | No |
| Included Accessory | User Manual, Dust Cover |
| Unpacked - Height (mm) | 729 |
|---|---|
| Unpacked - Width Front (mm) | 481 |
| Unpacked - Width Rear (mm) | 481 |
| Unpacked - Depth (mm) | 396 |
| Packed - Height (mm) | 840 |
| Packed - Width Front (mm) | 520 |
| Packed - Width Rear (mm) | 520 |
| Packed - Depth (mm) | 500 |
| Weight - Nett (kg) | 26.8 |
| Weight - Gross (kg) | 29.3 |
Through two 4 pole speaker connectors. No transformer is listed, so it is a low-impedance 8 Ω design.
Yes, the specification lists a preset library as available.
840 x 520 x 500 mm (H x W x D) packed, at 29.3 kg gross.
