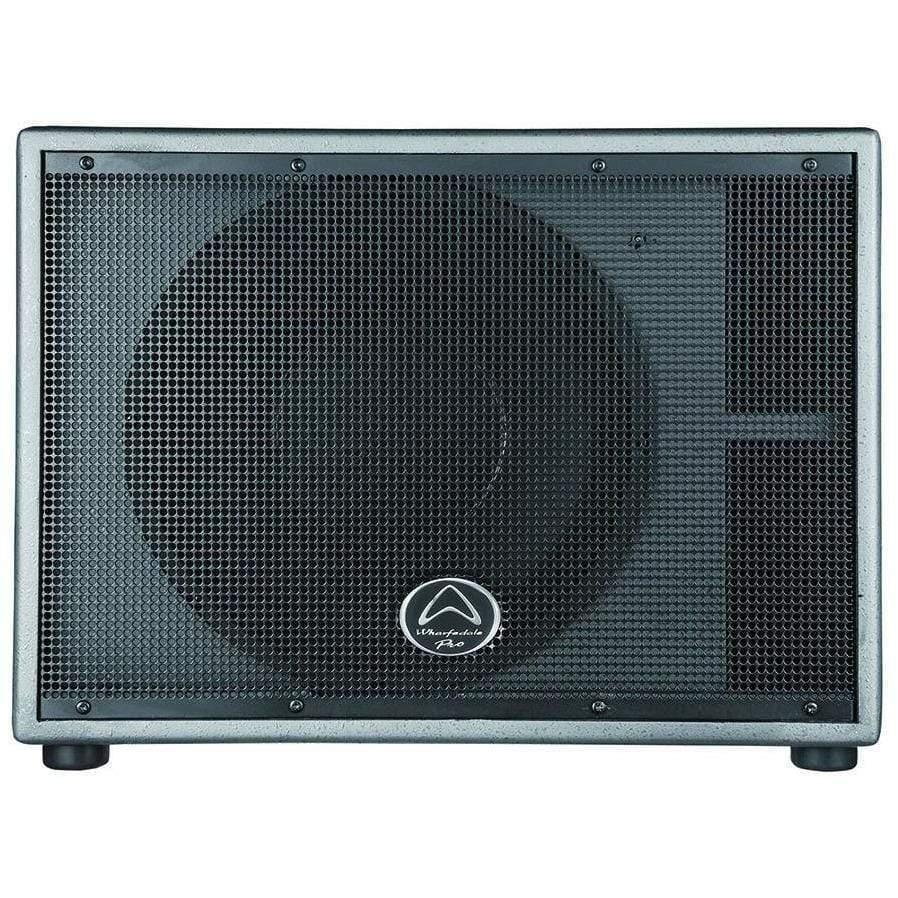

The TITAN SUB-A12 is an active bass-reflex subwoofer with a 12" driver (2.5" voice coil) and a Class D amplifier. It is rated 250 W continuous and 500 W peak, with a maximum SPL of 127 dB (half space). The MDF cabinet has a black Tough-Tone finish and two handles.
| Active or Passive | Active |
|---|---|
| System Type | Subwoofer |
| Configuration | Bass-reflex |
| System Continuous Power | 250 W |
| System Peak Power | 500 W |
| Max SPL @ 1m | 127 dB (Half Space) |
| Freq Response (+/-3 dB) | 55 Hz - 200 Hz |
| Freq Range (-10 dB) | 50 Hz - 200 Hz |
| Bluetooth | No |
| IP Certification | None |
| Driver Brand | Wharfedale Pro |
| LF Driver Size | 12" |
| LF Voice Coil Size | 2.5" |
| LF Rated Impedance | 4 Ω |
| LF Power (RE:AES2-2012) | 250 W |
| Preset Library | No |
| Input Connector | 2 x 1/4” Jack / XLR Combo |
| Enclosure Material | MDF |
| Grille Material and Finish | Steel Black or Grey |
| Finish | Black Tough-Tone |
| Handles | 2 |
| Deployment | Ground |
| Pole Mount | 35 mm |
| Brackets Included | No |
| Rigging | No |
| Sensitivity 2.83 V / 1 m | n/a dB |
| System Rated Impedance | n/a |
| Crossover Frequency | LPF 80-200 Hz (adjustable) |
| Amplifier design | Class D |
| DSP Controls | Polarity switch 0° / 180°, LPF 80-200 Hz (adjustable) |
| Link Connector | 2 x pin XLR |
| Main Power | 100 V-120 V and 200 V-240 V |
| Power Supply | SMPS |
| Included Accessory | Quick Start Guide, AC Cable |
| Unpacked - Height (mm) | 360 |
|---|---|
| Unpacked - Width Front (mm) | 493 |
| Unpacked - Width Rear (mm) | 493 |
| Unpacked - Depth (mm) | 431 |
| Packed - Height (mm) | 445 |
| Packed - Width Front (mm) | 503 |
| Packed - Width Rear (mm) | 503 |
| Packed - Depth (mm) | 565 |
| Weight - Nett (kg) | 22.31 |
| Weight - Gross (kg) | 25.3 |
A polarity switch (0° / 180°) and an adjustable LPF of 80-200 Hz.
The input is 2 x 1/4" jack / XLR combo and the link connector is 2 x pin XLR.
100 V-120 V and 200 V-240 V.
