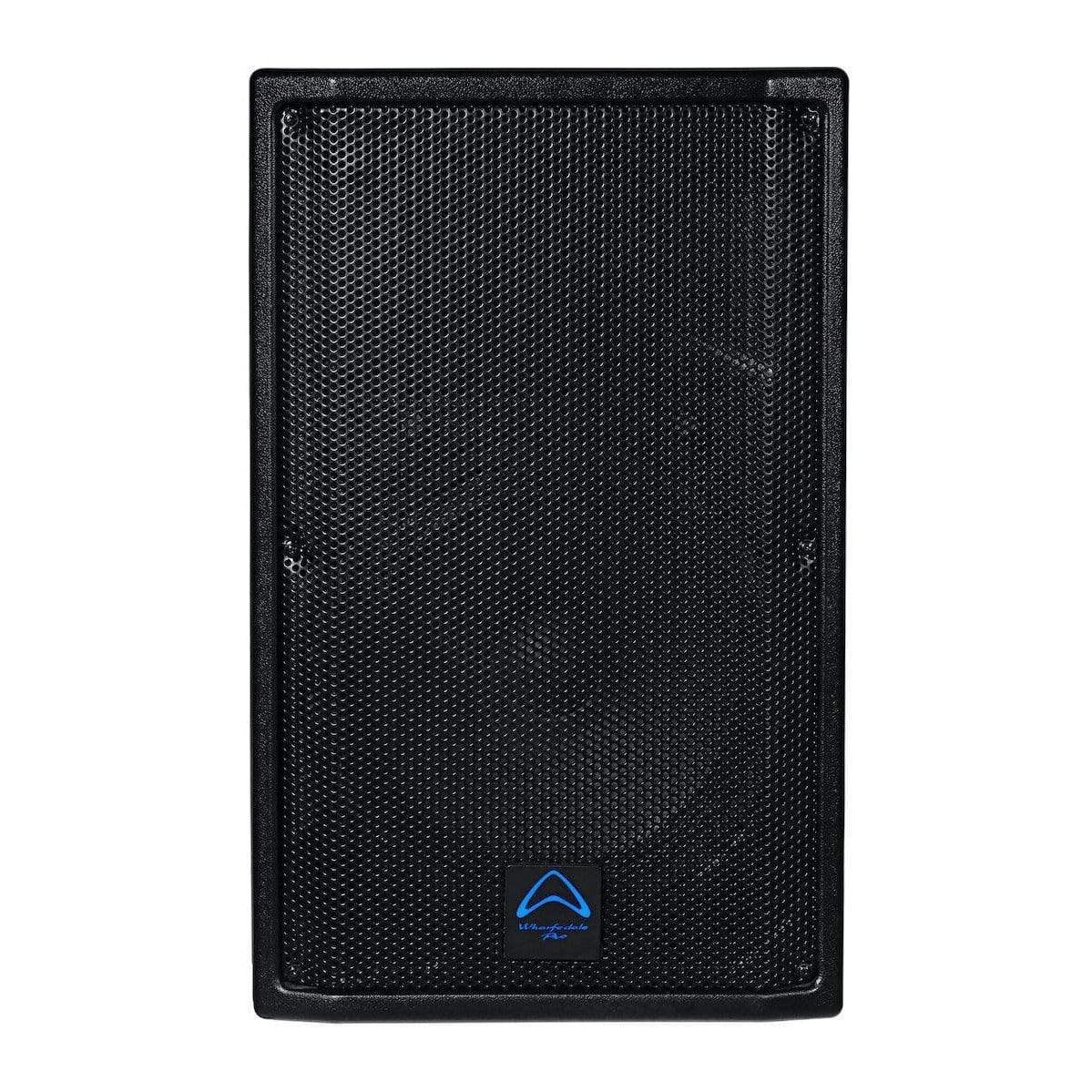

The TOURUS-AX12-MBT is an active two-way speaker with a 12" woofer, a titanium compression driver and Bluetooth input. It is rated at 350 W continuous and 700 W peak, with 128 dB maximum SPL and a 55 Hz - 20 kHz response (+/-3 dB). Inputs include XLR, RCA, a 6.3 mm jack and USB, and the cabinet has three handles.
| Active or Passive | Active |
|---|---|
| System Type | Full-Range |
| Configuration | 2-way |
| System Continuous Power | 350 W |
| System Peak Power | 700 W |
| Max SPL @ 1m | 128 dB |
| Freq Response (+/-3 dB) | 55 Hz - 20 kHz |
| Freq Range (-10 dB) | 50 Hz - 20 kHz |
| Bi-amp Mode Switch | No |
| Bluetooth | Yes |
| IP Certification | None |
| Driver Brand | Wharfedale Pro |
| LF Driver Size | 12" |
| LF Voice Coil Size | 2" |
| LF Rated Impedance | 4 Ω |
| LF Power (RE:AES2-2012) | 250 W |
| HF Driver Type | Compression Driver |
| HF Voice Coil Size | 1.75" |
| HF Diaphragm Material | Titanium |
| HF Exit Size | 1" |
| HF Power (RE:AES2-2012) | 40 W |
| HF Rated Impedance | 8 Ω |
| Preset Library | No |
| Input Connector | 2 x XLR, 2 x RCA, 1 x 6.3mm Jack, USB, BT |
| Waveguide Type | Constant Directivity |
| Enclosure Material | ABS |
| Grille Material and Finish | Steel Black |
| Finish | Black Polypropylene |
| Handles | 3 |
| Deployment | Flying, Ground, Pole |
| Pole Mount | 35 mm With Lock Screw |
| Brackets Included | No |
| Rigging | Yes |
| M8 | 4 |
| Nominal Coverage (H x V) | 90° x 60° |
| Sensitivity 2.83 V / 1 m | 96 dB |
| System Rated Impedance | n/a |
| Crossover Frequency | HI PASS 2.5 kHz, LOW PASS 2.5 kHz |
| Transformer (T) | No |
| Amplifier design | HF Amp Class AB : LF Amp Class D |
| EQ Type | +/-12 dB Gain for bass and treble |
| Active loudspeaker Input Impedance | 47 KΩ Balanced |
| Link Connector | pin XLR |
| Max input level | 5 V |
| Line output | Pin XLR |
| Main Power | 100 V - 120 V and 220 V - 240 V |
| Power Supply | SMPS |
| Unpacked - Height (mm) | 603 |
|---|---|
| Unpacked - Width Front (mm) | 377 |
| Unpacked - Width Rear (mm) | 217 |
| Unpacked - Depth (mm) | 347 |
| Packed - Height (mm) | 686 |
| Packed - Width Front (mm) | 405 |
| Packed - Width Rear (mm) | 405 |
| Packed - Depth (mm) | 435 |
| Weight - Nett (kg) | 15.4 |
| Weight - Gross (kg) | 17.8 |
The listed deployment is flying, ground and pole only; wall mount is not listed.
100 V - 120 V and 220 V - 240 V; the data does not state frequency.
