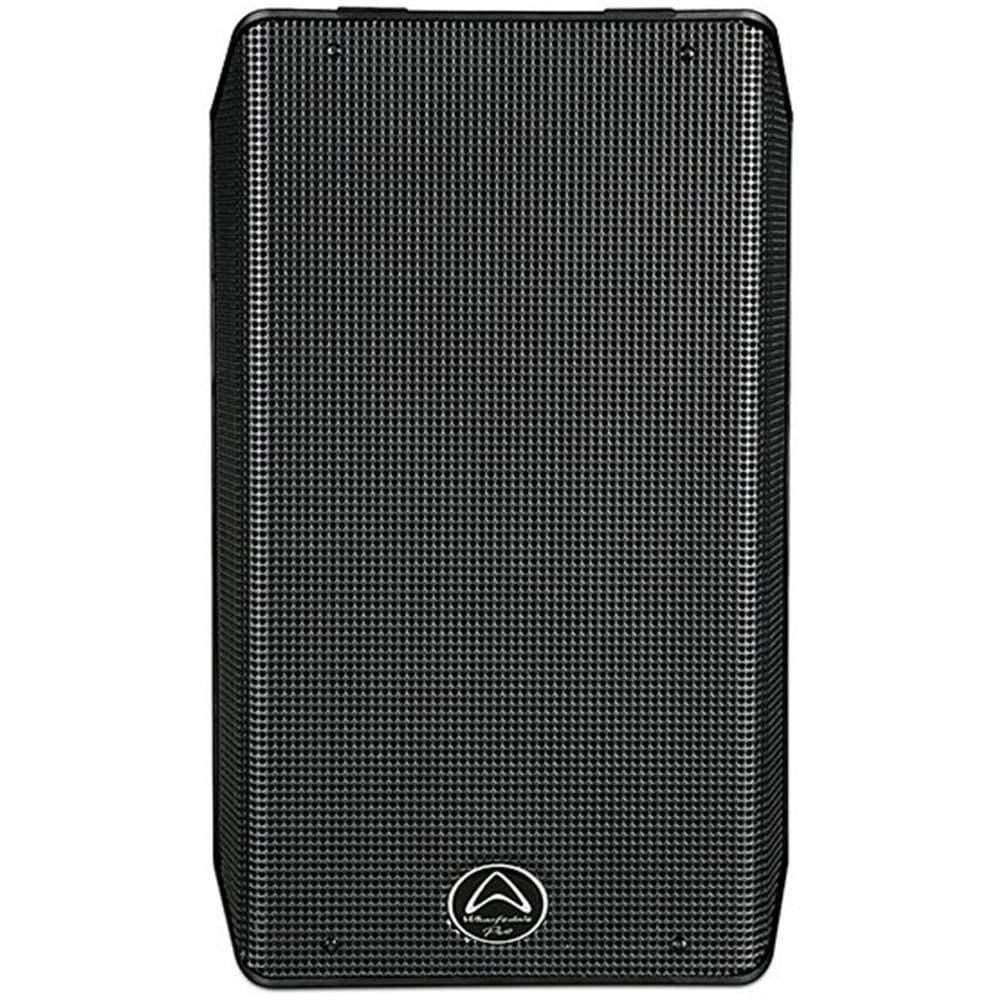

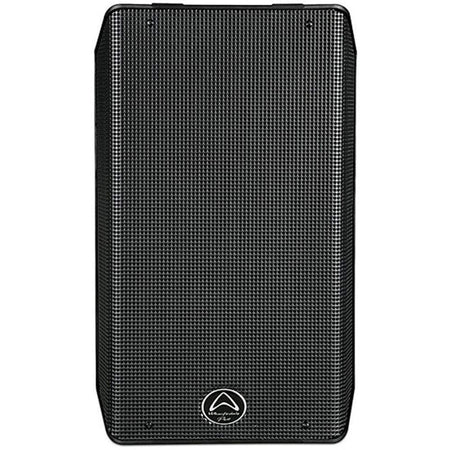

The Typhon-AX12-BT is a 12" active speaker with a Bluetooth input. A Class D amplifier is listed at 720 W continuous and 1440 W peak, with 129 dB maximum SPL and four DSP presets: Flat, Monitor, Bass and Punch. The polypropylene cabinet is IP54 rated, has four handles and weighs 17.5 kg.
| Active or Passive | Active |
|---|---|
| System Type | Full-Range |
| Configuration | 2-way |
| System Continuous Power | 720 W |
| System Peak Power | 1440 W |
| Max SPL @ 1m | 129 dB |
| Freq Response (+/-3 dB) | 55 Hz - 20 kHz |
| Freq Range (-10 dB) | 50 Hz - 20 kHz |
| Bluetooth | Yes |
| IP Certification | IP54 |
| Driver Brand | Wharfedale Pro |
| LF Driver Size | 12" |
| LF Voice Coil Size | 2.5" |
| LF Rated Impedance | 4 Ω |
| LF Power (RE:AES2-2012) | 250 W |
| HF Driver Type | Compression Driver |
| HF Voice Coil Size | 1.75" |
| HF Diaphragm Material | Titanium |
| HF Exit Size | 1" |
| HF Power (RE:AES2-2012) | 40 W |
| HF Rated Impedance | 8 Ω |
| Preset Library | No |
| Input Connector | 2 x XLR, 2 x 6.3mm Jack, BT |
| Waveguide Type | Hybrid Symmetry Horn |
| Enclosure Material | Polypropylene |
| Grille Material and Finish | Steel Black |
| Finish | Black Polypropylene |
| Handles | 4 |
| Deployment | Flying, Pole, Wall Mount, Ground |
| Pole Mount | 35 mm With Lock Screw |
| Brackets Included | No |
| Rigging | Yes |
| M8 | 9 |
| Nominal Coverage (H x V) | 100° x 80° |
| Sensitivity 2.83 V / 1 m | 98 dB |
| System Rated Impedance | n/a |
| Crossover Frequency | 2.1 kHz |
| Amplifier design | Class D |
| DSP Controls | Flat / Monitor / Bass / Punch |
| Preset list | Flat / Monitor / Bass / Punch |
| Active loudspeaker Input Impedance | 20 KΩ |
| Link Connector | pin XLR |
| Input sensitivity | 775 mV (0 dBu) |
| Max input level | 4 V |
| Line output | Pin XLR |
| Main Power | 100-120 V~/200-240 V~,50/60 Hz |
| Power Supply | SMPS |
| Unpacked - Height (mm) | 558 |
|---|---|
| Unpacked - Width Front (mm) | 344 |
| Unpacked - Width Rear (mm) | 245 |
| Unpacked - Depth (mm) | 340 |
| Packed - Height (mm) | 670 |
| Packed - Width Front (mm) | 435 |
| Packed - Width Rear (mm) | 435 |
| Packed - Depth (mm) | 435 |
| Weight - Nett (kg) | 17.5 |
| Weight - Gross (kg) | 19.2 |
Yes. Bluetooth is listed as Yes and appears in the input list alongside 2 x XLR and 2 x 6.3 mm jack.
Flying, pole, wall mount and ground.
