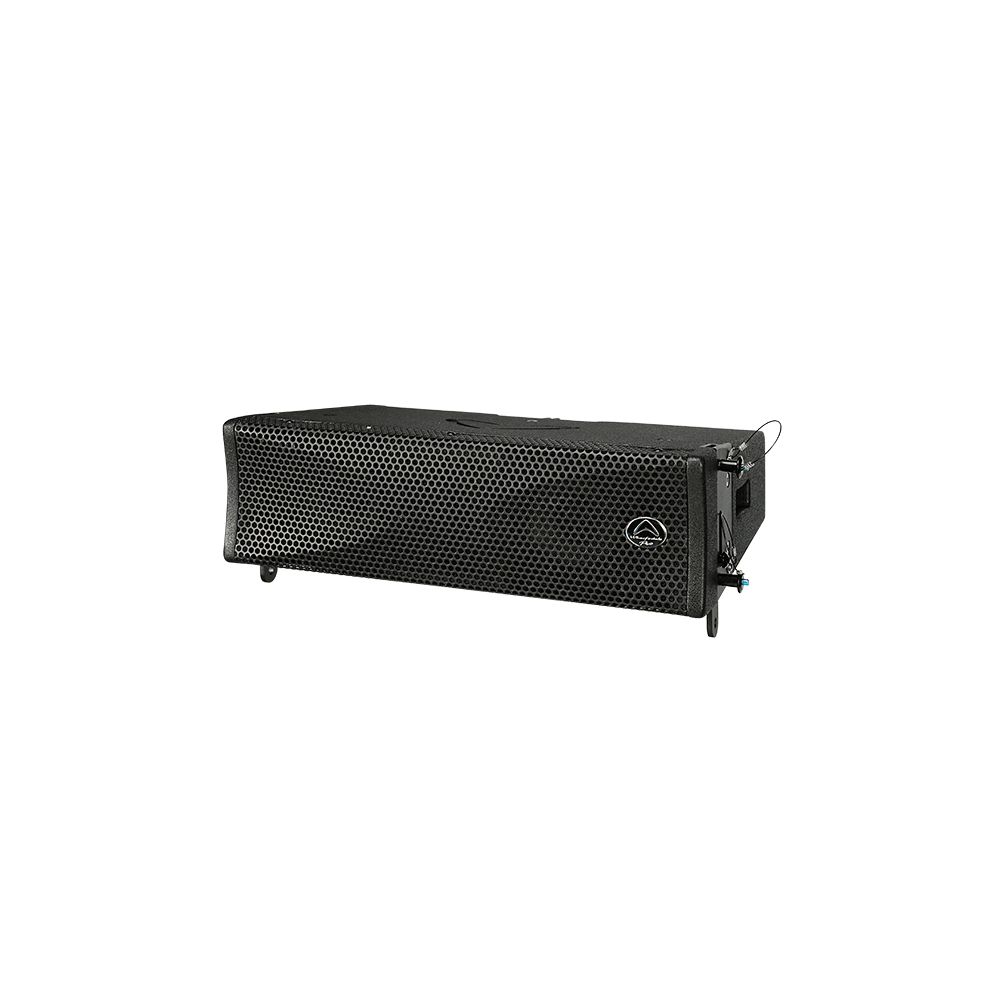

The WLA-25 is a compact passive line array element with two 5" low-frequency drivers and a Neo compression driver with a 1" exit. It is rated at 120 W continuous into 16 Ω, with a maximum SPL of 132 dB at 1 m and response from 115 Hz to 18 kHz. It is offered in black or white and can be flown or placed on the ground.
| Active or Passive | Passive |
|---|---|
| System Type | Array Element |
| Configuration | 2-way |
| System Continuous Power | 120 W |
| System Programme Power | 240 W |
| System Peak Power | 480 W |
| Max SPL @ 1m | 132 dB |
| Freq Response (+/-3 dB) | 115 Hz - 18 kHz |
| Freq Range (-10 dB) | 108 Hz - 20 kHz |
| Bi-amp Mode Switch | No |
| Bluetooth | No |
| IP Certification | None |
| Driver Brand | Wharfedale Pro |
| LF Driver Size | 2 x 5" |
| LF Magnet Material | Ferrite |
| LF Frame Material | Aluminium |
| LF Voice Coil Size | 1.4” |
| LF Rated Impedance | 16 Ω |
| LF Power (RE:AES2-2012) | 2 x 60 W |
| HF Driver Type | Compression Driver – Neo |
| HF Voice Coil Size | 1.75" |
| HF Diaphragm Material | Titanium |
| HF Exit Size | 1" |
| HF Power (RE:AES2-2012) | 40 W |
| HF Rated Impedance | 16 Ω |
| Preset Library | Yes |
| Input Connector | 2 x 4 Pole speaker connector |
| Waveguide Type | Coherent Array Shaping Technology (CAST) |
| Enclosure Material | Birch Plywood |
| Grille Material and Finish | Steel Black or White |
| Finish | Black or White Tough-Tone Paint |
| Handles | 2 |
| Deployment | Ground, Flying |
| Pole Mount | Optional WLA-25 Stand Frame |
| Rigging | Yes |
| Integral Rigging | 3 Points |
| Nominal Coverage (H x V) | 100° x System dependant |
| Sensitivity 2.83 V / 1 m | 100 dB |
| System Rated Impedance | 16 Ω |
| Crossover Frequency | 3.7 kHz |
| Recommended HPF = BW 18 dB/OCT. | 108 Hz |
| Transformer (T) | No |
| Included Accessory | User Manual |
| Unpacked - Front Height (mm) | 164 |
|---|---|
| Unpacked - Rear Height (mm) | 112 |
| Unpacked - Width Front (mm) | 536 |
| Unpacked - Width Rear (mm) | 536 |
| Unpacked - Depth (mm) | 363 |
| Packed - Height (mm) | 235 |
| Packed - Width Front (mm) | 430 |
| Packed - Width Rear (mm) | 430 |
| Packed - Depth (mm) | 606 |
| Weight - Nett (kg) | 13 |
| Weight - Gross (kg) | 15 |
Yes. The finish and grille are listed as black or white.
Only with the optional WLA-25 Stand Frame, per the specification.
13 kg net and 15 kg gross.
