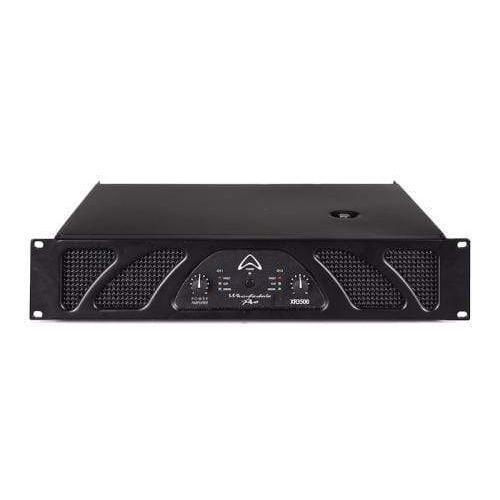

The XR3500 is a two-channel amplifier with a Class H Level 3 topology. It is rated at 2 x 1020 W into 8 Ω and 2 x 1460 W into 4 Ω, and bridged output is 1 x 2800 W into 8 Ω. The chassis is 482 mm wide, 88 mm high and 325 mm deep, and the unit weighs 18.1 kg net.
| Amp Channels | 2 |
|---|---|
| Topology | Class H - Level 3 |
| 8Ω | 2 x 1020 W |
| 4Ω | 2 x 1460 W |
| 8Ω Bridged | 1 x 2800 W |

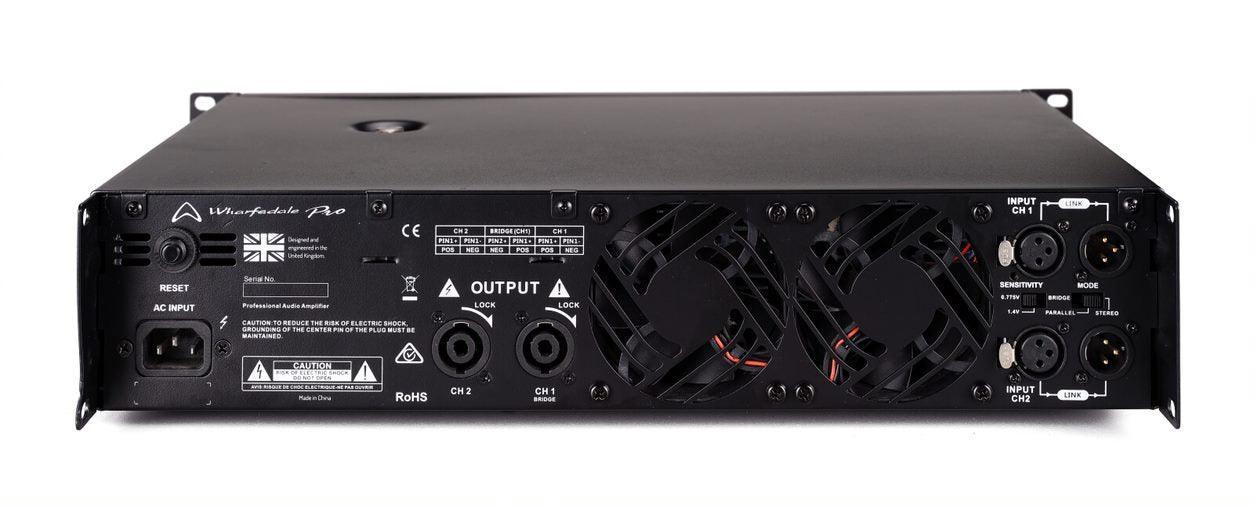

| Input Connectors | 2 x XLR Socket |
| Output Connectors | 2 x 4 Pole Speaker Connector |
| Link Connectors | 2 x XLR Pin |
| Mode Switch | Parallel / Stereo / Bridge Mode |
| DSP Features | None |
| Input Gain/Sensitivity Switch | 0.775 V / 1.4 V |
| Slew Rate | >20 V / us |
| Output RMS Voltage (V) | 93 V |
| Maximum input Level | 22 dBu (9.7 Vrms) |
| Crosstalk | -75 dB (1 kHz), -60 dB (10 kHz) |
| Amplifier Frequency Response | 20 Hz - 20 kHz |
| Amplifier Input Impedance | 20 KΩ |
| Damping Factor | > 200 |
| SNR | ≥100 |
| Protection | Protection circuit against short circuit, no load, on/off noise, radio interference |
| Included Accessory | User Manual |
| Unpacked - Height (mm) | 88 |
|---|---|
| Unpacked - Width Front (mm) | 482 |
| Unpacked - Width Rear (mm) | 482 |
| Unpacked - Depth (mm) | 325 |
| Packed - Height (mm) | 140 |
| Packed - Width Front (mm) | 520 |
| Packed - Width Rear (mm) | 520 |
| Packed - Depth (mm) | 560 |
| Weight - Nett (kg) | 18.1 |
| Weight - Gross (kg) | 21.48 |
The specification names the topology as Class H - Level 3 and gives no further detail. See the manual for the exact behaviour.
1 x 2800 W into 8 Ω.
482 mm wide, 88 mm high and 325 mm deep unpacked, with 18.1 kg net weight.
