Full range ceiling loudspeaker for installation applications
20 Watts continuous, 80 Watts peak power
3" polypropylene full-range driver with butyl rubber surround for enhanced durability and long-term reliability
Wide constant directivity dispersion for optimum coverage
EN54-24:2008 certified Type A
UL 1480 certified for fire-protected signalling systems
UL 2043 certified for air-handling spaces
UV and weather resistant UL 94-V0 and 94-5VB ABS front with plated steel fire can enclosure
Powder coated aluminium mesh grille with dust protection
Multiple transformer taps for 70 V and 100 V line systems or 8 Ohm direct input
Low insertion loss 15 W line transformer with easily accessible tapping switch
Semi matt black finish fits unobtrusively in any environment
Mounting C-ring and ceiling tile rails included

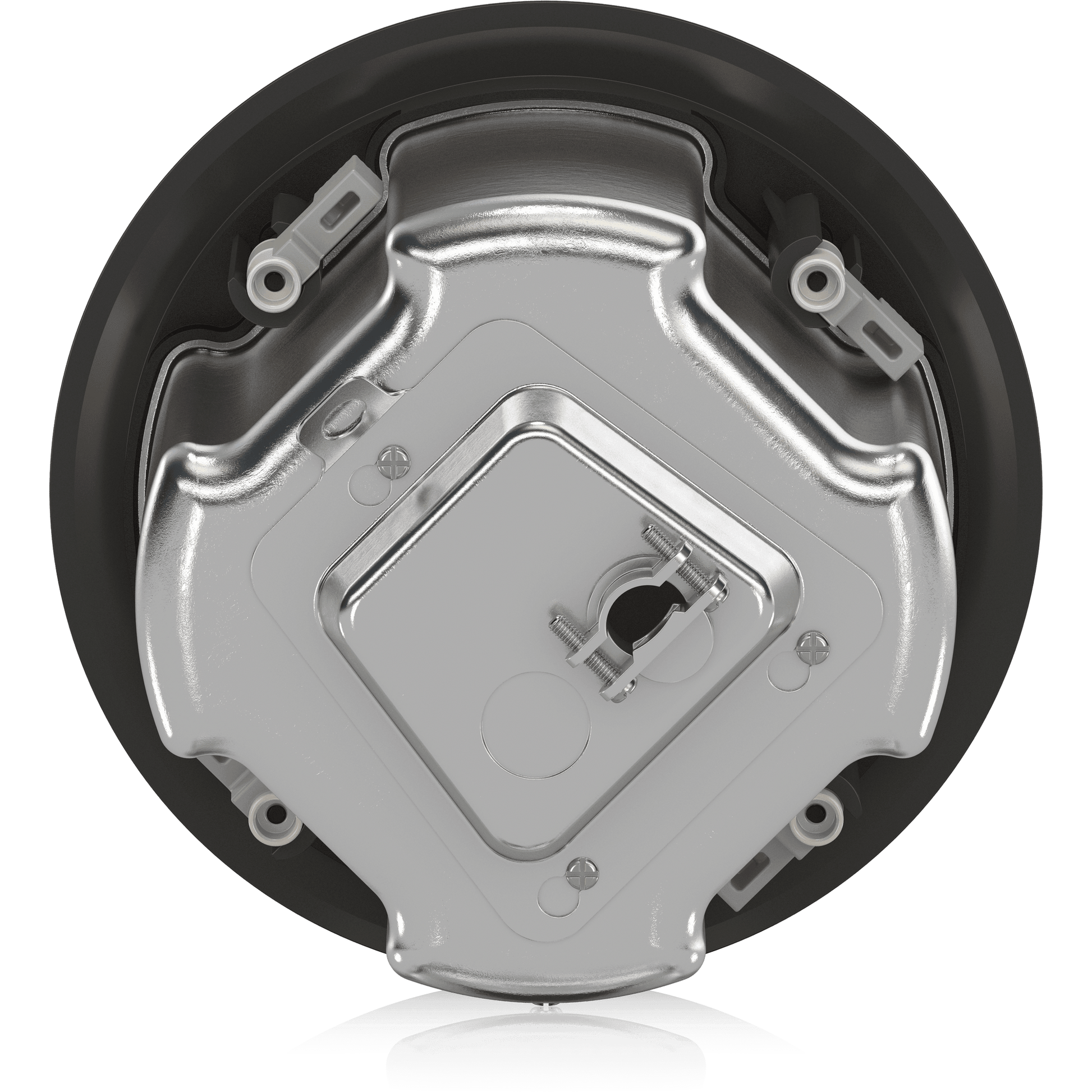

Steel cover and strain relief clamping mechanism for fire rated cable
Designed and engineered in the U.K.

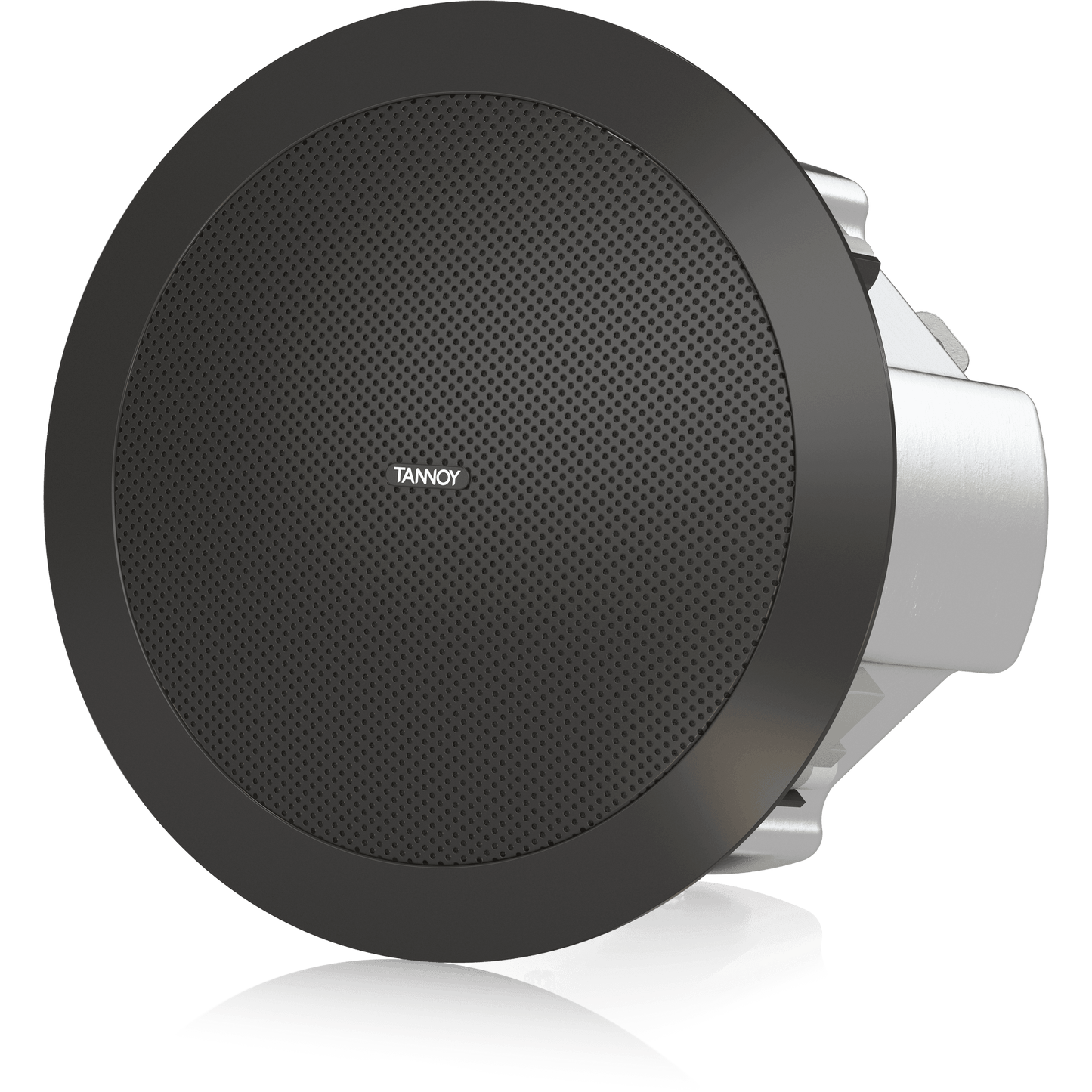

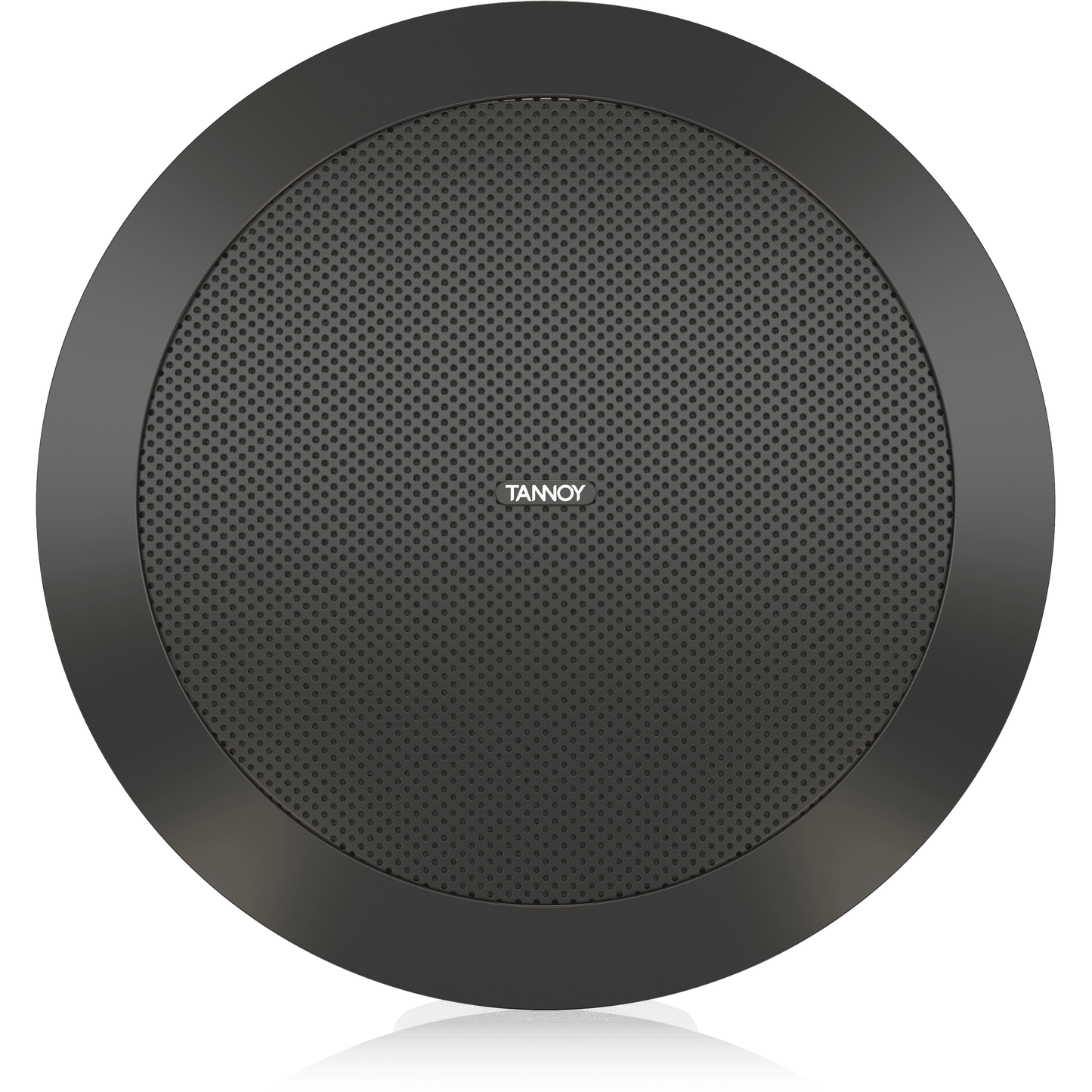

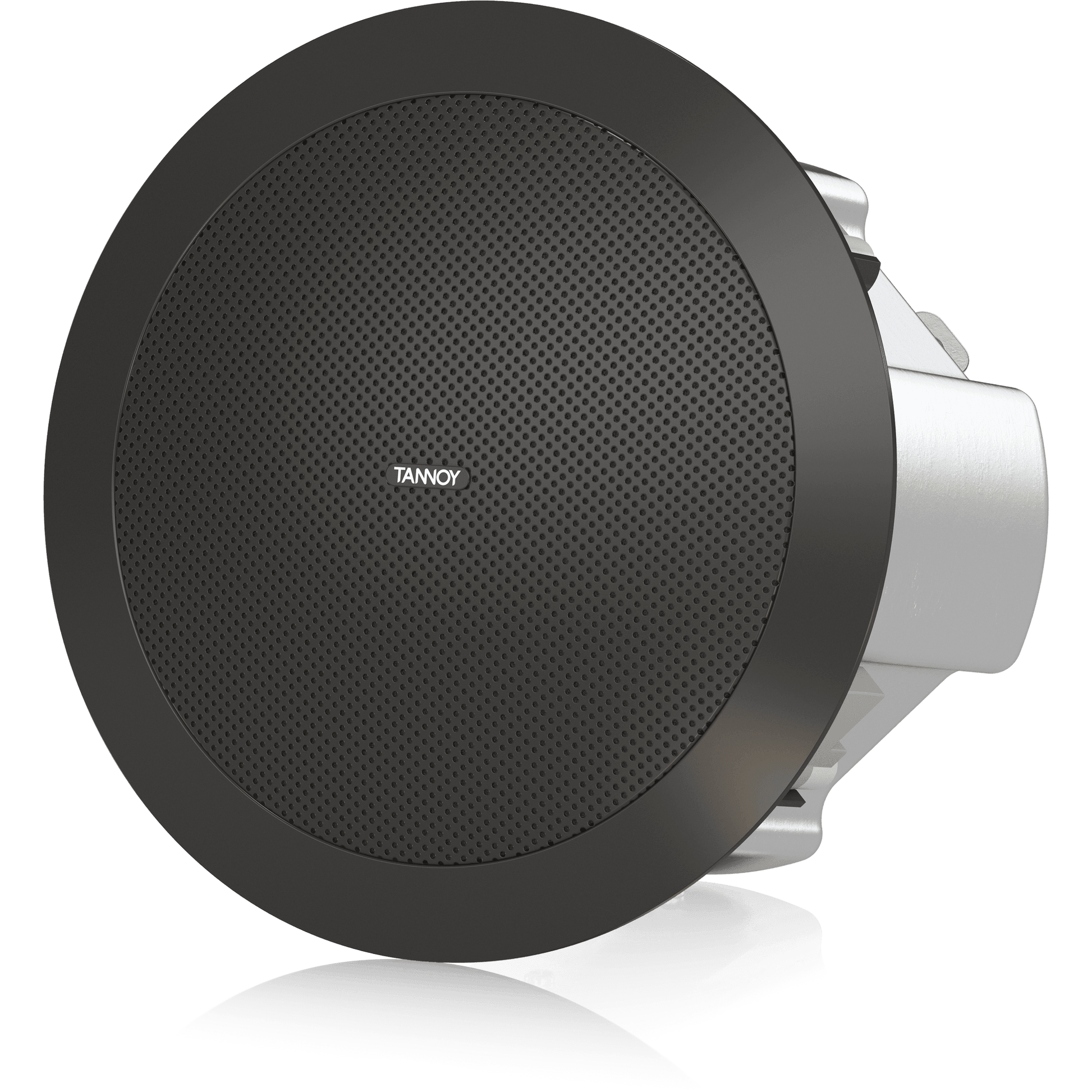

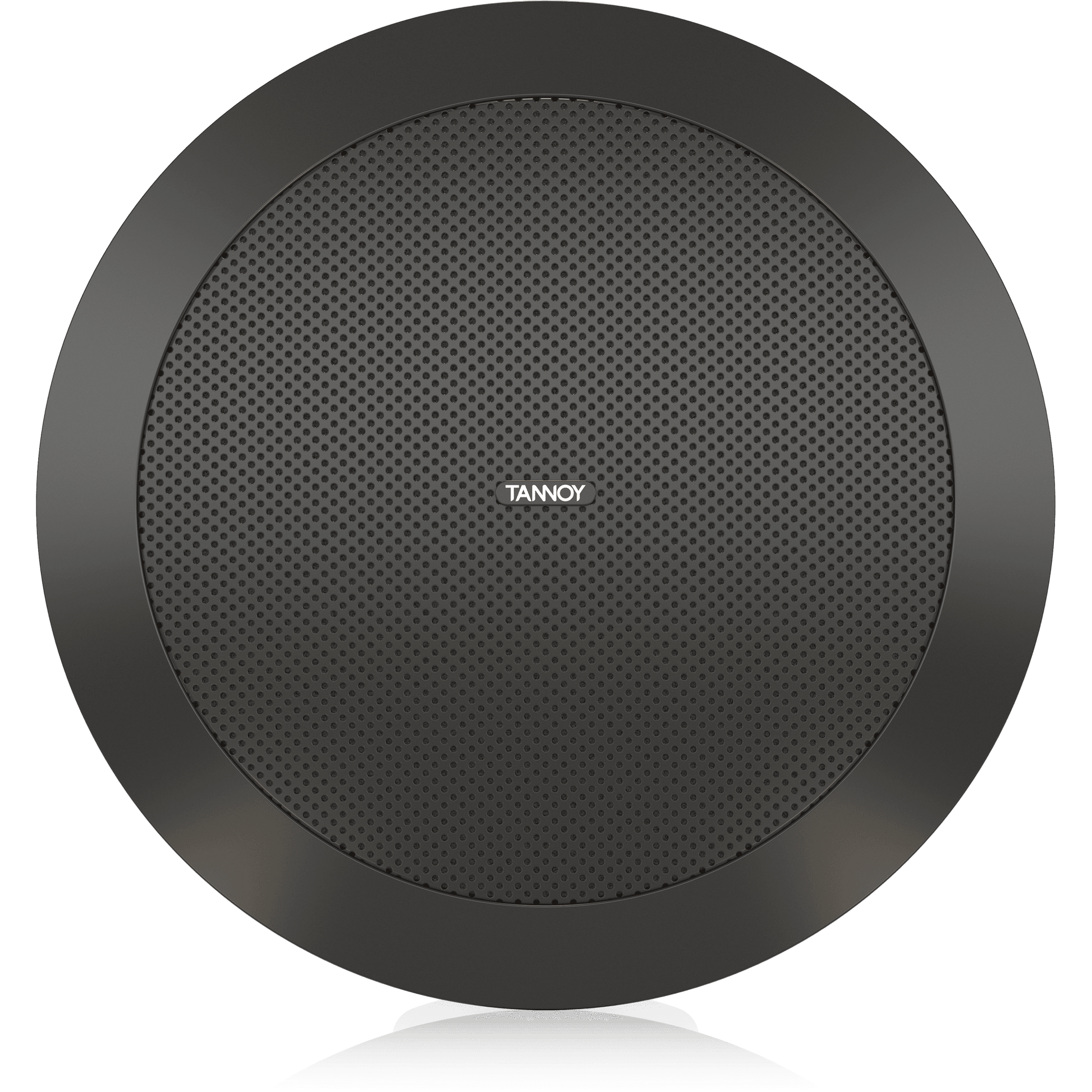

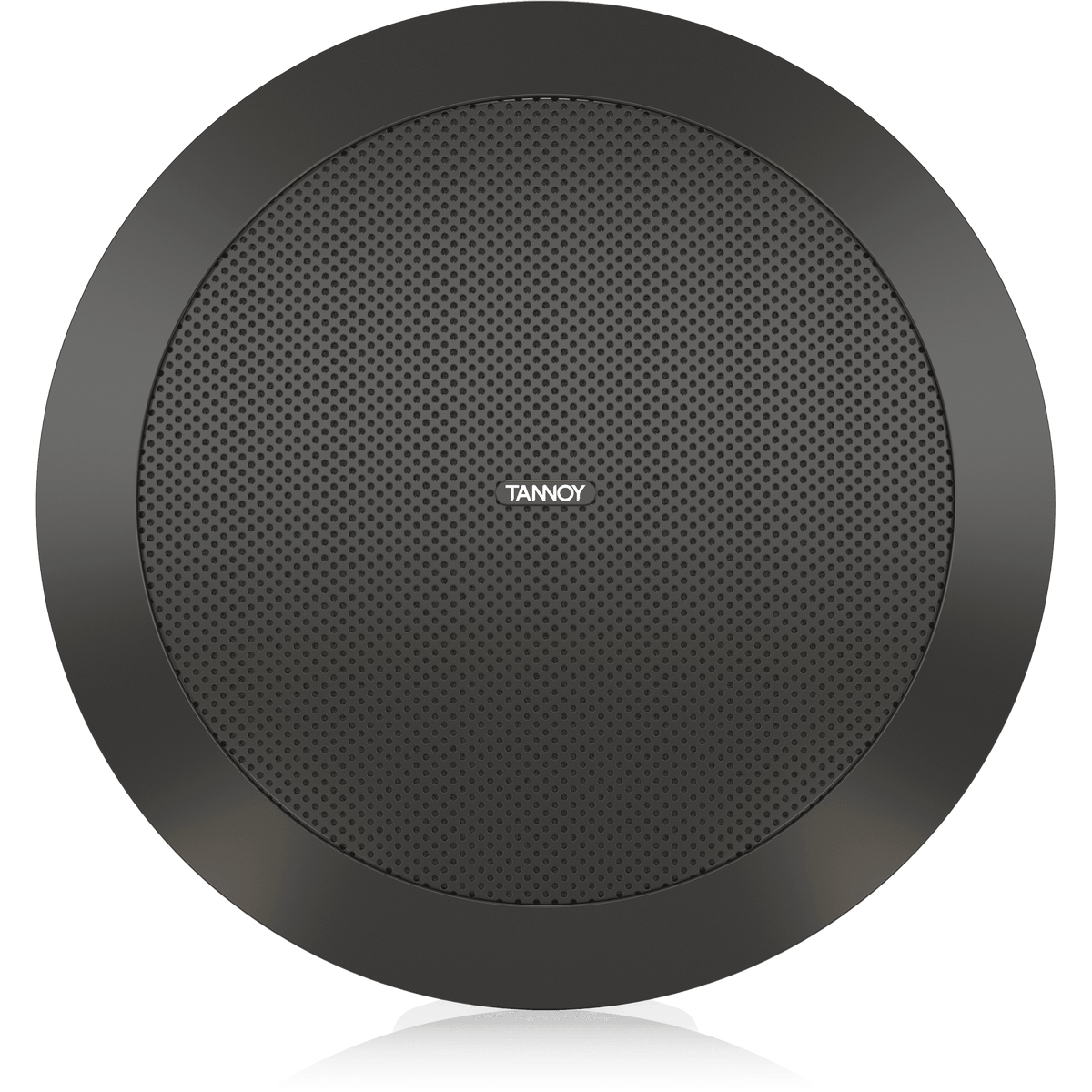

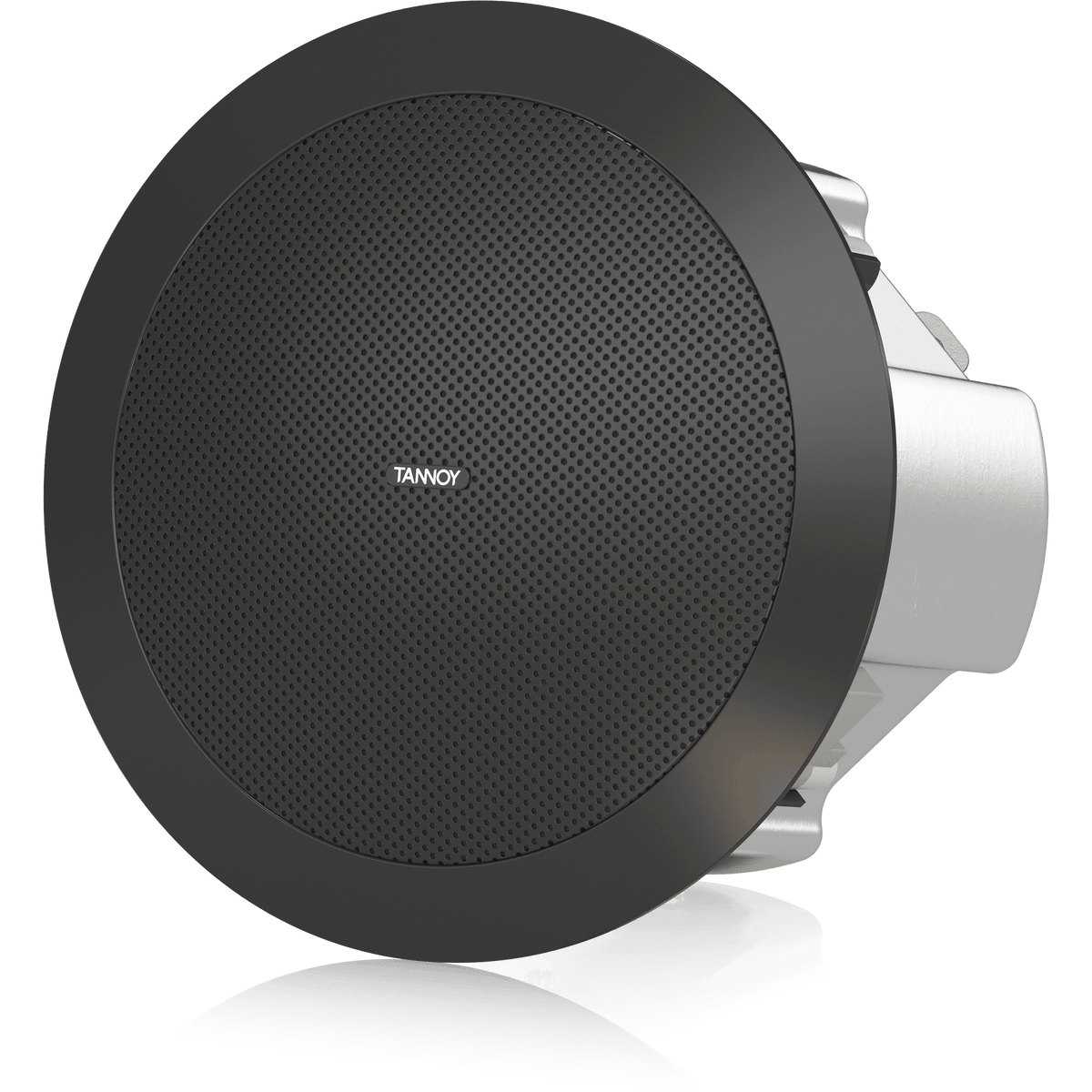

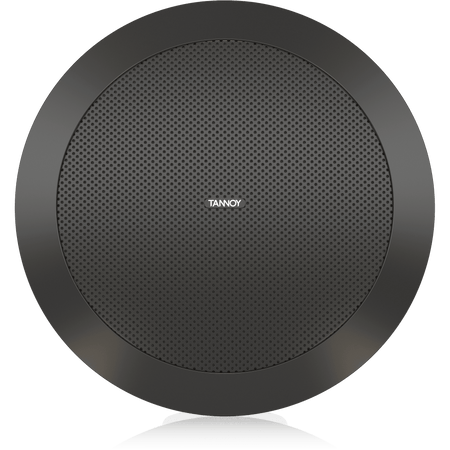

The CVS 301-BK is a ceiling loudspeaker engineered to provide superb audio performance in both background and foreground music sound systems. Ideally suited for a wide variety of applications, from restaurants and hotels to houses of worship and businesses of all types, the CVS 301-BK offers the power handling, wide frequency response and low distortion typically found in more expensive products. EN54-24 certification for fire detection and fire alarm systems makes the CVS 301-BK the perfect choice where safety is a top priority. The loudspeaker is also UL 1480 certified for fire-protected signalling systems and UL 2043 certified for air-handling spaces.
| Bezel diameter (grille max diameter) |
200 mm (8") |
| Rear face of baffle to rear of back can | 130 mm (5.12") |
| Rear face of baffle to top of safety loop | 143 mm (5.63") |
| Rear face of baffle to rear of flex conduit | 155 mm (6.10") |
| Hole cutout diameter | φ172 mm (6.77") |
| Net weight | 2.41 kg (5.30 lbs) ±10% |
| Included accessories | Metal grille, cable gland, flex conduit, C-ring, tile-bridge kit, paint mask, cutout template |
